Chemical Bonding and Its Types

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Chapter 6 Concept: Types of Chemical Bonds

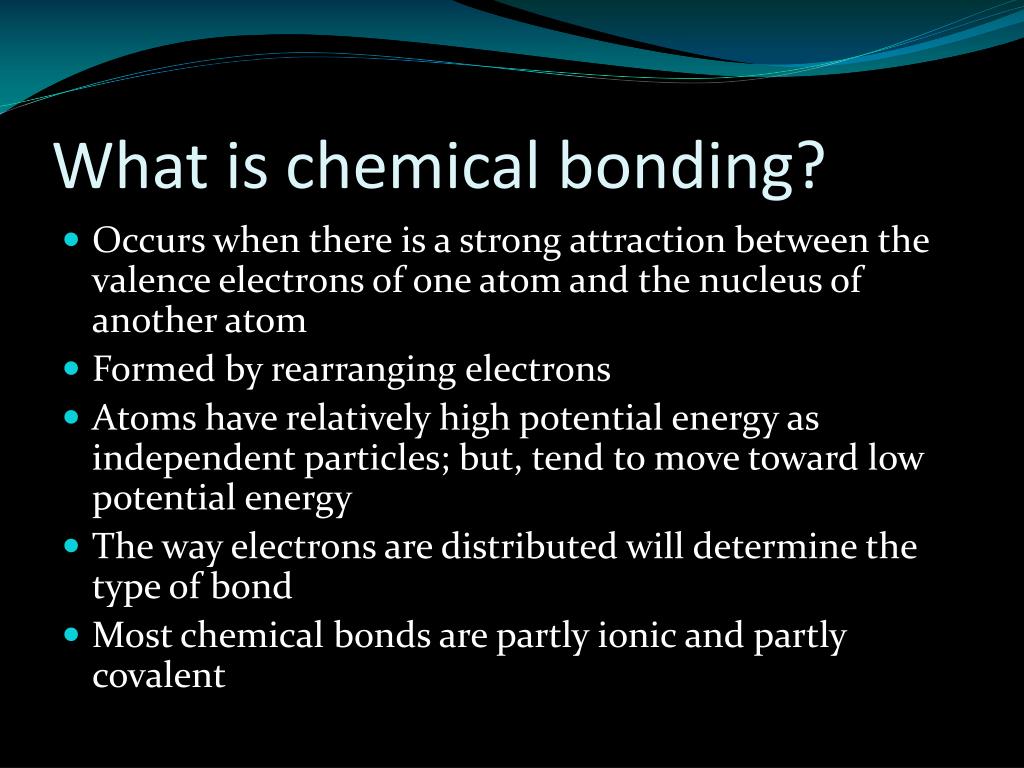

  2. What is chemical bonding? • Occurs when there is a strong attraction between the valence electrons of one atom and the nucleus of another atom • Formed by rearranging electrons • Atoms have relatively high potential energy as independent particles; but, tend to move toward low potential energy • The way electrons are distributed will determine the type of bond • Most chemical bonds are partly ionic and partly covalent

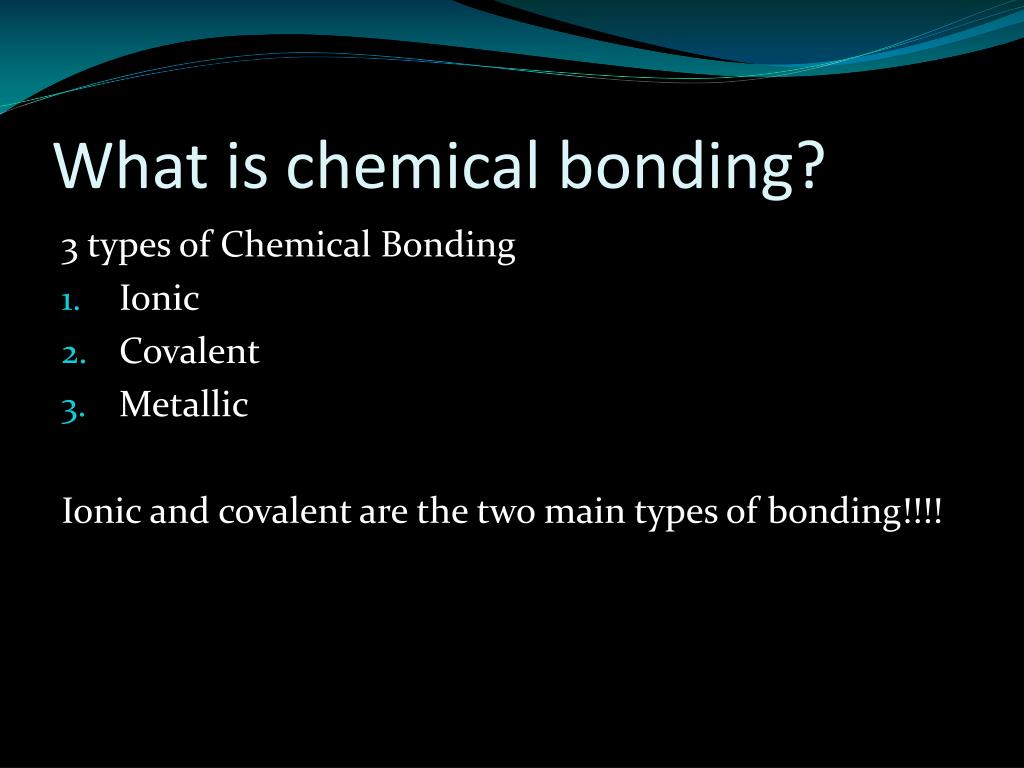

  3. What is chemical bonding? 3 types of Chemical Bonding • Ionic • Covalent • Metallic Ionic and covalent are the two main types of bonding!!!!

  4. LEQ: What are characteristics of ionic bonding? • Between metal and nonmetal • Electrical attraction (opposite charges hold compounds together). • Smallest particle is an ion • Solid at room temperature; but, brittle • Crystalline lattice structure (repeating patterns of ions)

  5. LEQ: What are characteristics of ionic bonding? • Stronger than covalent bonds • Formula unit • Makes atoms more stable • Lowers potential energy • High melting and boiling points • Good conductors of electricity (in molten state)

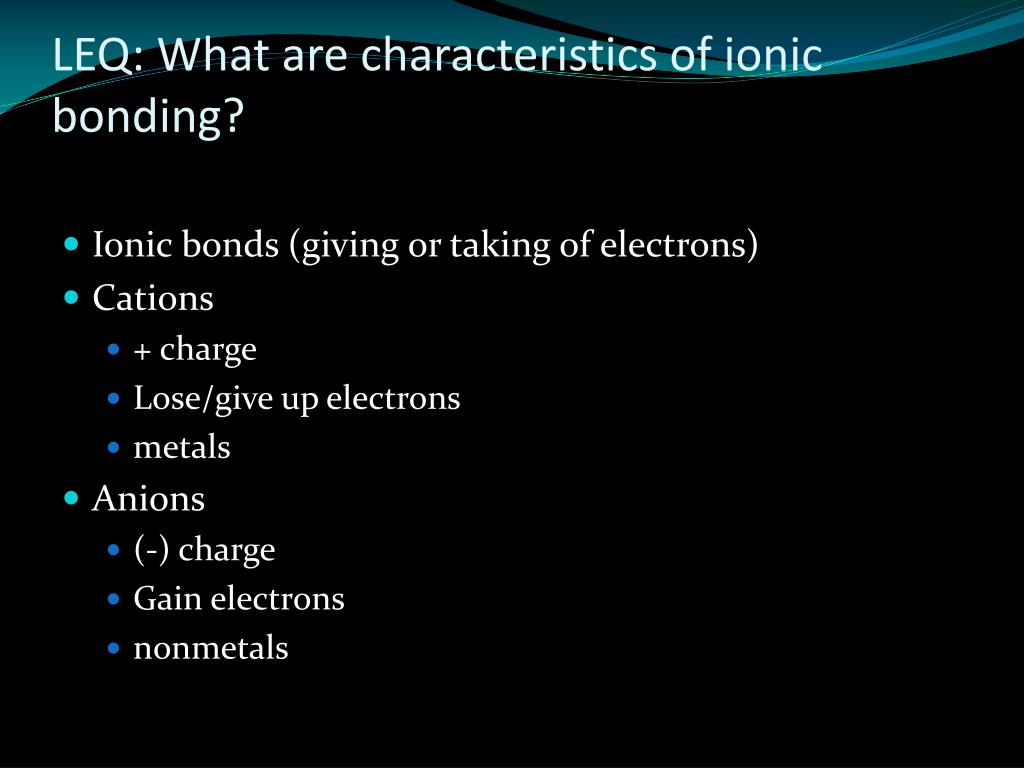

  6. LEQ: What are characteristics of ionic bonding? • Ionic bonds (giving or taking of electrons) • Cations • + charge • Lose/give up electrons • metals • Anions • (-) charge • Gain electrons • nonmetals

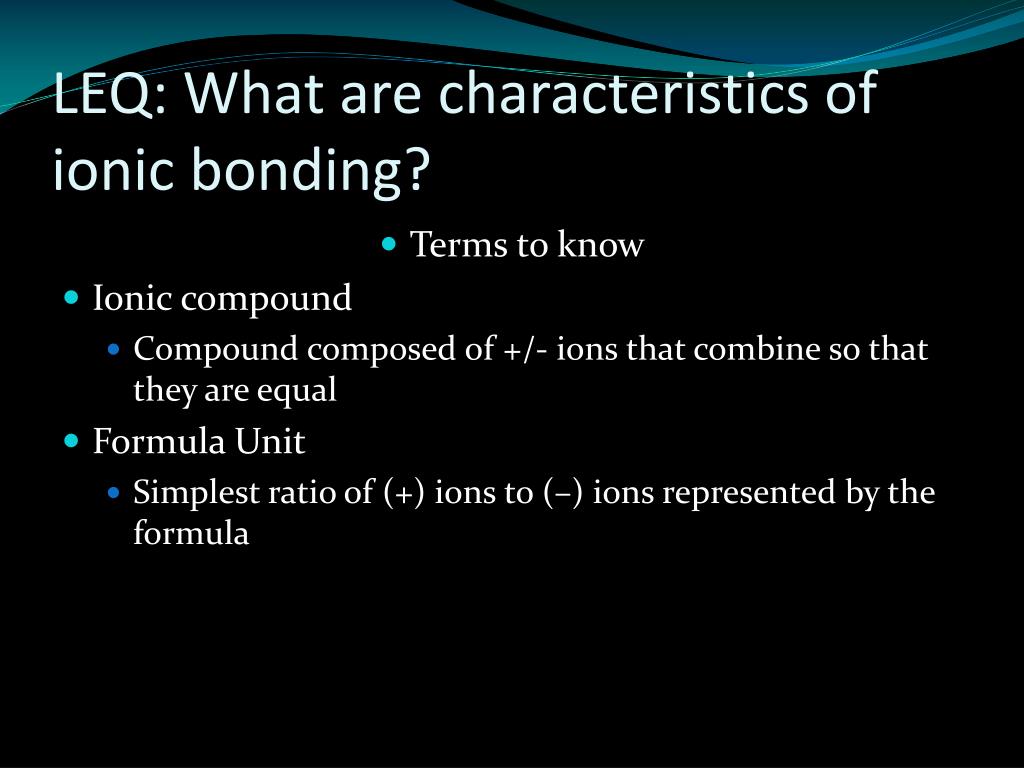

  7. LEQ: What are characteristics of ionic bonding? • Terms to know • Ionic compound • Compound composed of +/- ions that combine so that they are equal • Formula Unit • Simplest ratio of (+) ions to (–) ions represented by the formula

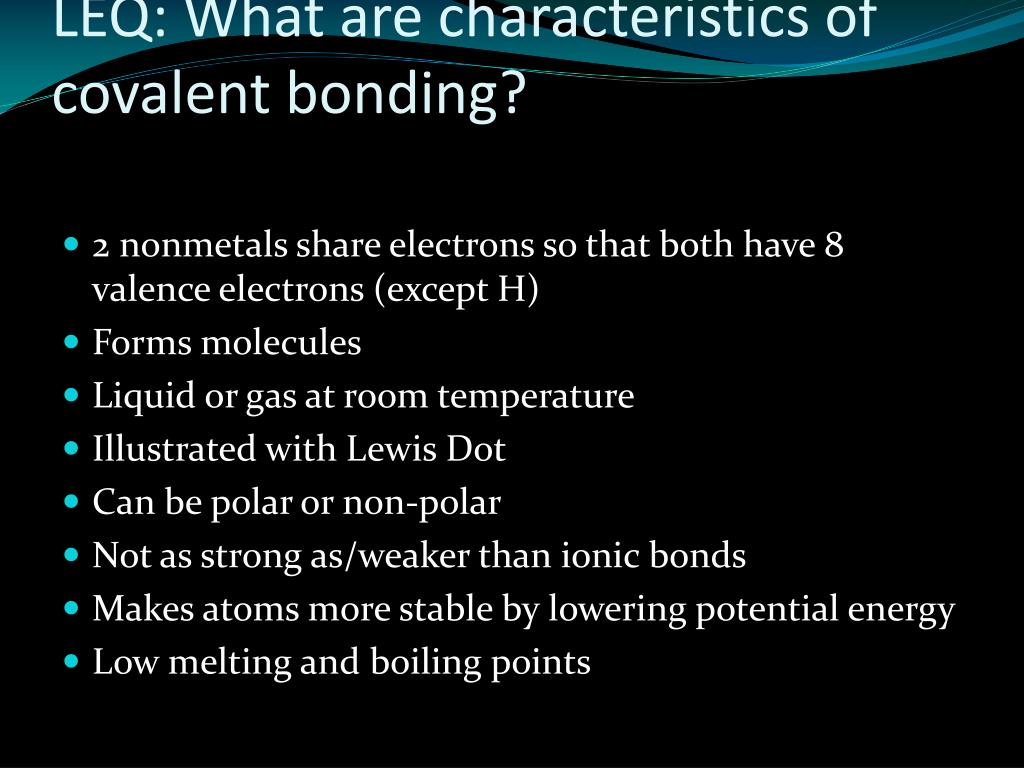

  8. LEQ: What are characteristics of covalent bonding? • 2 nonmetals share electrons so that both have 8 valence electrons (except H) • Forms molecules • Liquid or gas at room temperature • Illustrated with Lewis Dot • Can be polar or non-polar • Not as strong as/weaker than ionic bonds • Makes atoms more stable by lowering potential energy • Low melting and boiling points

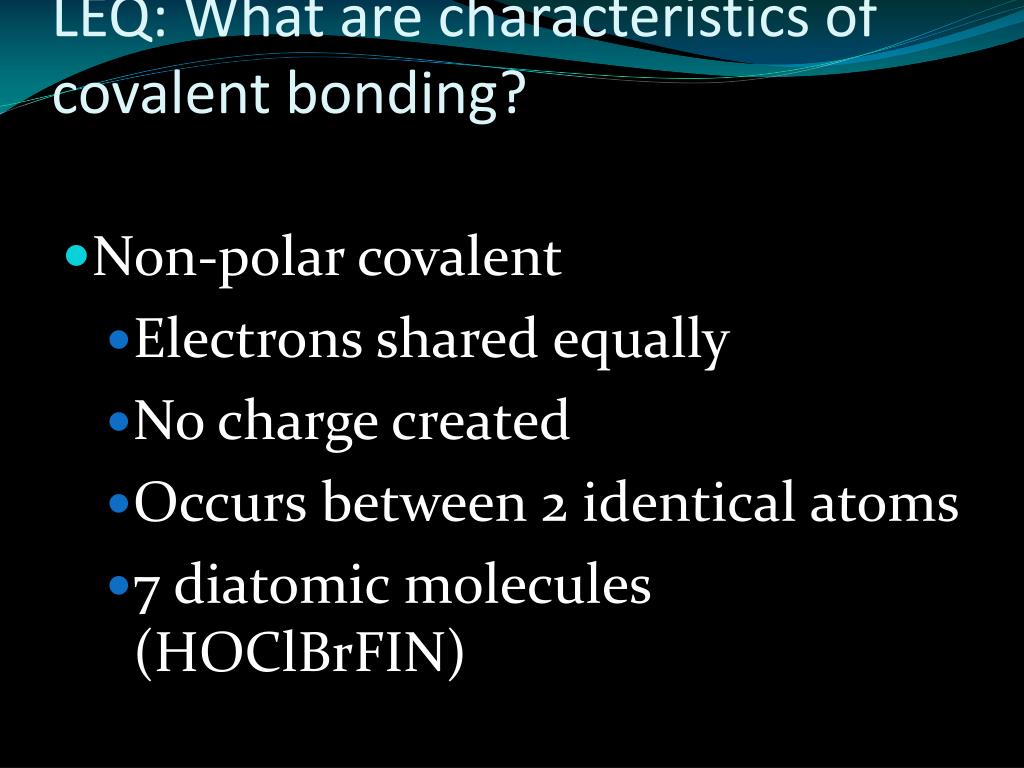

  9. LEQ: What are characteristics of covalent bonding? • Non-polar covalent • Electrons shared equally • No charge created • Occurs between 2 identical atoms • 7 diatomic molecules (HOClBrFIN)

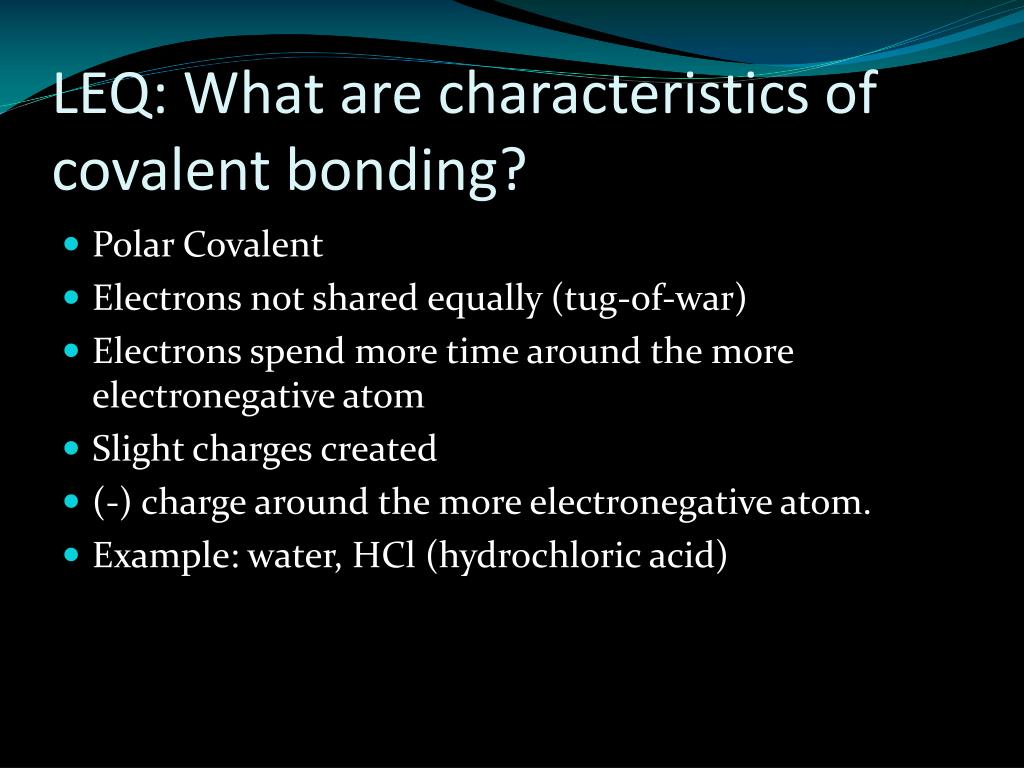

  10. LEQ: What are characteristics of covalent bonding? • Polar Covalent • Electrons not shared equally (tug-of-war) • Electrons spend more time around the more electronegative atom • Slight charges created • (-) charge around the more electronegative atom. • Example: water, HCl (hydrochloric acid)

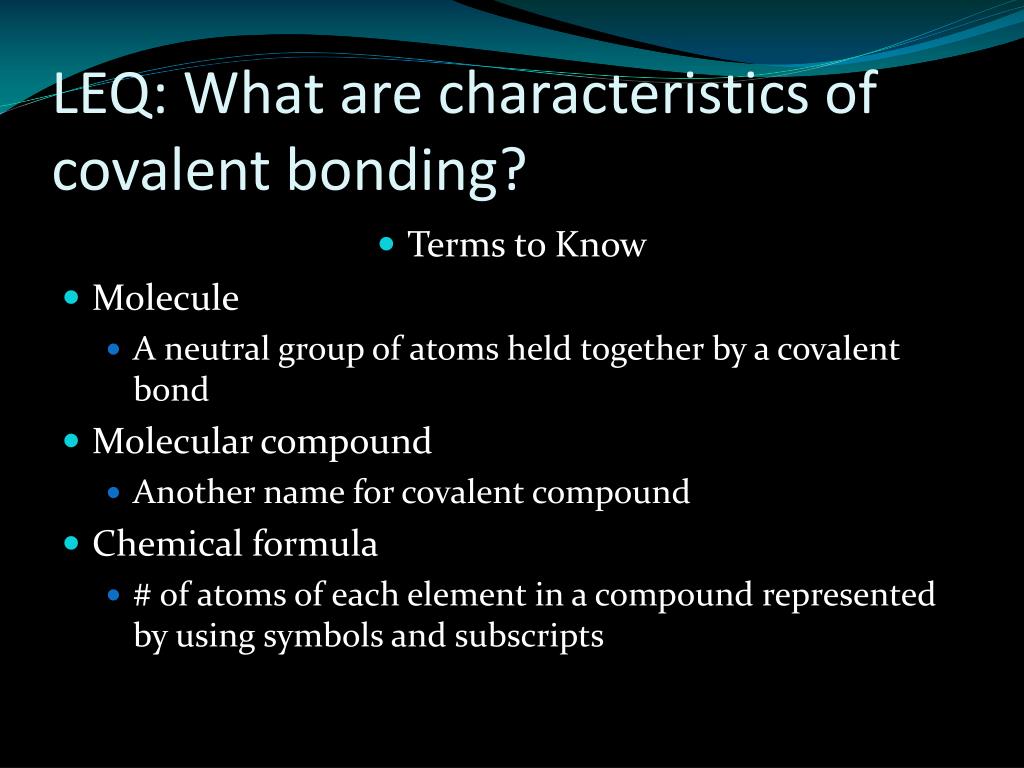

  11. LEQ: What are characteristics of covalent bonding? • Terms to Know • Molecule • A neutral group of atoms held together by a covalent bond • Molecular compound • Another name for covalent compound • Chemical formula • # of atoms of each element in a compound represented by using symbols and subscripts

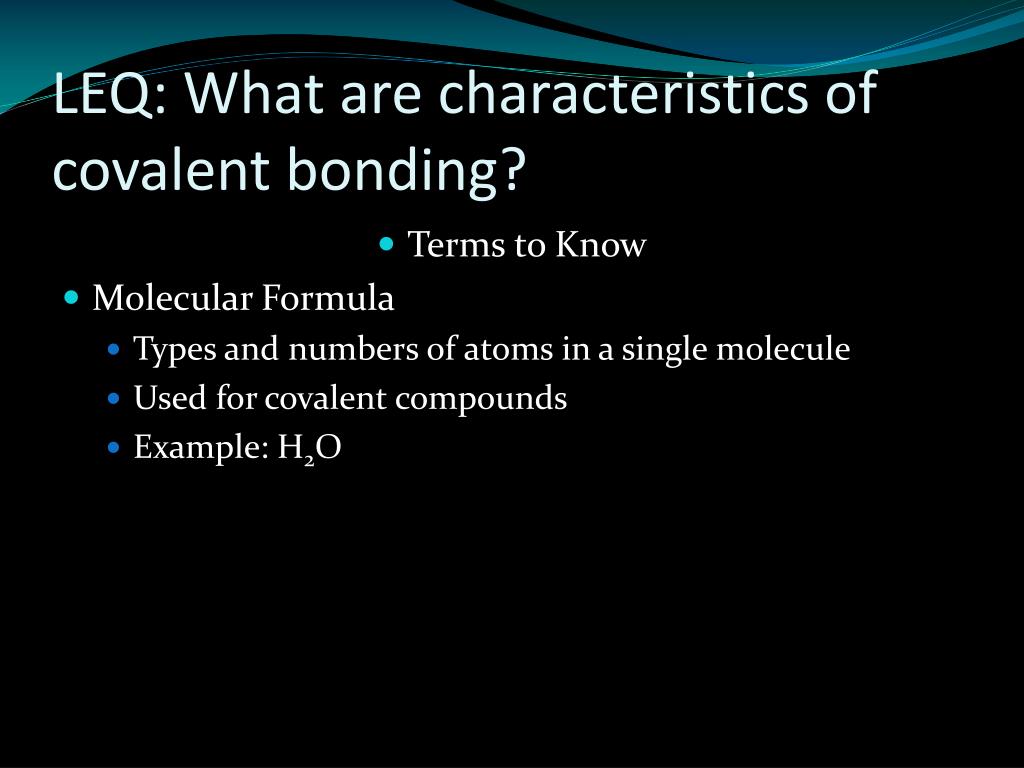

  12. LEQ: What are characteristics of covalent bonding? • Terms to Know • Molecular Formula • Types and numbers of atoms in a single molecule • Used for covalent compounds • Example: H2O

  13. LEQ: What are characteristics of covalent bonding? 1. To lower potential energy by making the substance more stable • Attract/repel each other until the distance between the atoms is reached where the repulsion between the like charges equal the attraction of the opposite charges • Atoms have relatively high potential energy as independent particles; but, tend to move toward low potential energy

  14. LEQ: What are characteristics of covalent bonding? 2. To form octet • Octet rule – atoms tend to form compounds (by gaining, losing, or sharing electrons) so that the highest energy level is full (8 electrons in s & p orbitals) • How many more electrons does nitrogen need to satisfy the octet rule if its electron configuration is 1s22s22p3 ?

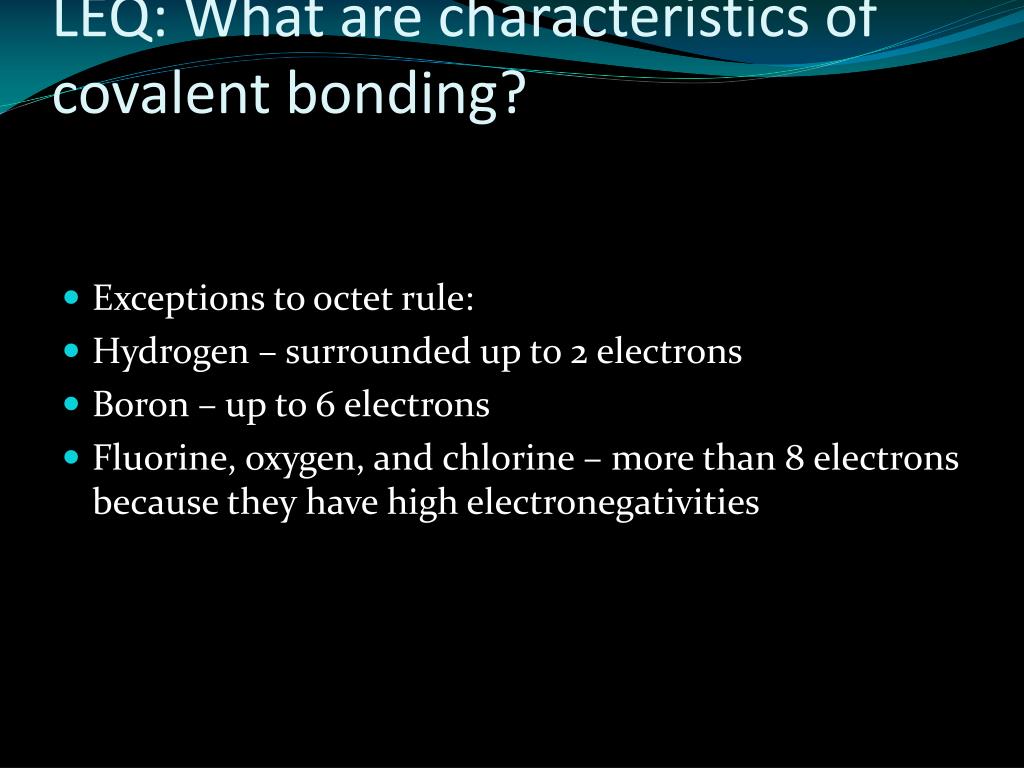

  15. LEQ: What are characteristics of covalent bonding? • Exceptions to octet rule: • Hydrogen – surrounded up to 2 electrons • Boron – up to 6 electrons • Fluorine, oxygen, and chlorine – more than 8 electrons because they have high electronegativities

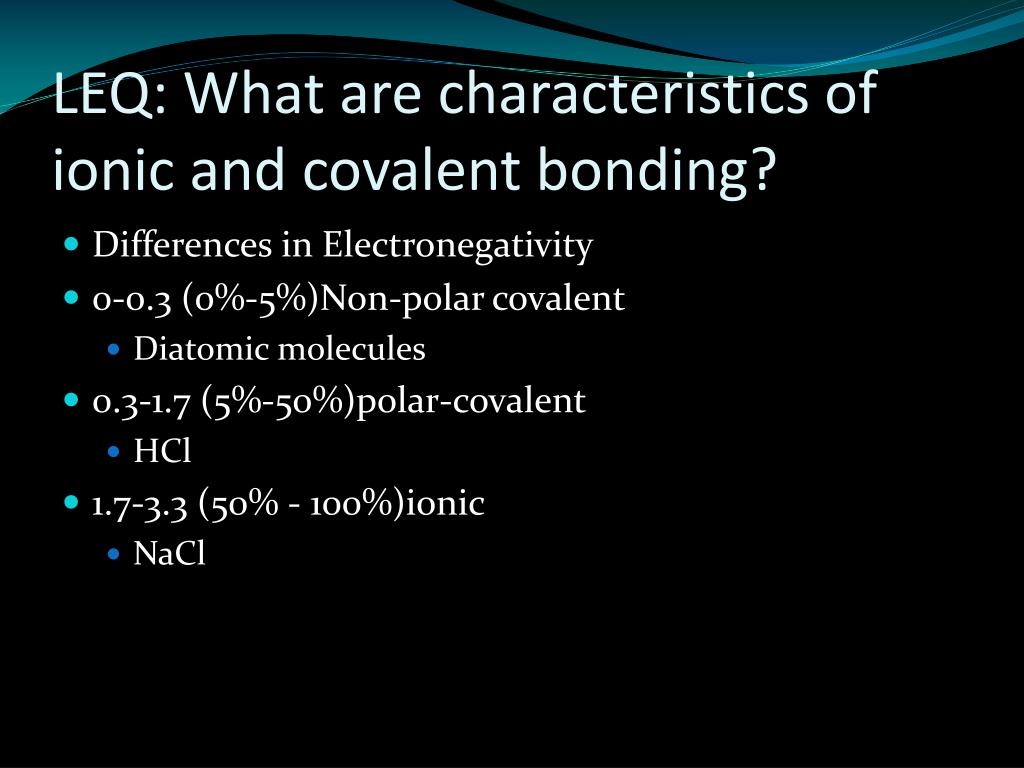

  16. LEQ: What are characteristics of ionic and covalent bonding? • Differences in Electronegativity • 0-0.3 (0%-5%)Non-polar covalent • Diatomic molecules • 0.3-1.7 (5%-50%)polar-covalent • HCl • 1.7-3.3 (50% - 100%)ionic • NaCl

  17. Lewis Dot Structures • Uses electron dot to illustrate what a molecule looks like • Electron dot notation • Only shows valence electrons • Symbol of element stands for nucleus and all inner shell electrons • Lewis Dot can show single, double, and triple bonds • If carbon is present, use as central atom. If not, use the least electronegative atom as the central atom. NEVER use hydrogen as central atom.

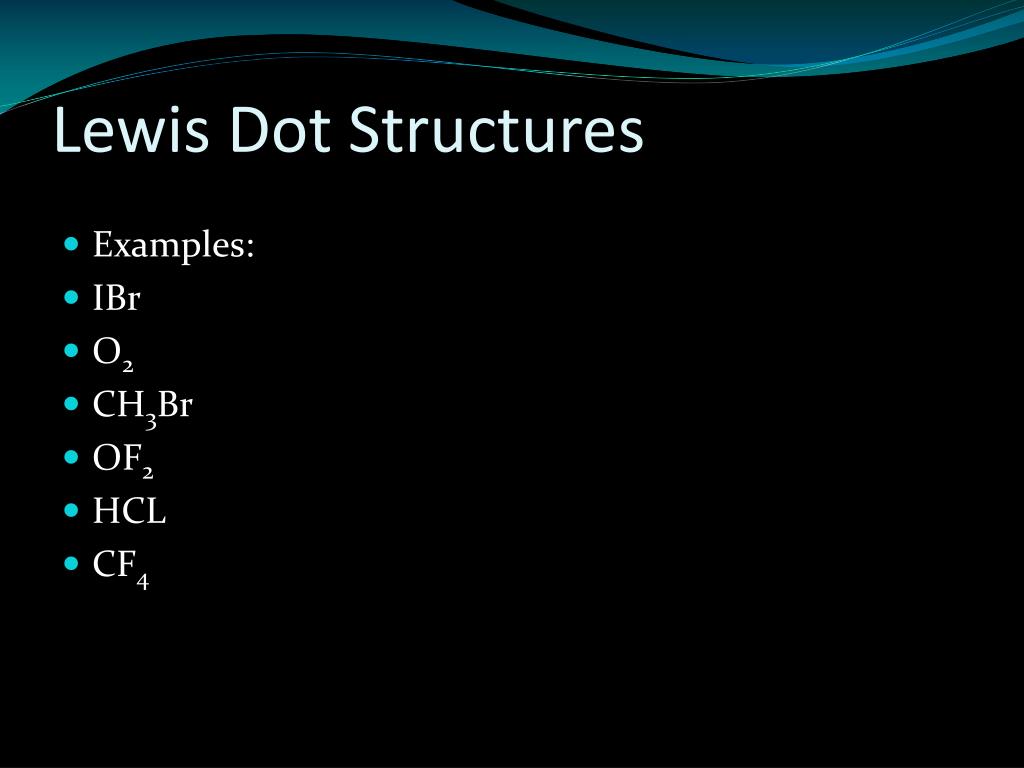

  18. Lewis Dot Structures • Examples: • IBr • O2 • CH3Br • OF2 • HCL • CF4

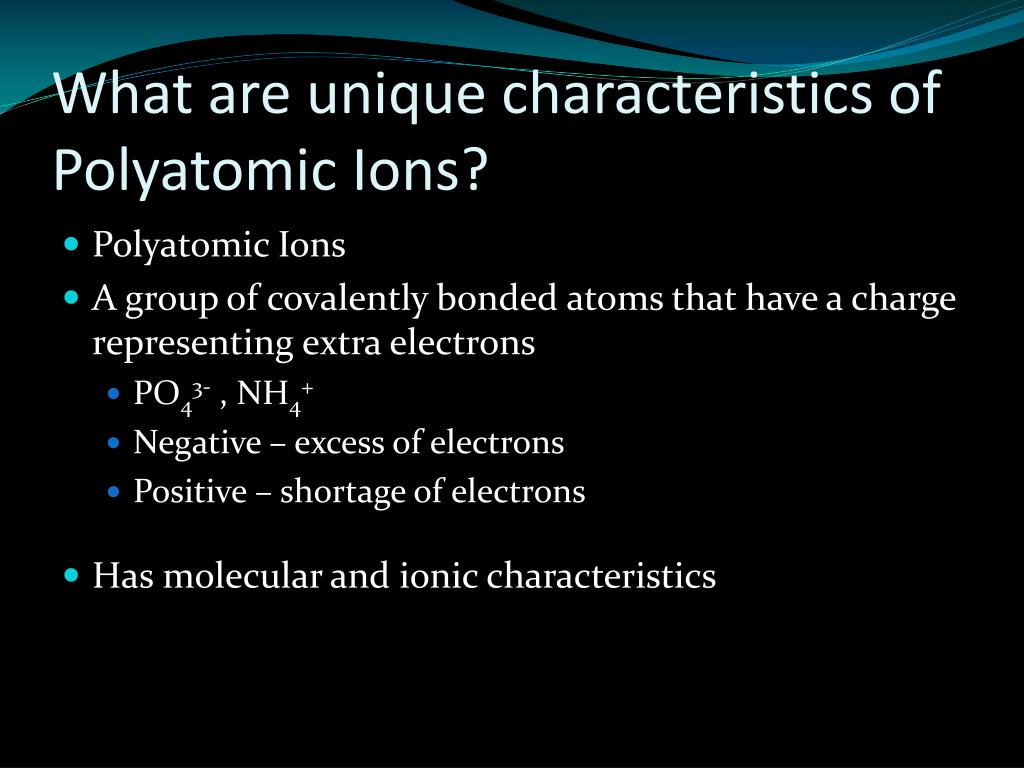

  19. What are unique characteristics of Polyatomic Ions? • Polyatomic Ions • A group of covalently bonded atoms that have a charge representing extra electrons • PO43- , NH4+ • Negative – excess of electrons • Positive – shortage of electrons • Has molecular and ionic characteristics

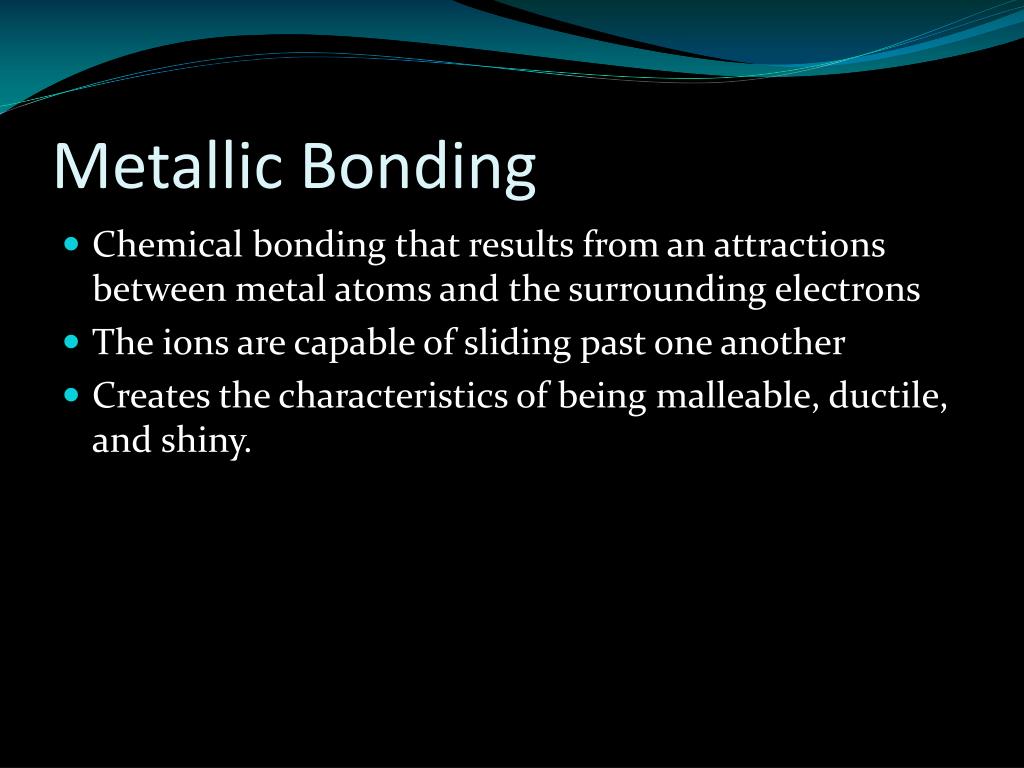

  20. Metallic Bonding • Chemical bonding that results from an attractions between metal atoms and the surrounding electrons • The ions are capable of sliding past one another • Creates the characteristics of being malleable, ductile, and shiny.
