  1. Predicting the behaviour of a finite phased array from an infinite one Jacki van der Merwe MScEng University of Stellenbosch

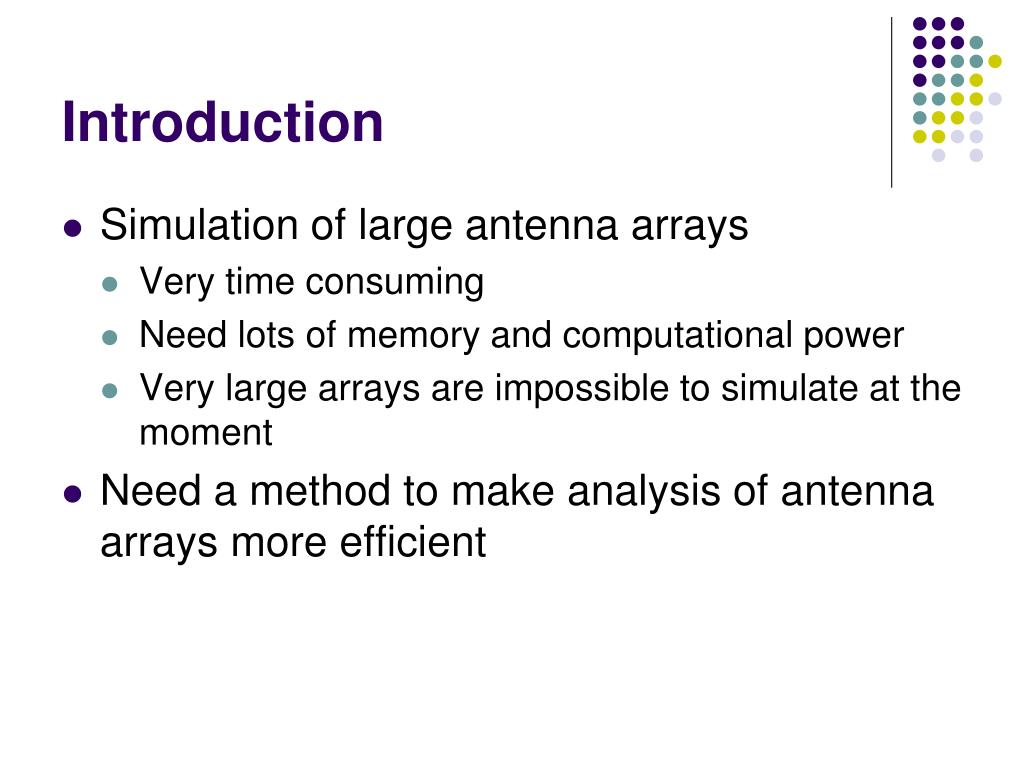

  2. Introduction • Simulation of large antenna arrays • Very time consuming • Need lots of memory and computational power • Very large arrays are impossible to simulate at the moment • Need a method to make analysis of antenna arrays more efficient

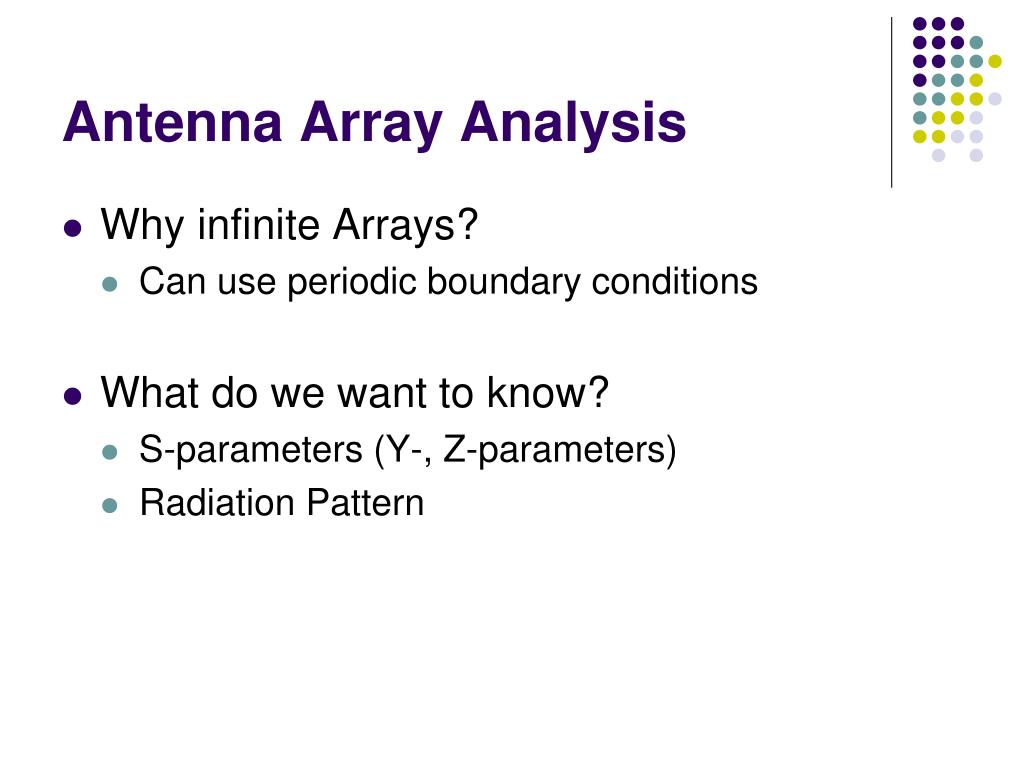

  3. Antenna Array Analysis • Why infinite Arrays? • Can use periodic boundary conditions • What do we want to know? • S-parameters (Y-, Z-parameters) • Radiation Pattern

  4. Calculating the S-parameters

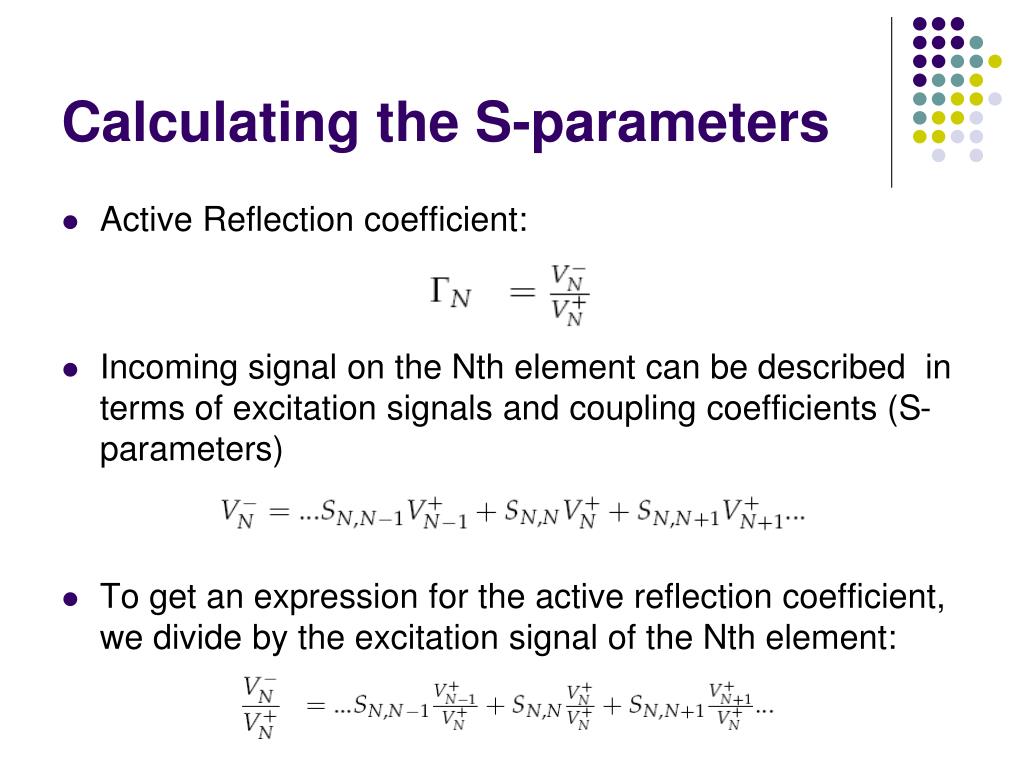

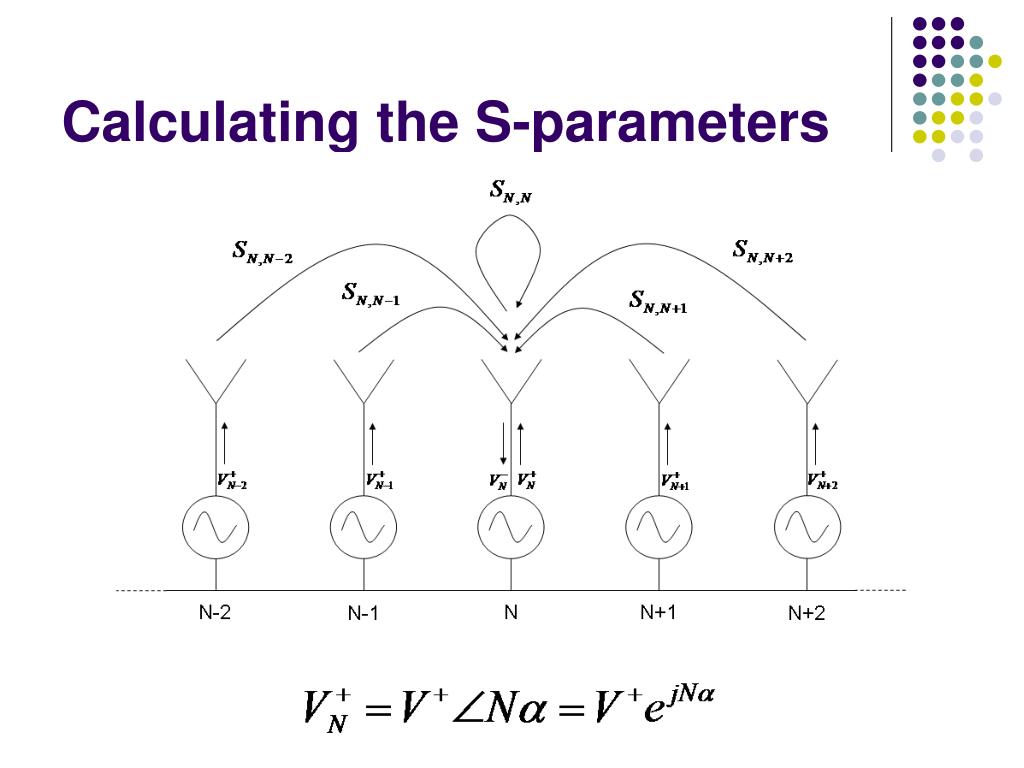

  5. Calculating the S-parameters • Active Reflection coefficient: • Incoming signal on the Nth element can be described in terms of excitation signals and coupling coefficients (S-parameters) • To get an expression for the active reflection coefficient, we divide by the excitation signal of the Nth element:

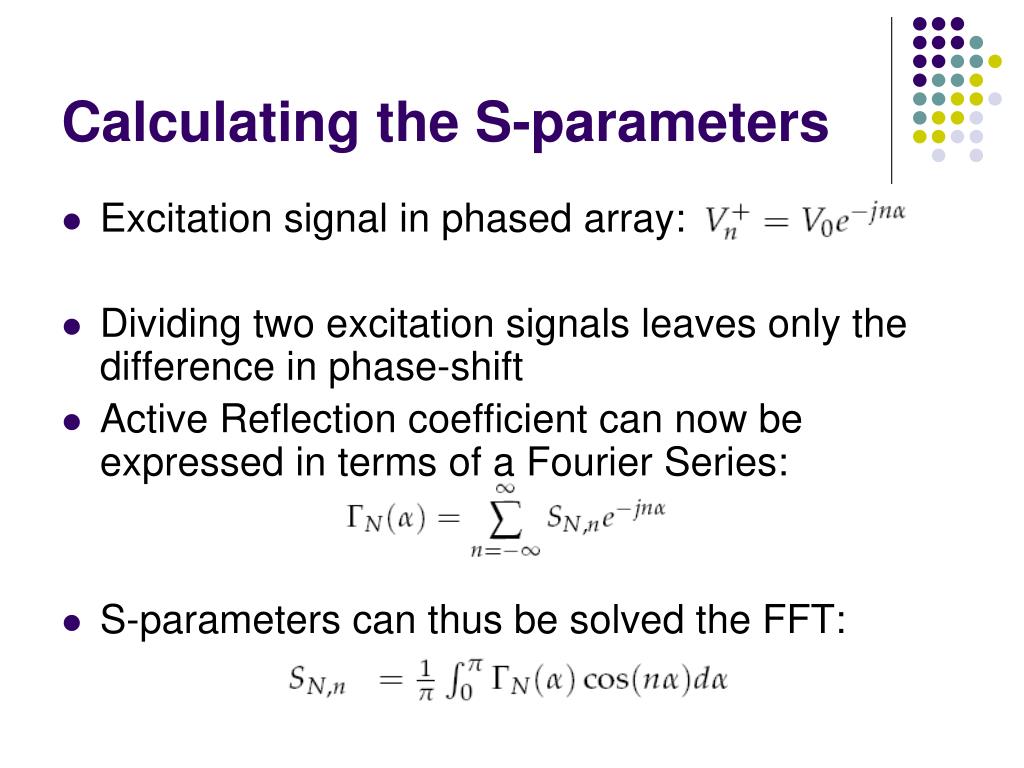

  6. Calculating the S-parameters • Excitation signal in phased array: • Dividing two excitation signals leaves only the difference in phase-shift • Active Reflection coefficient can now be expressed in terms of a Fourier Series: • S-parameters can thus be solved the FFT:

  7. Calculating the S-parameters • Example: • 2D Dipole Array: • Elements Y-directed • Length = 0.4λ • Frequency = 1.875 GHz • a = b = 0.6λ

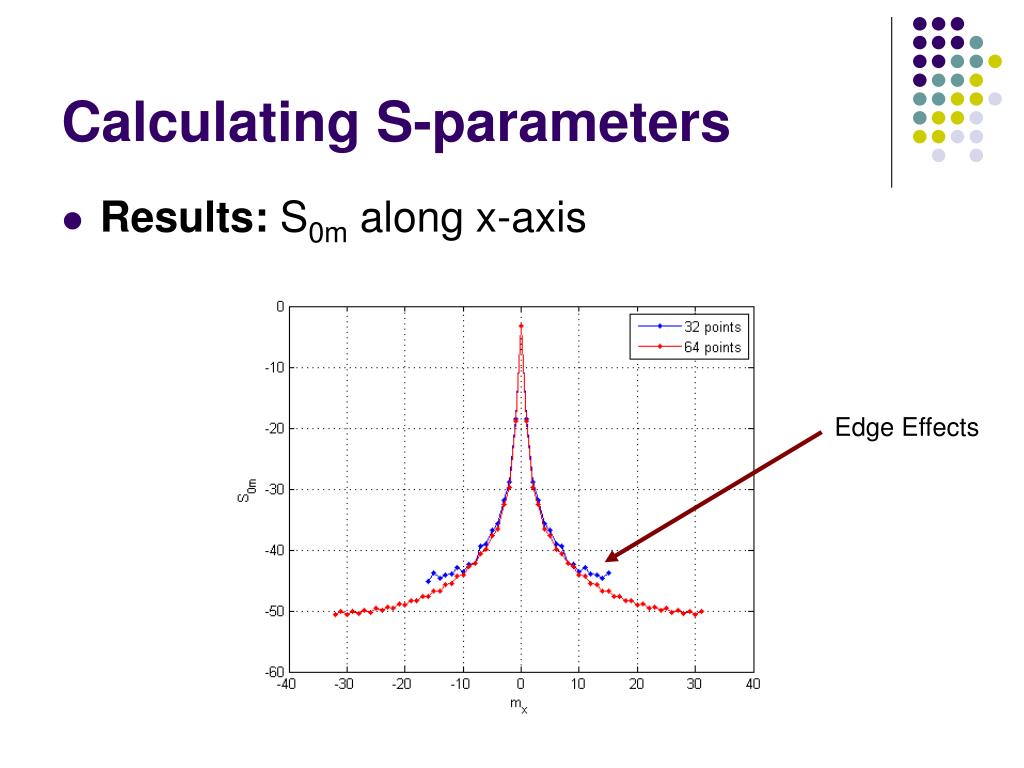

  8. Calculating S-parameters • Results: S0m along x-axis Edge Effects

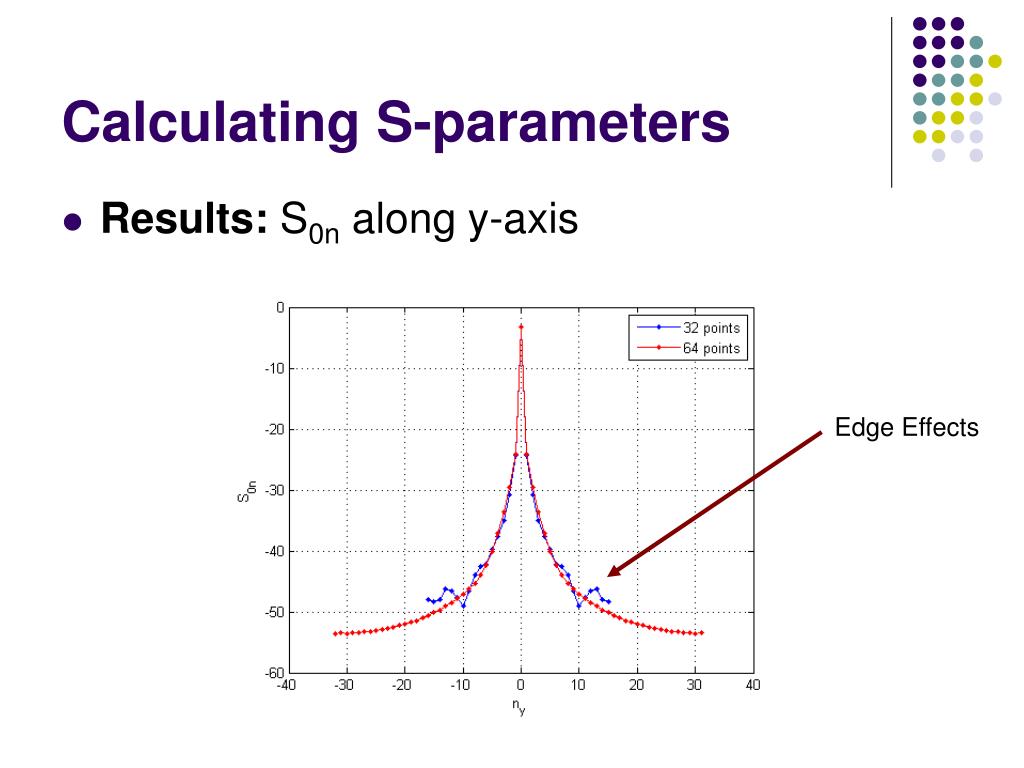

  9. Calculating S-parameters • Results: S0n along y-axis Edge Effects

  10. Calculating S-parameters • Results: S-parameters 3D

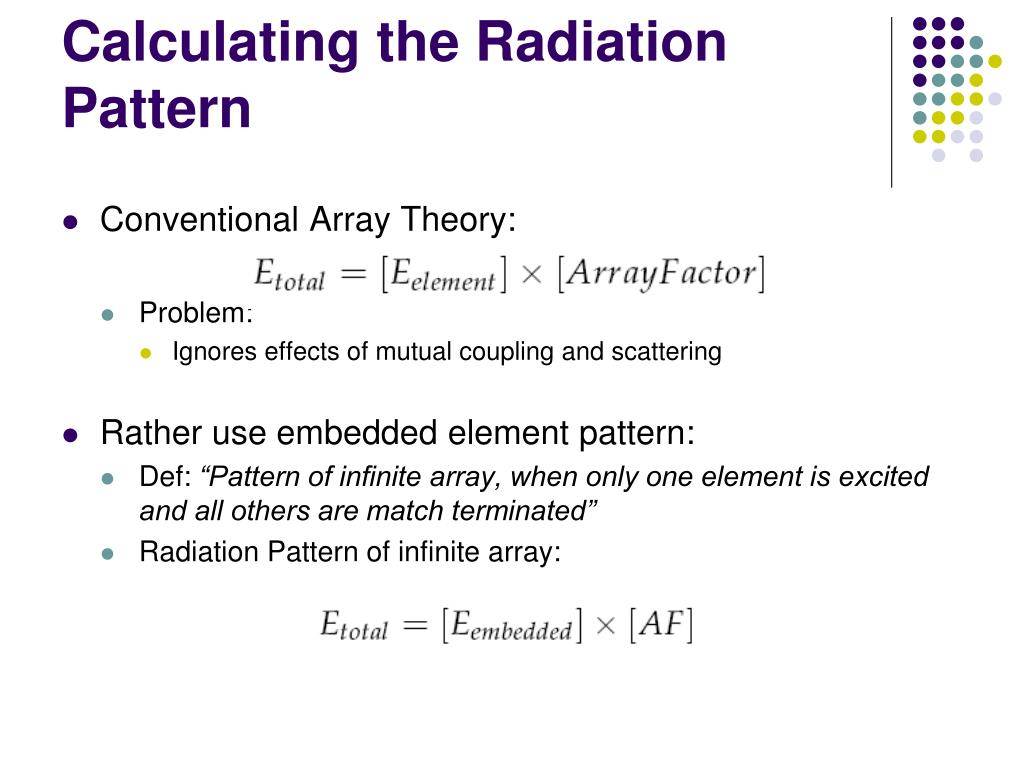

  11. Calculating the Radiation Pattern • Conventional Array Theory: • Problem: • Ignores effects of mutual coupling and scattering • Rather use embedded element pattern: • Def: “Pattern of infinite array, when only one element is excited and all others are match terminated” • Radiation Pattern of infinite array:

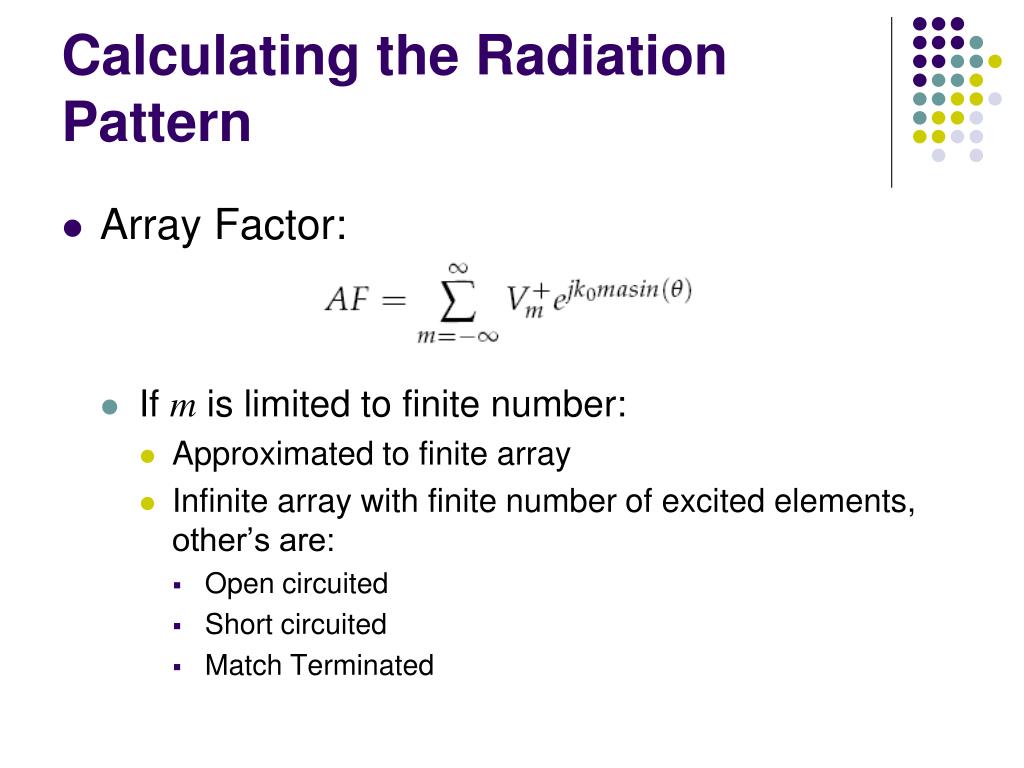

  12. Calculating the Radiation Pattern • Array Factor: • If m is limited to finite number: • Approximated to finite array • Infinite array with finite number of excited elements, other’s are: • Open circuited • Short circuited • Match Terminated

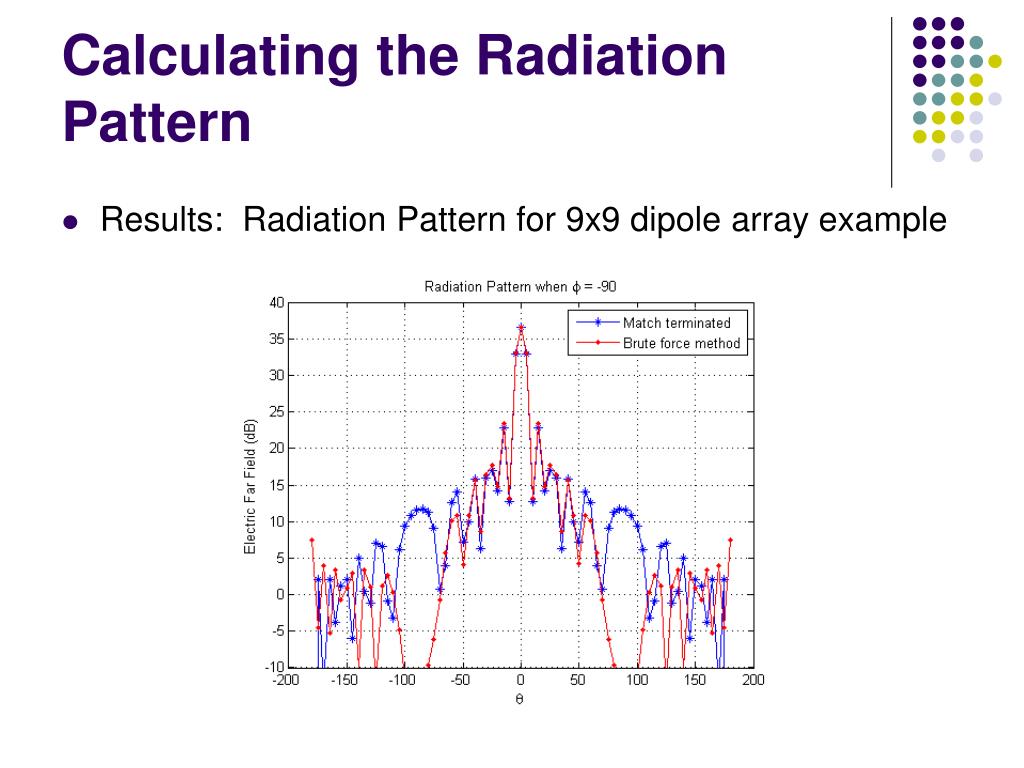

  13. Calculating the Radiation Pattern • Results: Radiation Pattern for 9x9 dipole array example

  14. Conclusion and Way Forward • Using these methods, analysis of very large antenna arrays will be possible • Generic Code will be developed to enable analysis of any large array topology. • Finally, these methods will be used to analyse FPA’s

  15. Any Questions?
