ULP capability representation

This document discusses the compact representation of ULP (Upper Layer Protocol) capabilities within beacon frames. It outlines the methods for representing ULPs in a compact manner using octet structures, and highlights the space limitations of ULP ID, which can reach up to 255. Various representation techniques, including bitmap and synthesis methods, are presented for different ULP configurations. A straw poll response is included, reflecting the general consensus about the merits of such compacting strategies.

davis-bishop
Télécharger la présentation

ULP capability representation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

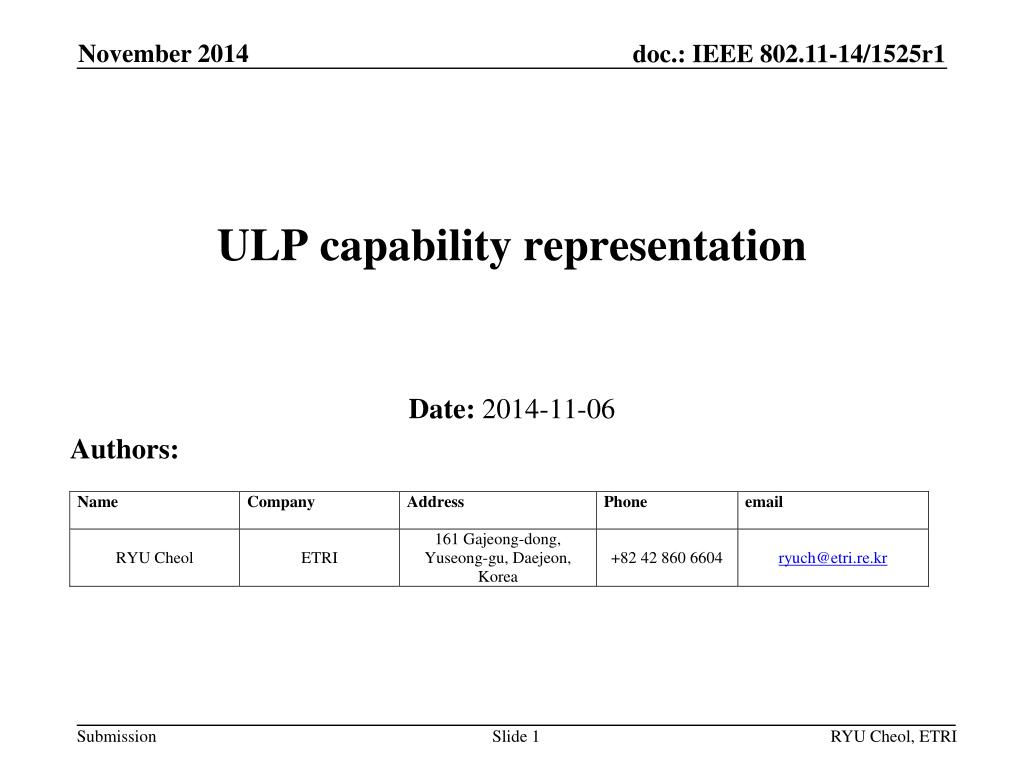

  1. ULP capability representation Date: 2014-11-06 Authors: RYU Cheol, ETRI

  2. PAD capability elements in a beacon frame must be compacted. RYU Cheol, ETRI

  3. List representation 2 octets for 1 ULP 3 octets for 2 ULPs n octets for n-1 ULPs ULP ID space is up to 255. RYU Cheol, ETRI

  4. Bitmap representation 3 octets for 1 ULP 3 octets for 2 ULPs … 3 octets for 32 ULPs ULP ID space is up to 32. RYU Cheol, ETRI

  5. Synthesis 1 octets for 1 frequent ULP. 1 octets for 2 frequent ULPs … 1 octets for 7 frequent ULPs 2 octets for 1 not-frequent ULP and 7 frequents ULPs 3 octets for 2 not-frequent ULP and 7 frequents ULPs n octets for n-1 not-frequent ULP and 7 frequents ULPs ULP ID space is up to 255+7 RYU Cheol, ETRI

  6. Straw Poll : • Do you agree that compacting ULP capability representation is a good idea? • Yes: 6 • No: 1 • Abstain: 17 RYU Cheol, ETRI
