  1. Plant Cells

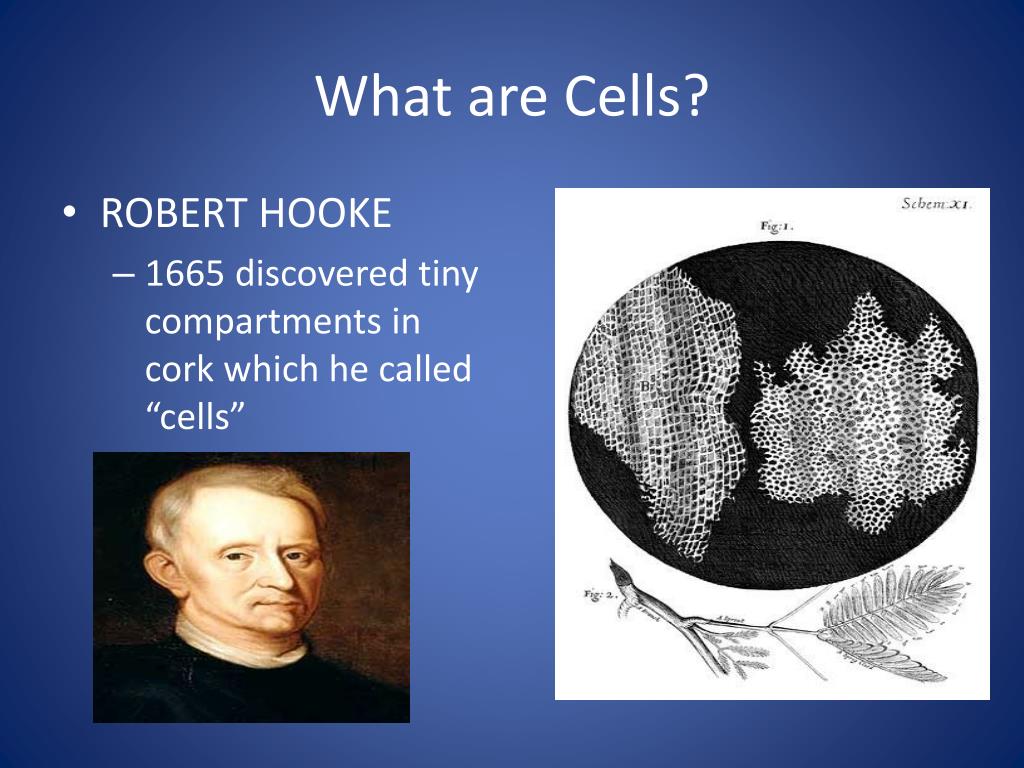

  2. What are Cells? • ROBERT HOOKE • 1665 discovered tiny compartments in cork which he called “cells”

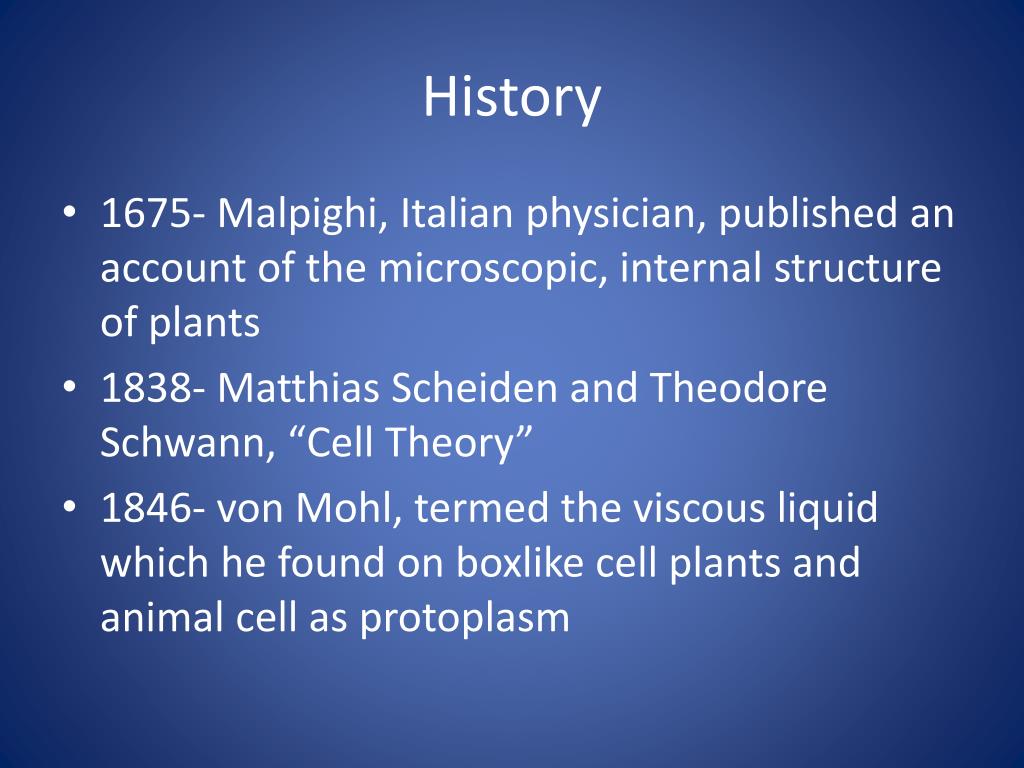

  3. History • 1675- Malpighi, Italian physician, published an account of the microscopic, internal structure of plants • 1838- Matthias Scheiden and Theodore Schwann, “Cell Theory” • 1846- von Mohl, termed the viscous liquid which he found on boxlike cell plants and animal cell as protoplasm

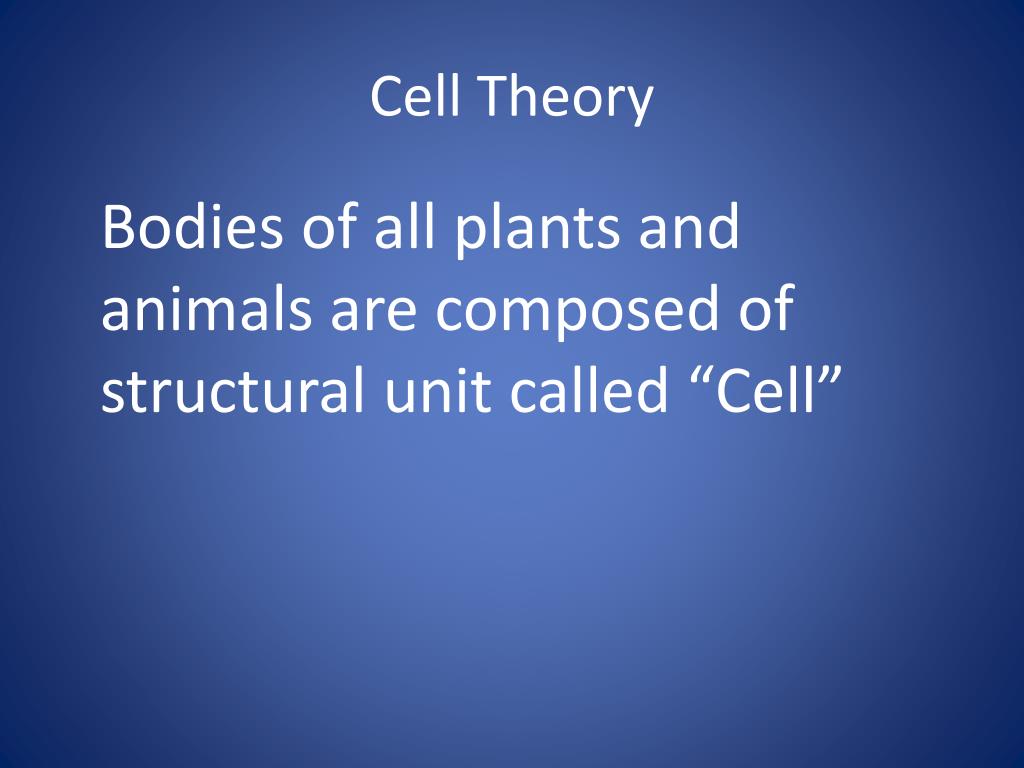

  4. Cell Theory Bodies of all plants and animals are composed of structural unit called “Cell”

  5. Cells • Arethe basic structural and functional unit • All living organisms are made up of cells • Physiological processes are encountered and manifested at cellular level.

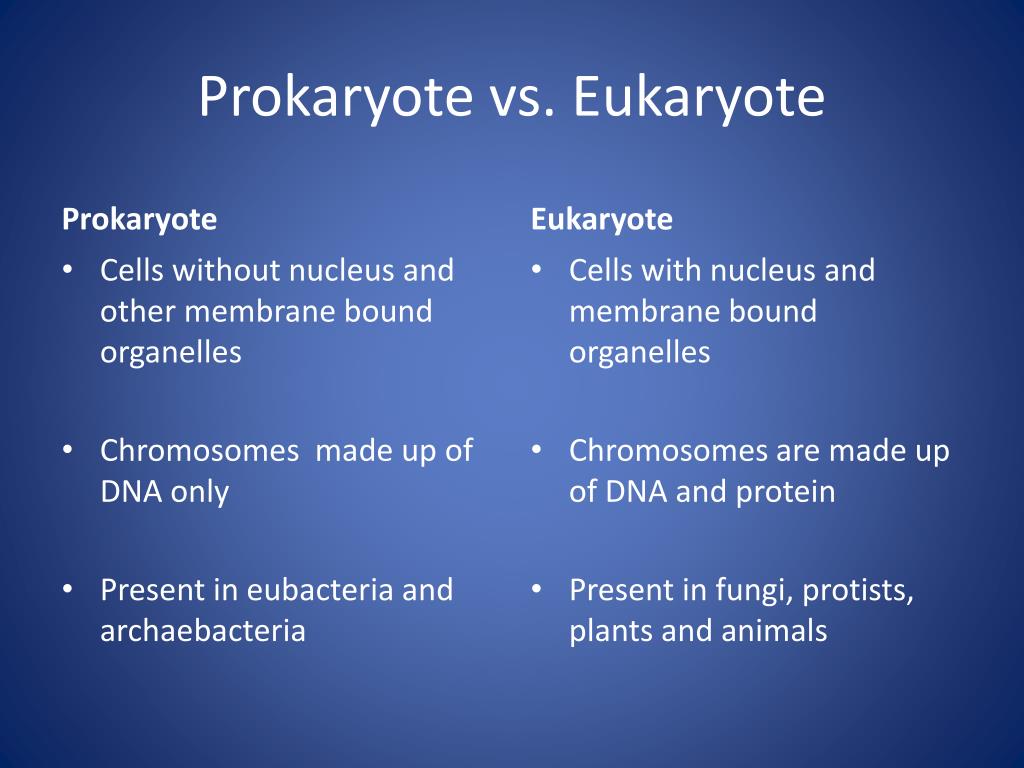

  6. Prokaryote vs. Eukaryote Prokaryote Eukaryote Cells with nucleus and membrane bound organelles Chromosomes are made up of DNA and protein Present in fungi, protists, plants and animals • Cells without nucleus and other membrane bound organelles • Chromosomes made up of DNA only • Present in eubacteria and archaebacteria

  7. Prokaryote vs. Eukaryote Prokaryote Eukaryote

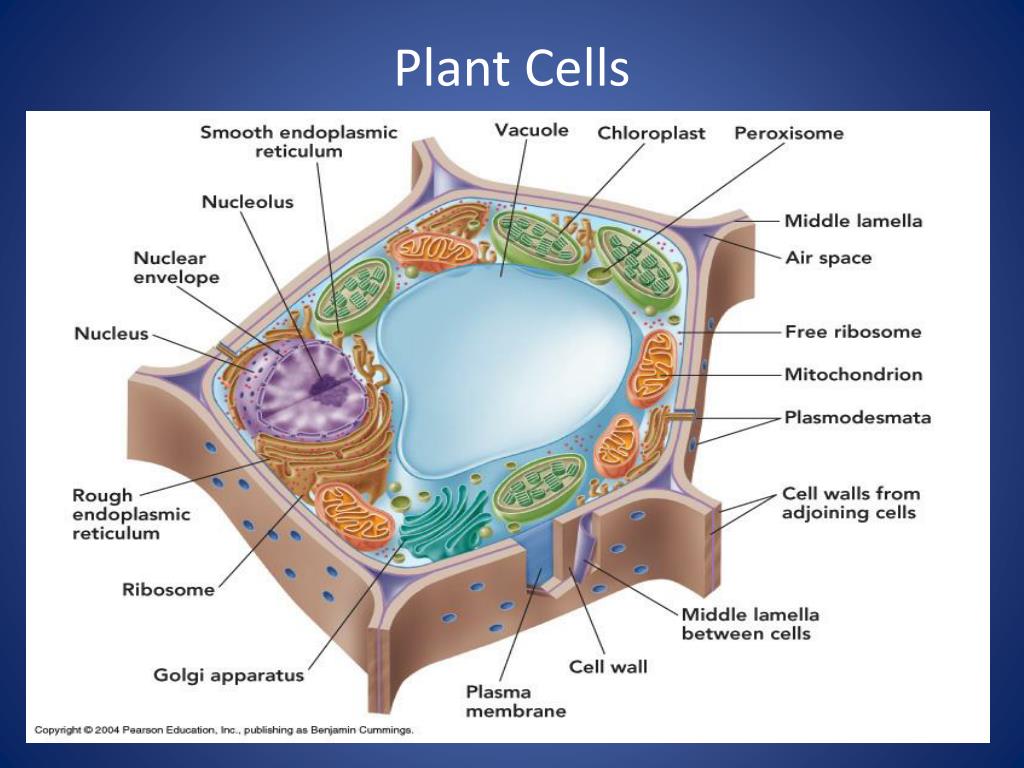

  8. Plant Cells

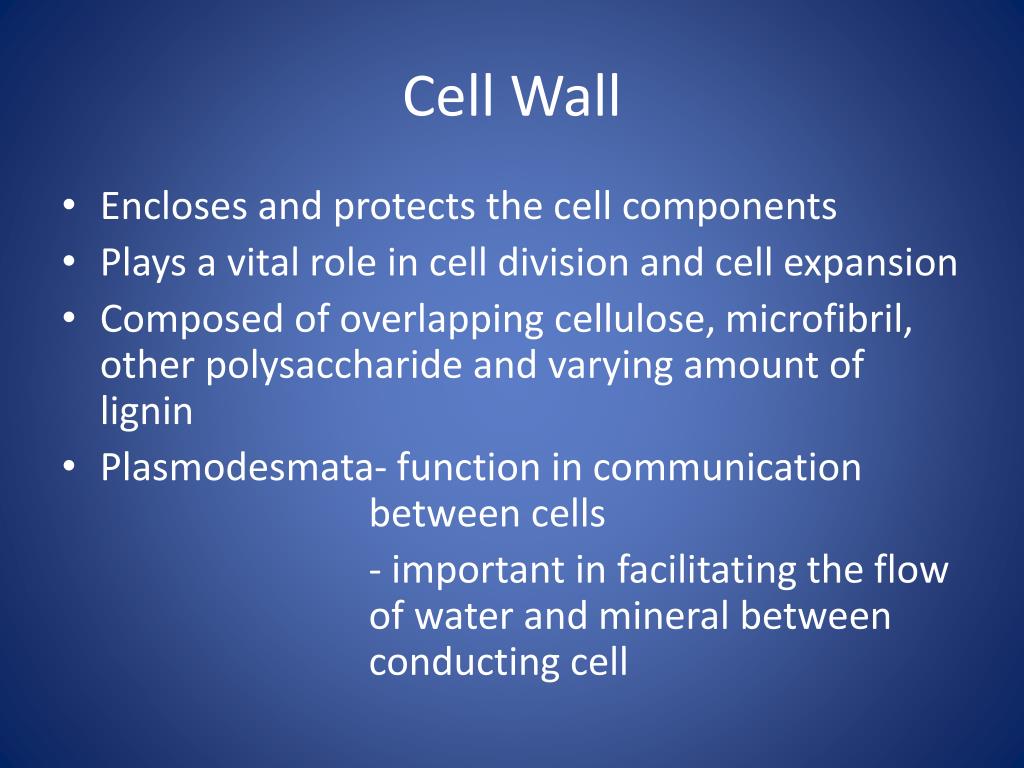

  9. Cell Wall • Encloses and protects the cell components • Plays a vital role in cell division and cell expansion • Composed of overlapping cellulose, microfibril, other polysaccharide and varying amount of lignin • Plasmodesmata- function in communication between cells - important in facilitating the flow of water and mineral between conducting cell

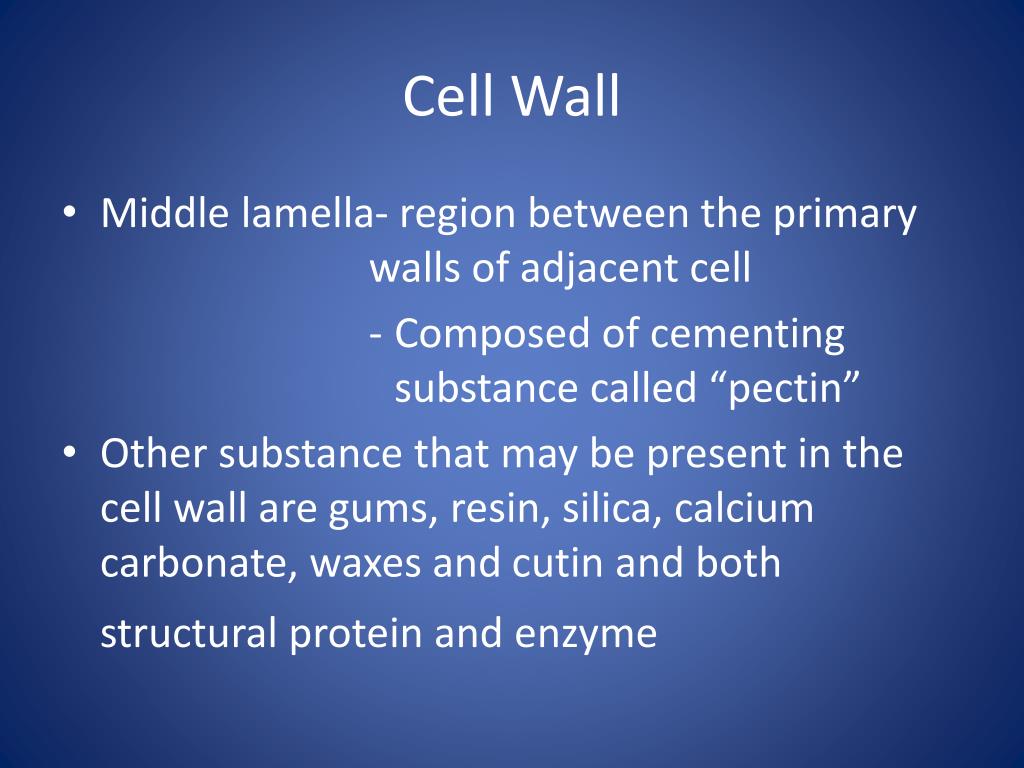

  10. Cell Wall • Middle lamella- region between the primary walls of adjacent cell • Composed of cementing substance called “pectin” • Other substance that may be present in the cell wall are gums, resin, silica, calcium carbonate, waxes and cutin and both structural protein and enzyme

  11. Plasma Membrane • Semi-permiable membrane encloses the cytoplasm within a cell • Composed of variable amounts of fat type molecules (lipids) and protein • Has within it channels for the movement of ions such as potassium (K+), calcium (Ca2+) and Hydrogen (H+)

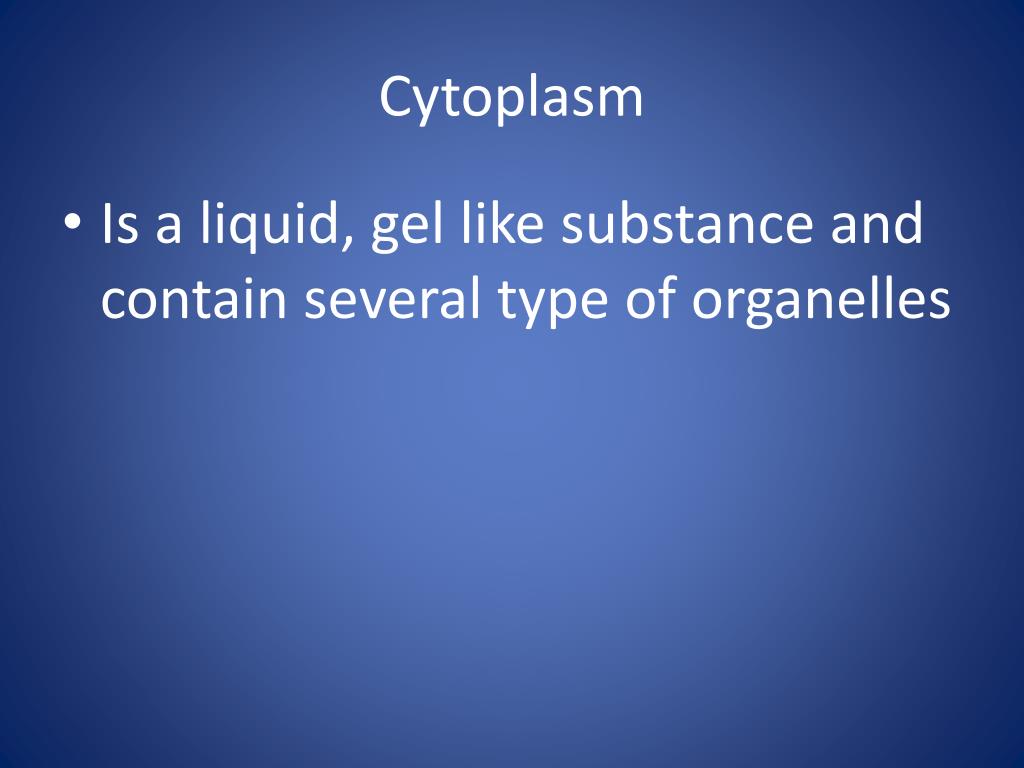

  12. Cytoplasm • Is a liquid, gel like substance and contain several type of organelles

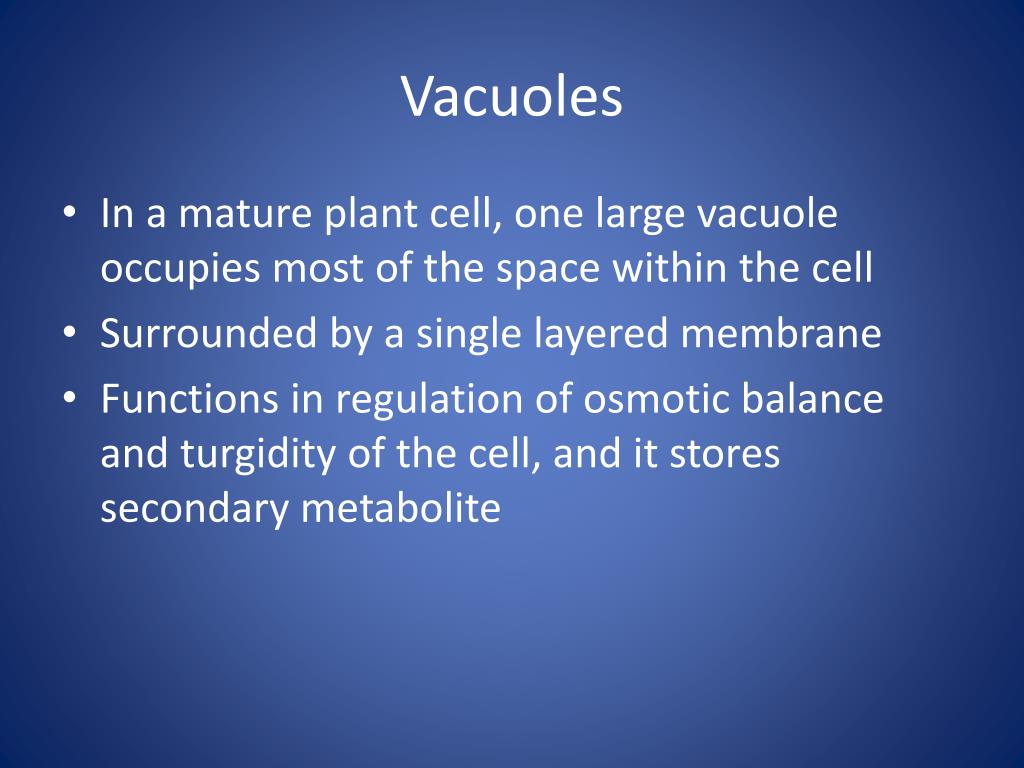

  13. Vacuoles • In a mature plant cell, one large vacuole occupies most of the space within the cell • Surrounded by a single layered membrane • Functions in regulation of osmotic balance and turgidity of the cell, and it stores secondary metabolite

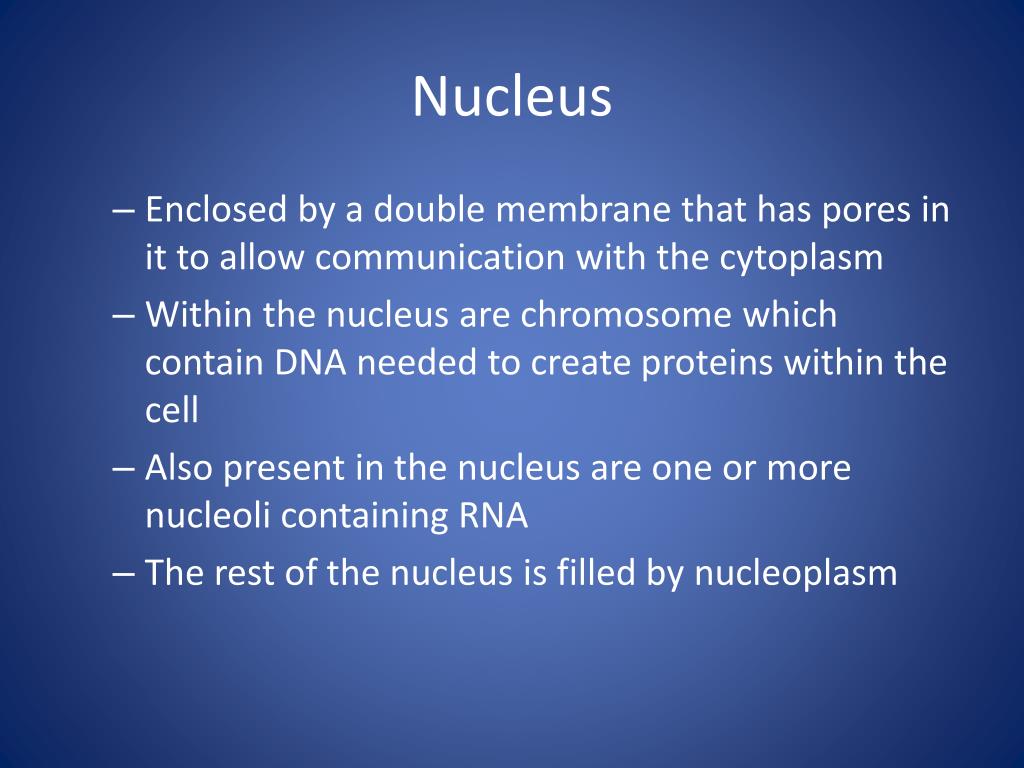

  14. Nucleus • Enclosed by a double membrane that has pores in it to allow communication with the cytoplasm • Within the nucleus are chromosome which contain DNA needed to create proteins within the cell • Also present in the nucleus are one or more nucleoli containing RNA • The rest of the nucleus is filled by nucleoplasm

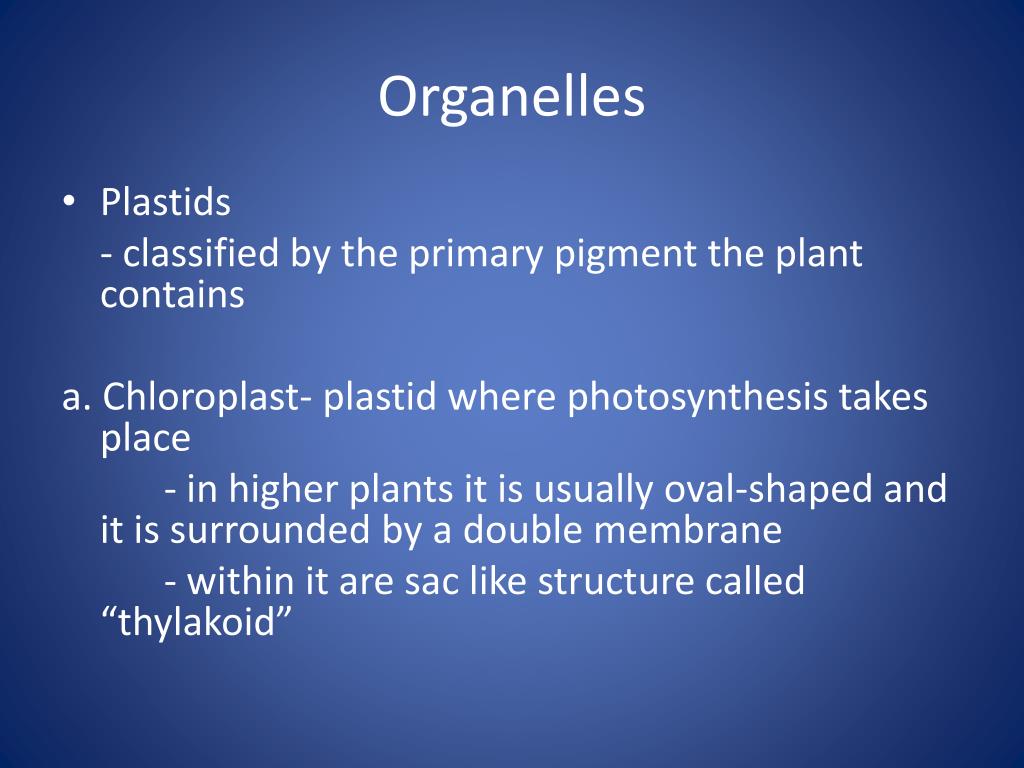

  15. Organelles • Plastids - classified by the primary pigment the plant contains a. Chloroplast- plastid where photosynthesis takes place - in higher plants it is usually oval-shaped and it is surrounded by a double membrane - within it are sac like structure called “thylakoid”

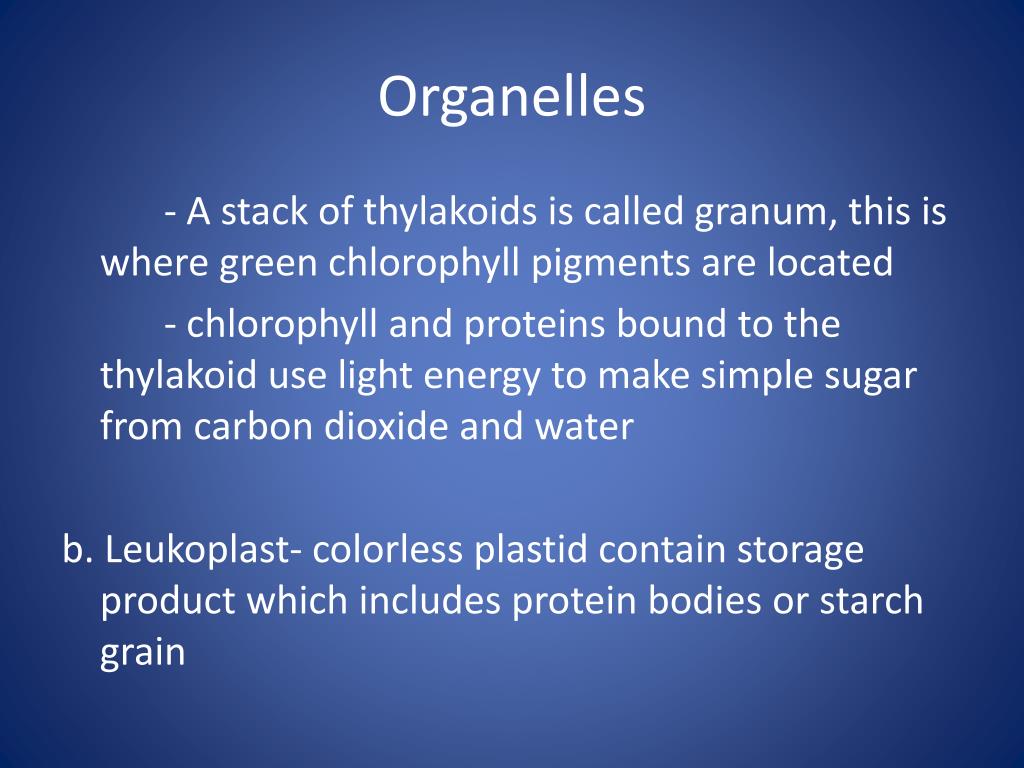

  16. Organelles - A stack of thylakoids is called granum, this is where green chlorophyll pigments are located - chlorophyll and proteins bound to the thylakoid use light energy to make simple sugar from carbon dioxide and water b. Leukoplast- colorless plastid contain storage product which includes protein bodies or starch grain

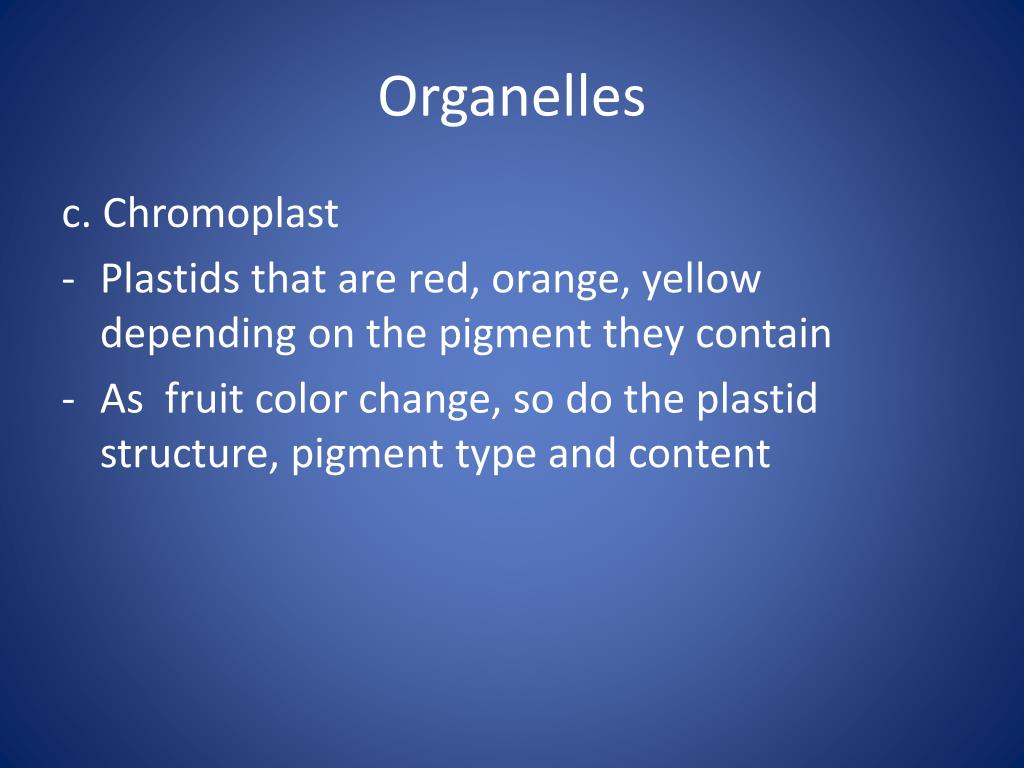

  17. Organelles c. Chromoplast • Plastids that are red, orange, yellow depending on the pigment they contain • As fruit color change, so do the plastid structure, pigment type and content

  18. Organelles • Mitochondria - Surrounded by a double membrane • The inner of these two membrane has infolding called “Cristae” , that protrude into the cavity within • Primary site of enzyme controlling respiration

  19. Organelles • Ribosome • They contain ribosomal RNA and function in protein synthesis • Also found in cytoplasm and associated with Endoplasmic reticulum in the cytoplasm

  20. Organelles • Ribosomes • Contain ribosomal RNA and function in protein synthesis • Also found in cytoplasm and associated with endoplasmic reticulum in the cytoplasm

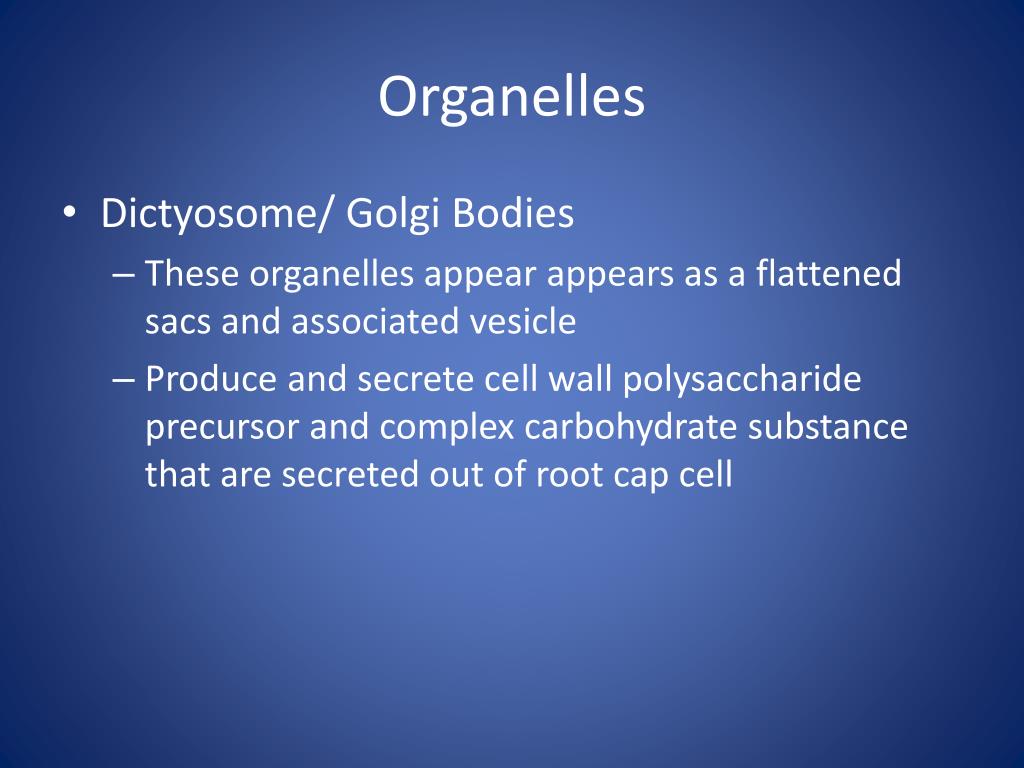

  21. Organelles • Dictyosome/ Golgi Bodies • These organelles appear appears as a flattened sacs and associated vesicle • Produce and secrete cell wall polysaccharide precursor and complex carbohydrate substance that are secreted out of root cap cell

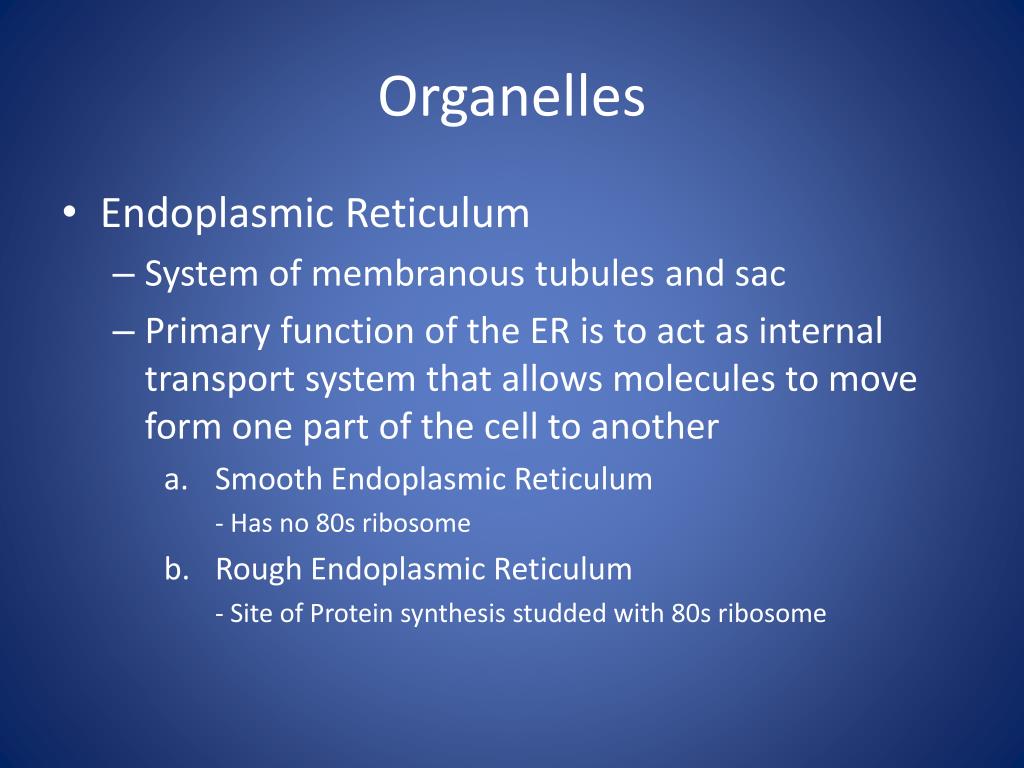

  22. Organelles • Endoplasmic Reticulum • System of membranous tubules and sac • Primary function of the ER is to act as internal transport system that allows molecules to move form one part of the cell to another • Smooth Endoplasmic Reticulum - Has no 80s ribosome • Rough Endoplasmic Reticulum - Site of Protein synthesis studded with 80s ribosome

  23. Organelle • Microbodies a. Lysosomes- spherical or sac like - capable of digesting unwanted molecules in the cell under acidic condition - function in resorption and phagocytosis

  24. Organelles b. Peroxisome - similar appearance to lysosome - contain a variety of enzymes - rid of toxic substances hydrogen peroxide (a common by product of cellular metabolism)

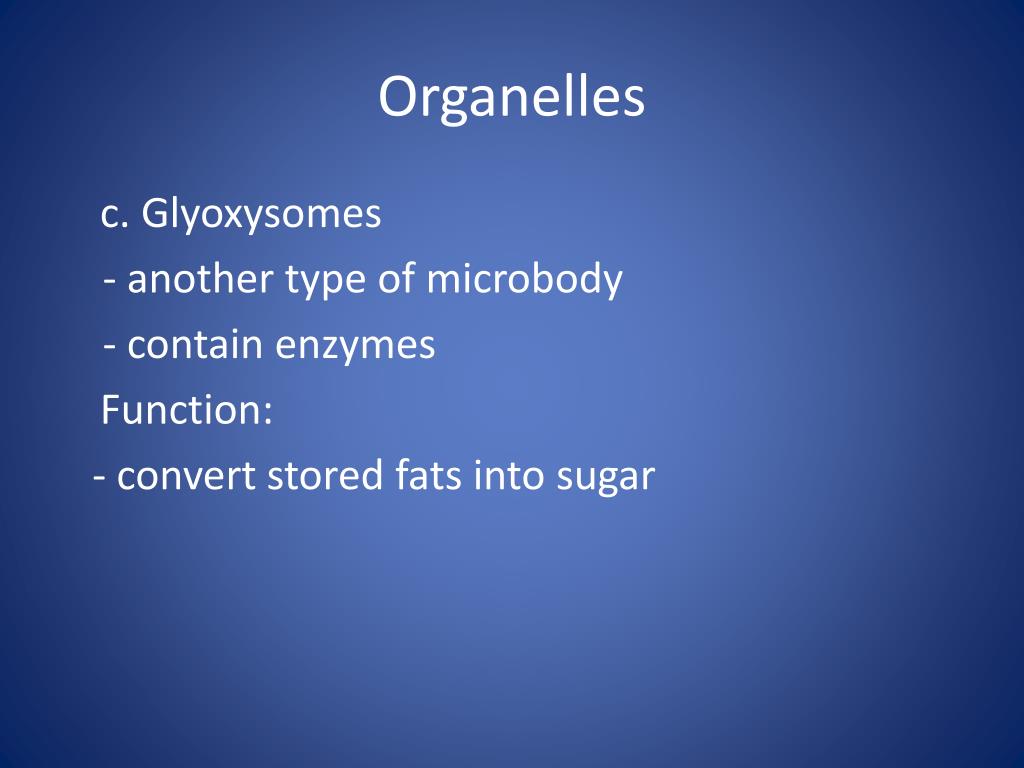

  25. Organelles c. Glyoxysomes - another type of microbody - contain enzymes Function: - convert stored fats into sugar

  26. Plant Cells

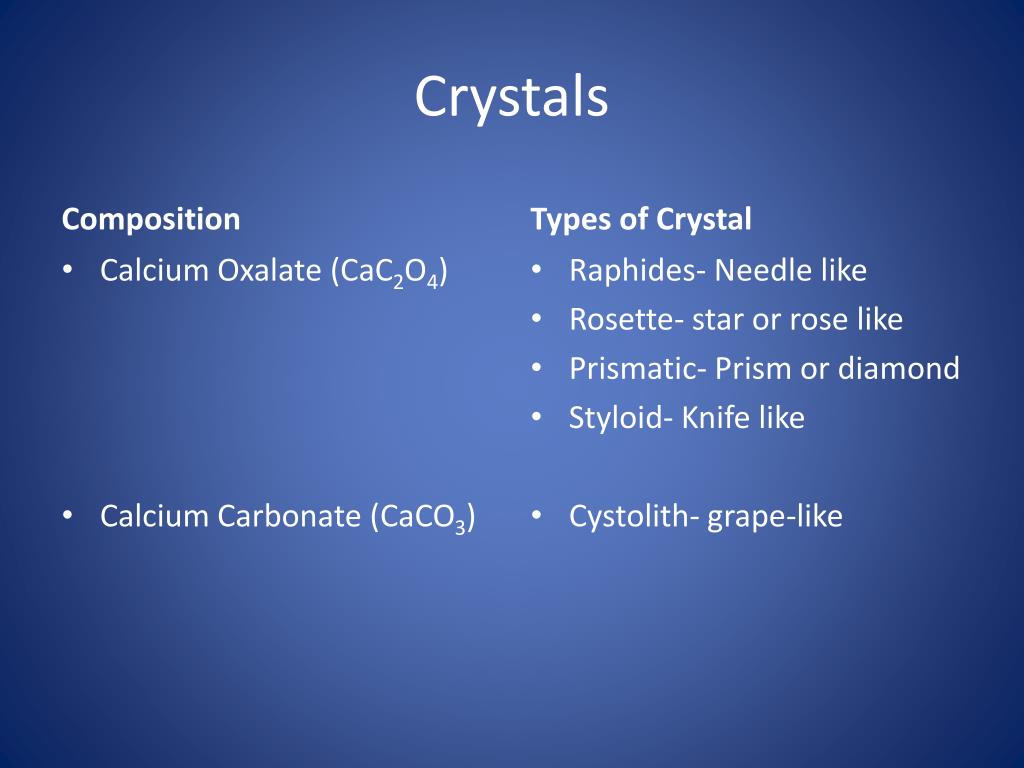

  27. Crystals Composition Types of Crystal Raphides- Needle like Rosette- star or rose like Prismatic- Prism or diamond Styloid- Knife like Cystolith- grape-like • Calcium Oxalate (CaC2O4) • Calcium Carbonate (CaCO3)
