ABC130 Wafer Probe

ABC130 Wafer Probe. Peter W Phillips 12/03/2014. ABC130 Wafer Probe. Three projects competing for time on RAL Cascade S3000 probe station Try older Micromanipulator station instead Originally bought for “The R ed E xperiment ”, but little used Still seems to work

eliot
Télécharger la présentation

ABC130 Wafer Probe

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. ABC130 Wafer Probe Peter W Phillips 12/03/2014

  2. ABC130 Wafer Probe • Three projects competing for time on RAL Cascade S3000 probe station • Try older Micromanipulator station instead • Originally bought for “The Red Experiment”, but little used • Still seems to work • First connected the probe card on Friday • Took a while to get good probe contact • Then had to find and correct two silly mistakes • Peter’s omission of jumper on ABC130 driver • Vendor’s zero ohm SLVS terminations on probe card (!!) • Working as of today (12th March) • Proposal is to run MUX scans only • Should be sufficient to identify gross failures • Should also confirm FIB success

  3. Some Nice Pictures

  4. Some More Nice Pictures

  5. First “Successful” Probe Test 15:10 GMT

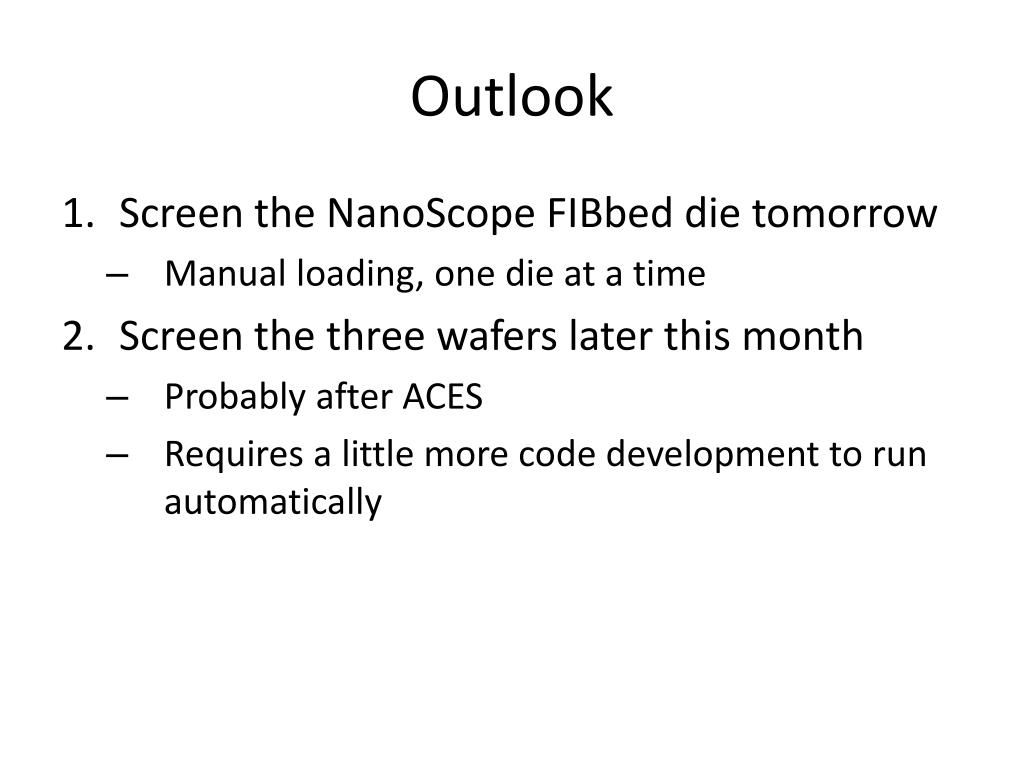

  6. Outlook • Screen the NanoScopeFIBbeddie tomorrow • Manual loading, one die at a time • Screen the three wafers later this month • Probably after ACES • Requires a little more code development to run automatically
