Catalyst. v f - v i. a. =. The equation for acceleration is 1. A lizard accelerates from 2 m/s to 10 m/s in 4 seconds. What is the lizard’s average acceleration ?

Catalyst - slide 1
01 / 21Catalyst
1 / 17

Télécharger la présentation

Catalyst
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

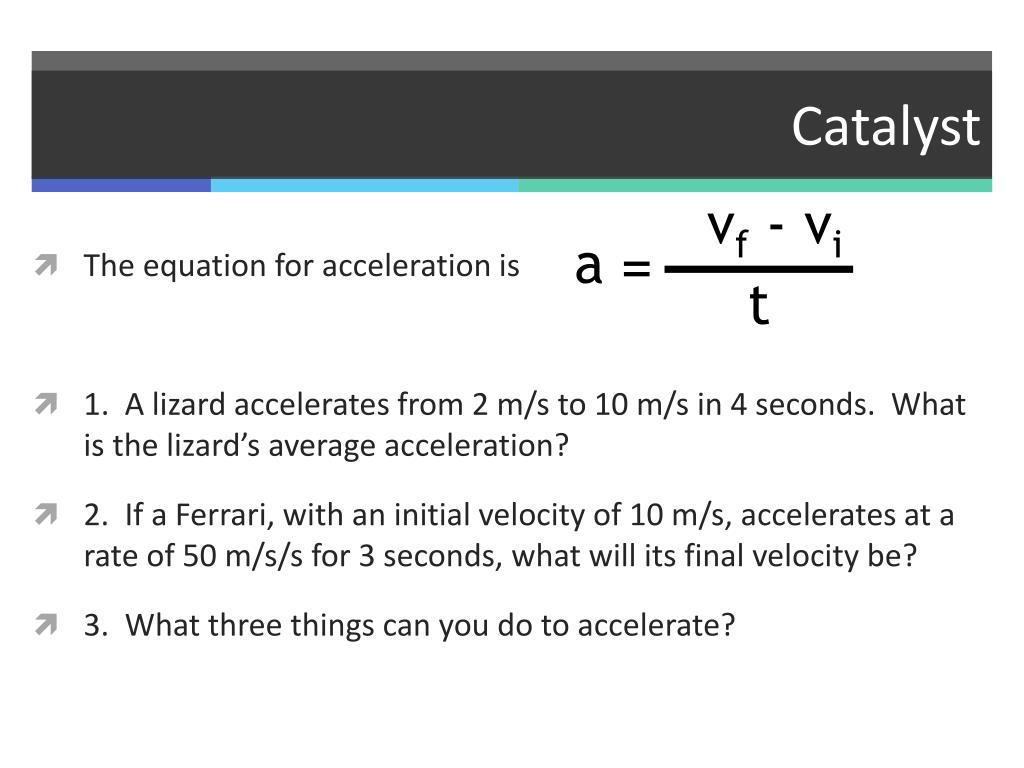

  1. Catalyst vf - vi a = • The equation for acceleration is • 1. A lizard accelerates from 2 m/s to 10 m/s in 4 seconds. What is the lizard’s average acceleration? • 2. If a Ferrari, with an initial velocity of 10 m/s, accelerates at a rate of 50 m/s/s for 3 seconds, what will its final velocity be? • 3. What three things can you do to accelerate? t

  2. Today’s Agenda

  3. Motion Graphs • There are THREE types: • Position vs. Time • Gives your position over a period of time. • Velocity vs. Time • Gives your speed (velocity) over a period of time. • Acceleration vs. Time • Gives your acceleration over a period of time.

  4. Position vs. Time Graphs • We’ve seen these before! • Slope is velocity(or speed) • Straight lines mean constant velocity

  5. Position vs. Time Graphs • Curved lines mean acceleration • Cannot find slope of curved lines

  6. Position vs. Time Graphs • Horizontal (flat) lines mean no motion • Constant position

  7. Position vs. Time Graph Demonstration • http://zonalandeducation.com/mstm/physics/mechanics/kinematics/xvaVsTime/xVsTime.html

  8. Velocity vs. Time Graphs • These are new! • Slope is acceleration • Straight lines mean constant acceleration

  9. Velocity vs. Time Graphs • Curved lines mean changingacceleration • Cannot find slope of curved lines

  10. Velocity vs. Time Graphs • Horizontal (flat) lines mean no acceleration or constant speed

  11. Velocity vs. Time Graph Demonstration • http://www.physicsclassroom.com/mmedia/kinema/fs.cfm

  12. Acceleration vs. Time Graphs • Flat lines mean constant acceleration • Everything else means nothing! (for our purposes) • The only other acceleration vs. time graph you will see is this: • Which means no acceleration

  13. Example: No Motion Position vs. Time Velocity vs. Time Acceleration vs. Time

  14. Example: Constant Velocity Position vs. Time Velocity vs. Time Acceleration vs. Time

  15. Example: Constant Acceleration = Object is Speeding Up Position vs. Time Velocity vs. Time Acceleration vs. Time

  16. Guided Practice #1-2 • Which of the objects on each graph at right is accelerating? How do you know?

  17. Guided Practice #3 • At which point is velocity (speed) the greatest? • At which point is velocity (speed) the least? • At which points is acceleration occurring?

  18. Guided Practice #4 • At which point is velocity the greatest? • At which point is velocity the least? • At which points is acceleration occurring? • Where is acceleration the least?

  19. Today’s Agenda

  20. Exit Slip 1. What would the velocity vs. time graph look like for a car going straight on a highway at constant speed? • A horizontal (flat) line • A straight line that is increasing • A straight line that is decreasing • A curved line that is increasing 2. What does a straight line with a positive slope mean on a velocity vs. time graph? • Increasing velocity • Constant acceleration • Constant velocity • Both A and B

  21. Exit Slip 3. True or false: Constant acceleration means that the object is speeding up. 5. For which graph does a horizontal (flat) line always mean that the object is motionless? • Position vs. time • Velocity vs. time • Acceleration vs. time • Both A and C
