  1. Recombinant DNA Technology (Part II)

  2. Genomic VS cDNA Library • Size of the DNA fragments can be prepared by different type of restriction enzymes. • However, cDNA are of suitable size for cloning without further manipulation. • If one is interested in the amino acid sequence of a protein – this information can be obtained using cloned cDNA. • If one is interested in the whole gene including regulatory sequences, the genomic DNA will be the suitable choice.

  3. Making cDNA Library • cDNA is the abbreviation for complementary DNA or copy DNA • A cDNA library is a set of clones representing as many as possible of the mRNAs in a given cell type at a given time • Such a library can contain tens of thousands of different clones

  4. Making cDNA Library • Isolation of poly(A) mRNA. • Synthesis of cDNA by reverse transcription. • cDNA molecules are joined to vector DNA to create cDNA library. • Screen library for desired cDNA clone.

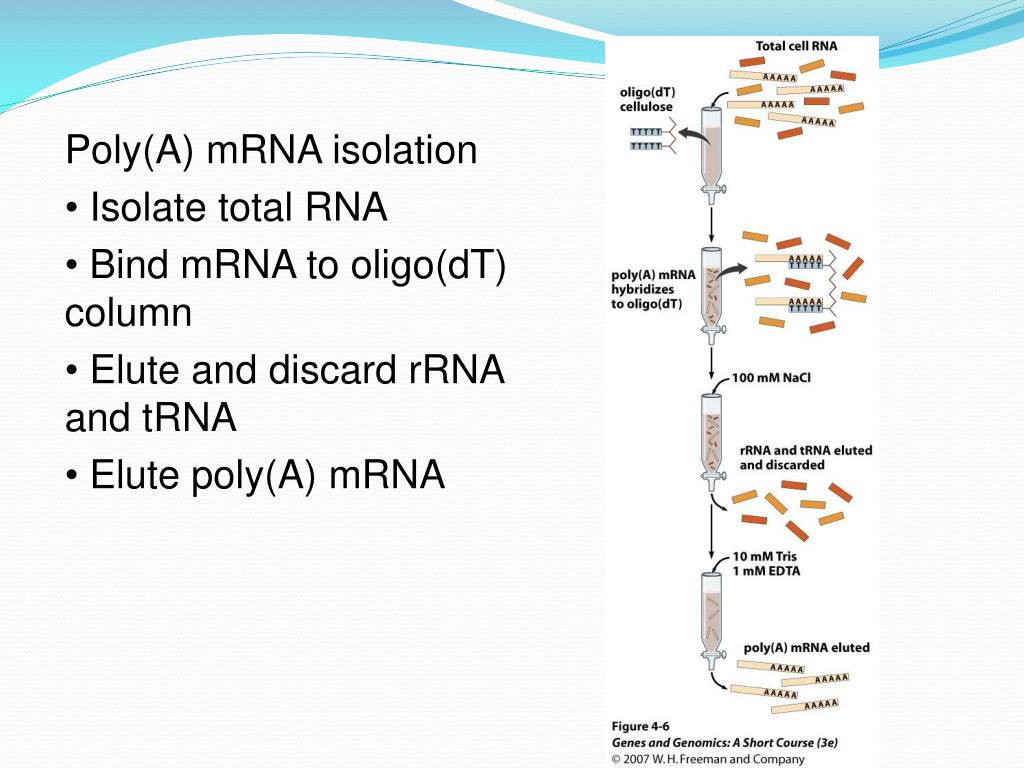

  5. Poly(A) mRNA isolation • Isolate total RNA • Bind mRNA to oligo(dT) column • Elute and discard rRNA and tRNA • Elute poly(A) mRNA

  6. Making cDNA Library • Central to successful cloning is the synthesis of cDNA from an mRNA template using reverse transcriptase(RT), RNA-dependent DNA polymerase • RT cannot initiate DNA synthesis without a primer • Use the poly(A) tail at 3’ end of most eukaryotic mRNA so that oligo(dT) may serve as primer

  7. Making cDNA Library • RT with oligo(dT) primer has made a single-stranded DNA from mRNA • Need to start to remove the mRNA • Partially degrade the mRNA using ribonuclease H (RNase H) • Enzyme degrades RNA strand of an RNA-DNA hybrid • Remaining RNA fragments serve as primers for “second strand” DNA using nick translation

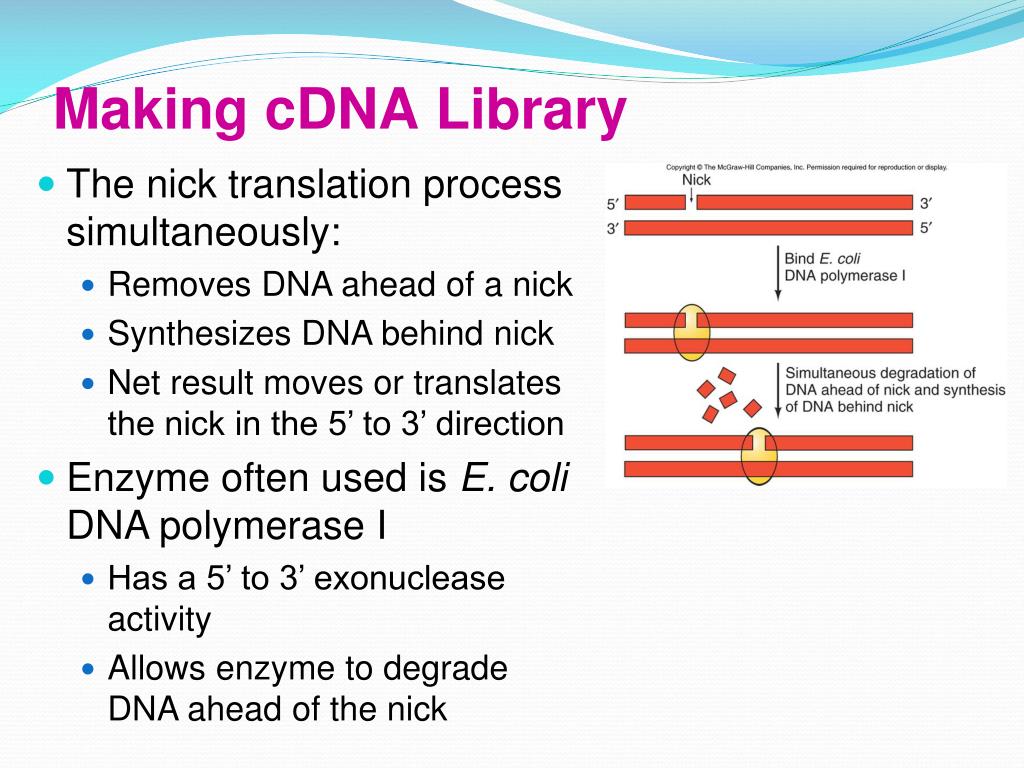

  8. Making cDNA Library • The nick translation process simultaneously: • Removes DNA ahead of a nick • Synthesizes DNA behind nick • Net result moves or translates the nick in the 5’ to 3’ direction • Enzyme often used is E. coli DNA polymerase I • Has a 5’ to 3’ exonuclease activity • Allows enzyme to degrade DNA ahead of the nick

  9. cDNA synthesis • Reverse transcription using oligo(dT) primer linked with sequence recognized by XhoI • Nick RNA strand using RNaseH • Second strand cDNA synthesis

  10. Double stranded cDNA can be modified to be cloned into vector by adding adapters or linkers • Blunt 3’ overhang using Pfu polymerase • Add EcoRI adapter. • Digest with XhoI. • cDNA contains one end compatible with EcoRI and XhoI on the other end.

  11. Digest plasmid using EcoRI and XhoI • Ligate cDNA into digested plasmids • Transformation – introduce recombinant plasmids into bacterial host cells. • Select transformants using blue-white screening.

  12. cDNA synthesis • Reverse transcription using oligo(dT) primer • RT does not always produce full length cDNA • Nick RNA strand using RNaseH • Second strand cDNA synthesis using T4 DNA polymerase

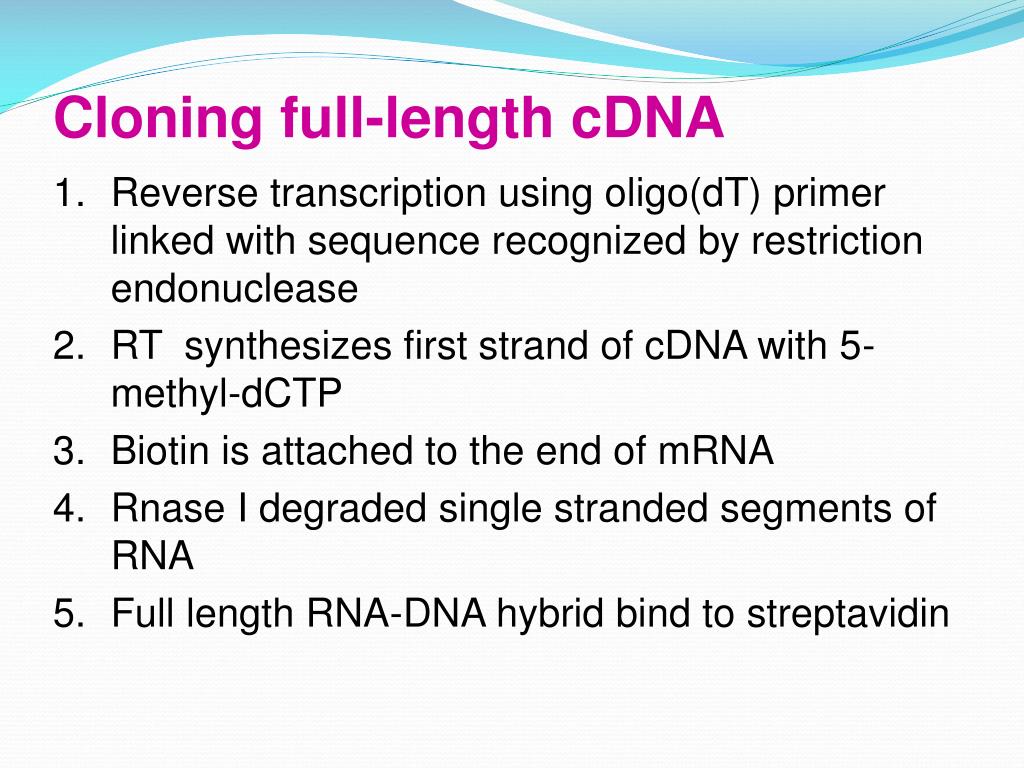

  13. Cloning full-length cDNA • Reverse transcription using oligo(dT) primer linked with sequence recognized by restriction endonuclease • RT synthesizes first strand of cDNA with 5-methyl-dCTP • Biotin is attached to the end of mRNA • Rnase I degraded single stranded segments of RNA • Full length RNA-DNA hybrid bind to streptavidin

  14. Cloning full-length cDNA 6. Rnase H degrades the RNA of the RNA-DNA streptavidin hybrid • A poly(dG) tail is added to the 3’ end • An oligo(dC) with sequence recognized by second restriction enzyme is added • Second cDNA strand is synthesized • Final full length of cDNA is cloned into vector

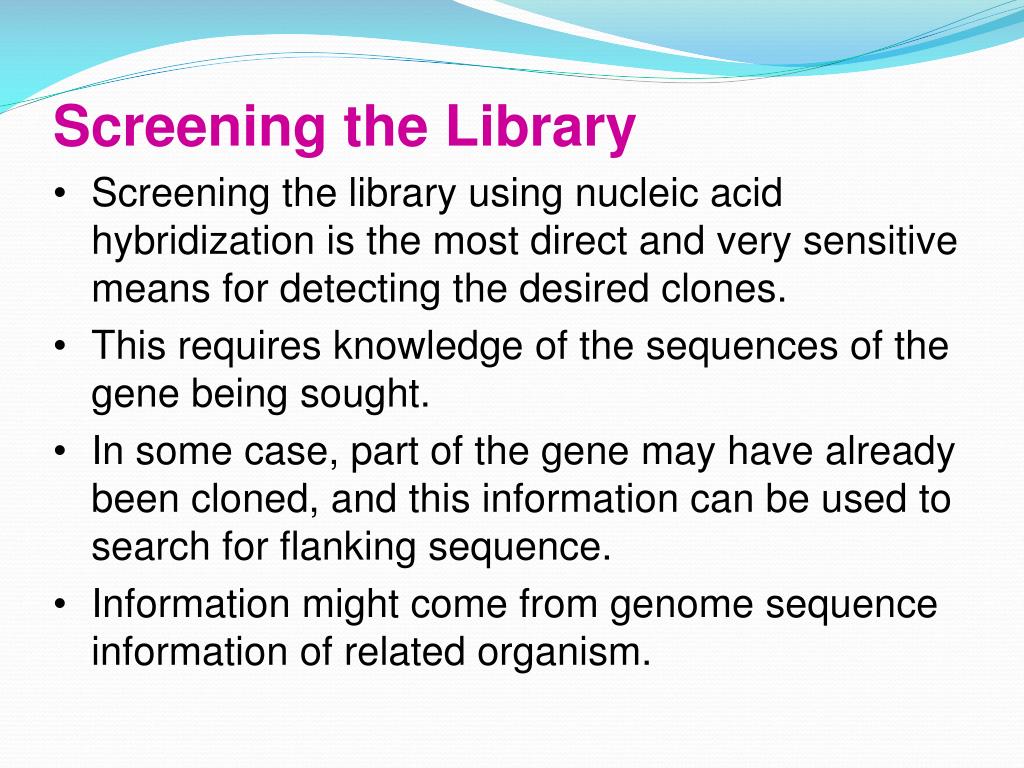

  15. Screening the Library • Screening the library using nucleic acid hybridization is the most direct and very sensitive means for detecting the desired clones. • This requires knowledge of the sequences of the gene being sought. • In some case, part of the gene may have already been cloned, and this information can be used to search for flanking sequence. • Information might come from genome sequence information of related organism.

  16. DNA hybridization assay • Double stranded DNA can be converted into single stranded DNA by heat or alkaline treatment. Heating breaks the H-bond but not phosphodiester bond. • If the heated solution is rapidly cooled, the strands remain single stranded. • If it is slowly cooled down, the helical conformation of DNA can be established. • This process is called annealing.

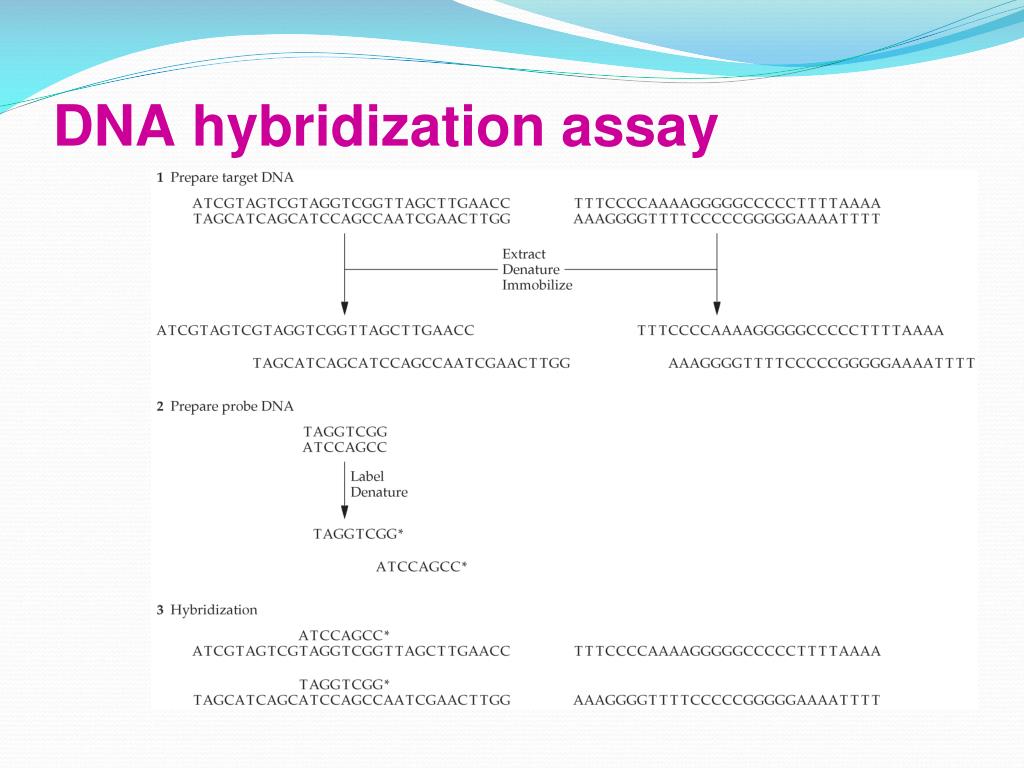

  17. DNA hybridization assay

  18. Random-primer method

  19. The Klenow fragment • Retains both DNA polymerase and 3’ exonuclease activities but lacks of 5’ exonuclease activity. • The 3’ exonuclease is retained because it reduces the misincorporation of erroneous dNTPs during the synthesis of new DNA strand. • The 5’ exonuclease activity is abolished because it would degrade some of the newly synthesized DNA.

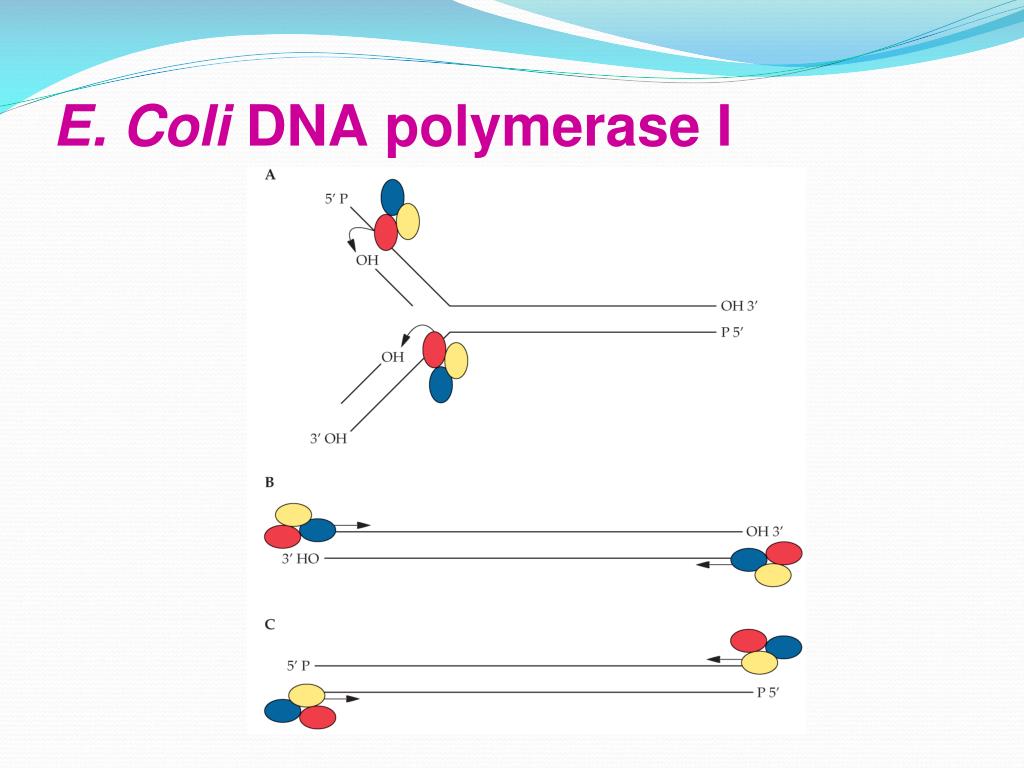

  20. E. Coli DNA polymerase I

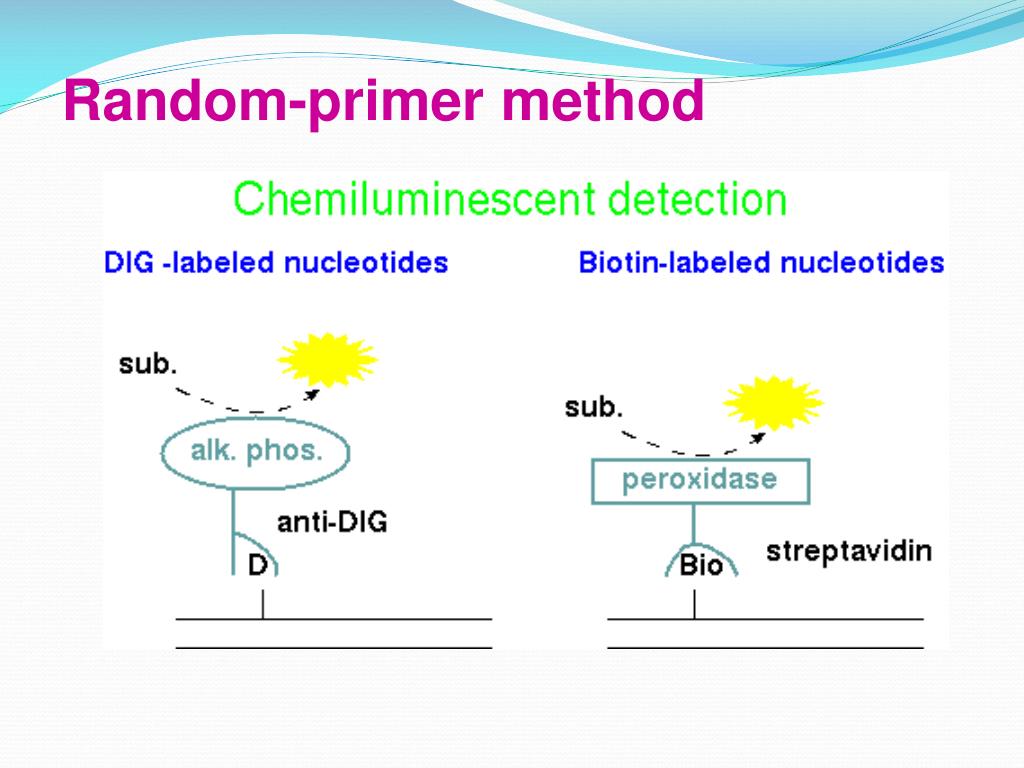

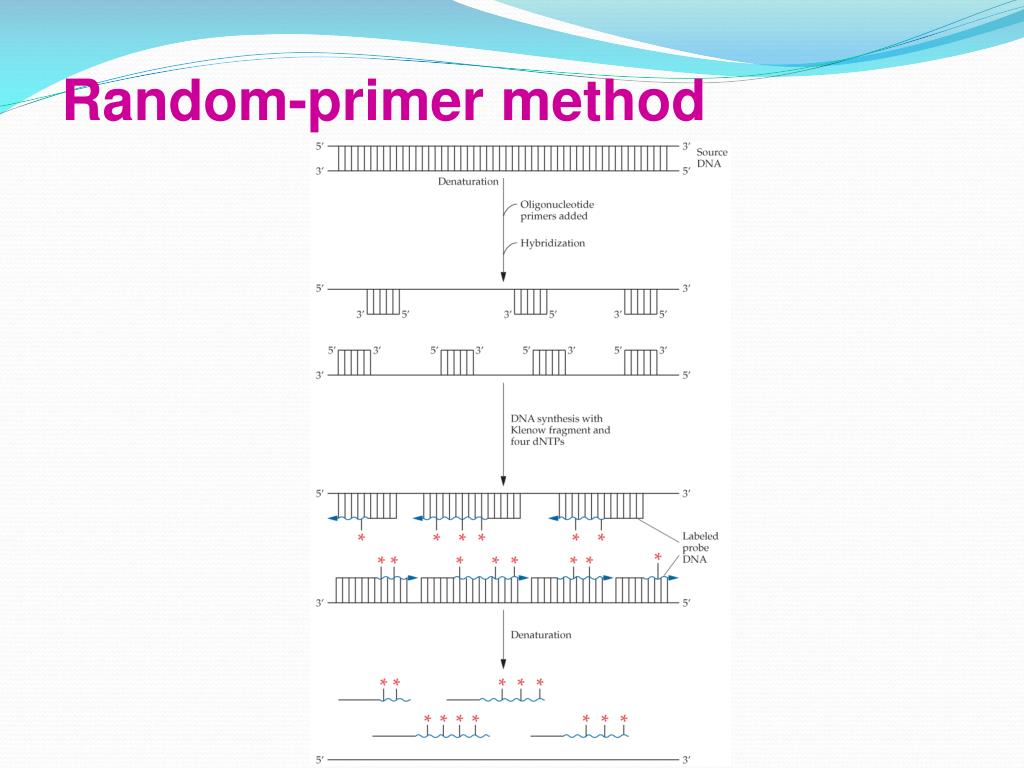

  21. Random-primer method

  22. Screening the Library • From each discrete colony formed on a master plate, a sample is transferred to a solid matrix, such as nitrocellulose or nylon membrane. • The cells on the membrane are lysed, and the released DNA is denatured, deproteinized, and irreversibly bound to the membrane (crosslinking). • A labeled DNA probe is added to the membrane under hybridization condition. • After washing, exposing to an X-ray film, the colony carrying the gene can be identified.

  23. Southern Blot Electrophoresis provides information on: • Size of fragments. Fragments of known size provide comparison. • Presence of specific sequences. These can be determined using probes. DNA is denatured while in the gel, then transferred to a nylon filter to make a “blot.”

  24. Identifying a specific clone with a specific probe • Probes are used to identify a desired clone from among the thousands of irrelevant ones • Two types are widely used • Polynucleotides also called oligonucleotides • Antibodies

  25. Possible sources of probes • First, cloned DNA from a closely related organisms (a heterologous probe) can be used. • Hybridization conditions need to be adjusted. • Second, probe can be synthesized based on the probable nucleotide sequence that is deduced from the known amino acid sequence of the protein encoded by the target gene.

  26. Polynucleotide probes Looking for a gene you want, might use homologous gene from another organism • If already cloned • Hope enough sequence similarity to permit hybridization • Need to lower stringency of hybridization conditions to tolerate some mismatches

  27. Control of Hybridization Stringency • Factors that promote separation of two strands in a DNA double helix: • High temperature • High organic solvent concentration • Low salt concentration • Adjust conditions until only perfectly matched DNA strands form a duplex = high stringency • Lowering these conditions lowers stringency until DNA strands with a few mismatches can hybridize

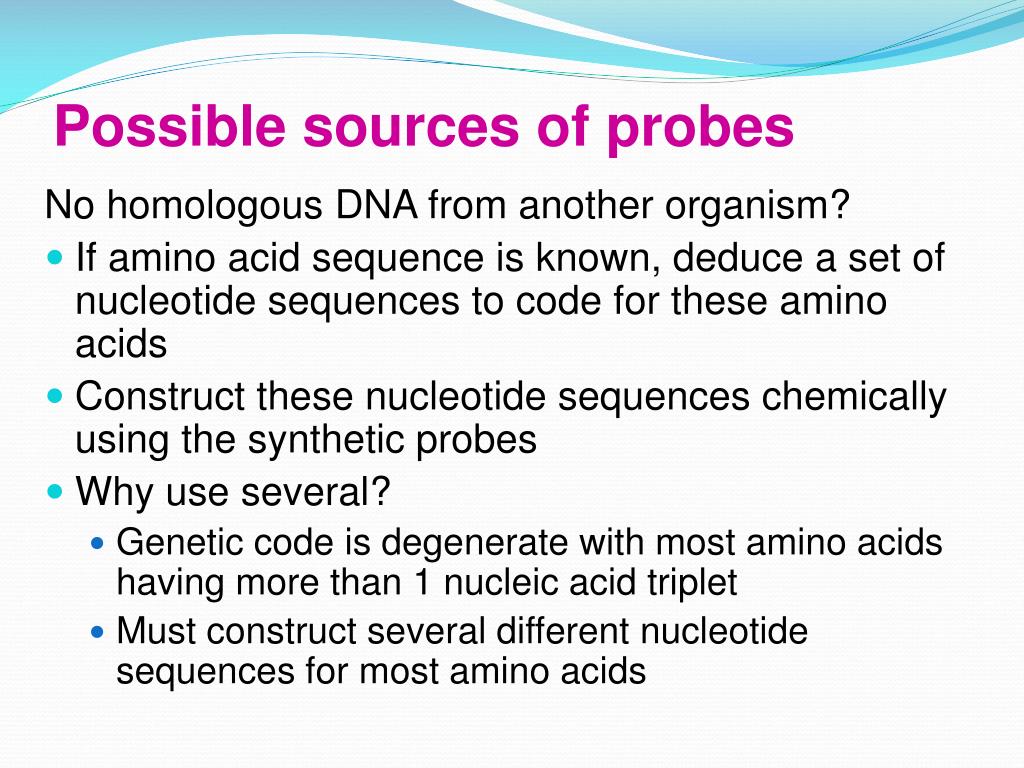

  28. Possible sources of probes No homologous DNA from another organism? • If amino acid sequence is known, deduce a set of nucleotide sequences to code for these amino acids • Construct these nucleotide sequences chemically using the synthetic probes • Why use several? • Genetic code is degenerate with most amino acids having more than 1 nucleic acid triplet • Must construct several different nucleotide sequences for most amino acids

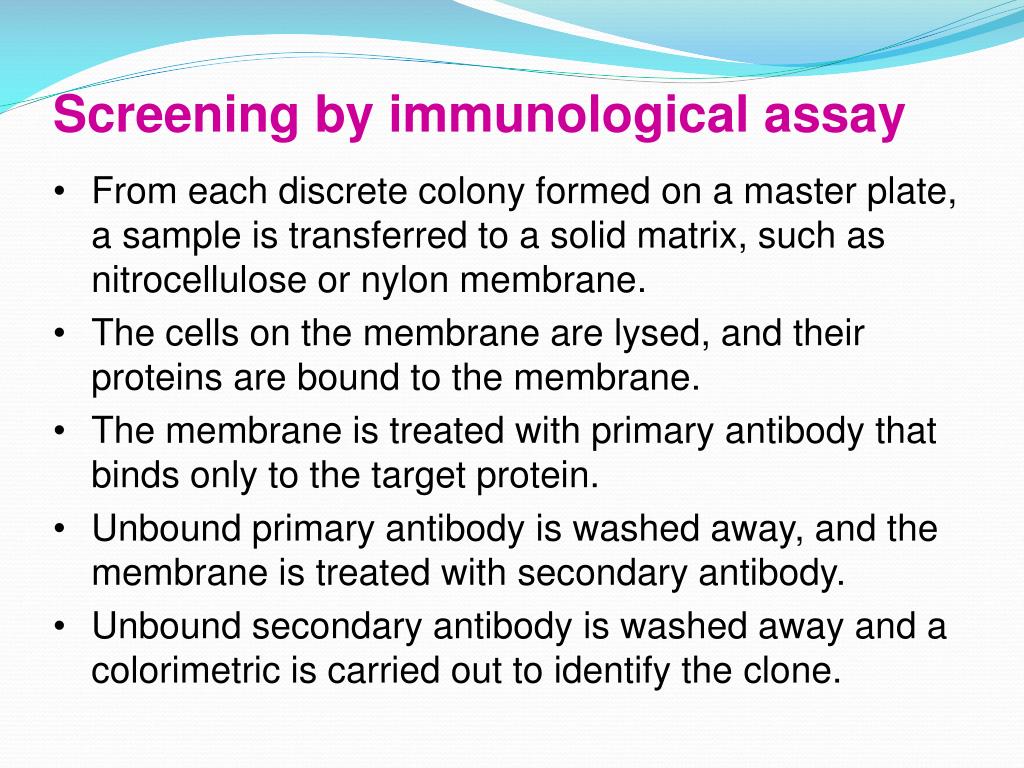

  29. Screening by immunological assay • From each discrete colony formed on a master plate, a sample is transferred to a solid matrix, such as nitrocellulose or nylon membrane. • The cells on the membrane are lysed, and their proteins are bound to the membrane. • The membrane is treated with primary antibody that binds only to the target protein. • Unbound primary antibody is washed away, and the membrane is treated with secondary antibody. • Unbound secondary antibody is washed away and a colorimetric is carried out to identify the clone.

  30. Screening by protein activity • From each discrete colony formed on a master plate, a sample is transferred to a solid matrix, such as nitrocellulose or nylon membrane.

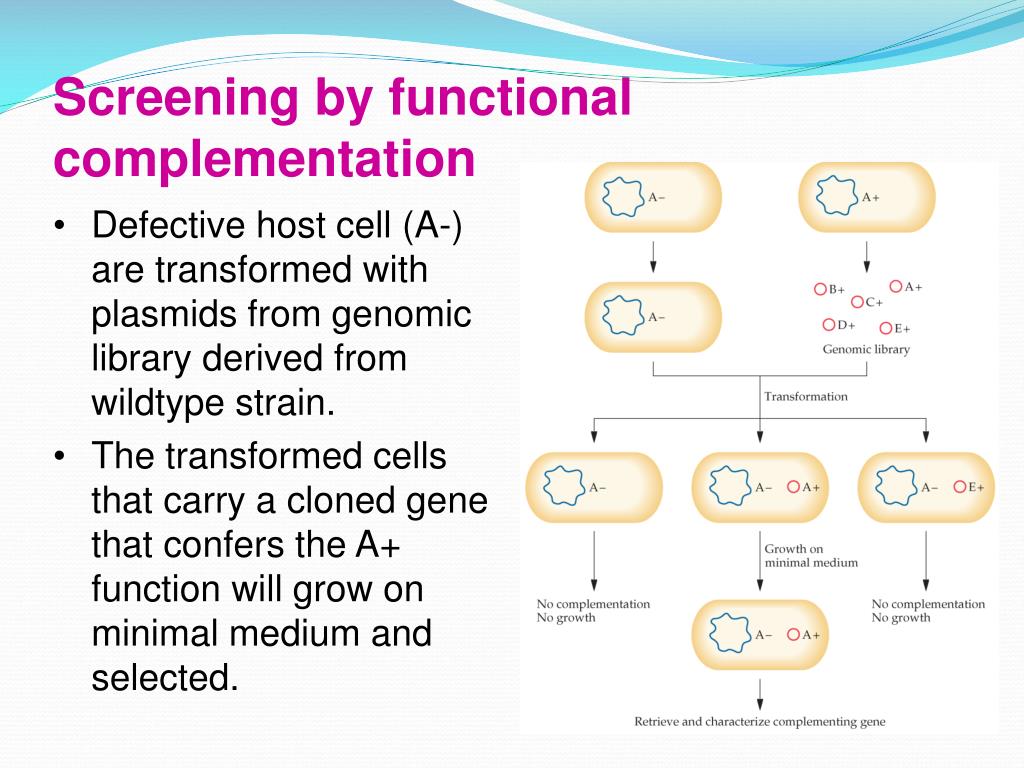

  31. Screening by functional complementation • Defective host cell (A-) are transformed with plasmids from genomic library derived from wildtype strain. • The transformed cells that carry a cloned gene that confers the A+ function will grow on minimal medium and selected.

  32. lPhage Vectors • First phage vectors were constructed by Fred Blattner and colleagues • Removed middle region • Retained genes needed for phage replication • Could replace removed phage genes with foreign DNA • Originally named Charon phage • More general term, replacement vectors

  33. Vectors for cloning large pieces of DNA • Phage vectors can receive larger amounts of foreign DNA • Charon 4 can accept up to 20kb of DNA • Traditional plasmid vectors take much less • Phage vectors require a minimum size foreign DNA piece (12 kb) inserted to package into a phage particle
