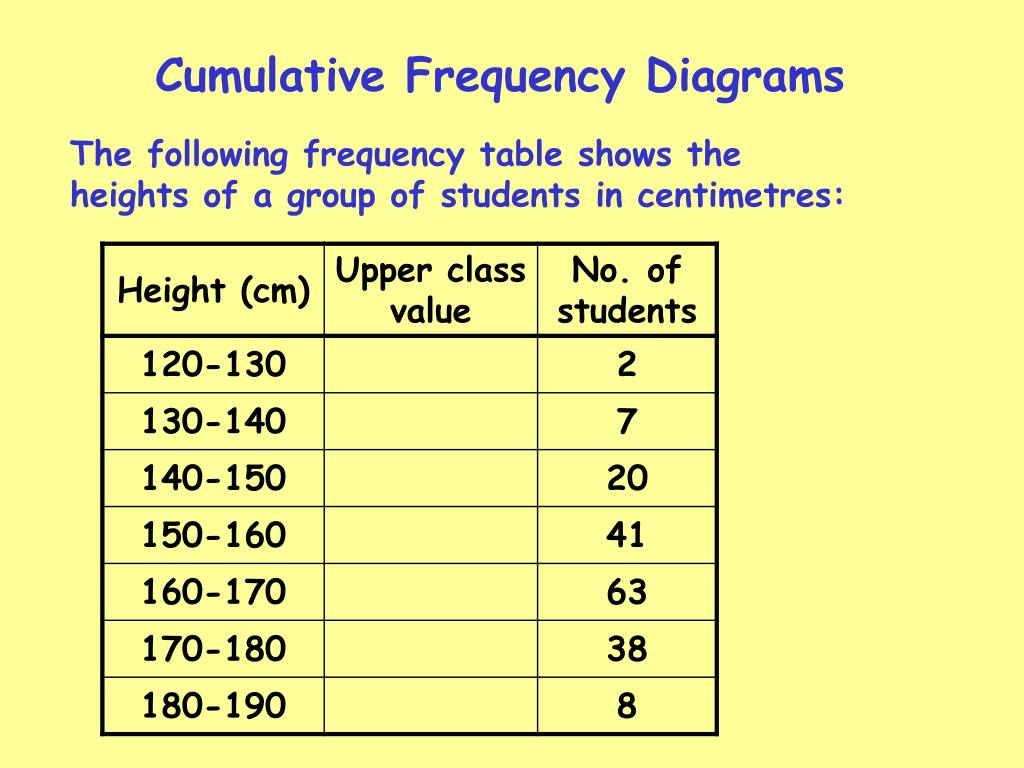

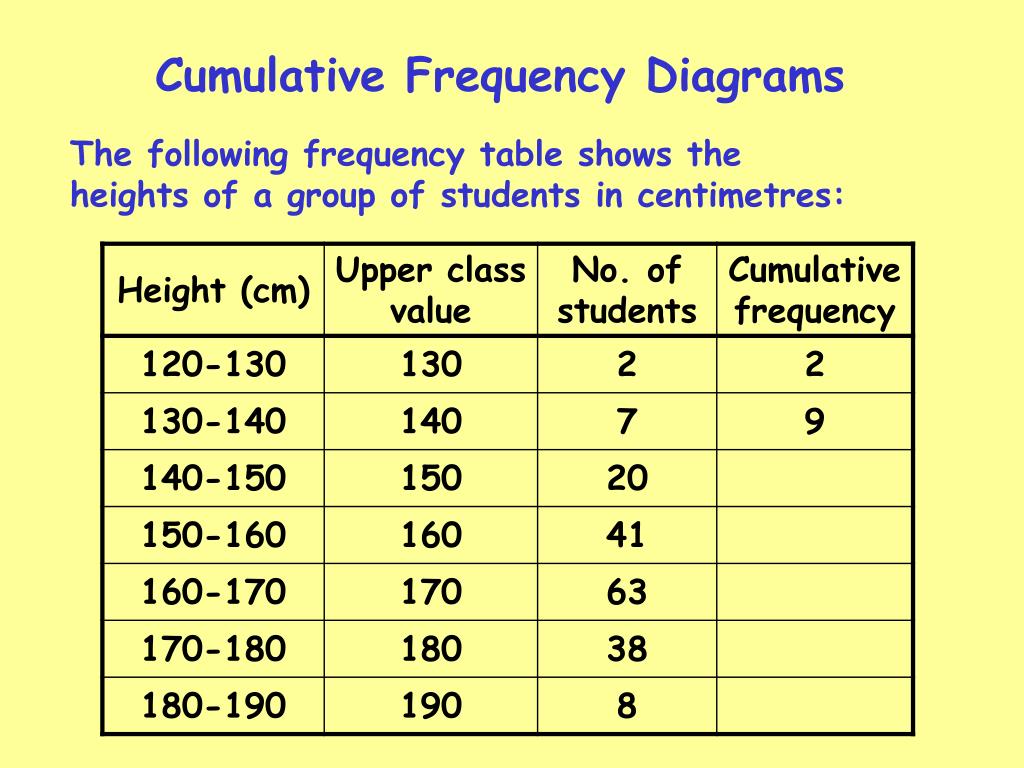

  1. Cumulative Frequency Diagrams The following frequency table shows the heights of a group of students in centimetres:

  2. Cumulative Frequency Diagrams The following frequency table shows the heights of a group of students in centimetres:

  3. Cumulative Frequency Diagrams The following frequency table shows the heights of a group of students in centimetres:

  4. Cumulative Frequency Diagrams The following frequency table shows the heights of a group of students in centimetres:

  5. Cumulative Frequency Diagrams The following frequency table shows the heights of a group of students in centimetres:

  6. Cumulative Frequency Diagrams The following frequency table shows the heights of a group of students in centimetres:

  7. Cumulative Frequency Diagrams The following frequency table shows the heights of a group of students in centimetres:

  8. Cumulative Frequency Diagrams The following frequency table shows the heights of a group of students in centimetres:

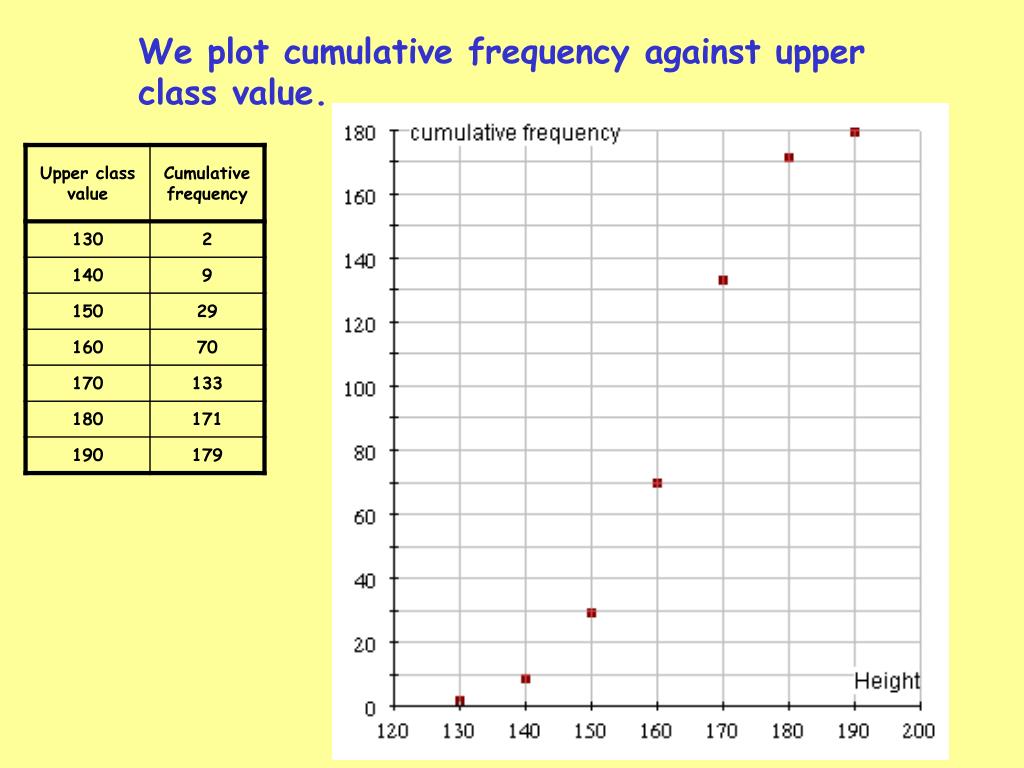

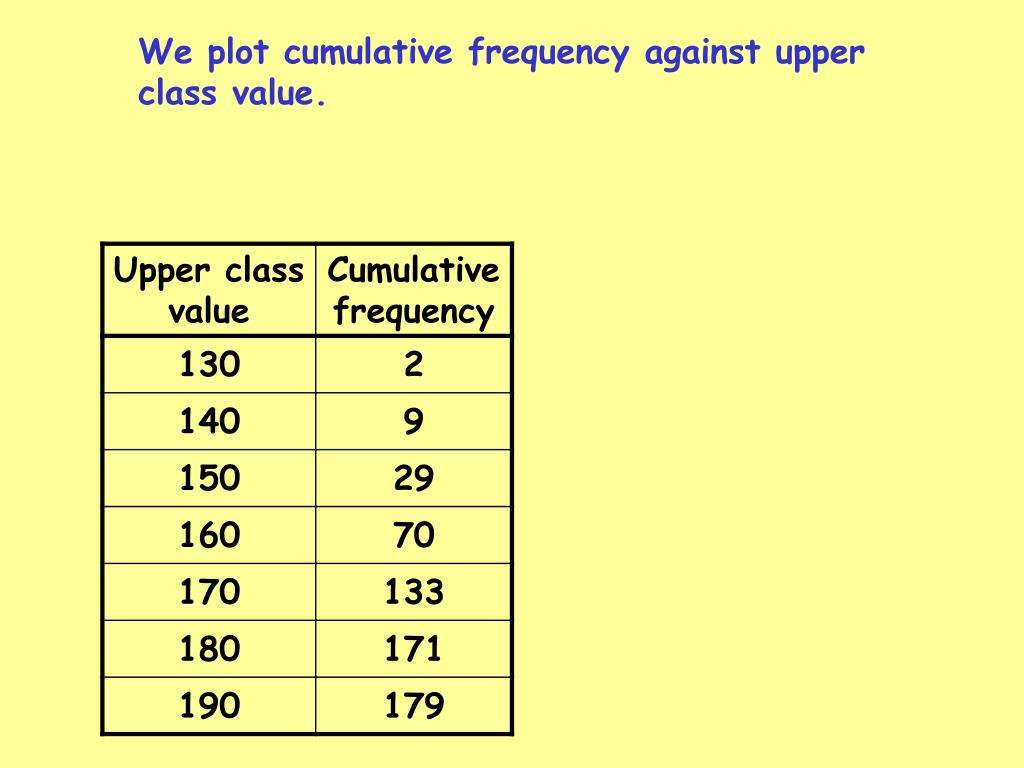

  9. We plot cumulative frequency against upper class value.

  10. We plot cumulative frequency against upper class value.

  11. We plot cumulative frequency against upper class value.

  12. We plot cumulative frequency against upper class value.

  13. We plot cumulative frequency against upper class value.

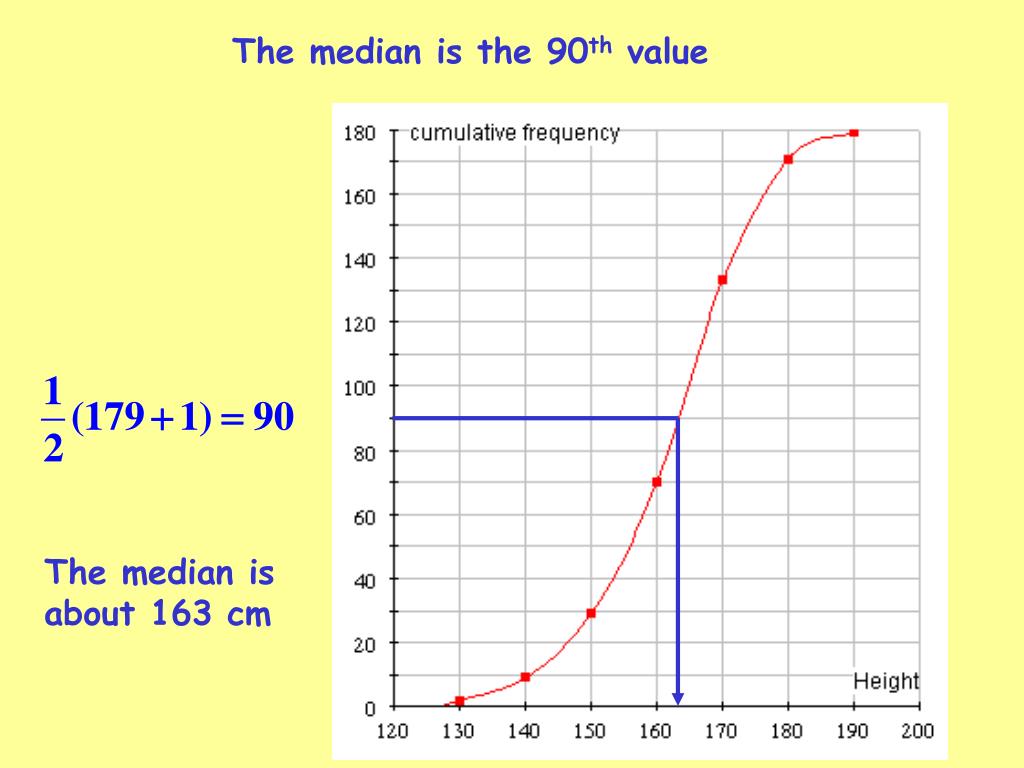

  14. The median is the 90th value The median is about 163 cm

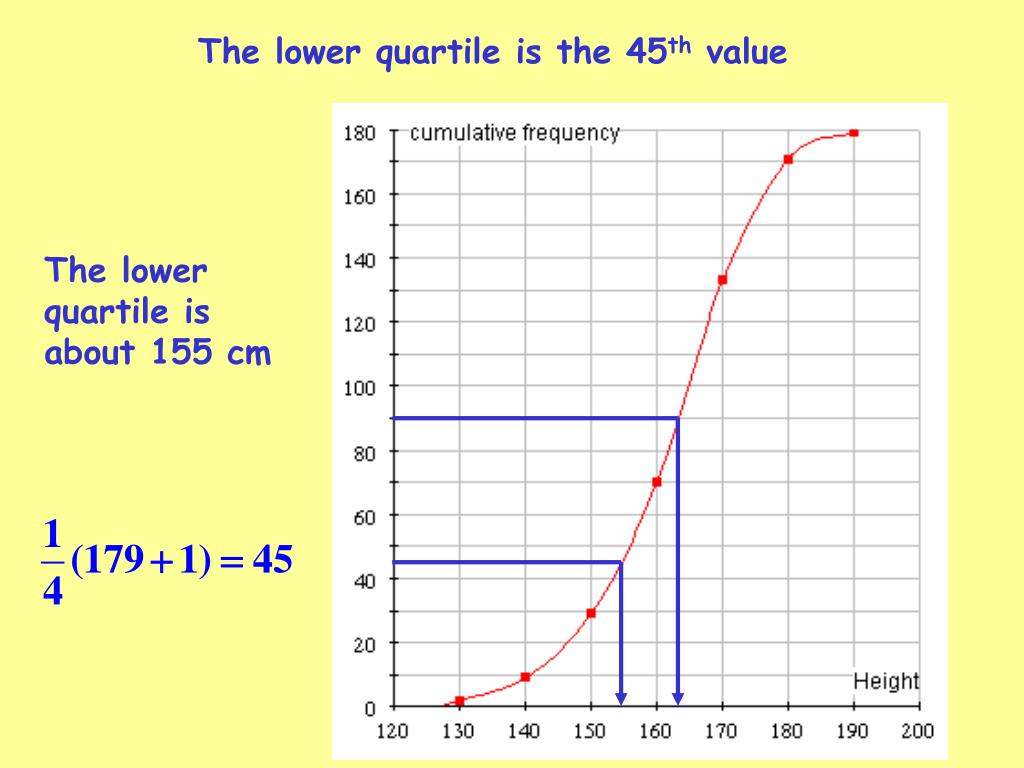

  15. The lower quartile is the 45th value The lower quartile is about 155 cm

  16. The upper quartile is the 135th value The upper quartile is about 170 cm

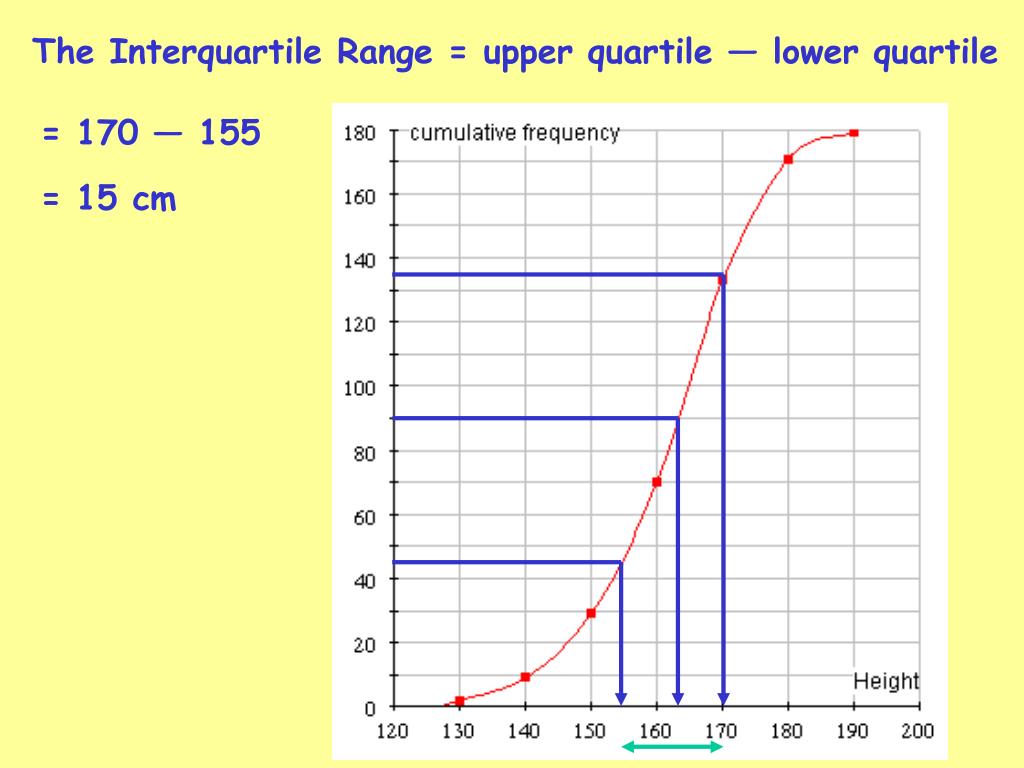

  17. The Interquartile Range = upper quartile — lower quartile = 170 — 155 = 15 cm
