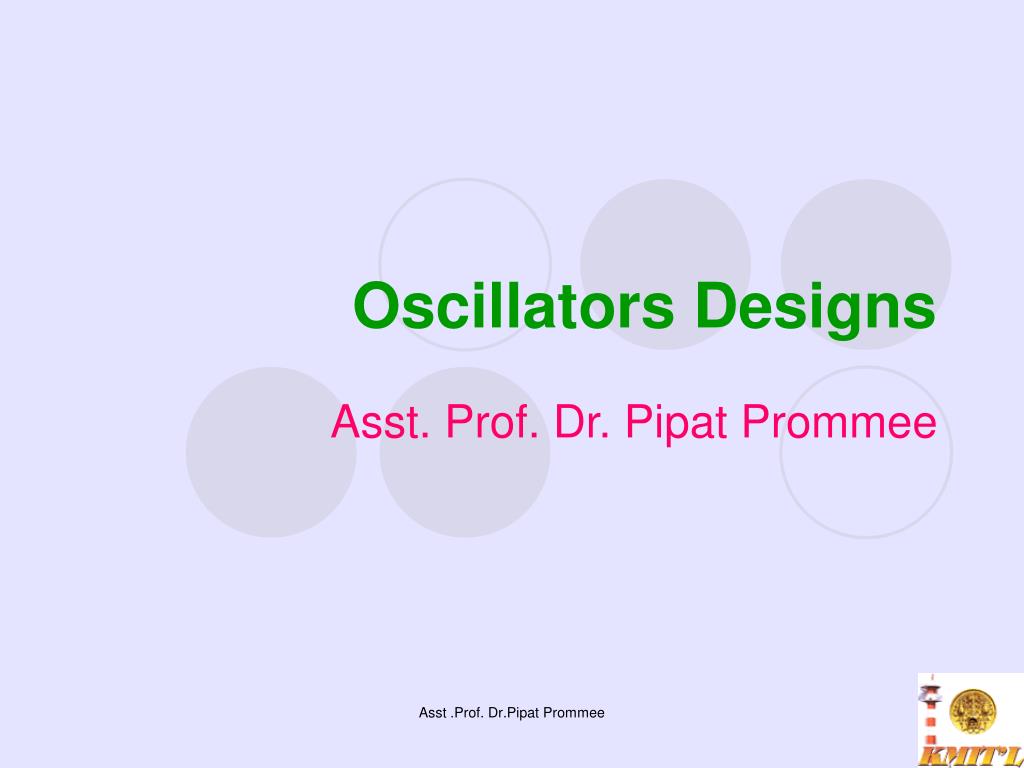

  1. Oscillators:Analysis and Designs Asst. Prof. Dr. Pipat Prommee Telecommunications Engineering Department KMITL Homepage: www.telecom.kmitl.ac.th/~pipat Email:pipat@telecom.kmitl.ac.th Asst .Prof. Dr.Pipat Prommee

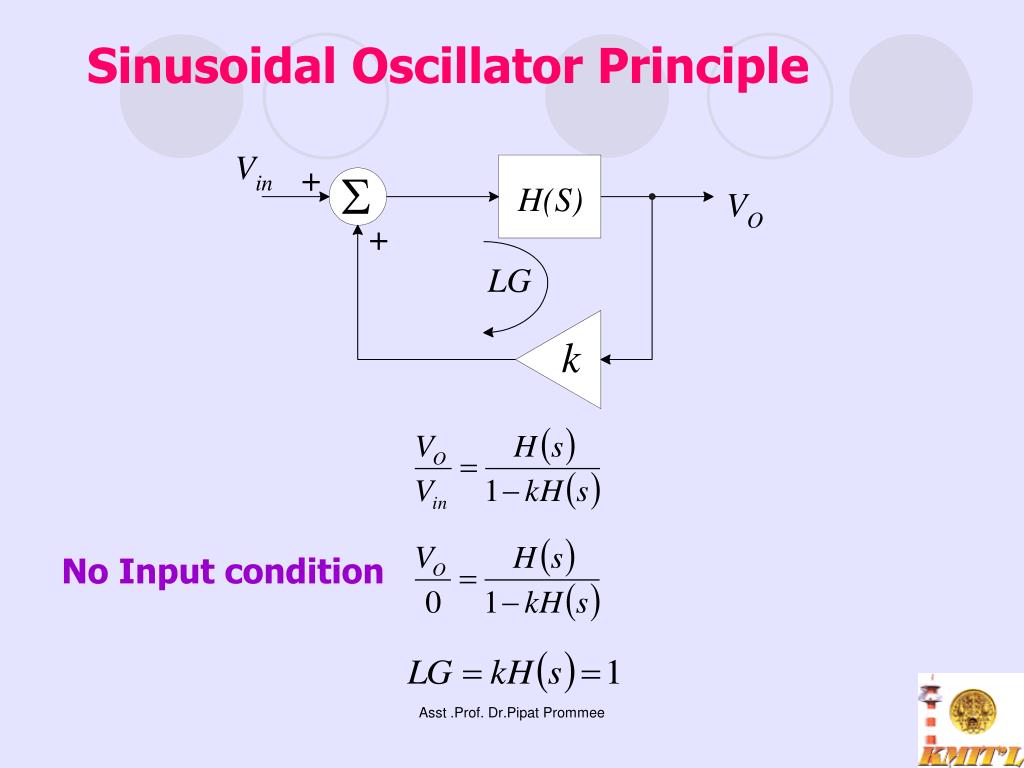

  2. H(s) K Amplifier Sinusoidal Oscillator Principle Asst .Prof. Dr.Pipat Prommee

  3. Inv. Laplace Inv. Laplace Inv. Laplace Unstable Network Functions Asst .Prof. Dr.Pipat Prommee

  4. Double Poles Double Poles Unstable Network Functions Asst .Prof. Dr.Pipat Prommee

  5. Sinusoidal Oscillator Principle No Input condition Asst .Prof. Dr.Pipat Prommee

  6. 2nd Order Polynomial-Based Oscillator where and Asst .Prof. Dr.Pipat Prommee

  7. 3rd Order Polynomial-Based Oscillator and Asst .Prof. Dr.Pipat Prommee

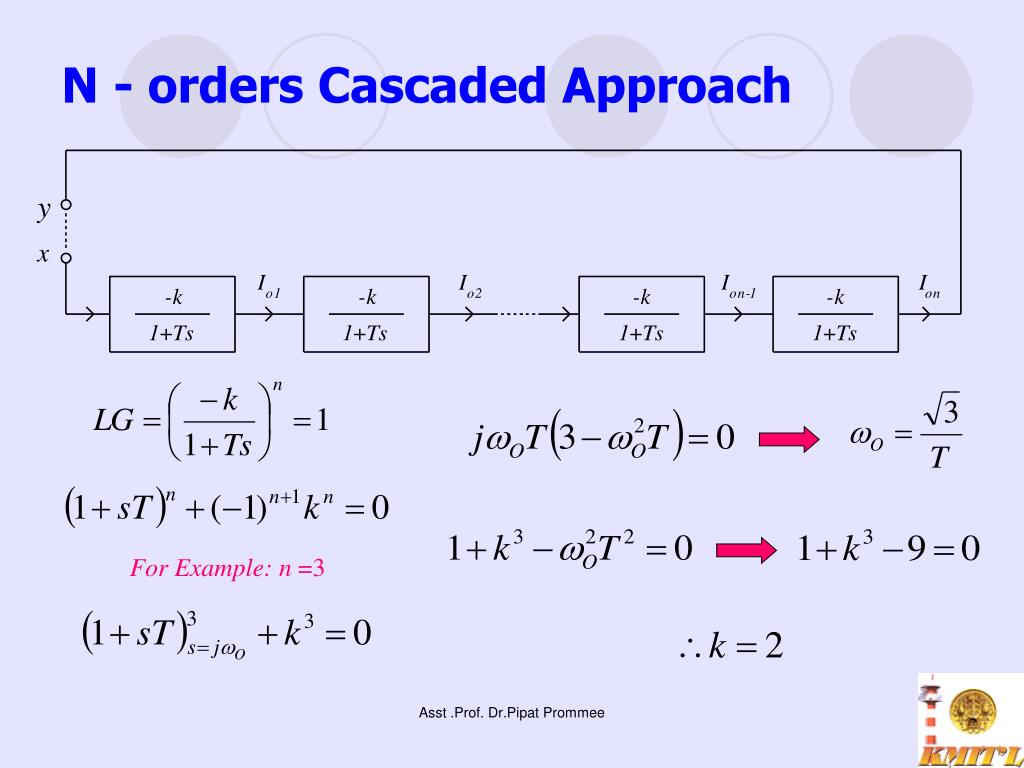

  8. N - orders Cascaded Approach For Example: n =3 Asst .Prof. Dr.Pipat Prommee

  9. Oscillators Designs Asst. Prof. Dr. Pipat Prommee Asst .Prof. Dr.Pipat Prommee

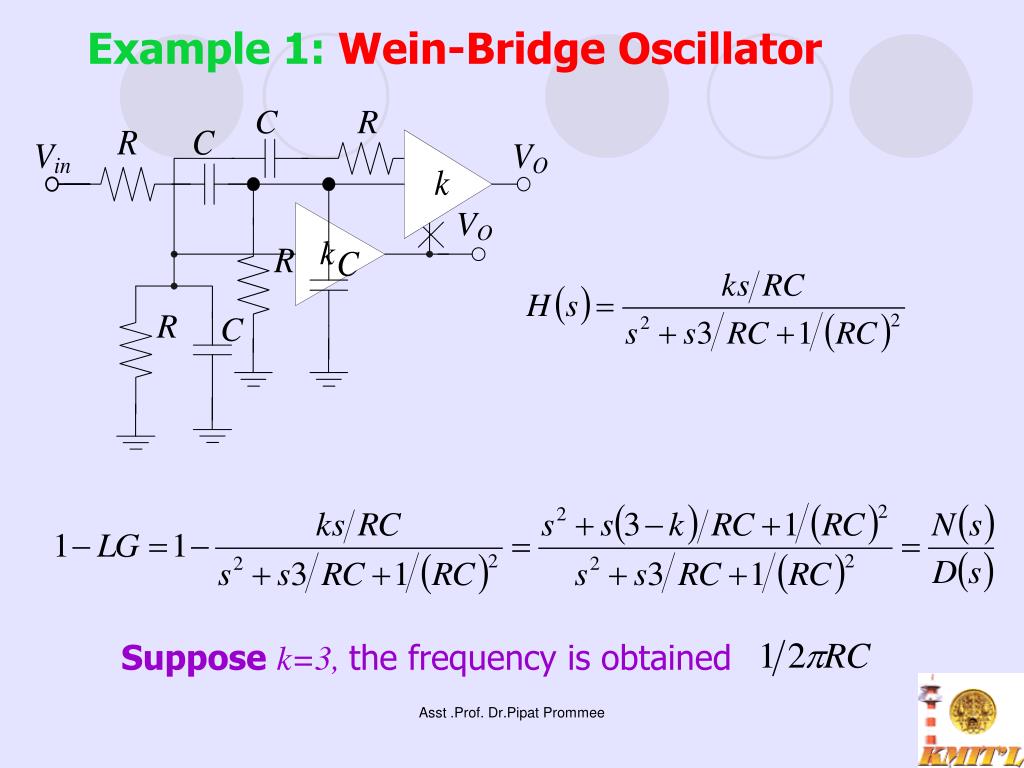

  10. Example 1:Wein-Bridge Oscillator Suppose k=3, the frequency is obtained Asst .Prof. Dr.Pipat Prommee

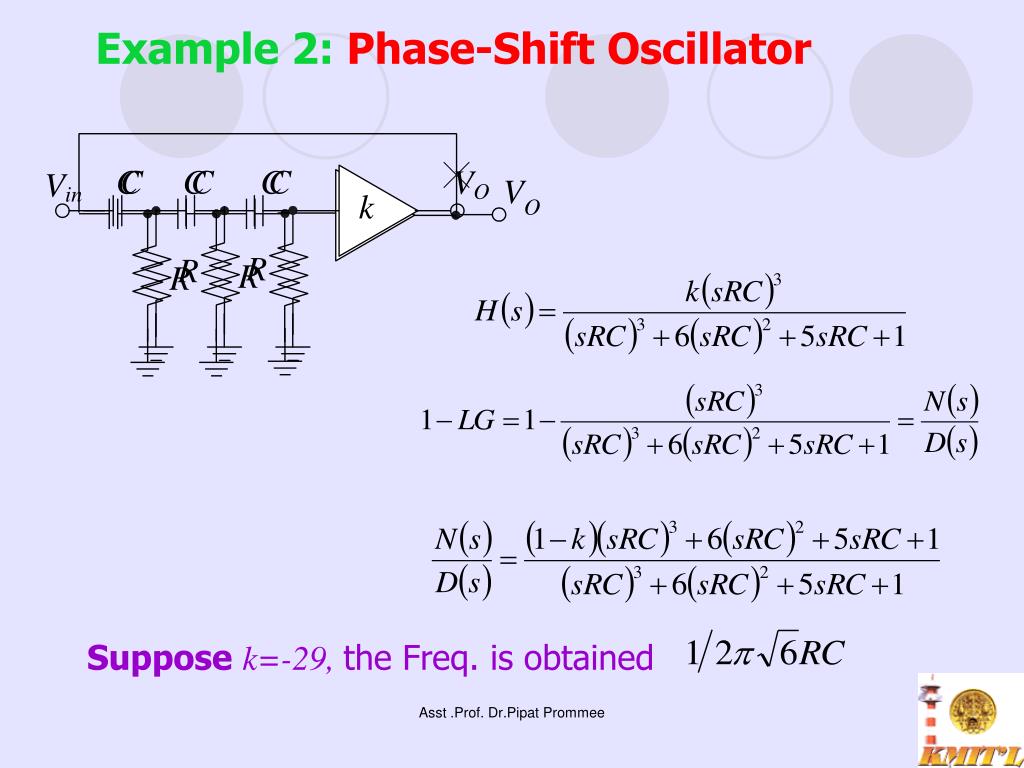

  11. Example 2: Phase-Shift Oscillator Suppose k=-29, the Freq. is obtained Asst .Prof. Dr.Pipat Prommee

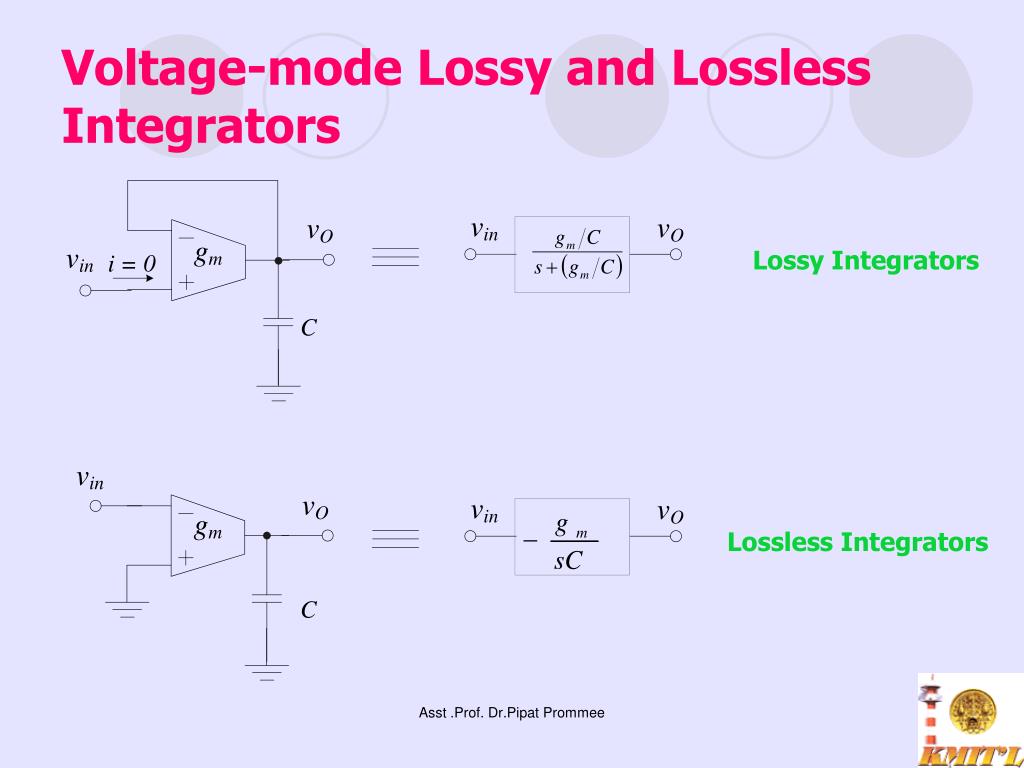

  12. Voltage-mode Lossy and Lossless Integrators Lossy Integrators Lossless Integrators Asst .Prof. Dr.Pipat Prommee

  13. Quadrature Oscillator where and Asst .Prof. Dr.Pipat Prommee

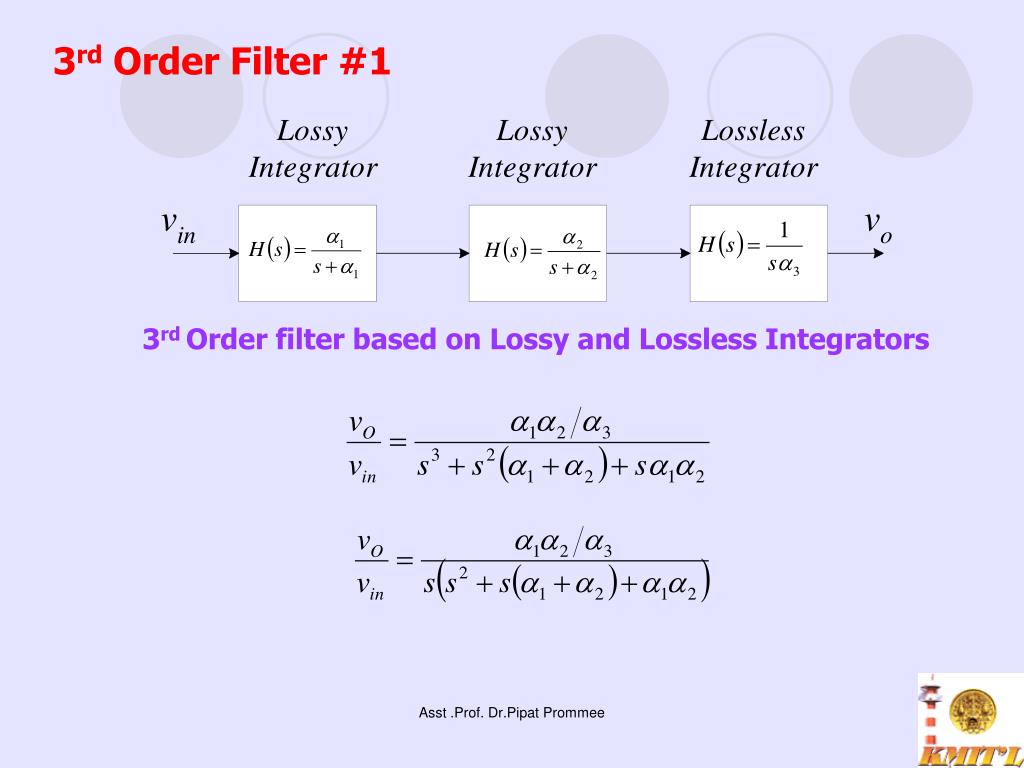

  14. 3rd Order Filter #1 3rd Order filter based on Lossy and Lossless Integrators Asst .Prof. Dr.Pipat Prommee

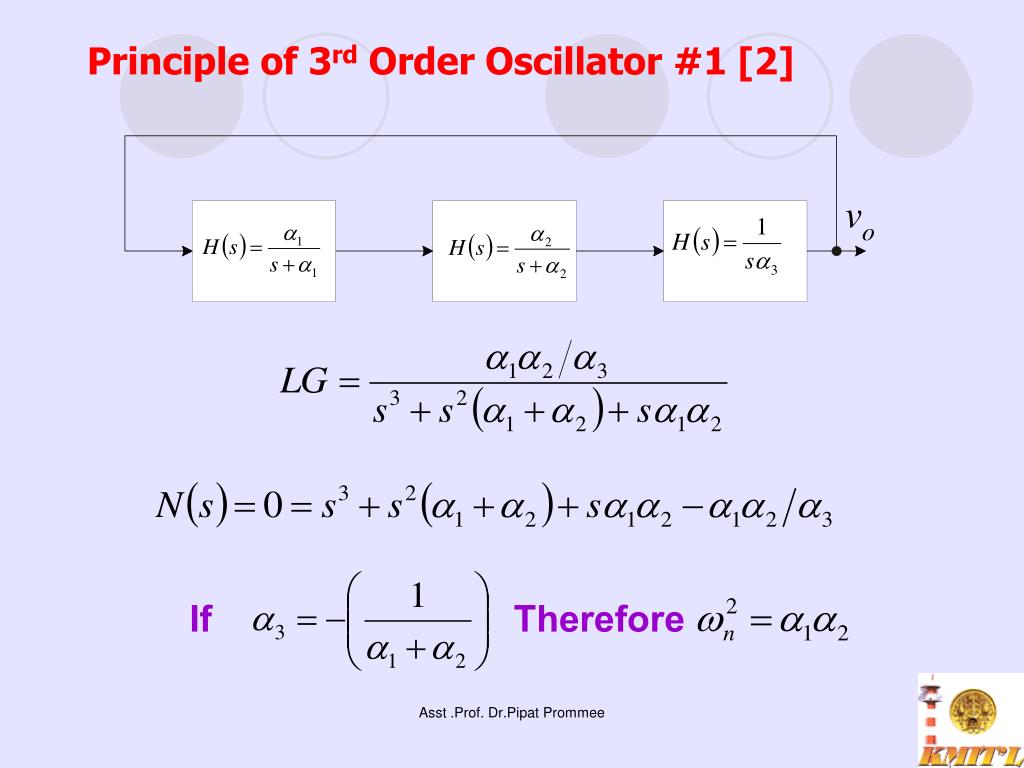

  15. Principle of 3rd Order Oscillator #1 [2] If Therefore Asst .Prof. Dr.Pipat Prommee

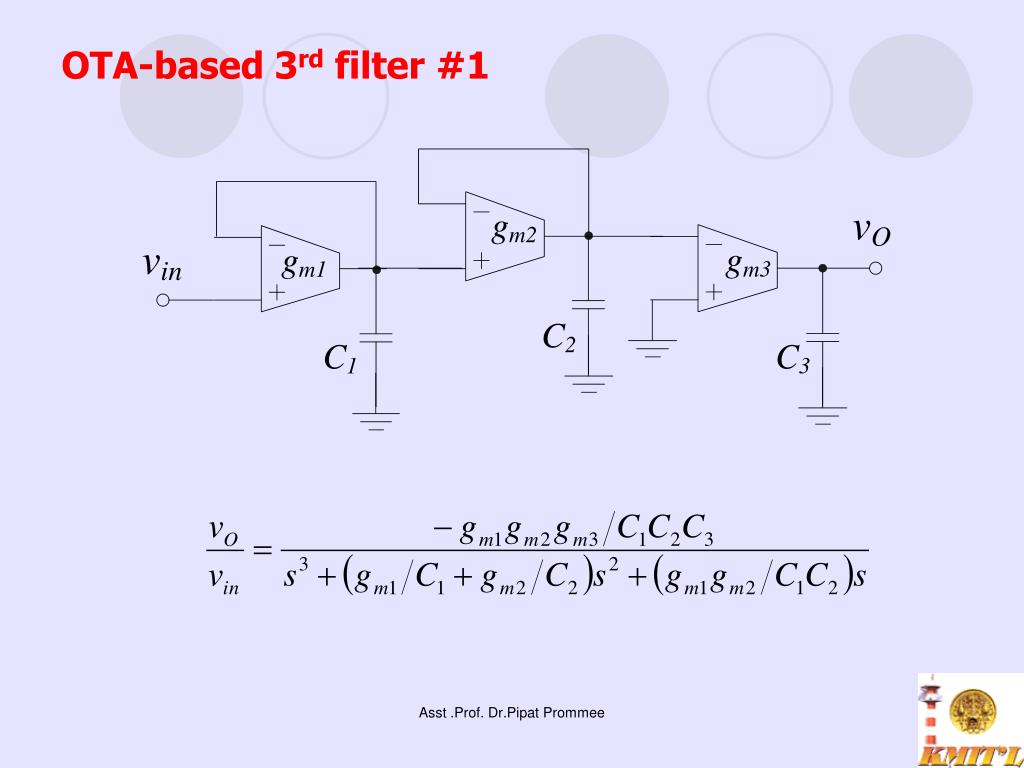

  16. OTA-based 3rd filter #1 Asst .Prof. Dr.Pipat Prommee

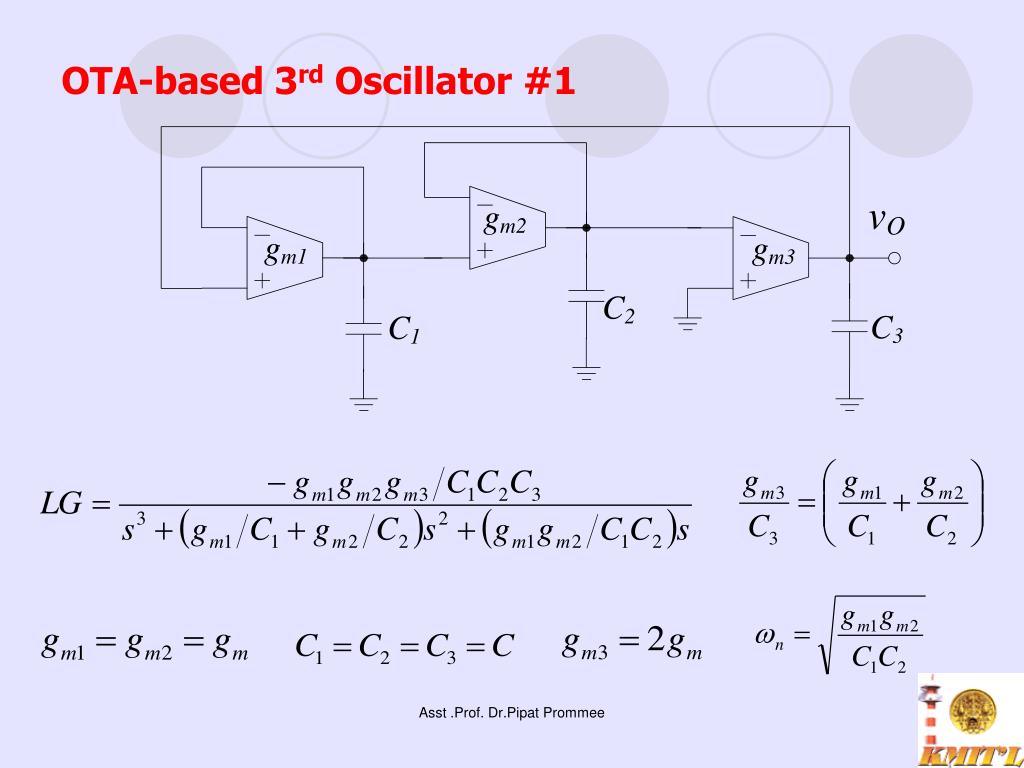

  17. OTA-based 3rd Oscillator #1 Asst .Prof. Dr.Pipat Prommee

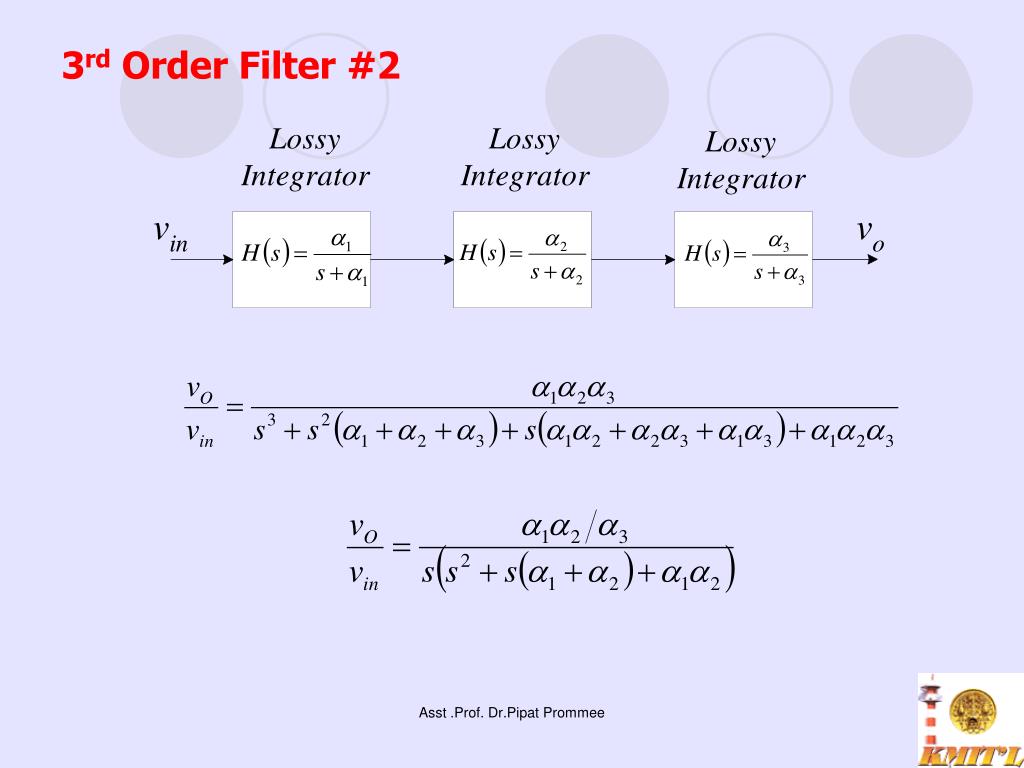

  18. 3rd Order Filter #2 Asst .Prof. Dr.Pipat Prommee

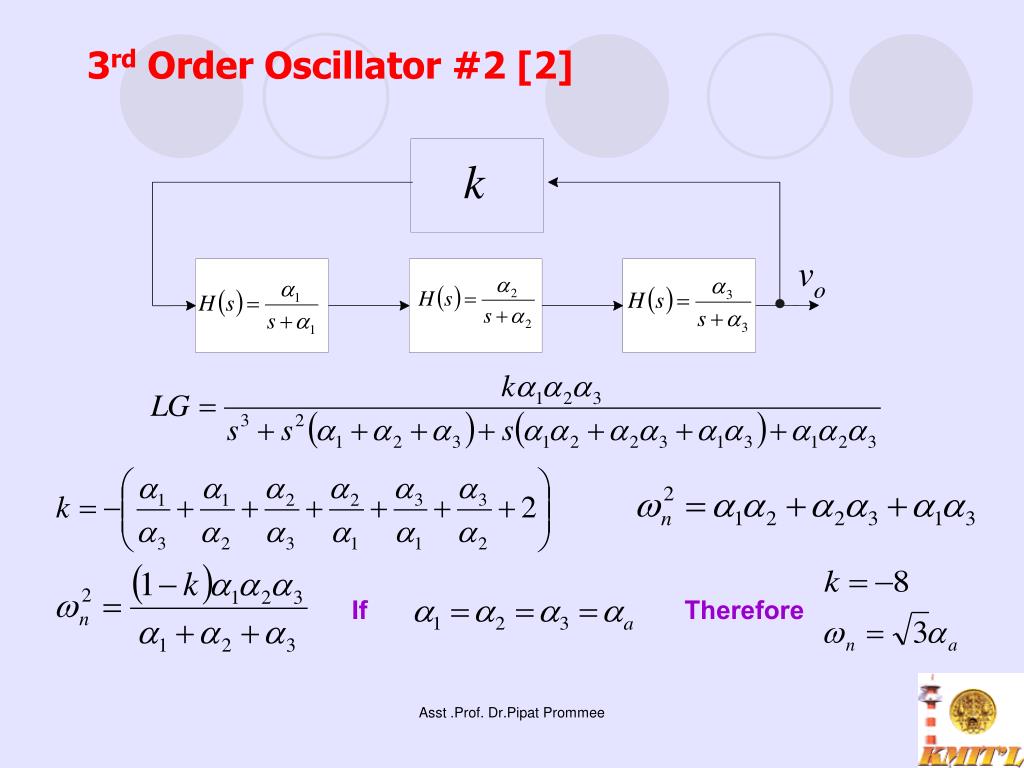

  19. 3rd Order Oscillator #2[2] If Therefore Asst .Prof. Dr.Pipat Prommee

  20. Voltage Proportional Asst .Prof. Dr.Pipat Prommee

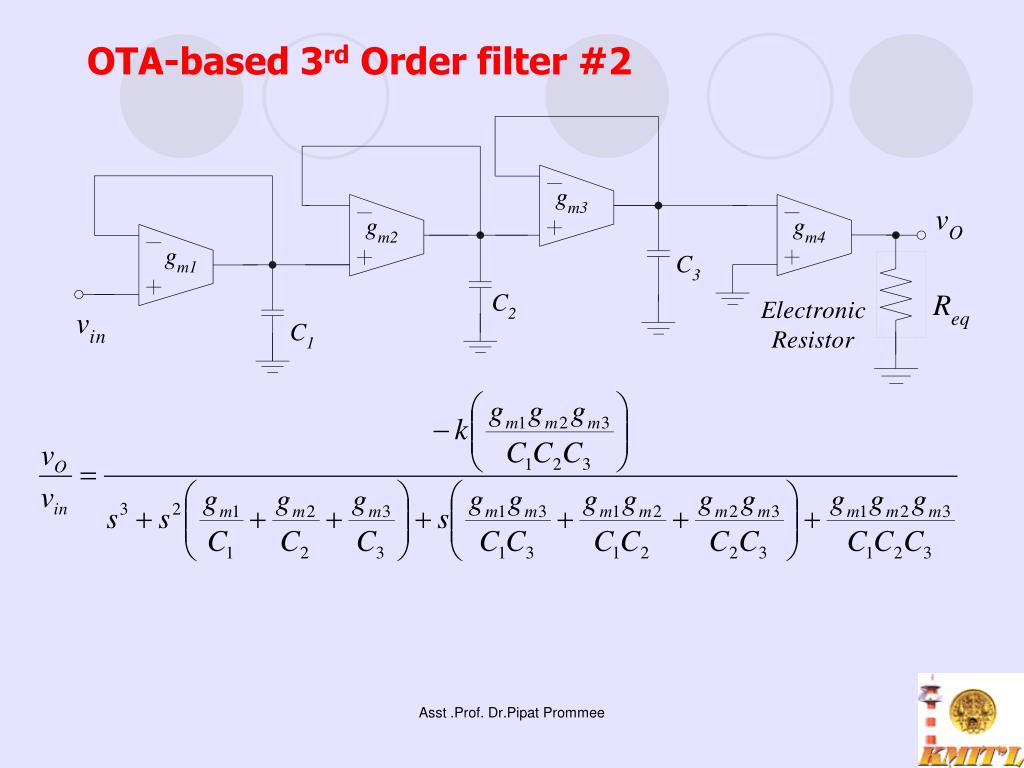

  21. OTA-based 3rd Order filter #2 Asst .Prof. Dr.Pipat Prommee

  22. OTA-based 3rd Order Oscillator #2 Asst .Prof. Dr.Pipat Prommee

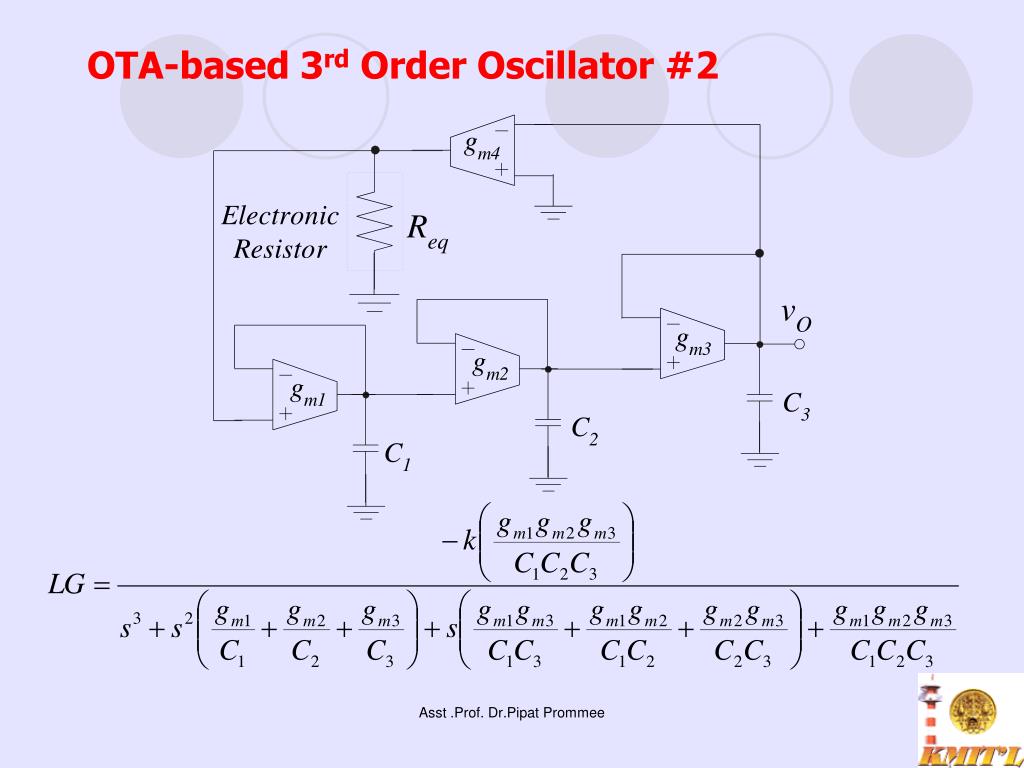

  23. OTA-based 3rd Order Oscillator #2 Asst .Prof. Dr.Pipat Prommee

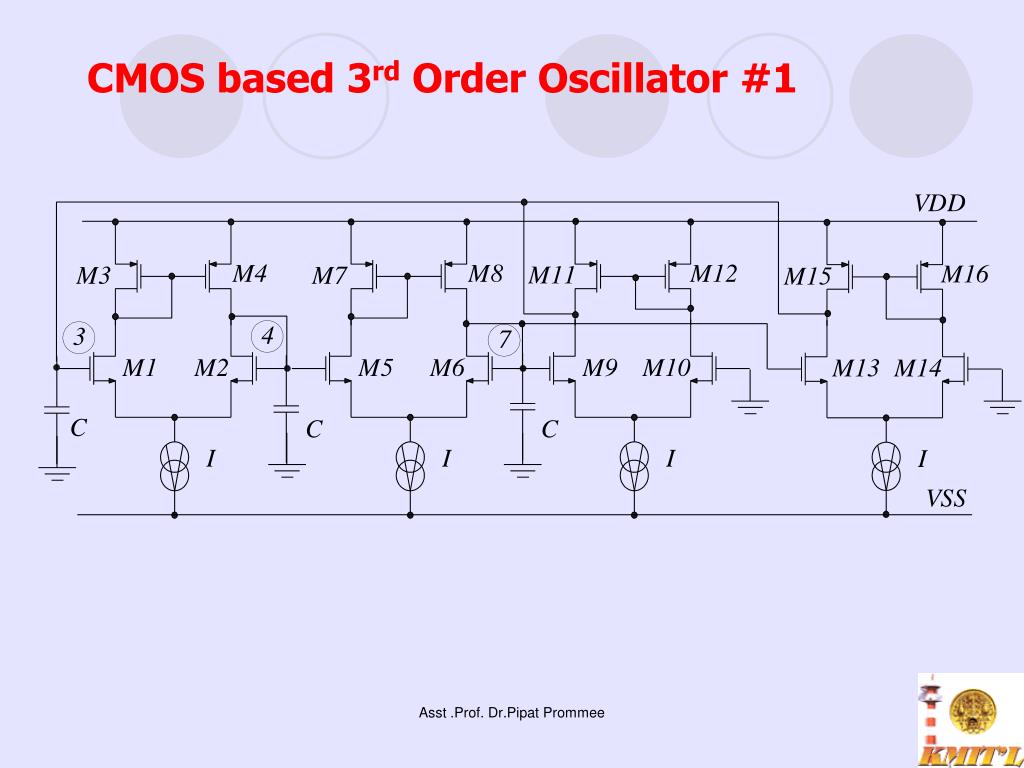

  24. CMOS based 3rd Order Oscillator #1 Asst .Prof. Dr.Pipat Prommee

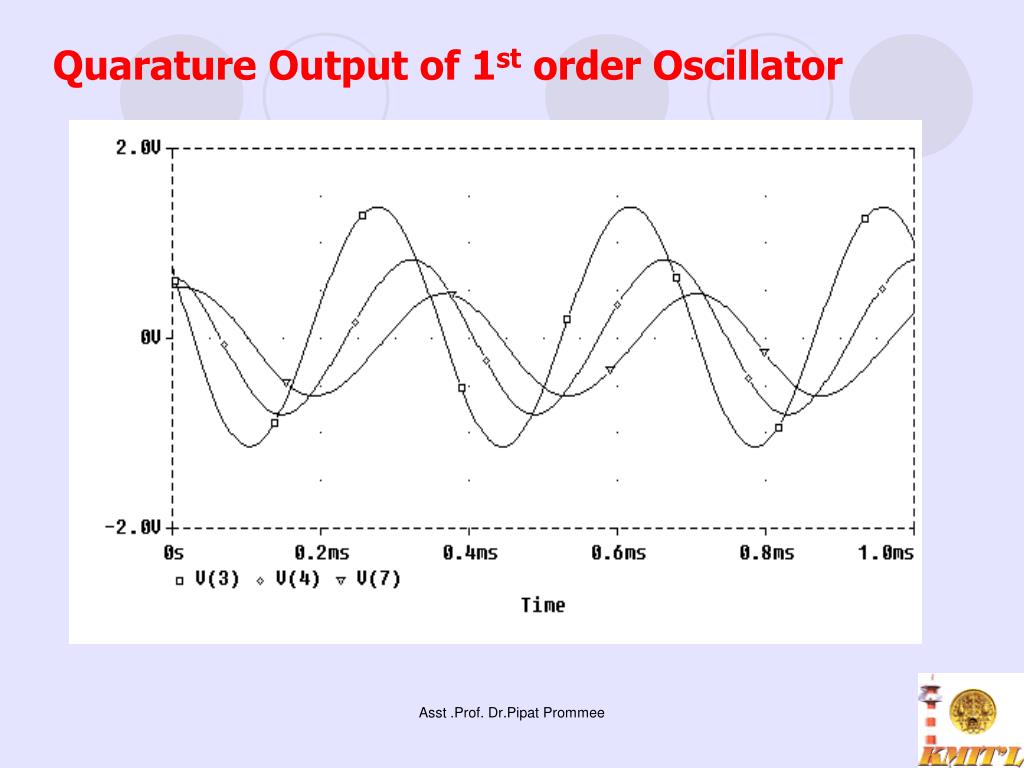

  25. Quarature Output of 1st order Oscillator Asst .Prof. Dr.Pipat Prommee

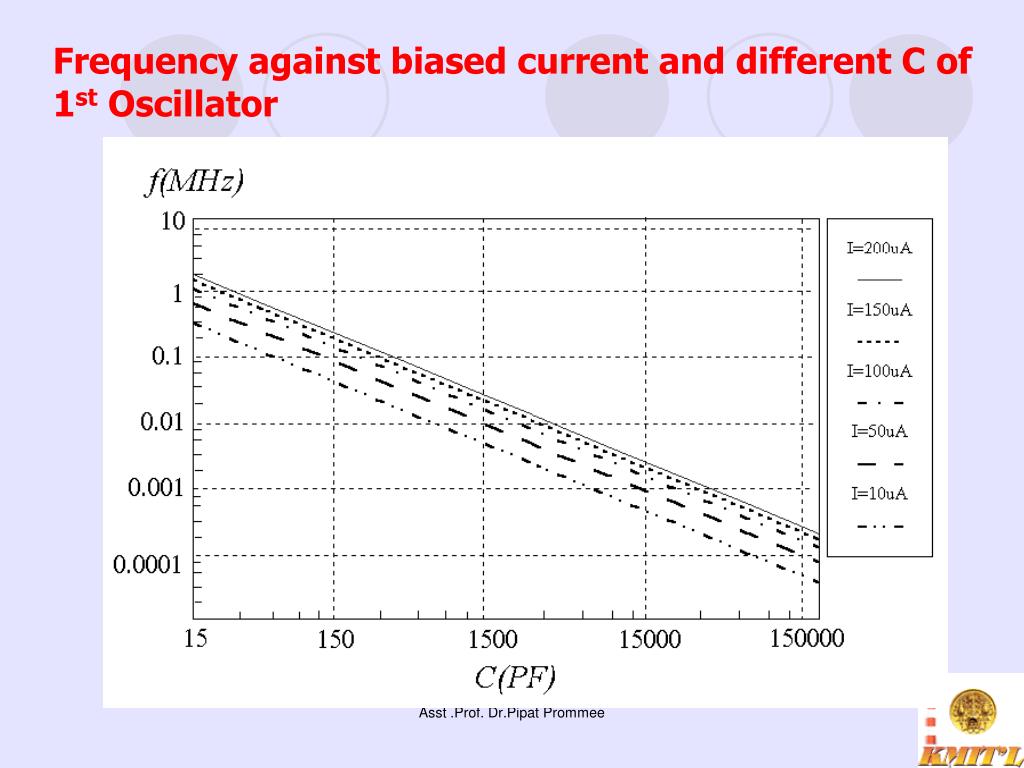

  26. Frequency against biased current and different Cof 1st Oscillator Asst .Prof. Dr.Pipat Prommee

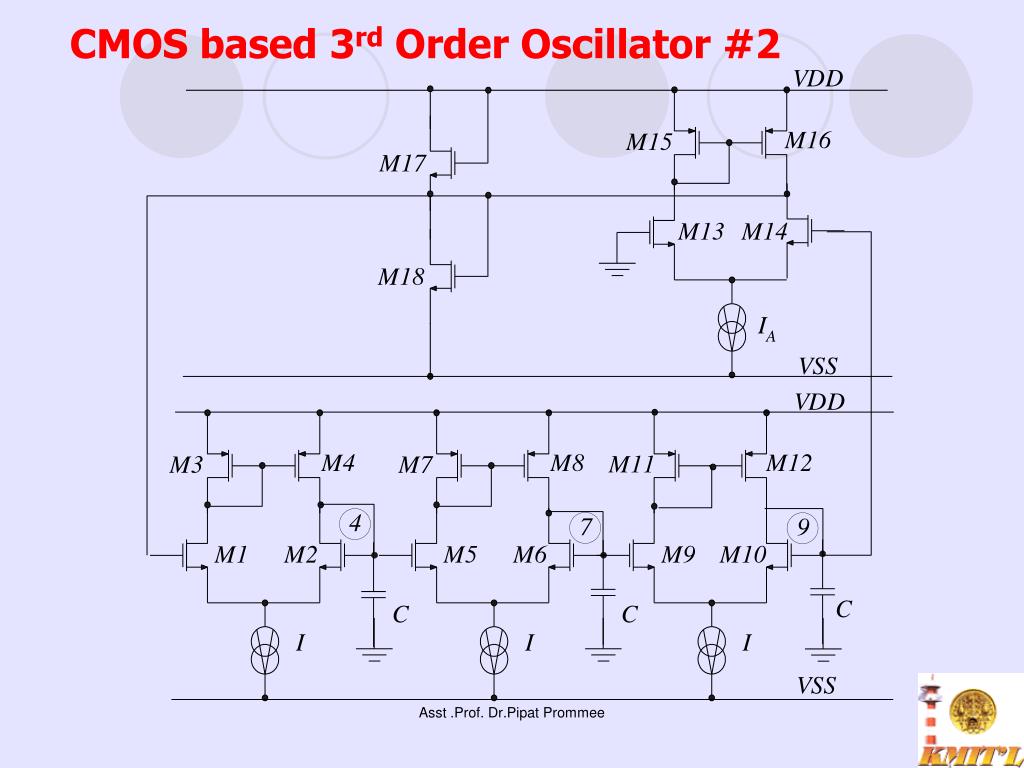

  27. CMOS based 3rd Order Oscillator #2 Asst .Prof. Dr.Pipat Prommee

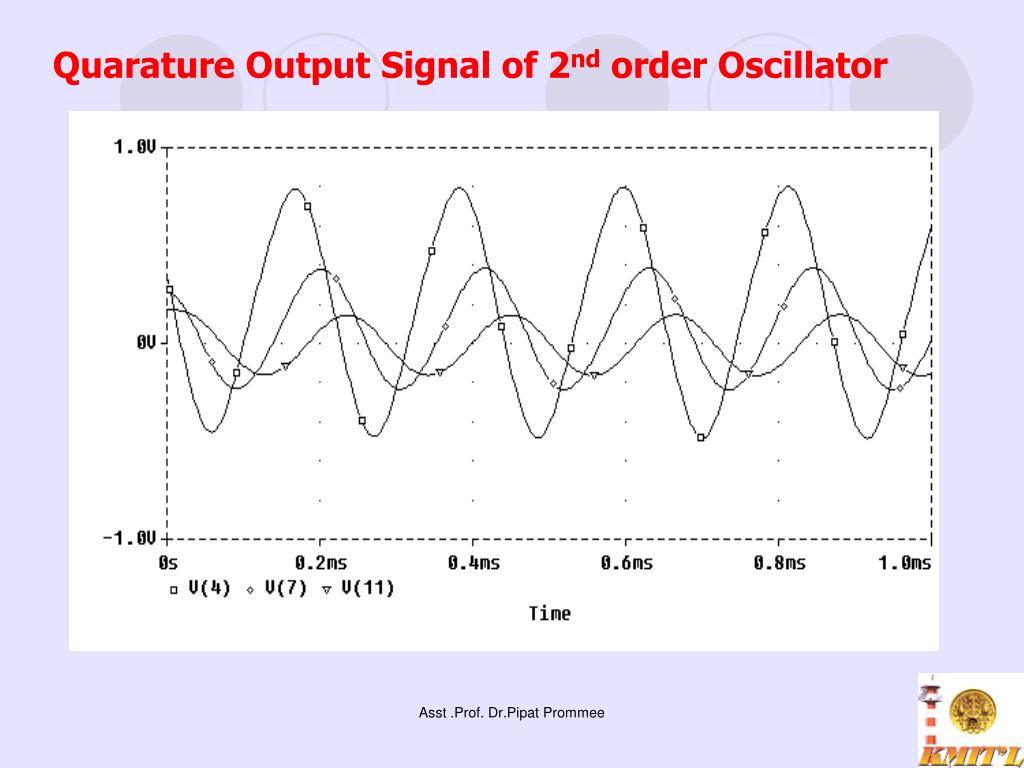

  28. Quarature Output Signal of 2nd order Oscillator Asst .Prof. Dr.Pipat Prommee

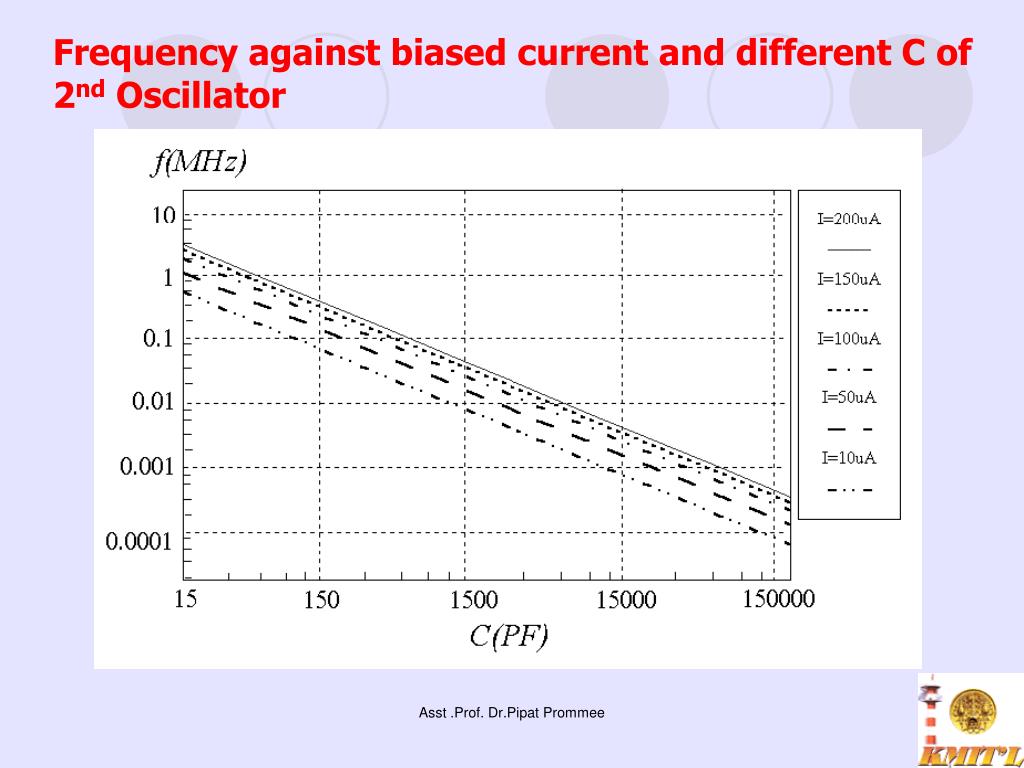

  29. Frequency against biased current and different Cof 2nd Oscillator Asst .Prof. Dr.Pipat Prommee

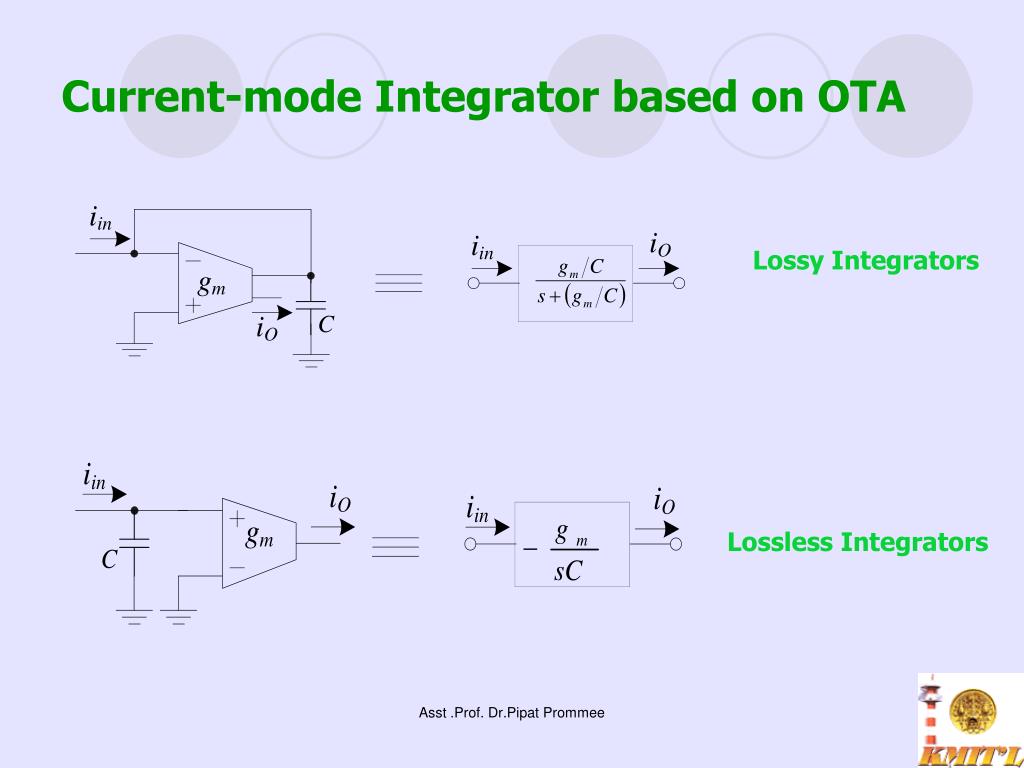

  30. Current-mode Integrator based on OTA Lossy Integrators Lossless Integrators Asst .Prof. Dr.Pipat Prommee

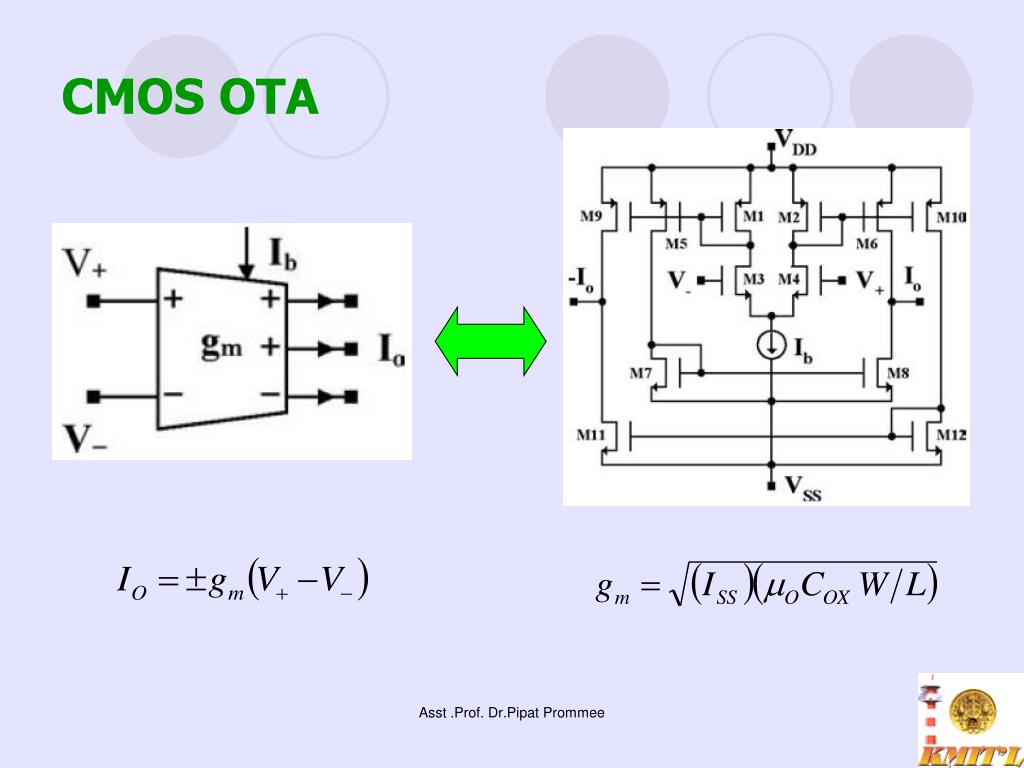

  31. CMOS OTA Asst .Prof. Dr.Pipat Prommee

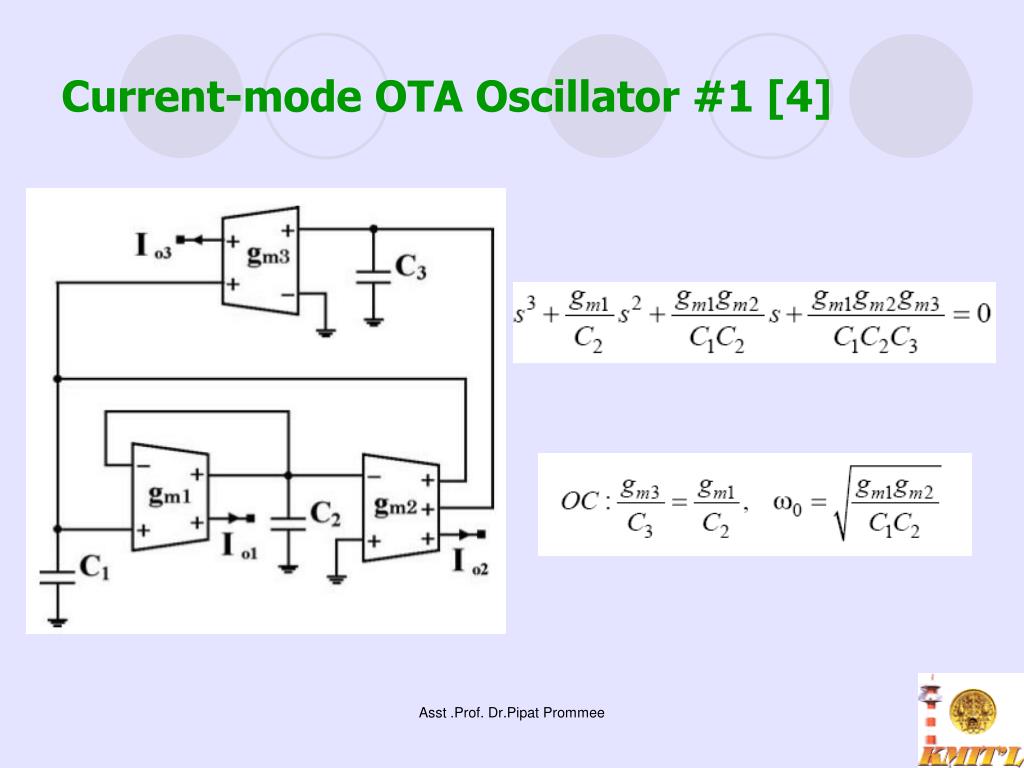

  32. Current-mode OTA Oscillator#1 [4] Asst .Prof. Dr.Pipat Prommee

  33. Current-mode OTA Oscillator #2 [4] Asst .Prof. Dr.Pipat Prommee

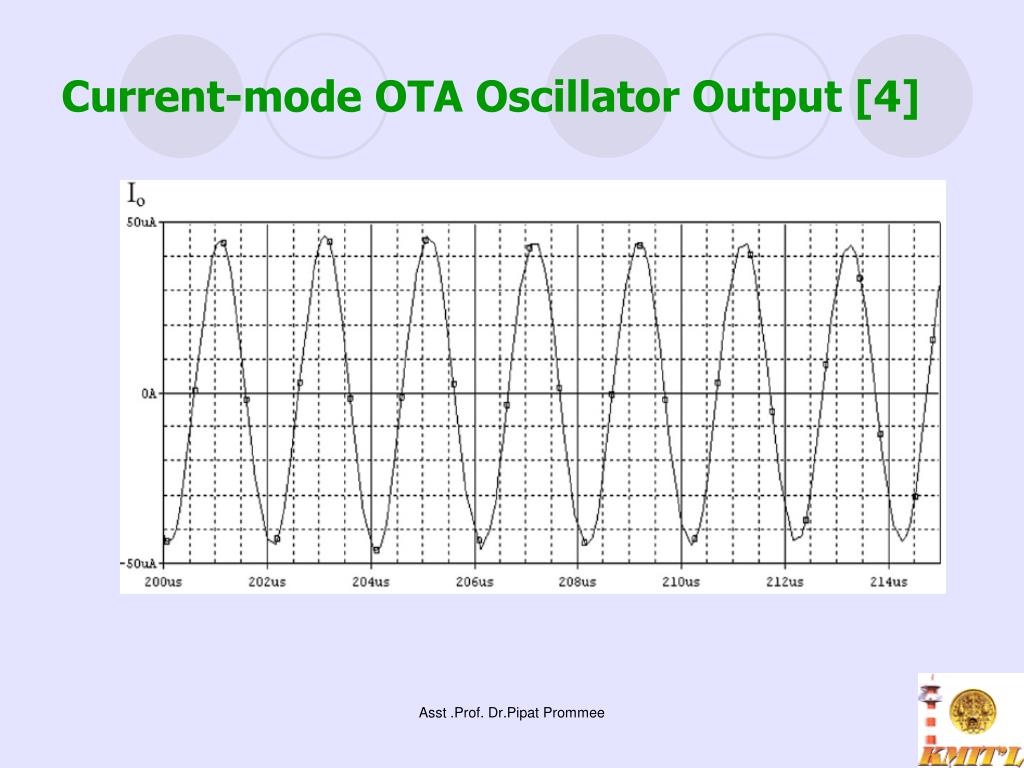

  34. Current-mode OTA OscillatorOutput [4] Asst .Prof. Dr.Pipat Prommee

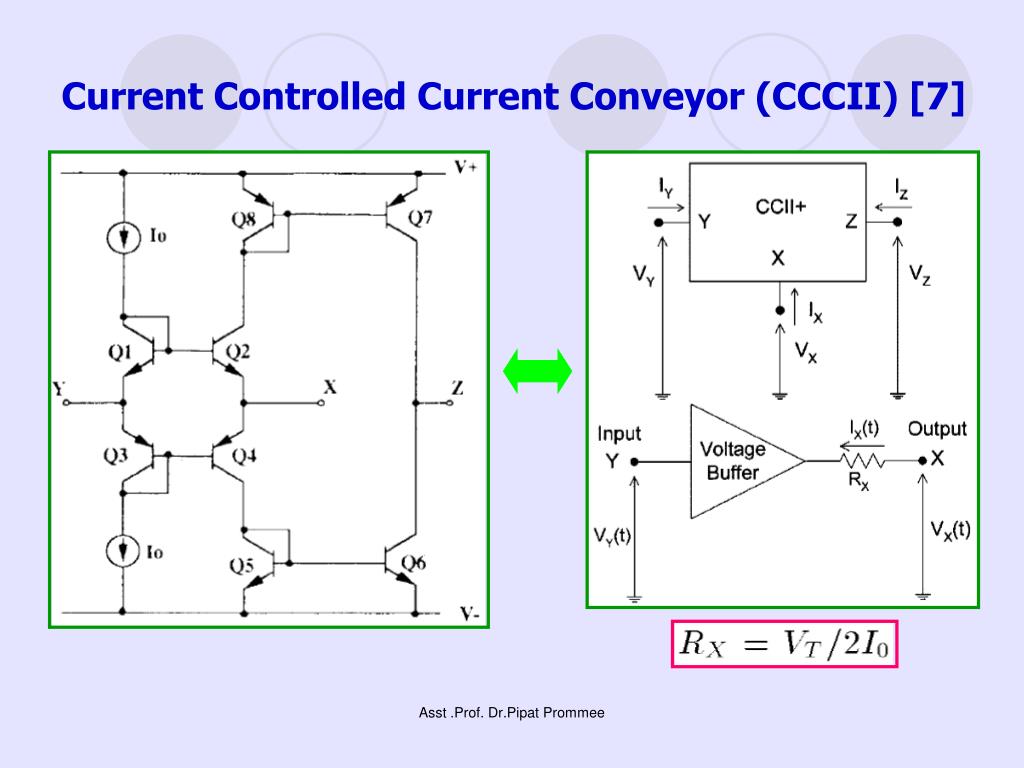

  35. Current Controlled Current Conveyor (CCCII) [7] Asst .Prof. Dr.Pipat Prommee

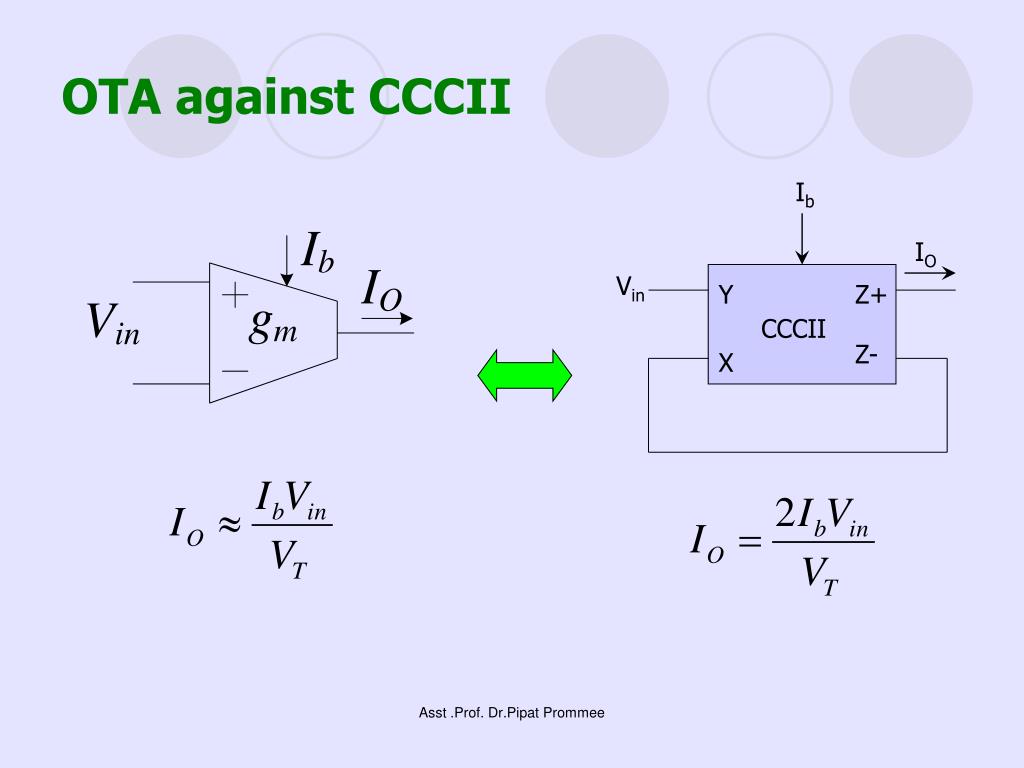

  36. Ib IO Vin Y Z+ CCCII Z- X OTA against CCCII Asst .Prof. Dr.Pipat Prommee

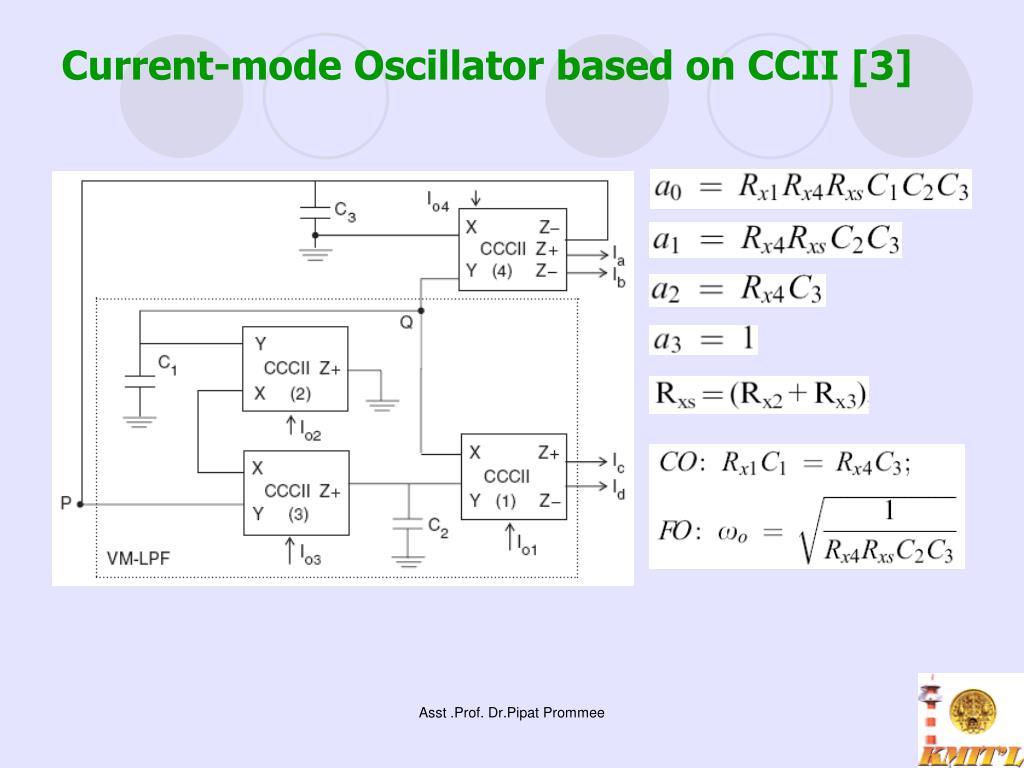

  37. Current-mode Oscillator based on CCII[3] Asst .Prof. Dr.Pipat Prommee

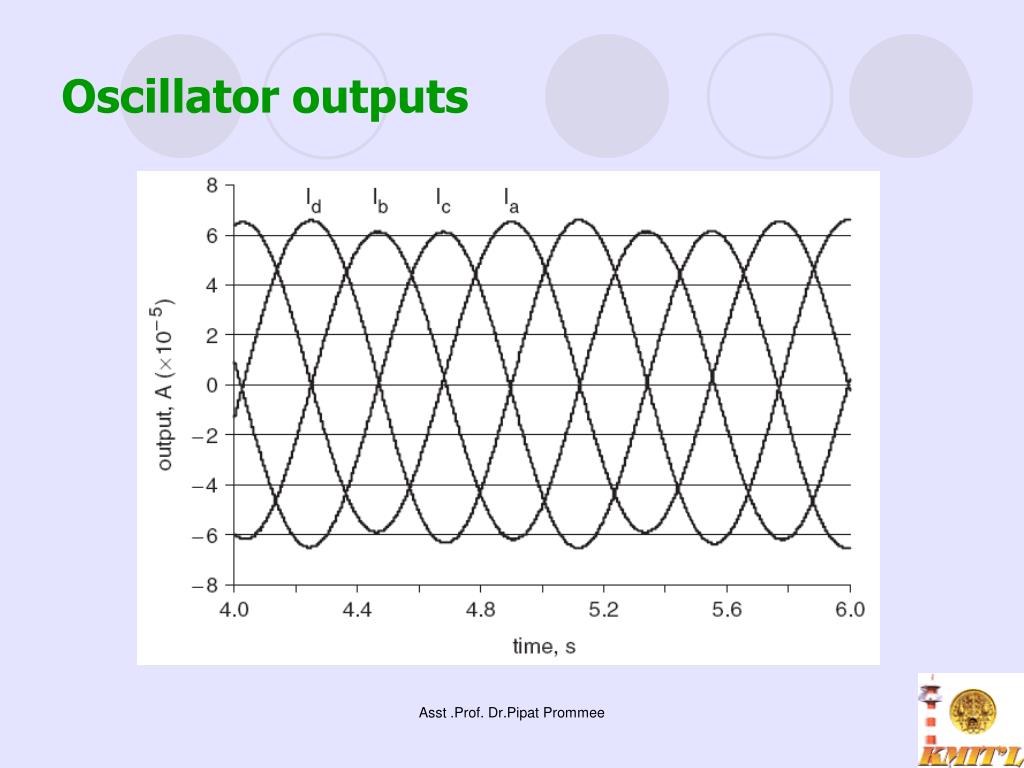

  38. Oscillator outputs Asst .Prof. Dr.Pipat Prommee

  39. CCCII-based differentiator and Integrator Lossy Differentator Lossy Integrator Asst .Prof. Dr.Pipat Prommee

  40. N-order (odd) Oscillators [1] Asst .Prof. Dr.Pipat Prommee

  41. N-order (Even) Oscillators [1] Asst .Prof. Dr.Pipat Prommee

  42. Oscillation Output Asst .Prof. Dr.Pipat Prommee

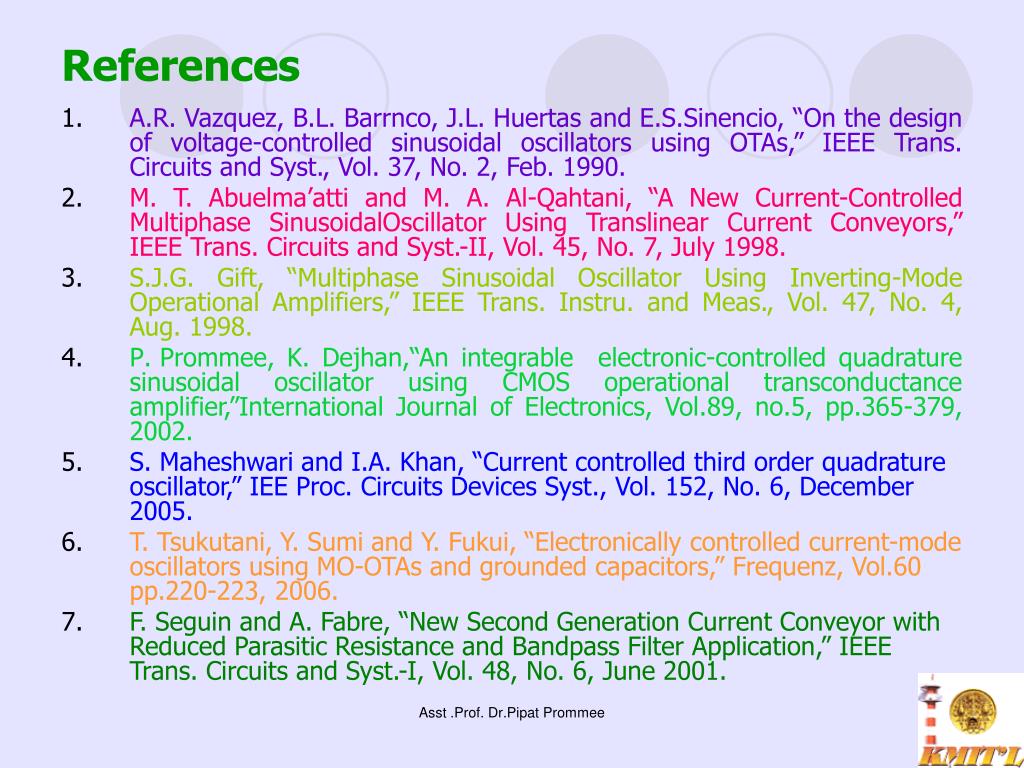

  43. References • A.R. Vazquez, B.L. Barrnco, J.L. Huertas and E.S.Sinencio, “On the design of voltage-controlled sinusoidal oscillators using OTAs,” IEEE Trans. Circuits and Syst., Vol. 37, No. 2, Feb. 1990. • M. T. Abuelma’atti and M. A. Al-Qahtani, “A New Current-Controlled Multiphase SinusoidalOscillator Using Translinear Current Conveyors,” IEEE Trans. Circuits and Syst.-II, Vol. 45, No. 7, July 1998. • S.J.G. Gift, “Multiphase Sinusoidal Oscillator Using Inverting-Mode Operational Amplifiers,” IEEE Trans. Instru. and Meas., Vol. 47, No. 4, Aug. 1998. • P. Prommee, K. Dejhan,“An integrable electronic-controlled quadrature sinusoidal oscillator using CMOS operational transconductance amplifier,”International Journal of Electronics, Vol.89, no.5, pp.365-379, 2002. • S. Maheshwari and I.A. Khan, “Current controlled third order quadrature oscillator,” IEE Proc. Circuits Devices Syst., Vol. 152, No. 6, December 2005. • T. Tsukutani, Y. Sumi and Y. Fukui, “Electronically controlled current-mode oscillators using MO-OTAs and grounded capacitors,” Frequenz,Vol.60 pp.220-223, 2006. • F. Seguin and A. Fabre, “New Second Generation Current Conveyor with Reduced Parasitic Resistance and Bandpass Filter Application,” IEEE Trans. Circuits and Syst.-I, Vol. 48, No. 6, June 2001. Asst .Prof. Dr.Pipat Prommee
