  1. KDX 30/60 System

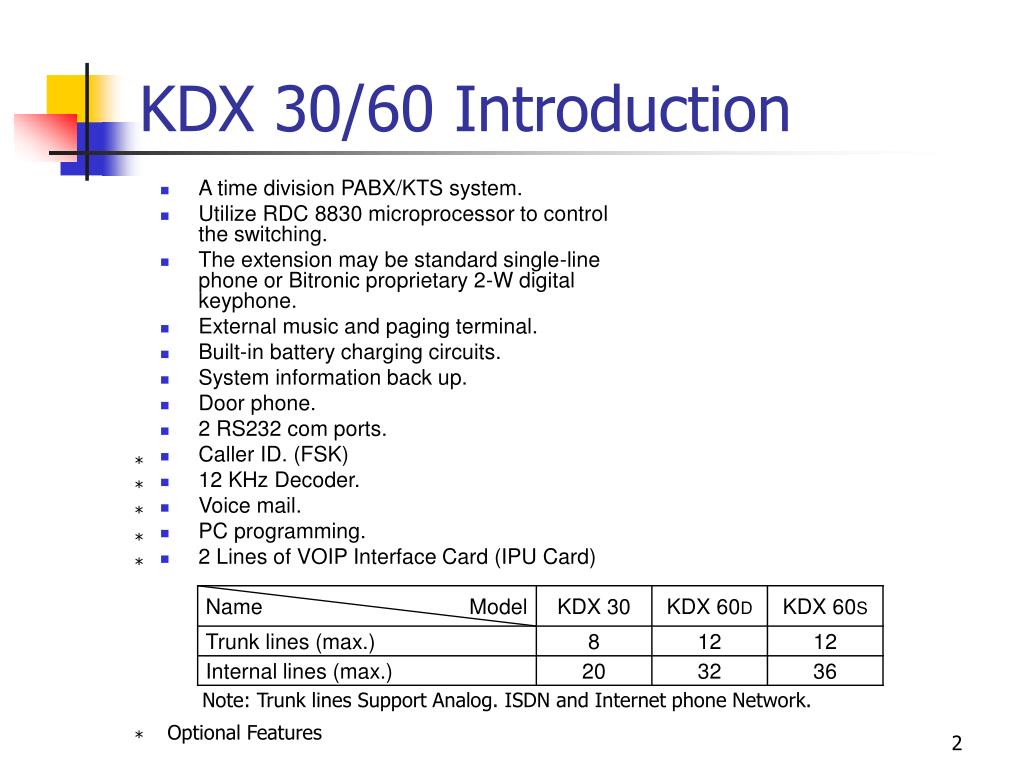

  2. KDX 30/60 Introduction • A time division PABX/KTS system. • Utilize RDC 8830 microprocessor to control the switching. • The extension may be standard single-line phone or Bitronic proprietary 2-Wdigital keyphone. • External music and paging terminal. • Built-in battery charging circuits. • System information back up. • Door phone. • 2 RS232 com ports. • Caller ID. (FSK) • 12 KHz Decoder. • Voice mail. • PC programming. • 2 Lines of VOIP Interface Card (IPU Card) * * * * * Note: Trunk lines Support Analog. ISDN and Internet phone Network. Optional Features *

  3. Block Diagram 2-W Keyphone or Single-line phone InterNet C.O. line TKU or IIU DSU or SLU IPU CARD Mother Board Door phone RS232 VM card or DISA Card PSU Power AC 110 / 220V

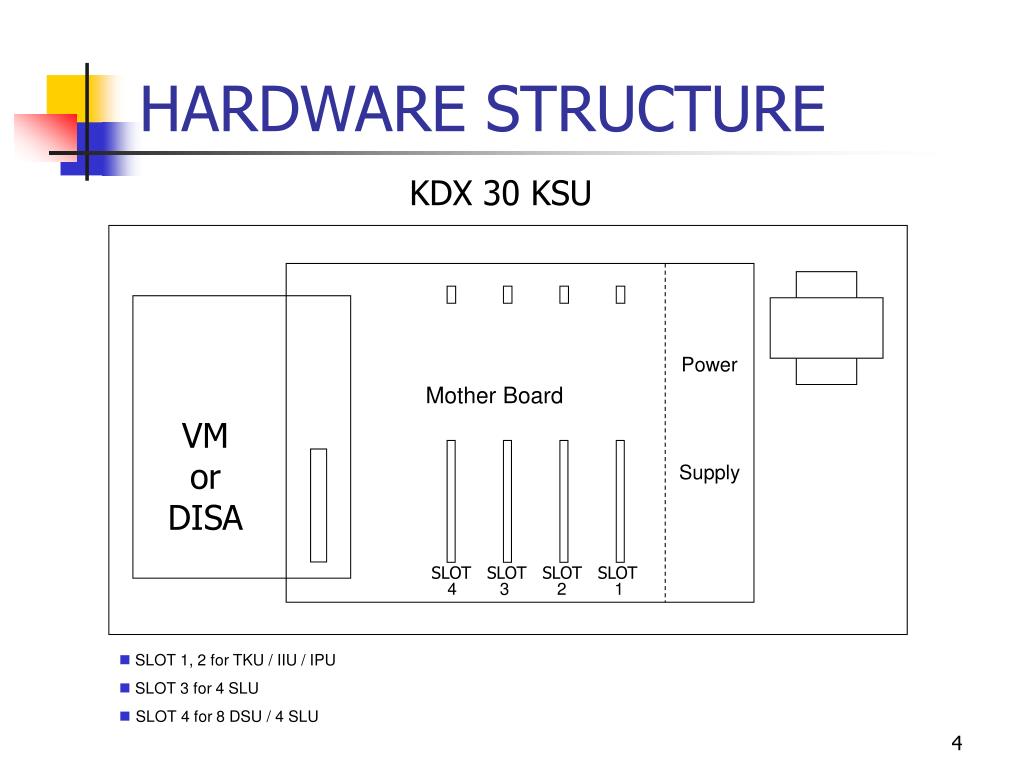

  4. HARDWARE STRUCTURE KDX 30 KSU Power Supply Mother Board VM or DISA SLOT SLOT SLOT SLOT 4 3 2 1 • SLOT 1, 2 for TKU / IIU / IPU • SLOT 3 for 4 SLU • SLOT 4 for 8 DSU / 4 SLU

  5. EQUIPMENT CONFIGURATION KDX 30

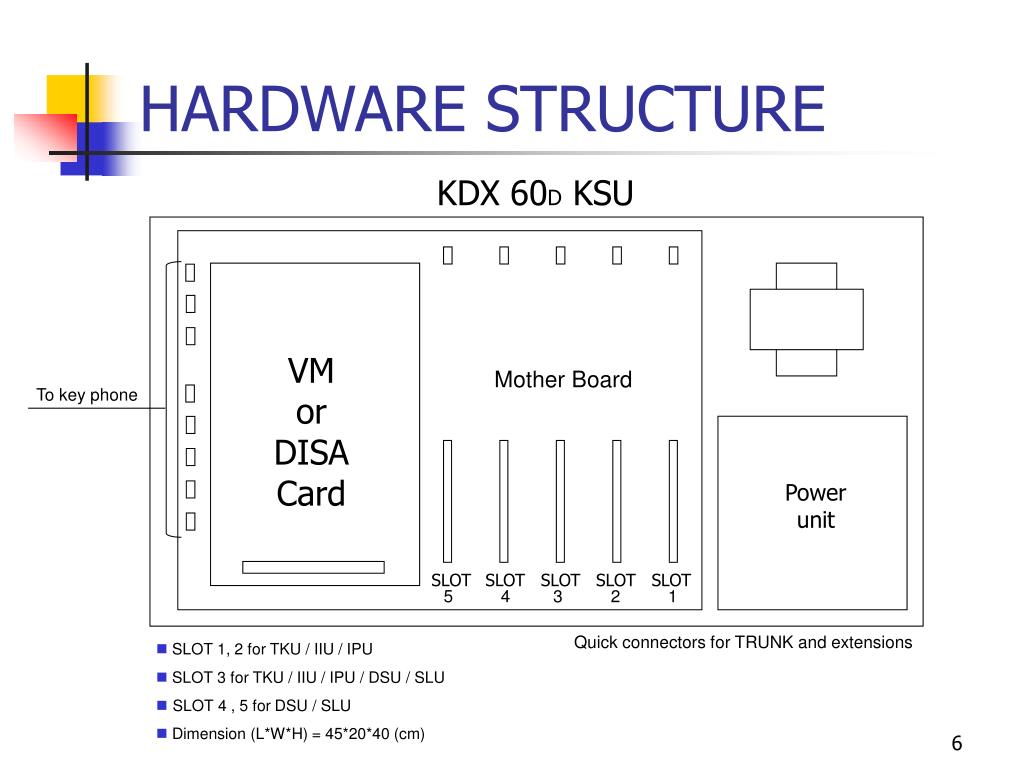

  6. HARDWARE STRUCTURE KDX 60D KSU VM or DISA Card Mother Board To key phone Power unit SLOTSLOT SLOT SLOT SLOT 5 4 3 2 1 Quick connectors for TRUNK and extensions • SLOT 1, 2 for TKU / IIU / IPU • SLOT 3 for TKU / IIU / IPU / DSU / SLU • SLOT 4 , 5 for DSU / SLU • Dimension (L*W*H) = 45*20*40 (cm)

  7. EQUIPMENT CONFIGURATION KDX 60D

  8. HARDWARE STRUCTURE KDX 60S KSU VM or DISA Card Mother Board To key phone Power unit SLOTSLOT SLOT SLOT SLOT 5 4 3 2 1 Quick connectors for TRUNK and extensions • SLOT 1, 2 for TKU / IIU / IPU • SLOT 3 for TKU / IIU / IPU / DSU / SLU • SLOT 4 , 5 for DSU / SLU • Dimension (L*W*H) = 45*20*40 (cm)

  9. EQUIPMENT CONFIGURATION KDX 60S

  10. Mother Board • Built-in 8 lines DSU (KDX 30) • Built-in 16 lines DSU (KDX 60D) • Built-in 4 lines DSU and 16 lines SLU (KDX 60S) • RDC 8830 CPU with 1Mb SRAM and 2Mb EPROM • Real time clock • Internal music source • Up to 4 slots for interface card (KDX 30) • Up to 5 slots for interface card (KDX 60) • 2 RS232 COM PORT • Interface for Disa card or Voice mail card • External music and paging terminal • PC programming • Door phone port

  11. TKU • 4lines per card • Signal type : loop start • Tone / pulse dialing • Support Caller ID Daughterboard and 12 KHZ Decoder unit • Loop Supervision Disconnect

  12. IIU • 2 BRI per card • CLIP / CLIR • COLP / COLR • MSN (Multiple Subscriber Number) • DDI (Direct Dial Inward)

  13. IPU CARD • 2 Lines Per Card • VOIP Interface With Router • 1 port 10/100 Mbps WAN port + 2 ports 10/100 Mbps Ethernet Switch • Support Standard H.323 and SIP Gatekeeper up to 4 setting • Built in DHCP Server and SPI Firewall

  14. DSU • 8ports per card • Bitronic 2-Wire Digital Keyphone interface • Support Caller ID Feature • Real Time Clock

  15. SLU • 4ports per card (KDX 30) • 8ports per card (KDX 60) • Standard single-line phone interface • Support Caller ID Feature

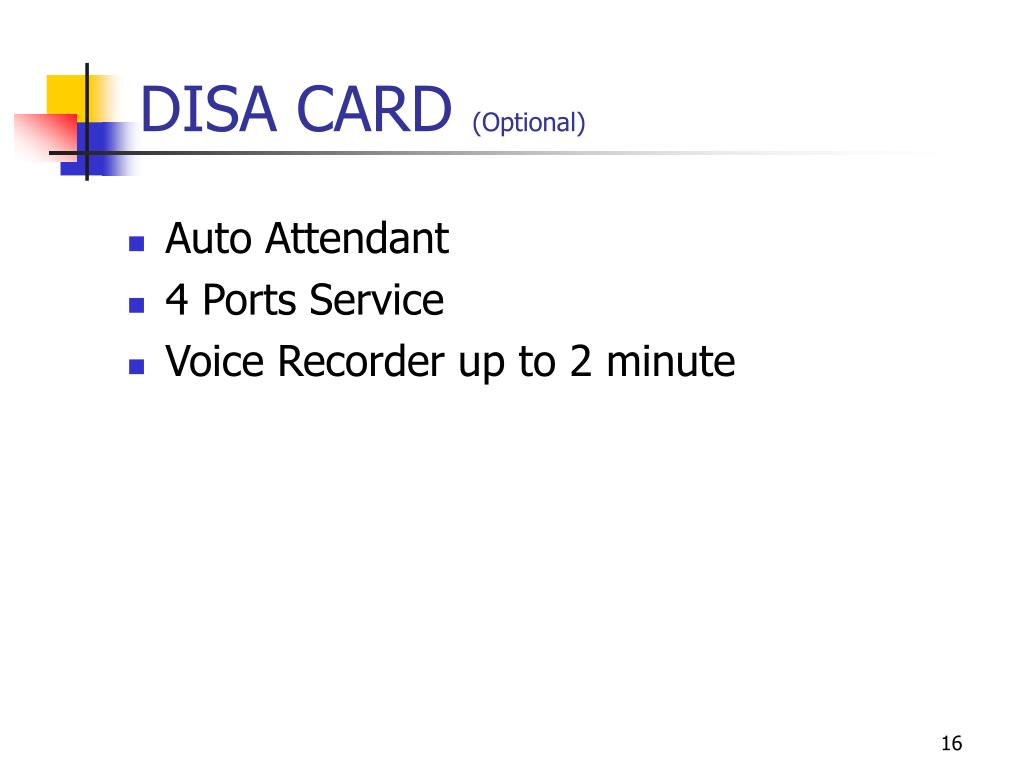

  16. DISA CARD (Optional) • Auto Attendant • 4 Ports Service • Voice Recorder up to 2 minute

  17. Voice mail card (Optional) • Auto Attendant • FAX Detection • PC Programming • Multi-languages • Password Protection • 4 Ports Service • Capacity 10 hours • 128 mailboxes

  18. Caller ID and 12 KHZ Decoder Card(optional) • 4lines per card • FSK Type • 12 KHZ/16 KHZ Decoder • Daughterboard plug-in on TKU
