  1. Analog-to-digital ConversionandDigital-to-analog Conversion(with DSP) ES-3

  2. 8R V1 VOUT 4R V2 2R V4 R V8 8R A very simple (…too simple!)Digital-to-analog converter

  3. A simpleAnalog-to-digital converter Analog Input + - scitec.uwichill.edu.bb

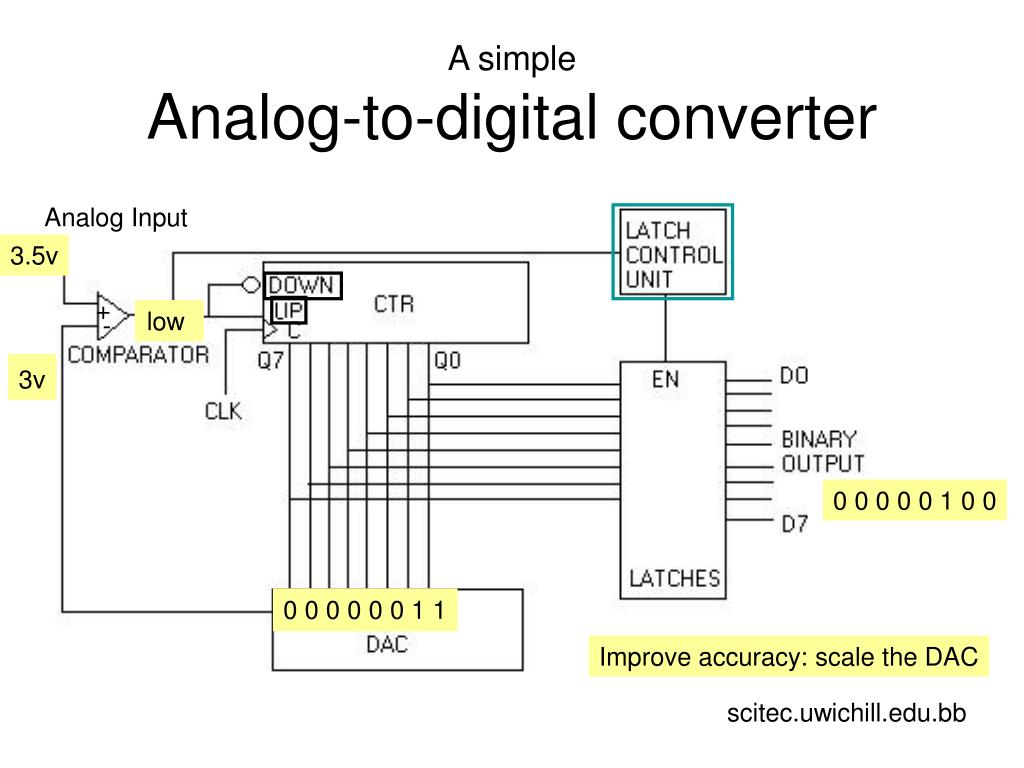

  4. A simpleAnalog-to-digital converter Analog Input 3.5v + high low - 0v 3v 2v 3v 4v 1v 0 0 0 0 0 1 0 0 0 0 0 0 0 0 1 1 0 0 0 0 0 1 0 0 0 0 0 0 0 0 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 1 Improve accuracy: scale the DAC scitec.uwichill.edu.bb

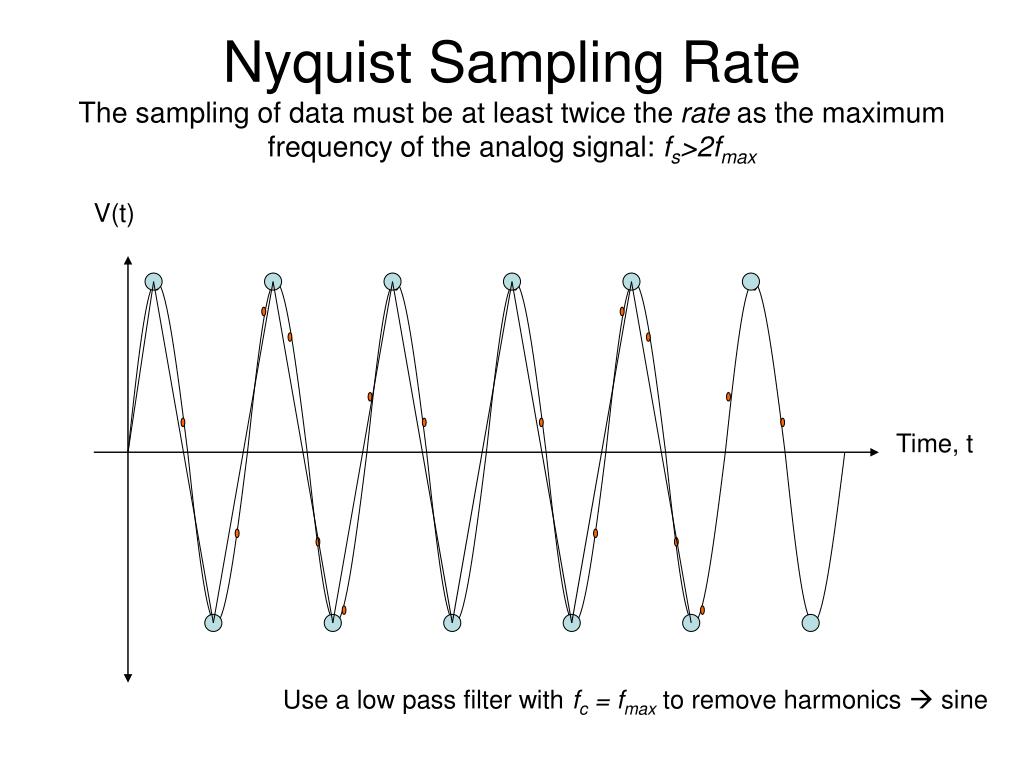

  5. Nyquist Sampling RateThe sampling of data must be at least twice the rate as the maximum frequency of the analog signal: fs>2fmax V(t) Time, t Use a low pass filter with fc = fmax to remove harmonics  sine

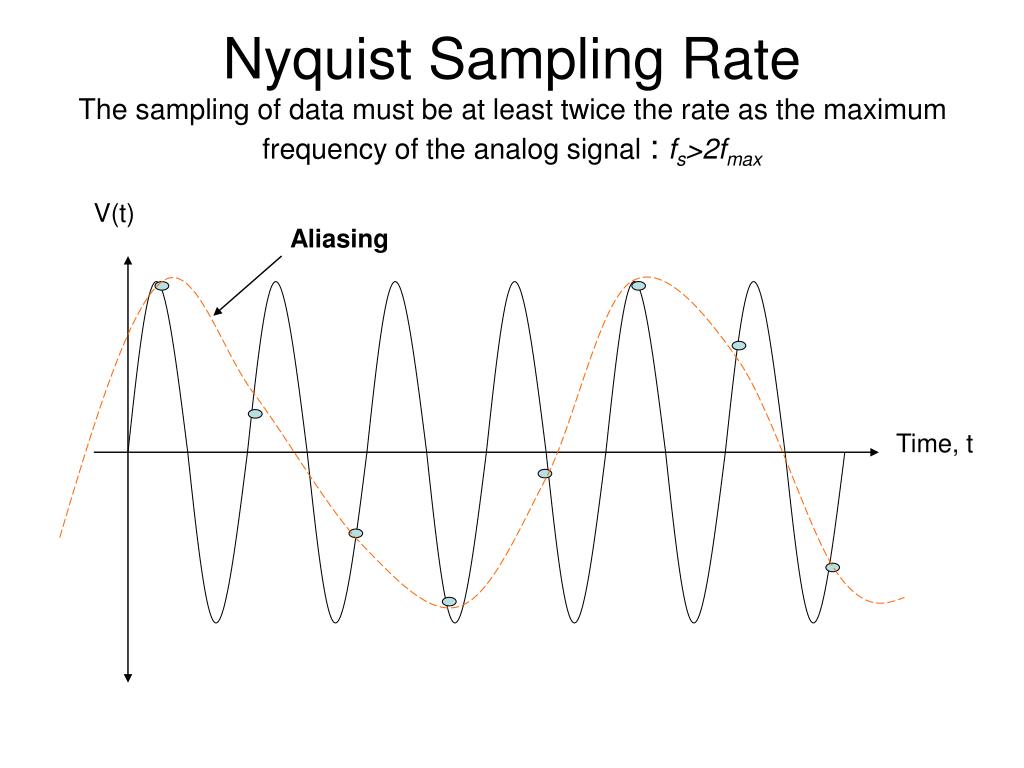

  6. Aliasing Nyquist Sampling RateThe sampling of data must be at least twice the rate as the maximum frequency of the analog signal : fs>2fmax V(t) Time, t

  7. Digital Signal Processing

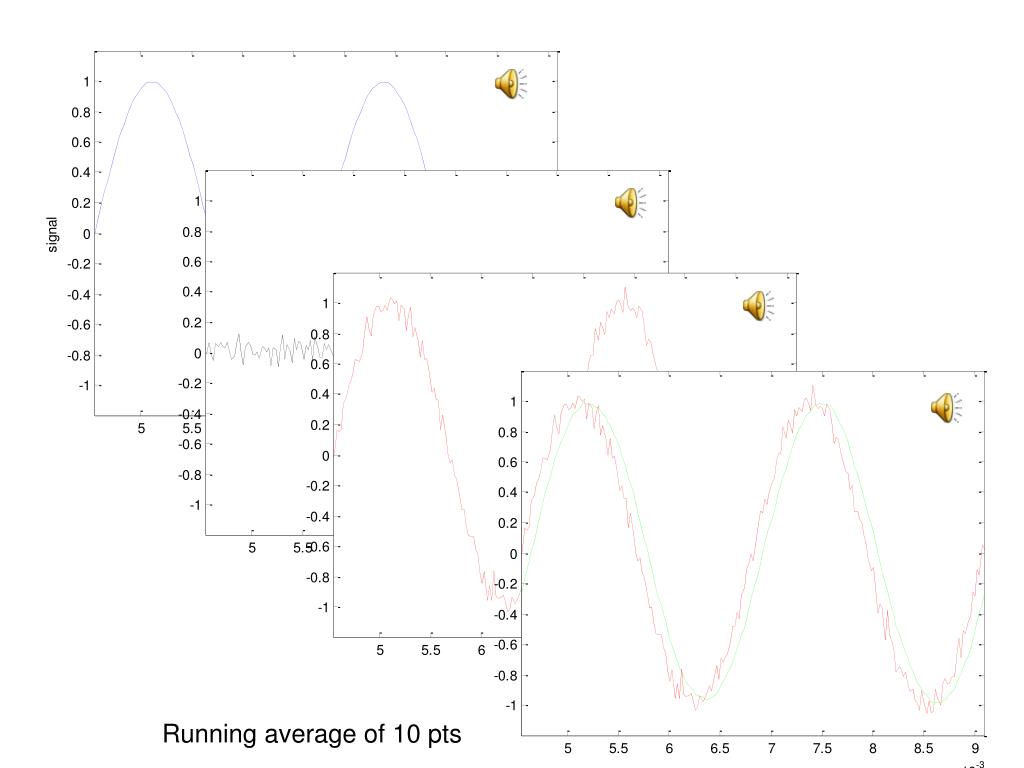

  8. Running average of 10 pts

  9. Find the average of N points Digital FilteringRemoving Noise and Interference from a Digital Signal

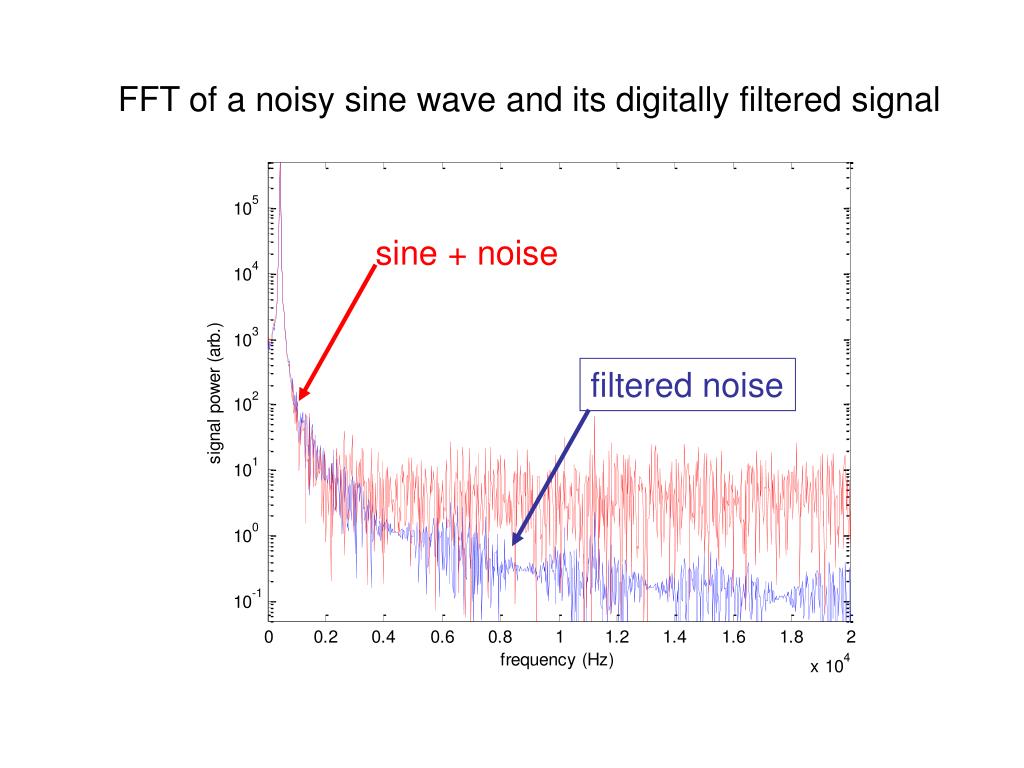

  10. sine + noise filtered noise FFT of a noisy sine wave and its digitally filtered signal

  11. DSP Example

  12. Vin(n-12) Vin(n) Simple Notch Filterto remove 60 Hz interference Vin(n) fS = 1440 samples per second 60 Hz sine t (s) 1/60 s Vout(n) = Vin(n) + Vin(n - fs / 2fnotch) = Vin(n)+Vin(n-12) This adds the sample that is 1800 out of phase at 60 Hz

  13. Matlab demo es3_60Hz.m
