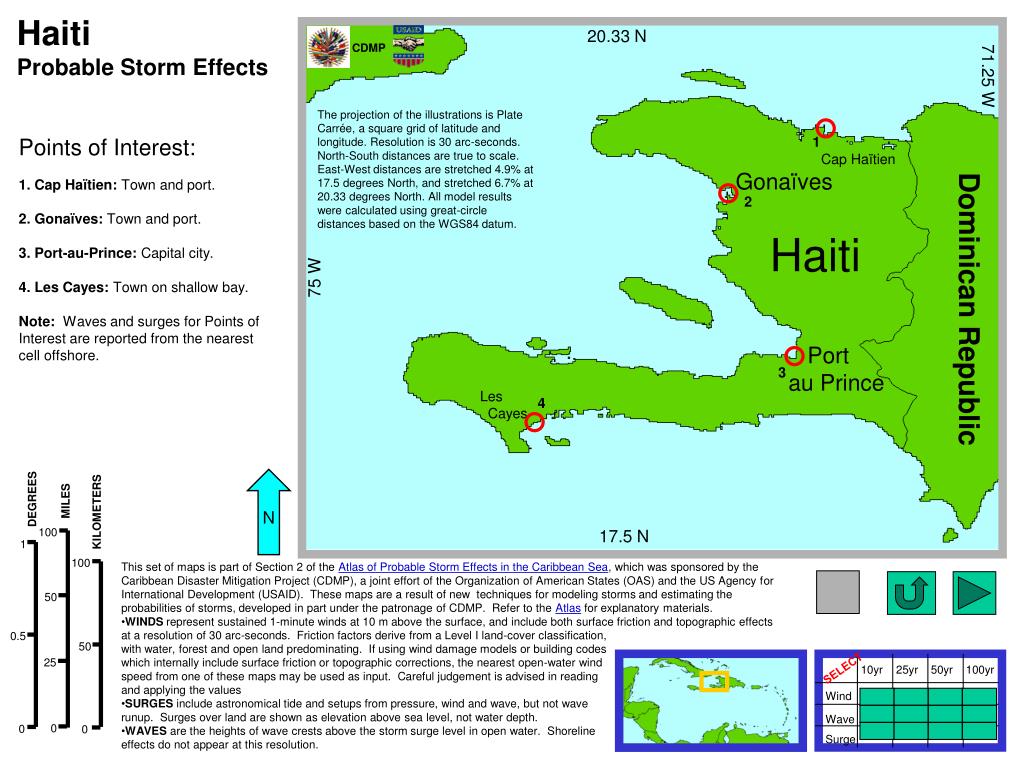

  1. 20.33 N Ross Wagenseil for CDMP January 2000 71.25 W 75 W 1 DEGREES MILES KILOMETERS 100 0.5 100 50 0 10yr 25yr 50yr 100yr SELECT 50 Wind 25 CDMP 17.5 N Wave Surge 0 0 Haiti Probable Storm Effects The projection of the illustrations is Plate Carrée, a square grid of latitude and longitude. Resolution is 30 arc-seconds. North-South distances are true to scale. East-West distances are stretched 4.9% at 17.5 degrees North, and stretched 6.7% at 20.33 degrees North. All model results were calculated using great-circle distances based on the WGS84 datum. Points of Interest: 1 Cap Haïtien Gonaïves 1. Cap Haïtien: Town and port. 2 2. Gonaïves: Town and port. Haiti 3. Port-au-Prince: Capital city. 4. Les Cayes: Town on shallow bay. Dominican Republic Note: Waves and surges for Points of Interest are reported from the nearest cell offshore. Port au Prince 3 Les Cayes 4 N • This set of maps is part of Section 2 of the Atlas of Probable Storm Effects in the Caribbean Sea, which was sponsored by the Caribbean Disaster Mitigation Project (CDMP), a joint effort of the Organization of American States (OAS) and the US Agency for International Development (USAID). These maps are a result of new techniques for modeling storms and estimating the probabilities of storms, developed in part under the patronage of CDMP. Refer to the Atlas for explanatory materials. • WINDS represent sustained 1-minute winds at 10 m above the surface, and include both surface friction and topographic effects at a resolution of 30 arc-seconds. Friction factors derive from a Level I land-cover classification, • with water, forest and open land predominating. If using wind damage models or building codes • which internally include surface friction or topographic corrections, the nearest open-water wind • speed from one of these maps may be used as input. Careful judgement is advised in reading • and applying the values • SURGES include astronomical tide and setups from pressure, wind and wave, but not wave runup. Surges over land are shown as elevation above sea level, not water depth. • WAVES are the heights of wave crests above the storm surge level in open water. Shoreline effects do not appear at this resolution.

  2. 20.33 N Ross Wagenseil for CDMP January 2000 71.25 W 75 W 1 DEGREES MILES KILOMETERS 100 0.5 100 50 0 10yr 25yr 50yr 100yr SELECT 50 Wind 25 CDMP 17.5 N Wave Surge Wind Speeds 0 0 0 1 2 3 4 5 Storm Category knots 25 50 75 100 125 mph 25 50 75 100 150 125 kph 50 100 150 200 250 m/s Min 20 60 10 30 40 50 70 Max Winds 10-Year Return Time Haiti 1 1. Cap Haïtien: 23 m/s 2 2. Gonaïves: 24 m/s 3. Port-au-Prince: 27 m/s 4. Les Cayes: 30 m/s 3 4 N

  3. 20.33 N Ross Wagenseil for CDMP January 2000 71.25 W 75 W 1 DEGREES MILES KILOMETERS 100 0.5 100 50 0 10yr 25yr 50yr 100yr SELECT 50 Wind 25 CDMP WaveHeights 17.5 N Wave Surge 0 0 6 4 1 3 5 2 7 Meters 5 10 25 Feet 20 15 Min Max Waves 10-Year Return Time Haiti 1 1. Cap Haïtien: 2.9 m 2 2. Gonaïves: 3.0 m 3. Port-au-Prince: 3.4 m 4. Les Cayes: 3.8 m 3 4 N

  4. 20.33 N Ross Wagenseil for CDMP January 2000 71.25 W Surge Heights 1 2 3 4 6 5 Meters 20 15 10 5 Feet 75 W 1 DEGREES MILES KILOMETERS 100 0.5 100 50 0 10yr 25yr 50yr 100yr SELECT 50 Wind 25 CDMP 17.5 N Wave Surge 0 0 Min Max Surges 10-Year Return Time Haiti 1 1. Cap Haïtien: 0.3 m 2 2. Gonaïves: 0.1 m 3. Port-au-Prince: 0.2 m 4. Les Cayes: 0.8 m 3 4 N

  5. 20.33 N Ross Wagenseil for CDMP January 2000 71.25 W 75 W 1 DEGREES MILES KILOMETERS 100 0.5 100 50 0 10yr 25yr 50yr 100yr SELECT 50 Wind 25 CDMP 17.5 N Wave Surge Wind Speeds 0 0 0 1 2 3 4 5 Storm Category knots 25 50 75 100 125 mph 25 50 75 100 150 125 kph 50 100 150 200 250 m/s Min 20 60 10 30 40 50 70 Max Winds 25-Year Return Time Haiti 1 1. Cap Haïtien: 29 m/s 2 2. Gonaïves: 30 m/s 3. Port-au-Prince: 35 m/s 4. Les Cayes: 40 m/s 3 4 N

  6. 20.33 N Ross Wagenseil for CDMP January 2000 71.25 W 75 W 1 DEGREES MILES KILOMETERS 100 0.5 100 50 0 10yr 25yr 50yr 100yr SELECT 50 Wind 25 CDMP WaveHeights 17.5 N Wave Surge 0 0 6 4 1 3 5 2 7 Meters 5 10 25 Feet 20 15 Min Max Waves 25-Year Return Time Haiti 1 1. Cap Haïtien: 3.7 m 2 2. Gonaïves: 3.8 m 3. Port-au-Prince: 4.4 m 4. Les Cayes: 5.0 m 3 4 N

  7. 20.33 N Ross Wagenseil for CDMP January 2000 71.25 W Surge Heights 1 2 3 4 6 5 Meters 20 15 10 5 Feet 75 W 1 DEGREES MILES KILOMETERS 100 0.5 100 50 0 10yr 25yr 50yr 100yr SELECT 50 Wind 25 CDMP 17.5 N Wave Surge 0 0 Min Max Surges 25-Year Return Time Haiti 1 1. Cap Haïtien: 0.6 m 2 2. Gonaïves: 0.2 m 3. Port-au-Prince: 0.3 m 4. Les Cayes: 1.5 m 3 4 N

  8. 20.33 N Ross Wagenseil for CDMP January 2000 71.25 W 75 W 1 DEGREES MILES KILOMETERS 100 0.5 100 50 0 10yr 25yr 50yr 100yr SELECT 50 Wind 25 CDMP 17.5 N Wave Surge Wind Speeds 0 0 0 1 2 3 4 5 Storm Category knots 25 50 75 100 125 mph 25 50 75 100 150 125 kph 50 100 150 200 250 m/s Min 20 60 10 30 40 50 70 Max Winds 50-Year Return Time Haiti 1 1. Cap Haïtien: 34 m/s 2 2. Gonaïves: 35 m/s 3. Port-au-Prince: 40 m/s 4. Les Cayes: 48 m/s 3 4 N

  9. 20.33 N Ross Wagenseil for CDMP January 2000 71.25 W 75 W 1 DEGREES MILES KILOMETERS 100 0.5 100 50 0 10yr 25yr 50yr 100yr SELECT 50 Wind 25 CDMP WaveHeights 17.5 N Wave Surge 0 0 6 4 1 3 5 2 7 Meters 5 10 25 Feet 20 15 Min Max Waves 50-Year Return Time Haiti 1 1. Cap Haïtien: 4.2 m 2 2. Gonaïves: 4.1 m 3. Port-au-Prince: 5.1 m 4. Les Cayes: 5.6 m 3 4 N

  10. 20.33 N Ross Wagenseil for CDMP January 2000 71.25 W Surge Heights 1 2 3 4 6 5 Meters 20 15 10 5 Feet 75 W 1 DEGREES MILES KILOMETERS 100 0.5 100 50 0 10yr 25yr 50yr 100yr SELECT 50 Wind 25 CDMP 17.5 N Wave Surge 0 0 Min Max Surges 50-Year Return Time Haiti 1 1. Cap Haïtien: 0.8 m 2 2. Gonaïves: 0.3 m 3. Port-au-Prince: 0.5 m 4. Les Cayes: 2.1 m 3 4 N

  11. 20.33 N Ross Wagenseil for CDMP January 2000 71.25 W 75 W 1 DEGREES MILES KILOMETERS 100 0.5 100 50 0 10yr 25yr 50yr 100yr SELECT 50 Wind 25 CDMP 17.5 N Wave Surge Wind Speeds 0 0 0 1 2 3 4 5 Storm Category knots 25 50 75 100 125 mph 25 50 75 100 150 125 kph 50 100 150 200 250 m/s Min 20 60 10 30 40 50 70 Max Winds 100-Year Return Time Haiti 1 1. Cap Haïtien: 38 m/s 2 2. Gonaïves: 39 m/s 3. Port-au-Prince: 46 m/s 4. Les Cayes: 55 m/s 3 4 N

  12. 20.33 N Ross Wagenseil for CDMP January 2000 71.25 W 75 W 1 DEGREES MILES KILOMETERS 100 0.5 100 50 0 10yr 25yr 50yr 100yr SELECT 50 Wind 25 CDMP WaveHeights 17.5 N Wave Surge 0 0 6 4 1 3 5 2 7 Meters 5 10 25 Feet 20 15 Min Max Waves 100-Year Return Time Haiti 1 1. Cap Haïtien: 4.7 m 2 2. Gonaïves: 4.2 m 3. Port-au-Prince: 5.7 m 4. Les Cayes: 6.2 m* * Possibly invalid:input data lacks detail. 3 4 N

  13. 20.33 N Ross Wagenseil for CDMP January 2000 71.25 W Surge Heights 1 2 3 4 6 5 Meters 20 15 10 5 Feet 75 W 1 DEGREES MILES KILOMETERS 100 0.5 100 50 0 10yr 25yr 50yr 100yr SELECT 50 Wind 25 CDMP 17.5 N Wave Surge 0 0 Min Max Surges 100-Year Return Time Haiti 1 1. Cap Haïtien: 1.1 m 2 2. Gonaïves: 0.4 m 3. Port-au-Prince: 0.7 m 4. Les Cayes: 2.9 m nearby, with 5.9 m to the northeast 3 4 N
