Current Circuit Layout.

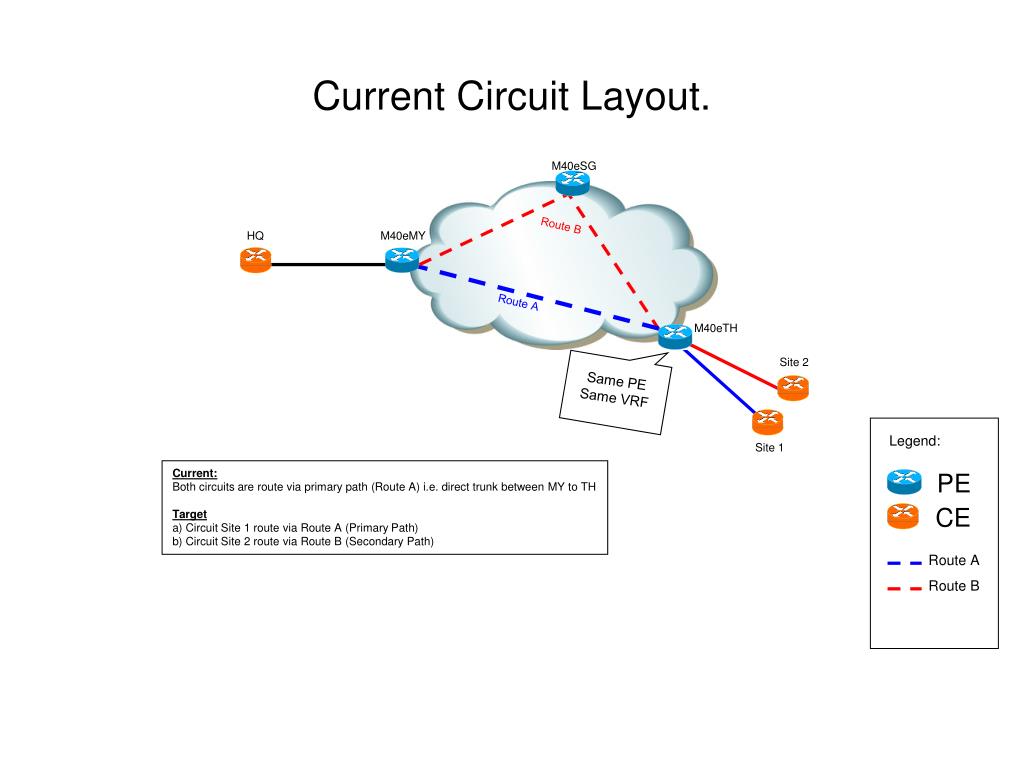

Current Circuit Layout. M40eSG. Route B. HQ. M40eMY. Route A. M40eTH. Site 2. Same PE Same VRF. Legend:. Site 1. Current: Both circuits are route via primary path (Route A) i.e. direct trunk between MY to TH Target a) Circuit Site 1 route via Route A (Primary Path)

isi
Télécharger la présentation

Current Circuit Layout.

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Current Circuit Layout. M40eSG Route B HQ M40eMY Route A M40eTH Site 2 Same PE Same VRF Legend: Site 1 Current: Both circuits are route via primary path (Route A) i.e. direct trunk between MY to TH Target a) Circuit Site 1 route via Route A (Primary Path) b) Circuit Site 2 route via Route B (Secondary Path) PE CE Route A Route B

  2. Plan for Diversity (Option 1) M40eSG Route B HQ M40eMY Route B Route A M40eTH Legend: Site 2 PE Same PE Same VRF CE Site 1 Route A Route B

  3. Plan for Diversity (Option 2) M40eSG HQ M40eMY Route B (trunk 2) Route A (trunk 1) M40eTH Legend: Site 2 PE Same PE Same VRF CE Site 1 Route A Route B

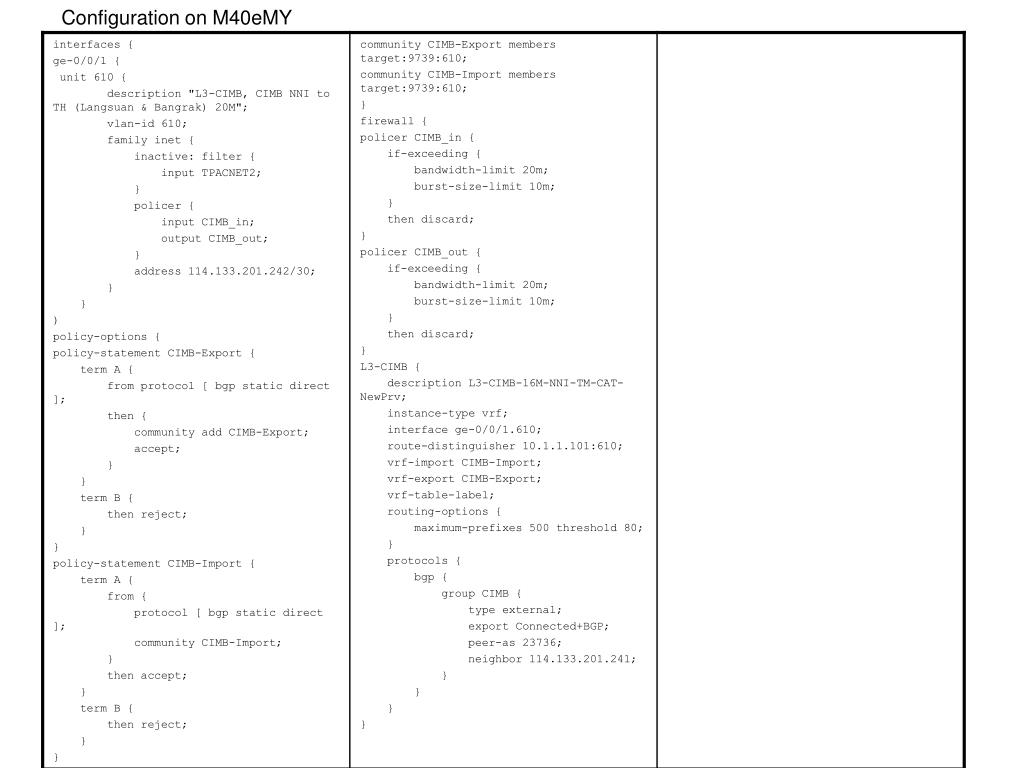

  4. Configuration on M40eMY

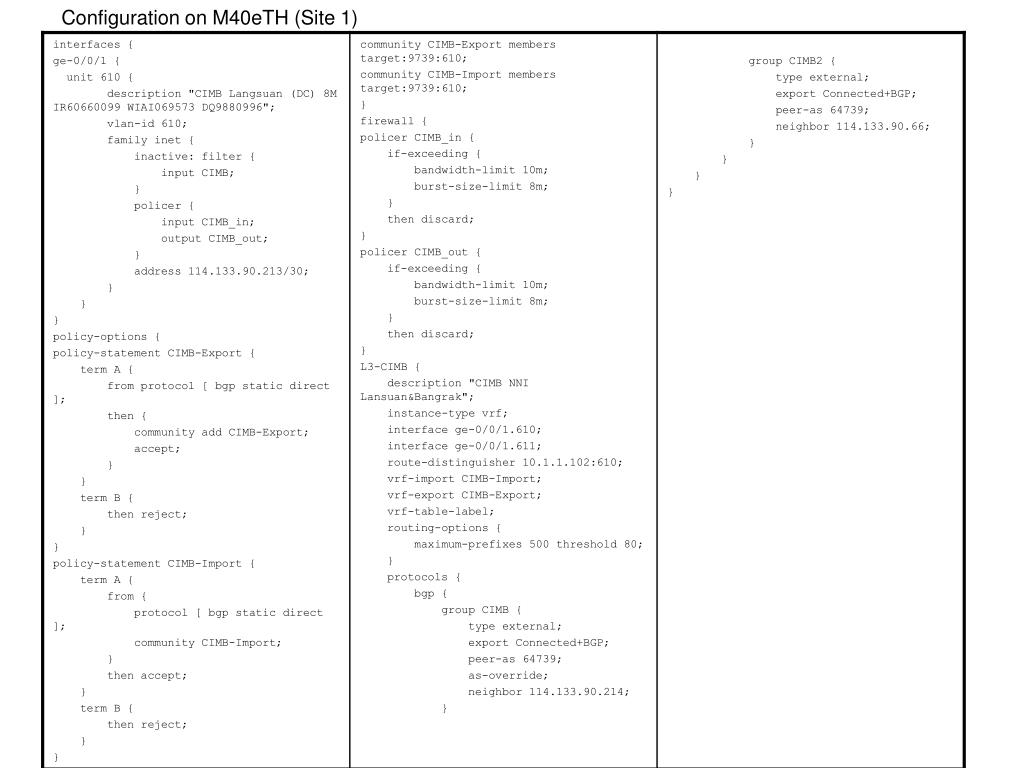

  5. Configuration on M40eTH (Site 1)

  6. Configuration on M40eTH (Site 2)
