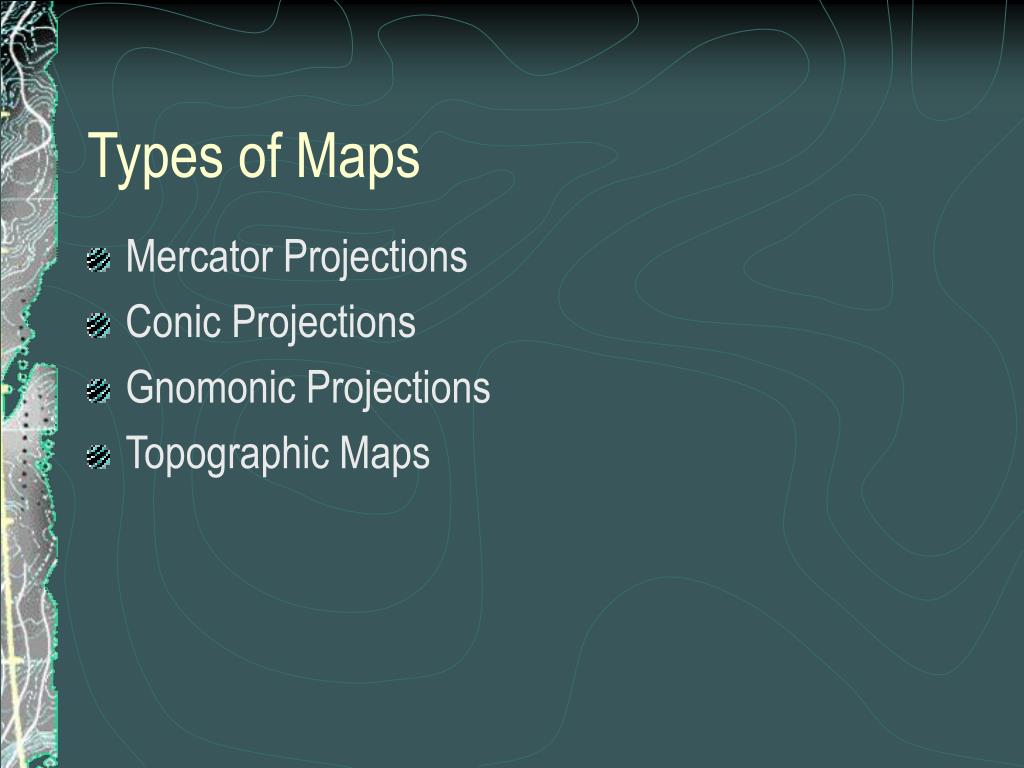

  1. Types of Maps • Mercator Projections • Conic Projections • Gnomonic Projections • Topographic Maps

  2. Mercator Projections Mercator Projection • Is a map that has parallel lines of longitude and latitude • Flaws • Land Near Poles is exaggerated • Shapes are correct, but land area is distorted

  3. Conic Projections Conic Projection • Is made by projecting points and lines from globe onto a cone. • Very Little Distortion, High Degree of accuracy • Best for Mapping Small Areas • Used to make road and weather maps

  4. Gnomonic Projections Gnomonic Projections • is made by projecting points and lines from a globe onto a piece of paper that touches the globe at a single point • Distort Directions and Distance • Used For Plotting great Circle Routes (Airplanes)

  5. Topographic Maps Topographic Maps • Detailed maps that show the hills and valleys of an area • Use Lines, Symbols, and Colors to represent change in elevation

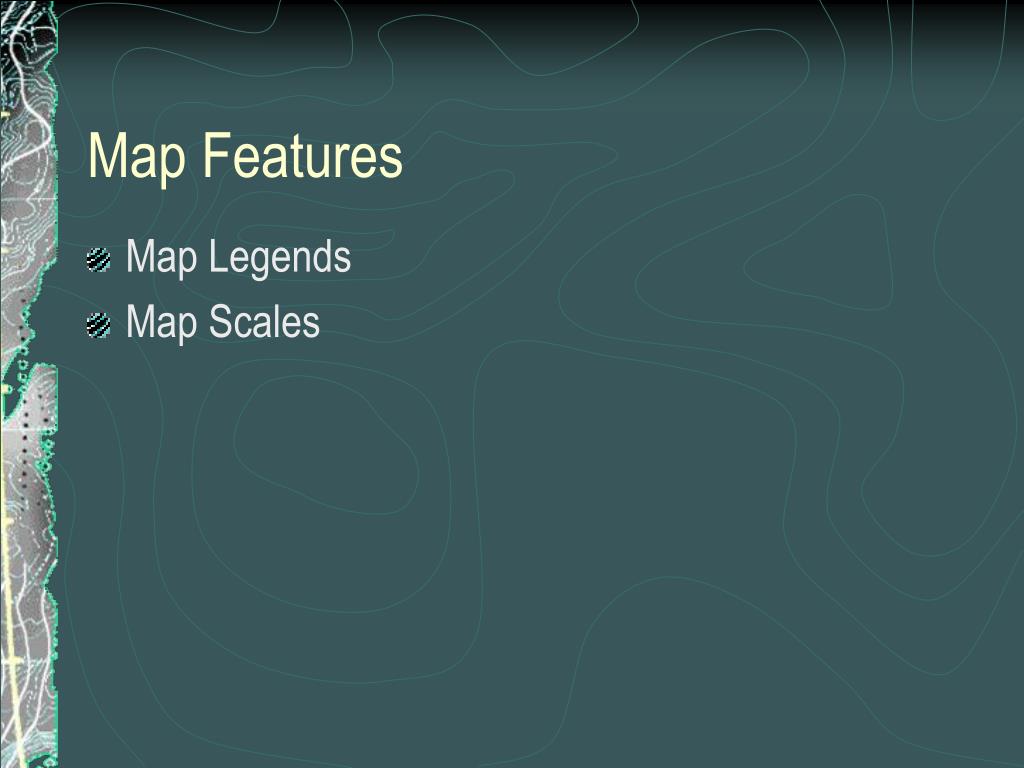

  6. Map Features • Map Legends • Map Scales

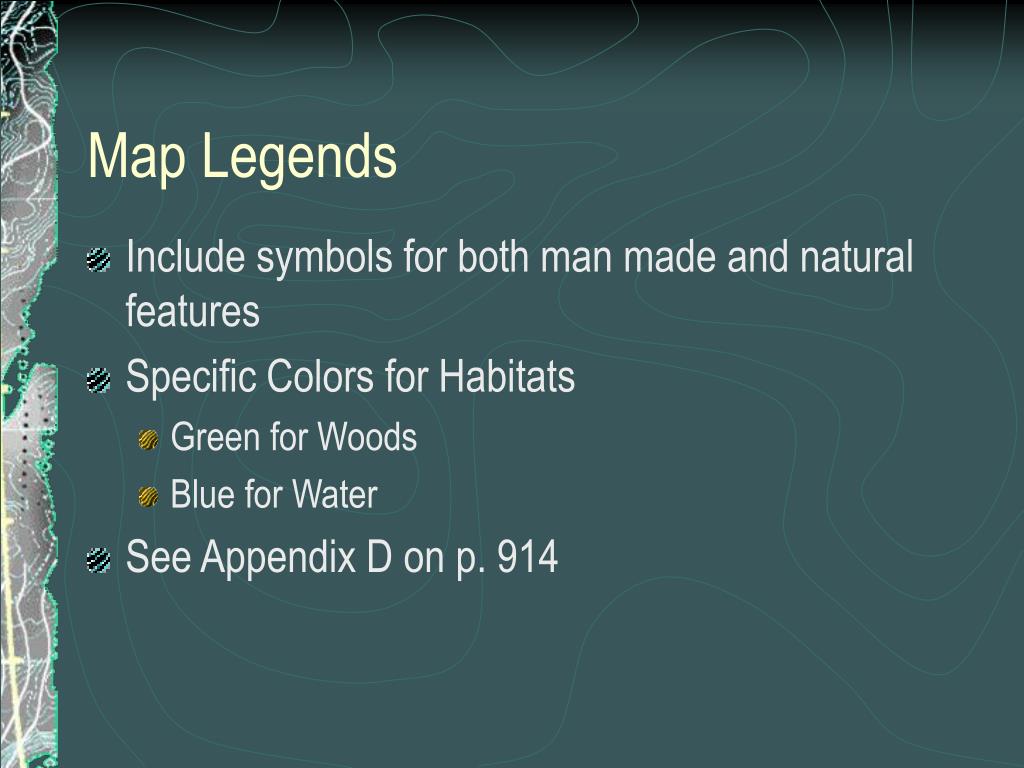

  7. Map Legends • Include symbols for both man made and natural features • Specific Colors for Habitats • Green for Woods • Blue for Water • See Appendix D on p. 914

  8. Map Scales • Ratio of distance on a map to actual distances on the map • 3 Types • Verbal: “one inch equals one mile” • Graphic: consists of a line that represents a certain distance on Earth • Fractional: one unit on map represents one unit on Earth • Large Ratio: map covering large area (minor detail) • Small Ratio: map covering little are (major detail)

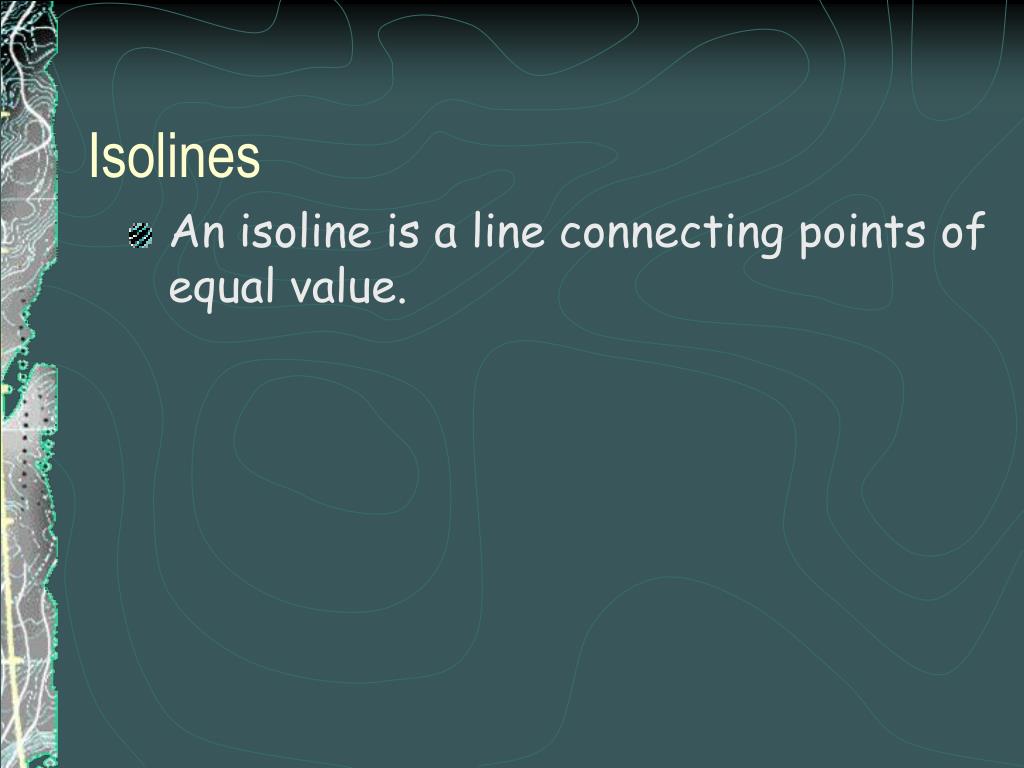

  9. Isolines • An isoline is a line connecting points of equal value.

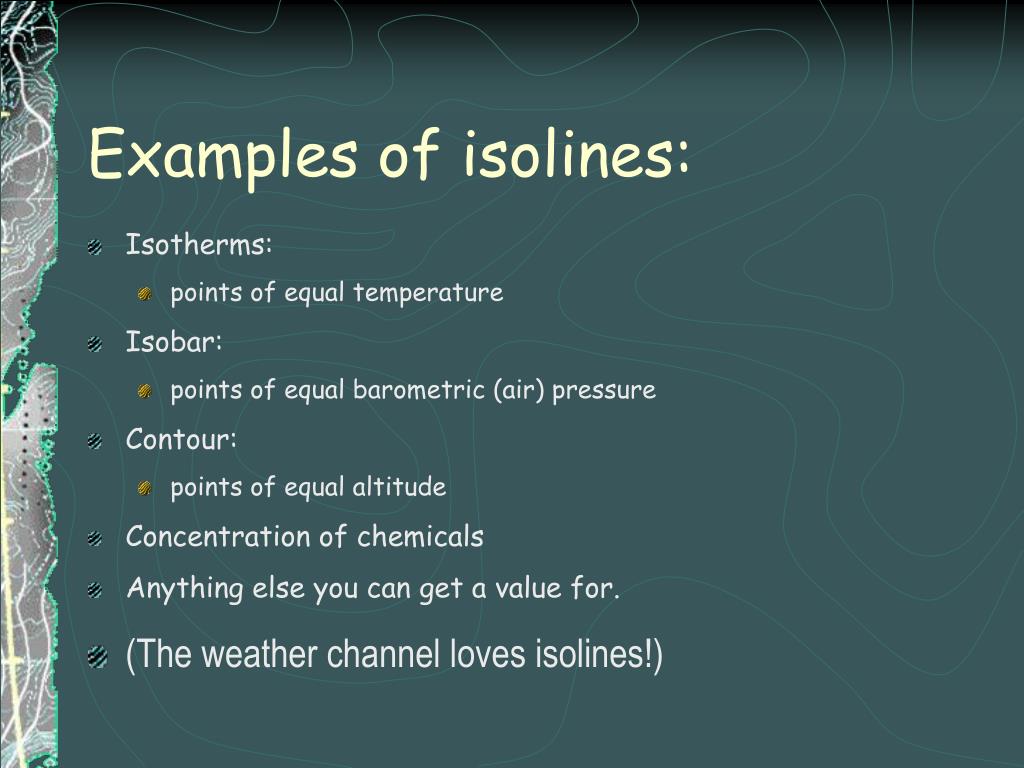

  10. Examples of isolines: • Isotherms: • points of equal temperature • Isobar: • points of equal barometric (air) pressure • Contour: • points of equal altitude • Concentration of chemicals • Anything else you can get a value for. • (The weather channel loves isolines!)

  11. Rules for Drawing Isolines: • 1. Isolines connect points of equal value. 5 5 10 10 10 10 15 15

  12. 2. Isolines are gentle, curving lines- no sharp corners. 5 5 10 10 10 10 15 15

  13. 3. Isolines are always closed curves even though the map might only show part of it.

  14. 4. Isolines NEVER cross- this would mean that one point has two different values. Ex: one spot has two temperatures? 60 ° 50 ° 40 ° 30 ° X 20° Z Y

  15. 5. Isolines usually are parallel. (They have a parallel trend.)

  16. Visualizations of contour lines • http://geology.asu.edu/~sreynolds/topo_gallery/topo_gallery.htm

  17. Gradient • Gradient shows how quickly the value changes from one point to another.

  18. A steep (high) gradient changes quickly and the isolines are close together. • A gentle (low) gradient changes slowly and the lines are far apart. Steep area Gentle area

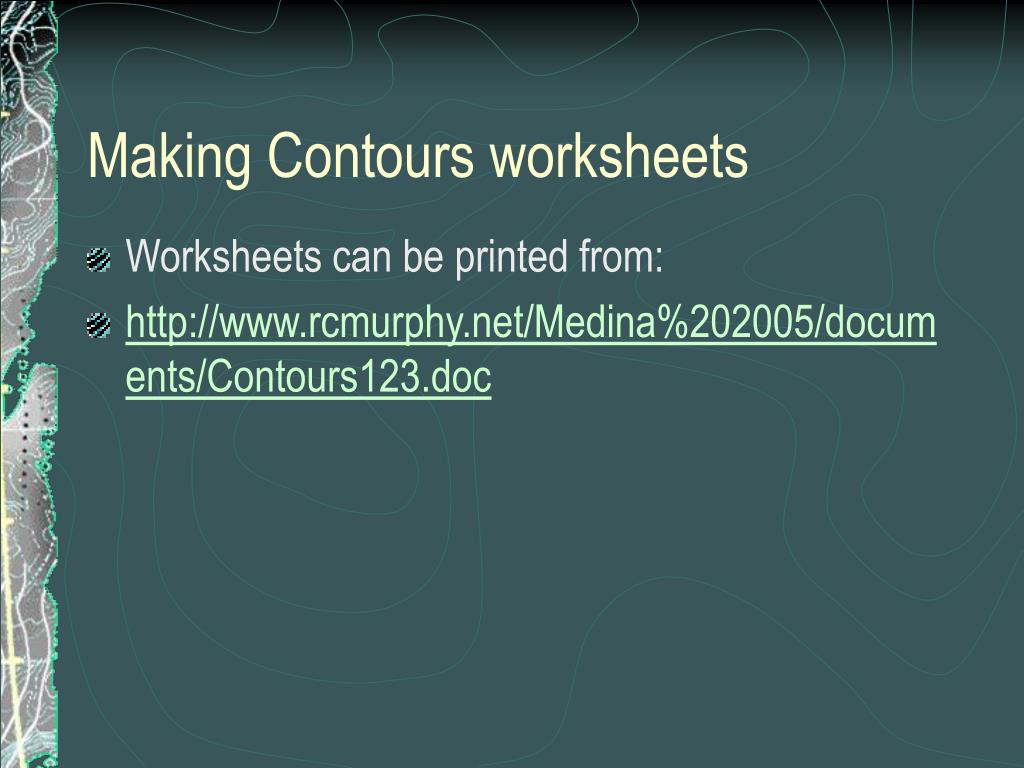

  19. Making Contours worksheets • Worksheets can be printed from: • http://www.rcmurphy.net/Medina%202005/documents/Contours123.doc

  20. Highlight data points.

  21. Fill in gaps in data.

  22. Connect the dots.

  23. Go on to the next value.

  24. Making a Contour Map II

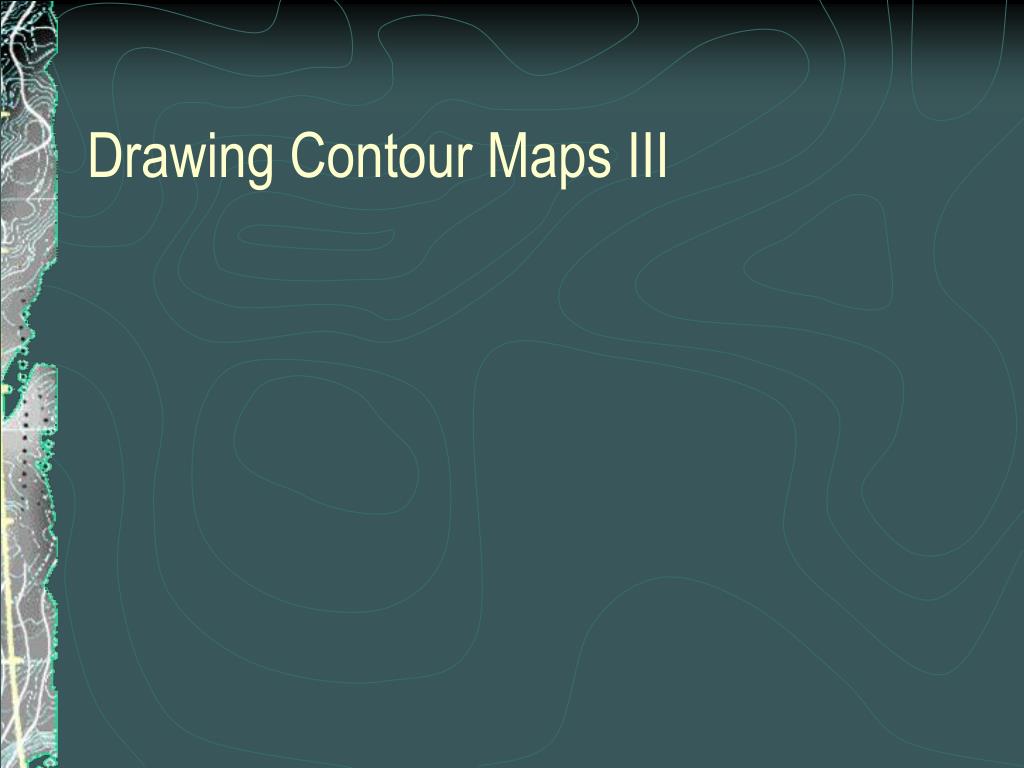

  25. Drawing Contour Maps III
