PL600 Low Voltage Distribution: 288 Channels Integrated into 3U Crates for Detector Systems

DESCRIPTION

The PL600 module from Wiener provides efficient low voltage distribution with 288 channels housed in compact 3U crates. Each board offers three voltage outputs: -2.5V, +2.5V, and +3.3V, with a maximum current of 25A per output. The system supports up to 96 units, featuring a robust communication protocol with slow-control for detectors. The master-slave configuration allows for significant flexibility in power management, ideal for complex setups. With programmable trip-off currents and options for monitoring through CAN-bus or TCP/IP, it ensures reliable performance for demanding applications.

1 / 3

Télécharger la présentation

PL600 Low Voltage Distribution: 288 Channels Integrated into 3U Crates for Detector Systems

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

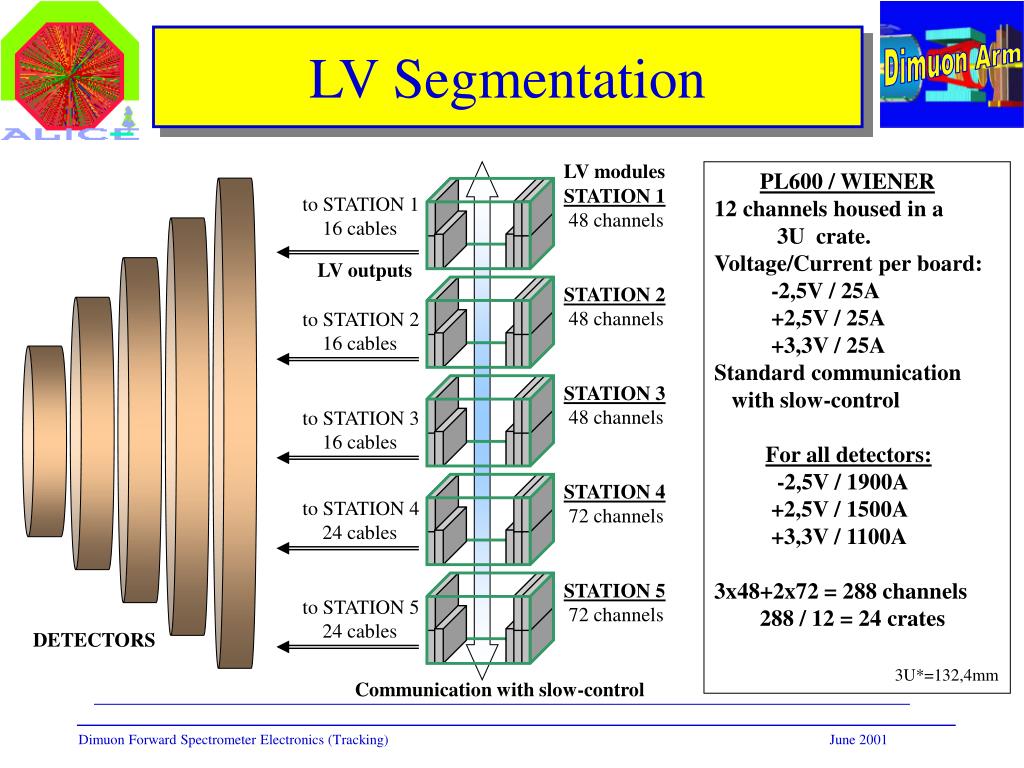

  1. LV modules PL600 / WIENER 12 channels housed in a 3U crate. Voltage/Current per board: -2,5V / 25A +2,5V / 25A +3,3V / 25A Standard communication with slow-control For all detectors: -2,5V / 1900A +2,5V / 1500A +3,3V / 1100A 3x48+2x72 = 288 channels 288 / 12 = 24 crates 3U*=132,4mm STATION 1 48 channels to STATION 1 16 cables LV outputs STATION 2 48 channels to STATION 2 16 cables STATION 3 48 channels to STATION 3 16 cables STATION 4 72 channels to STATION 4 24 cables STATION 5 72 channels to STATION 5 24 cables DETECTORS Communication with slow-control LV Segmentation

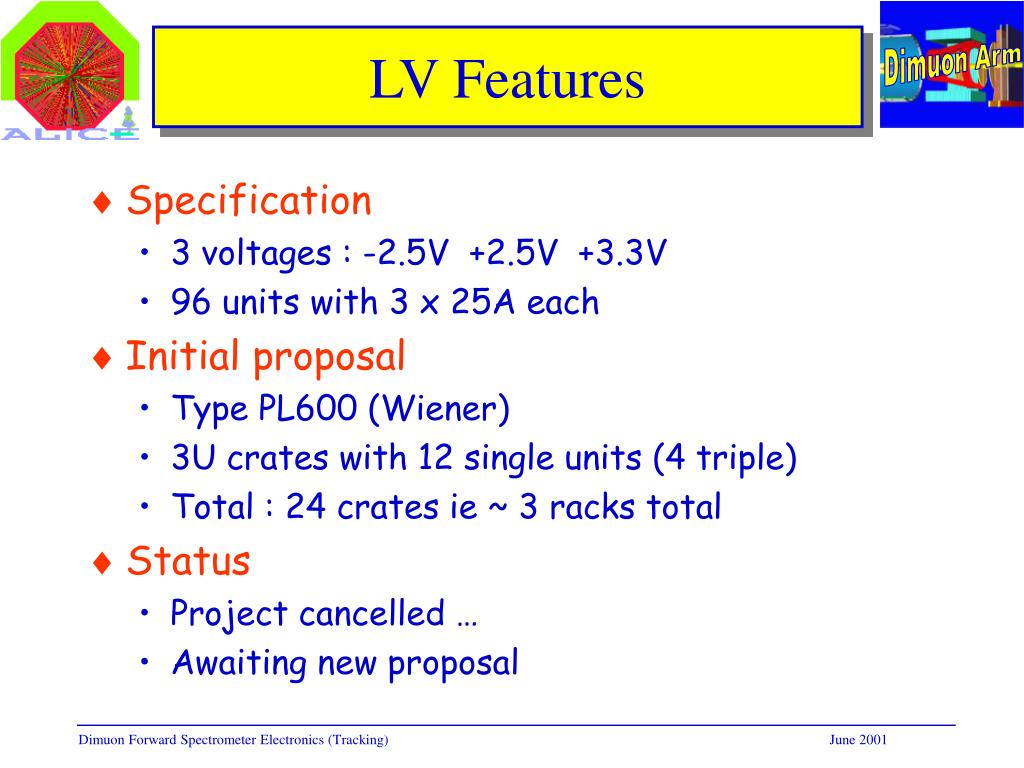

  2. LV Features • Specification • 3 voltages : -2.5V +2.5V +3.3V • 96 units with 3 x 25A each • Initial proposal • Type PL600 (Wiener) • 3U crates with 12 single units (4 triple) • Total : 24 crates ie ~ 3 racks total • Status • Project cancelled … • Awaiting new proposal

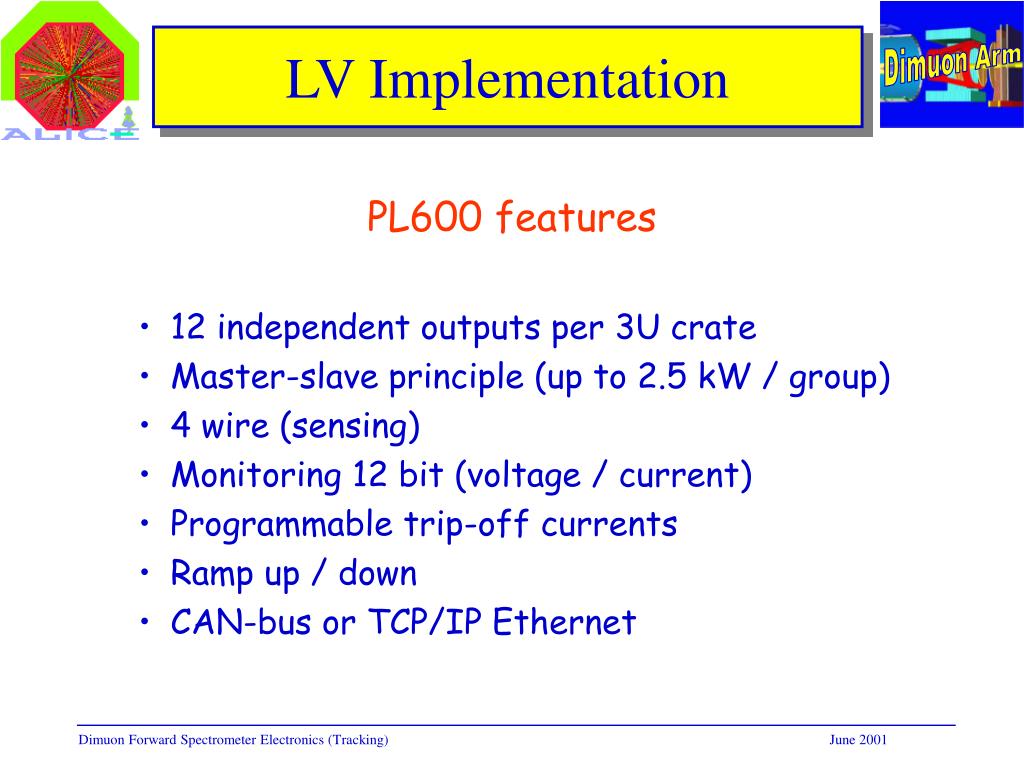

  3. LV Implementation PL600 features • 12 independent outputs per 3U crate • Master-slave principle (up to 2.5 kW / group) • 4 wire (sensing) • Monitoring 12 bit (voltage / current) • Programmable trip-off currents • Ramp up / down • CAN-bus or TCP/IP Ethernet
