1. ICSI Work on Detection/Defense Vern Paxson, Nicholas Weaver, et al September 20, 2005

2. Overview • Forensic analysis of “Witty” • Internet “Situational Awareness” • Scan detection • Detecting “Triggers” • Preliminary: signature white-listing • Students: Abhishek Kumar (Georgia Tech), Vinod Yegneswaran (UWisc) Jaeyeon Jung (MIT), Juan Caballero (CMU), Jayanthkumar Kannan (UCB), Christian Kreibich (Cambridge)

3. Forensic Analysis of Witty • March 2004 (flaw announced previous day) • Single UDP packet - stateless spreading • Exploited flaw in the passive analysis of Internet Security Systems products • Payload: slowly corrupt random disk blocks • Telescope data from UCSD/CAIDA /8 • Also UWisc /8, sampled 1-in-10

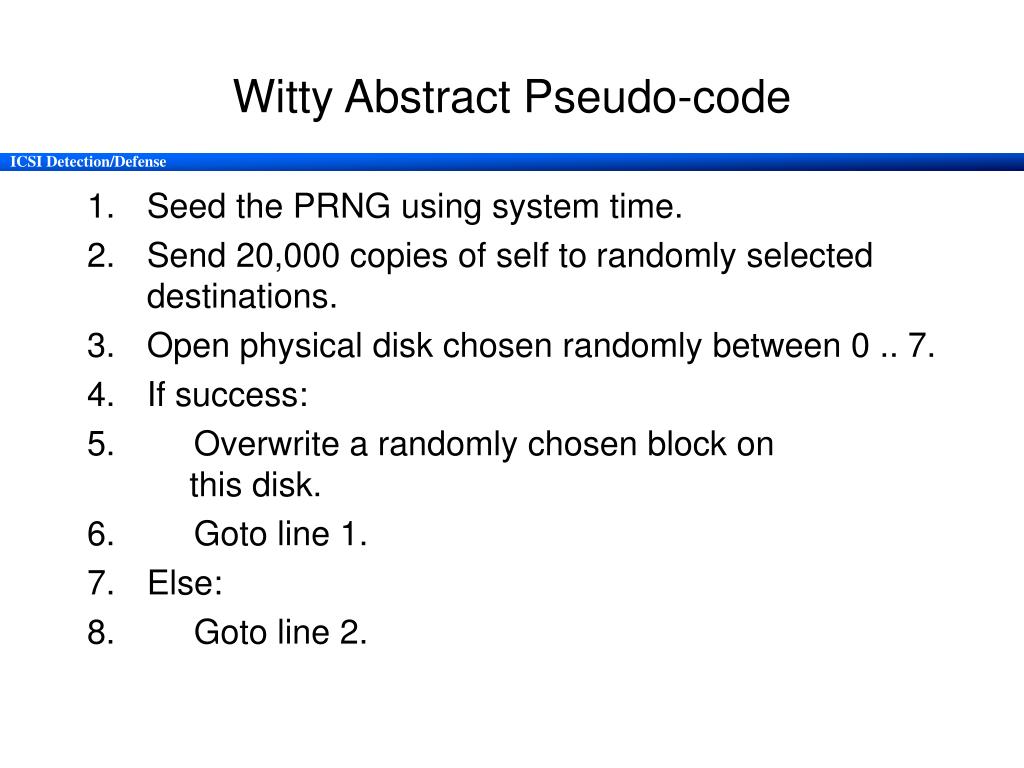

4. Witty Abstract Pseudo-code • Seed the PRNG using system time. • Send 20,000 copies of self to randomly selected destinations. • Open physical disk chosen randomly between 0 .. 7. • If success: • Overwrite a randomly chosen block on this disk. • Goto line 1. • Else: • Goto line 2.

5. More Detailed Pseudo-code srand(seed) { X seed } rand() { X  X*214013 + 2531011; return X } main() • srand(get_tick_count()); • for(i=0;i<20,000;i++) • dest_iprand()[0..15] || rand()[0..15] • dest_portrand()[0..15] • packetsize 768 + rand()[0..8] • packetcontentstop-of-stack • sendto() • if(open_physical_disk(rand()[13..15] )) • write(rand()[0..14] || 0x4e20) • goto 1 • else goto 2

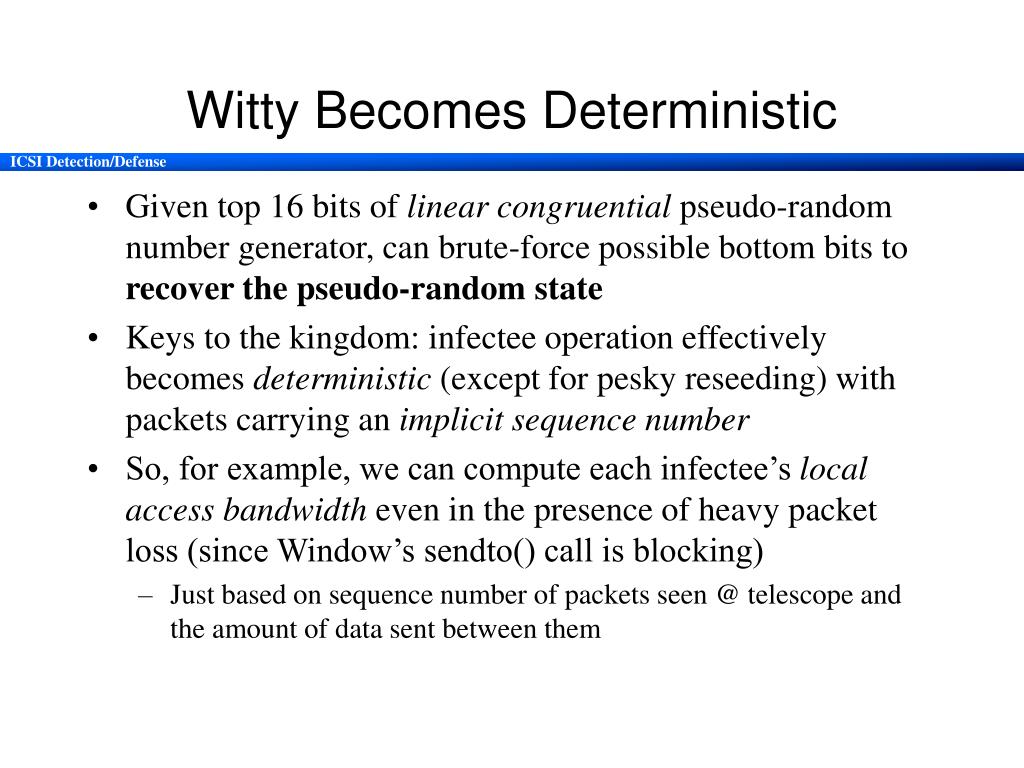

6. Witty Becomes Deterministic • Given top 16 bits of linear congruential pseudo-random number generator, can brute-force possible bottom bits to recover the pseudo-random state • Keys to the kingdom: infectee operation effectively becomes deterministic (except for pesky reseeding) with packets carrying an implicit sequence number • So, for example, we can compute each infectee’s local access bandwidth even in the presence of heavy packet loss (since Window’s sendto() call is blocking) • Just based on sequence number of packets seen @ telescope and the amount of data sent between them

7. Inferred Access Bandwidth of Individual Witty Infectees

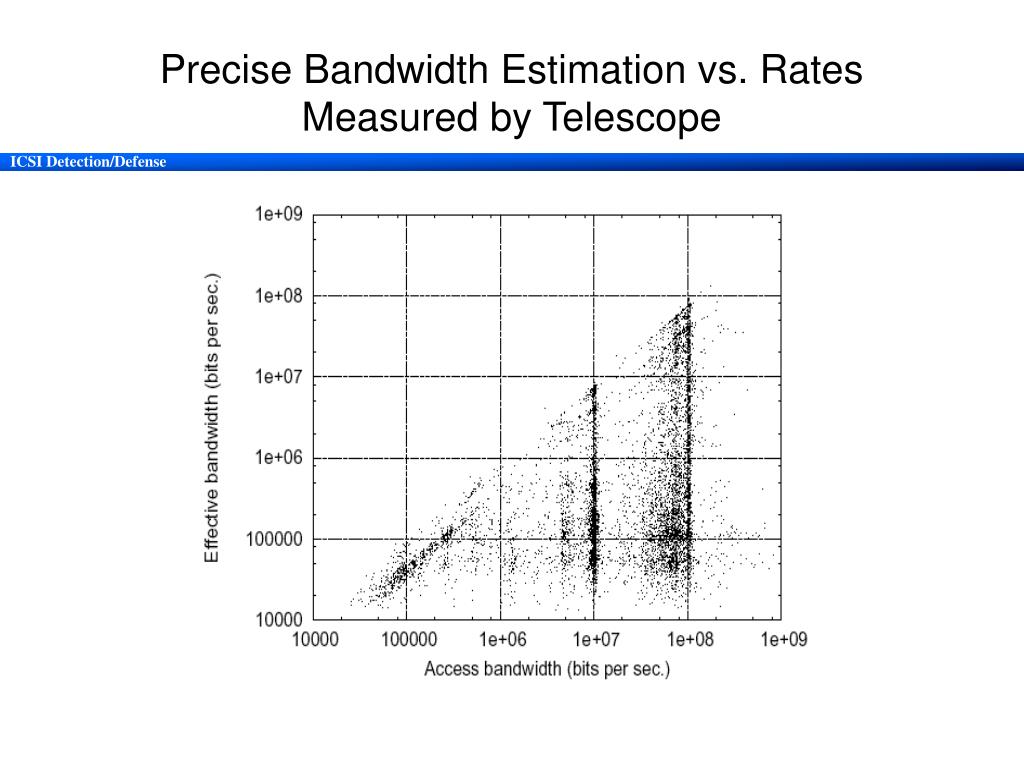

8. Precise Bandwidth Estimation vs. Rates Measured by Telescope

9. } Plus one more every 20,000 packets, if disk open fails srand(seed) { X seed } rand() { X  X*214013 + 2531011; return X } main() • srand(get_tick_count()); • for(i=0;i<20,000;i++) • dest_iprand()[0..15] || rand()[0..15] • dest_portrand()[0..15] • packetsize 768 + rand()[0..8] • packetcontentstop-of-stack • sendto() • if(open_physical_disk(rand()[13..15] )) • write(rand()[0..14] || 0x4e20) • goto 1 • else goto 2 } 4 calls to rand() per loop } Or complete reseeding if not

10. Witty Infectee Reseeding Events • Recall every 20,000 packets, Witty burns a random number picking a disk to open & trash. For packets with state Xi and Xj: • If from the same batch of 20,000 then • j - i = 0 mod 4 • If from separate but adjacent batches, for which Witty did not reseed, then • j - i = 1 mod 4 (but which of the 100s/1000s of intervening packets marked the phase shift?) • If from batches across which Witty reseeded, then no apparent relationship. • Lets us find the phase of Witty reseeding events …

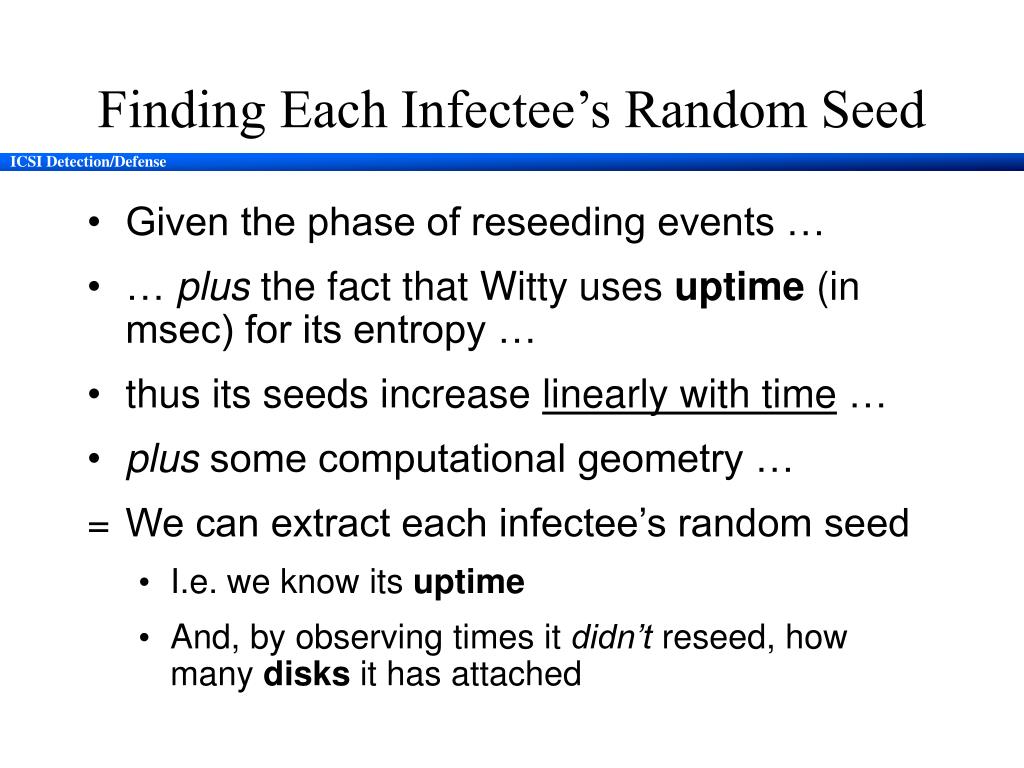

11. Finding Each Infectee’s Random Seed • Given the phase of reseeding events … • … plus the fact that Witty uses uptime (in msec) for its entropy … • thus its seeds increase linearly with time … • plus some computational geometry … • We can extract each infectee’s random seed • I.e. we know its uptime • And, by observing times it didn’t reseed, how many disks it has attached

12. Uptime of 750 Witty Infectees

13. Disk Drives Per Witty Infectee

14. Given Exact Valuesof Seeds Used for Reseeding … • More generally, we know every packet each infectee sent • Can compare this to when new infectees show up • i.e. Who-Infected-Whom

15. Infection Attempts That WereToo Early, Too Late, or Just Right Infector/Infectee Signature

16. Witty is Incomplete • Recall that LCD PRNG generates a complete orbit over a permutation of 0..232-1. • But: Witty author didn’t use all 32 bits of single PRNG value • dest_ip (Xi)[0..15] || (XI+1)[0..15] • This does not generate a complete orbit! • Misses 10% of the address space • Visits 10% of the addresses (exactly) twice • So, were 10% of the potential infectees protected?

17. Time When Infectees Seen At Telescope Doubly-scanned infectees infected faster Unscanned infectees still get infected! In fact, some are infected Extremely Quickly!

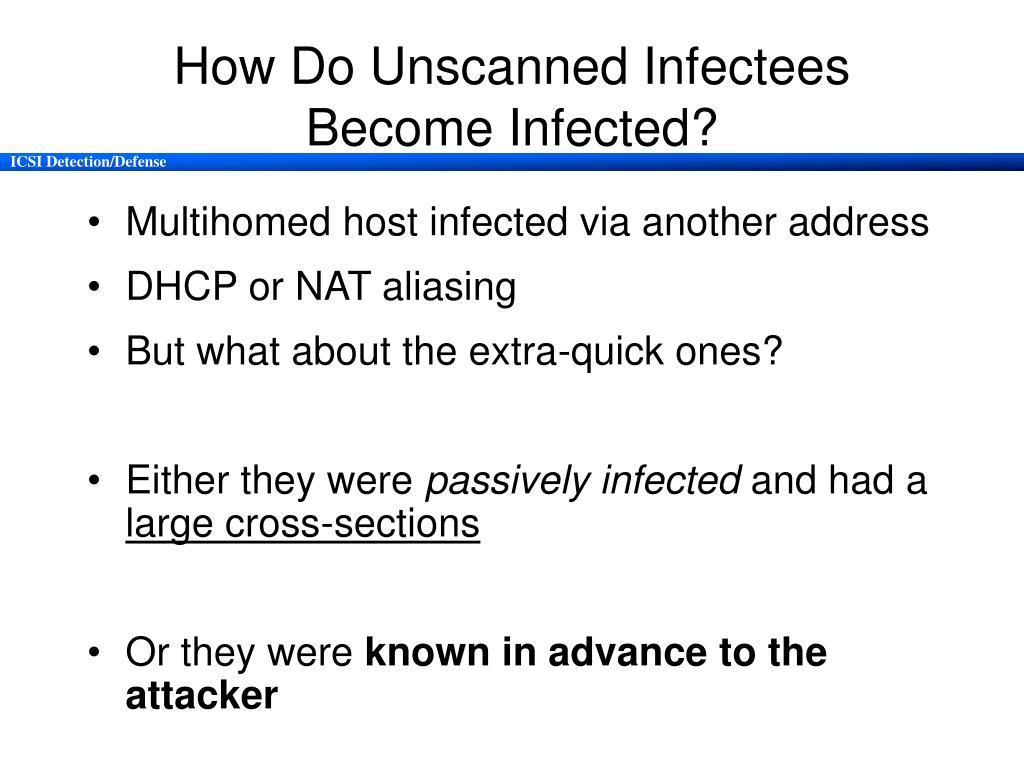

18. How Do Unscanned Infectees Become Infected? • Multihomed host infected via another address • DHCP or NAT aliasing • But what about the extra-quick ones? • Either they were passively infected and had a large cross-sections • Or they were known in advance to the attacker

19. Uptime of 750 Witty Infectees Part of a group of 135 infectees from same /16

20. Time When Infectees Seen At Telescope Most also belong to that /16

21. Witty Started With A “Hit List” • Initial infectees exhibit super-exponential growth  they weren’t found by random scanning • (And can in fact show large-scale passive infection unlikely) • Prevalent /16 = U.S. military base • Attacker knew of ISS security software installation at military site  ISS insider(or ex-insider) • Fits with very rapid development of worm after public vulnerability disclosure

22. Are All The Worms In Fact Executing Witty? • Answer: No. • One “infectee” probes addresses not on the orbit, each of the form A.B.A.B rather than A.B.C.D. • Each probe contains Witty contagion, but lacks randomized payload size. • Shows up very near beginning of trace. • Patient Zero - machine attacker used to launch Witty. (Really, Patient Negative One.) • European retail ISP. • Communicated to law enforcement.

23. Implications of Witty Forensics • Provided a degree of worm attribution • (truth be told, doesn’t require the full analysis) • Powerful demonstration of opportunistic measurement and exploiting structure • Very labor intensive • A one-trick pony?

24. Internet “Situational Awareness” • Separate from ICSI honeyfarm, at LBL we operate a 2,560 honeynet w/ honeyd responders • Basic question: how do we tell when it sees something new … • … and interesting • Idea: • Characterize “background radiation” in abstract terms • Remove any matches, consider remainder “new” … • … except first run for a few months to converge on full set of abstractions

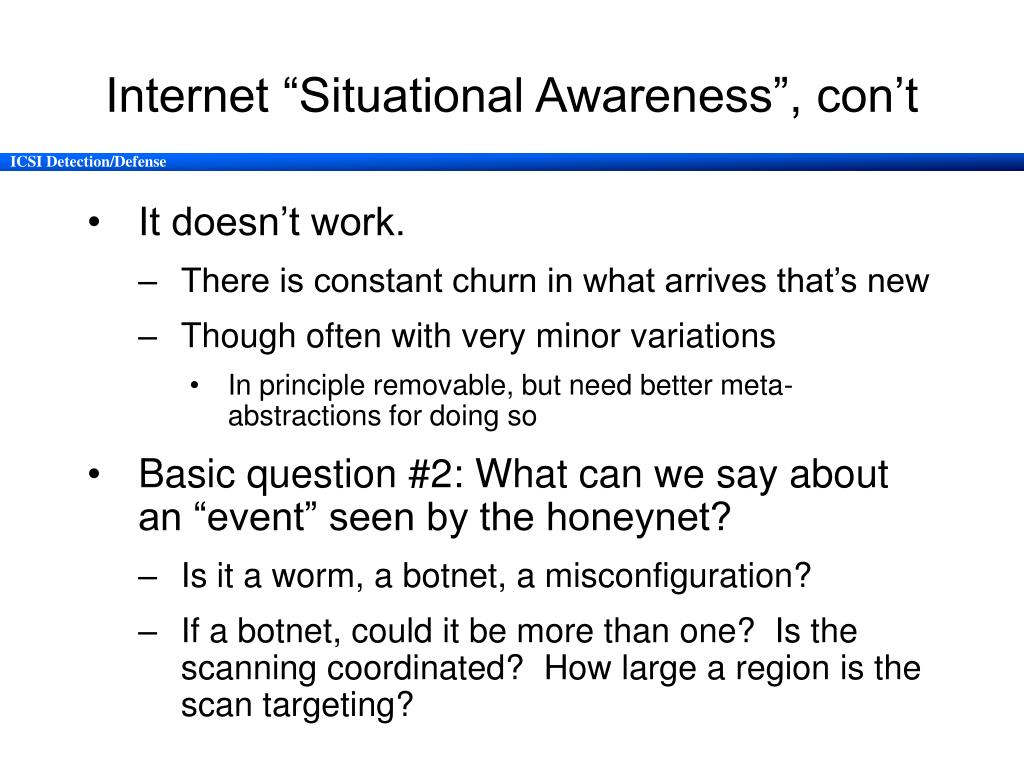

25. Internet “Situational Awareness”, con’t • It doesn’t work. • There is constant churn in what arrives that’s new • Though often with very minor variations • In principle removable, but need better meta-abstractions for doing so • Basic question #2: What can we say about an “event” seen by the honeynet? • Is it a worm, a botnet, a misconfiguration? • If a botnet, could it be more than one? Is the scanning coordinated? How large a region is the scan targeting?

31. Internet “Situational Awareness”, con’t • It doesn’t work ... Yet. • Significant noise problems • Significant modalities & variations • Calibration difficulties

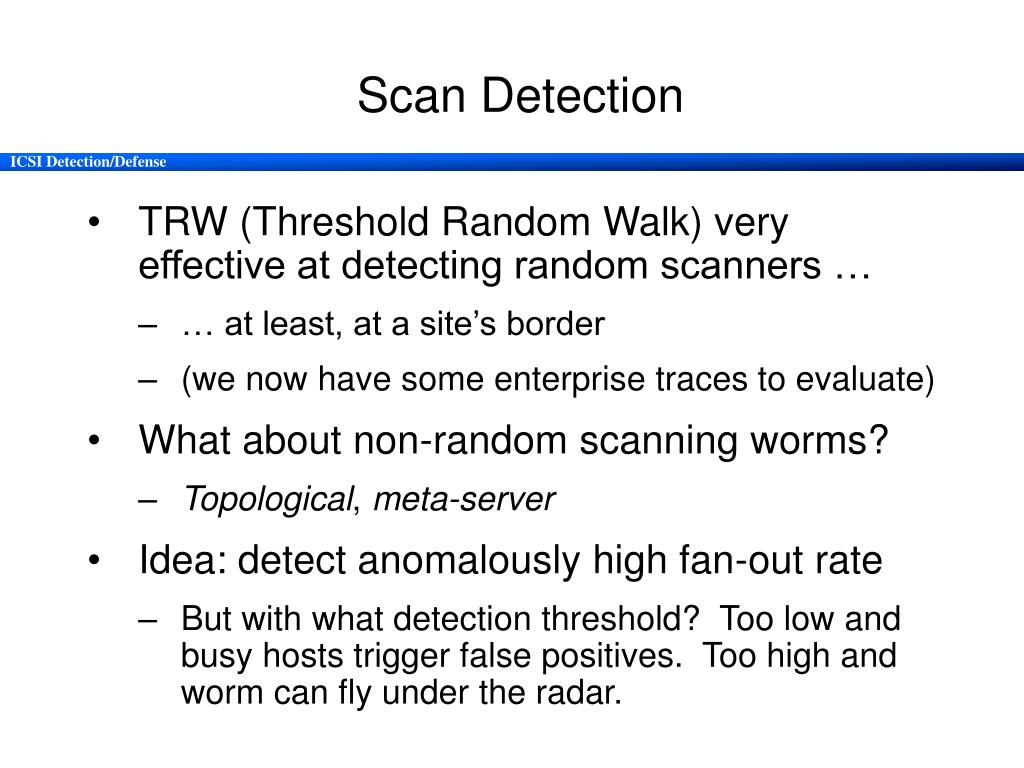

32. Scan Detection • TRW (Threshold Random Walk) very effective at detecting random scanners … • … at least, at a site’s border • (we now have some enterprise traces to evaluate) • What about non-random scanning worms? • Topological, meta-server • Idea: detect anomalously high fan-out rate • But with what detection threshold? Too low and busy hosts trigger false positives. Too high and worm can fly under the radar.

33. Applying Sequential Hypothesis Testing to Rate-based Detection • Idea: per-host, learn its past rate of contacting new hosts • This becomes its Bayesian prior for non-infection • Hypothesize higher rate for infected hosts • As new contacts made, apply SHT to decision between infection/non-infection • Benefits: • No single fixed detection threshold • Host’s behavior somewhat integrated over multiple time scales by updates to SHT

34. RBS (Rate-Based Seq. Hyp. Testing) • Math based on Poisson arrivals for hosts contacting new destinations (not too bad an assumption) • Evaluated on partial enterprise traces • Proxies for topological scanners: internal security scanner, web crawlers, printer manager, service monitor • Prior for benign fan-out rate: 3.8 Hz • Preliminary: works fairly well, ≈ 1 FP/hr • Also assess hybrid, RBS+TRW • But: • FP high enough to make automatic response problematic • Topological worm can still spread very fast @ 3.8 Hz if avoids TRW’s failure detection

35. DNS-Based Scan Detection • Previous work: watch DNS traffic to detect random-address scanners because not preceded by name lookup • Idea (preliminary): for non-random scanning worms, use a site’s DNS server to gain insight into what can’t otherwise be seen • The hope: even if scanning activity occurs within an unmonitored subnet, for topological worms will still often be preceded by DNS lookup that is seen at DNS server • Assessed on traces from LBL’s name servers • Problem: there are a lot of hosts with significant DNS fan-out (also, surprisingly, a lot of failure to cache previous answers)

36. DNS-Based Scan Detection, con’t • Another idea: analyze DNS lookups to spot potential contact graphs • I.e., A looks up B which then looks up C which looks up D • Somewhat more promising, but: • Needs to work on short chains, since trouble likely grows exponentially with chain-length • Trace evaluation finds clusters of hosts that frequently look each other up. Need to distinguish these from true contact graphs (by training? by a “tell”?)

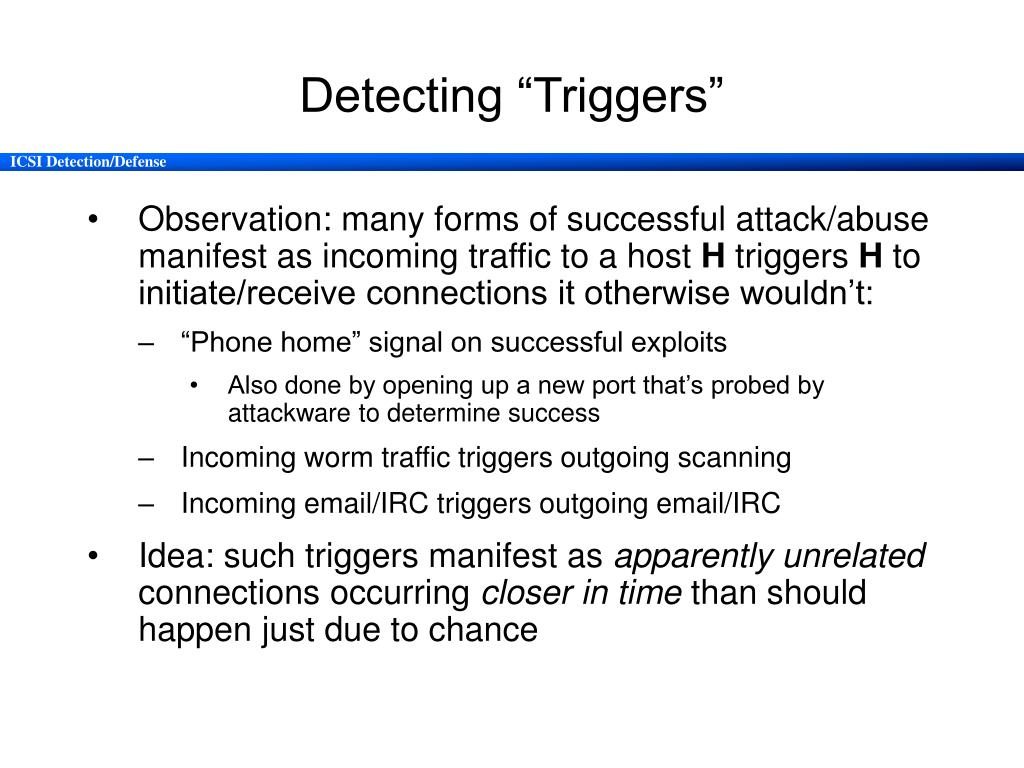

37. Detecting “Triggers” • Observation: many forms of successful attack/abuse manifest as incoming traffic to a host H triggers H to initiate/receive connections it otherwise wouldn’t: • “Phone home” signal on successful exploits • Also done by opening up a new port that’s probed by attackware to determine success • Incoming worm traffic triggers outgoing scanning • Incoming email/IRC triggers outgoing email/IRC • Idea: such triggers manifest as apparently unrelated connections occurring closer in time than should happen just due to chance

38. Detecting “Triggers”, con’t • Mathematical framework assumes that application sessions well-modeled as Poisson process. • Compute probability that two independent Poisson processes would occur as close together as observed. If low, flag as anomalous. • Requires recognizing known session structure, e.g., FTP user connection + FTP data connections … + optional ident connection. Or: SMTP in to known server (again w/ optional ident) that leads to SMTP out as it forwards it. • We codified 39 of these

39. Detecting “Triggers”, con’t • This works! … in terms of finding “hidden causality”, i.e., connections that are related even though not part of one of the recognized sessions. • This doesn’t work! …in terms of assuming that such hidden causality reflects abuse. • Instead, it nearly always means we’ve found a new type of (benign) application session. • Prevalence could be skewed by degree to which LBL’s traffic includes a very diverse set of applications. • We got the FP rate down to a few dozen per day; not good enough. Serves as good anomaly signal but not actionable. • We’re now thinking about recasting in terms of automatically discovering session structure.

40. Signature White-listing • Problem: when automatically distilling signatures (e.g.., from honeypot traffic), how do we ensure that the signature doesn’t reflect benign/common protocol elements? • E.g., USER-AGENT: Mozilla/4.0 (compatible; MSIE 6.0b; Windows 98) • Idea: run signature distillation over large corpus of mostly benign traffic, identify frequently occurring protocol elements for white-listing • Status: basic algorithms developed, preliminary test on HTTP traces promising … • … with key questions being how will it scale to sufficiently large datasets … • … and will this suffice to construct a complete enough list?

41. (Additional Slides Re Witty Analysis)
