  1. Chapter 6 Multicores, Multiprocessors, and Clusters (condensed lecture)

  2. Introduction §9.1 Introduction • Goal: connecting multiple computersto get higher performance • Multiprocessors • Scalability, availability, power efficiency • Job-level (process-level) parallelism • High throughput for independent jobs • Parallel processing program • Single program run on multiple processors • Multicore microprocessors • Chips with multiple processors (cores) Chapter 6 — Multicores, Multiprocessors, and Clusters — 2

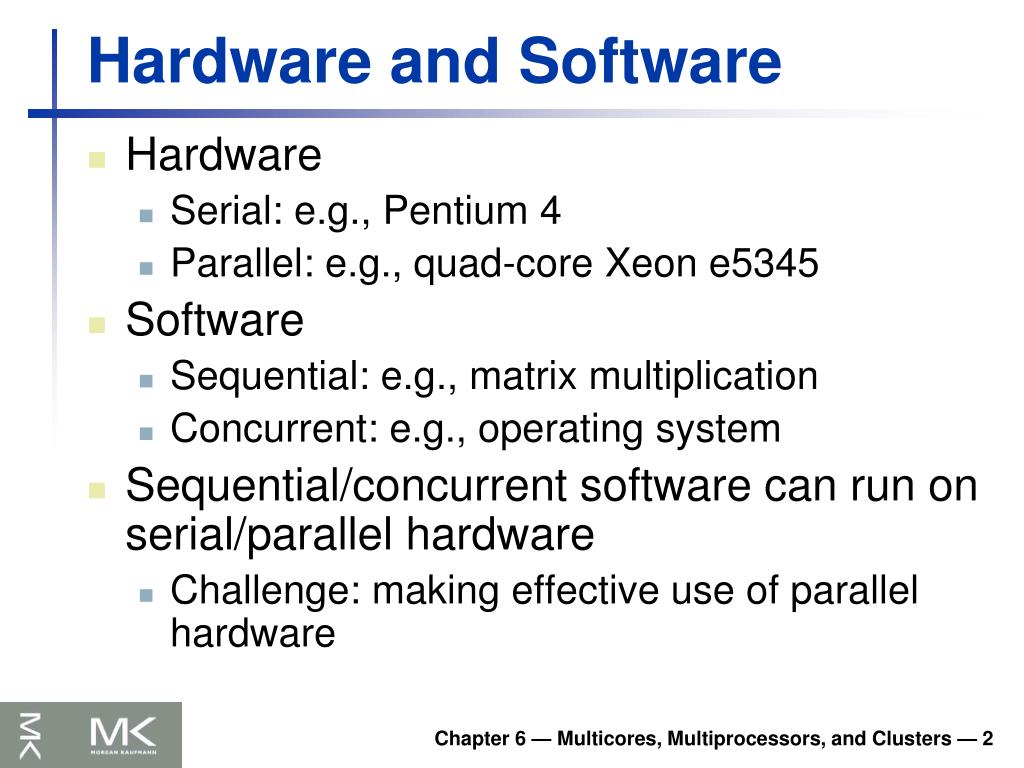

  3. Hardware and Software • Hardware • Serial: e.g., Pentium 4 • Parallel: e.g., quad-core Xeon e5345 • Software • Sequential: e.g., matrix multiplication • Concurrent: e.g., operating system • Sequential/concurrent software can run on serial/parallel hardware • Challenge: making effective use of parallel hardware Chapter 6 — Multicores, Multiprocessors, and Clusters — 2

  4. Parallel Programming • Parallel software is the problem • Need to get significant performance improvement • Otherwise, just use a faster uniprocessor, since it’s easier! • Difficulties • Partitioning • Coordination • Communications overhead §7.2 The Difficulty of Creating Parallel Processing Programs Chapter 6 — Multicores, Multiprocessors, and Clusters — 2

  5. Shared Memory • SMP: shared memory multiprocessor • Hardware provides single physicaladdress space for all processors • Synchronize shared variables using locks • Memory access time • UMA (uniform) vs. NUMA (nonuniform) §7.3 Shared Memory Multiprocessors Chapter 6 — Multicores, Multiprocessors, and Clusters — 2

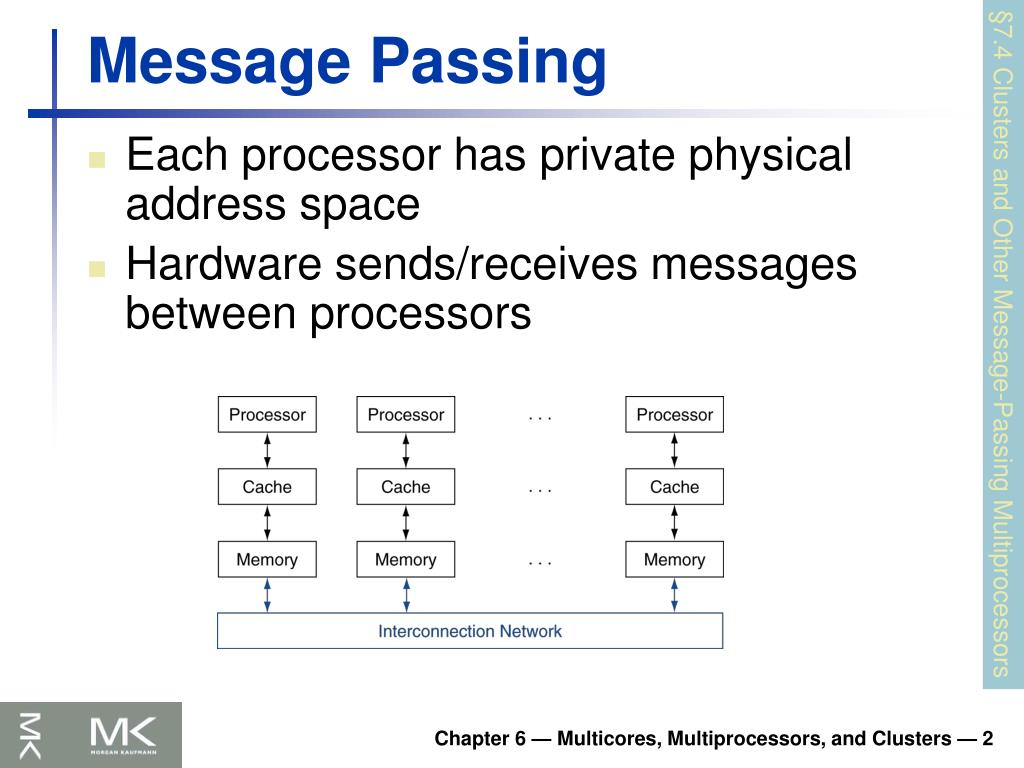

  6. Message Passing • Each processor has private physical address space • Hardware sends/receives messages between processors §7.4 Clusters and Other Message-Passing Multiprocessors Chapter 6 — Multicores, Multiprocessors, and Clusters — 2

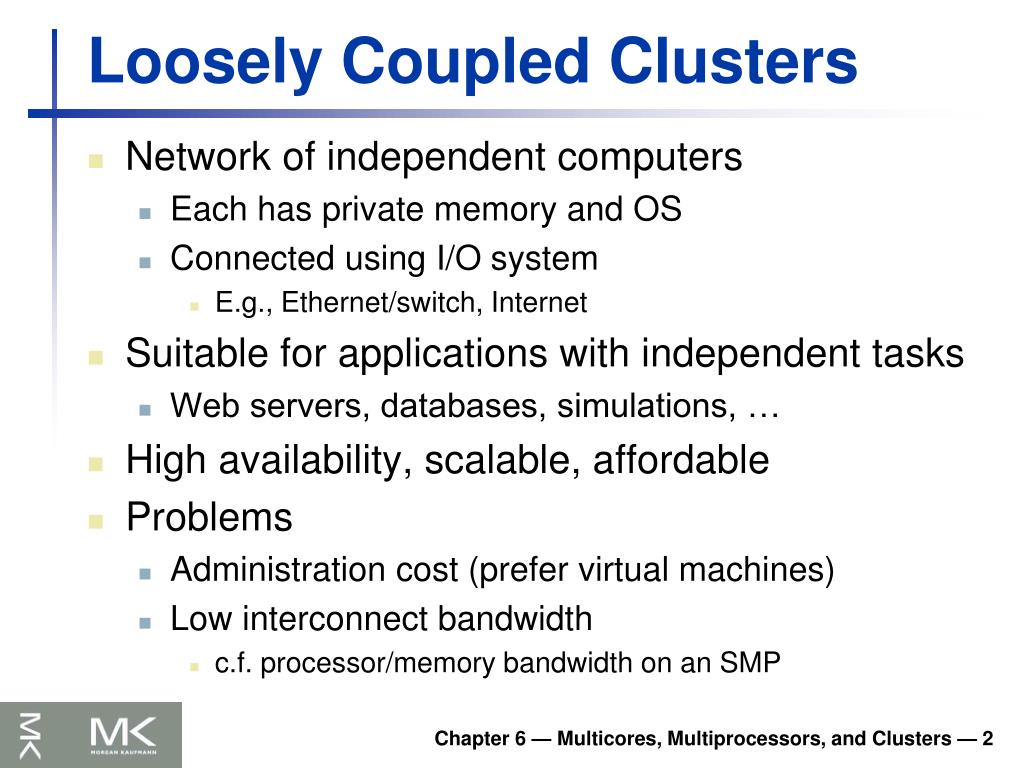

  7. Loosely Coupled Clusters • Network of independent computers • Each has private memory and OS • Connected using I/O system • E.g., Ethernet/switch, Internet • Suitable for applications with independent tasks • Web servers, databases, simulations, … • High availability, scalable, affordable • Problems • Administration cost (prefer virtual machines) • Low interconnect bandwidth • c.f. processor/memory bandwidth on an SMP Chapter 6 — Multicores, Multiprocessors, and Clusters — 2

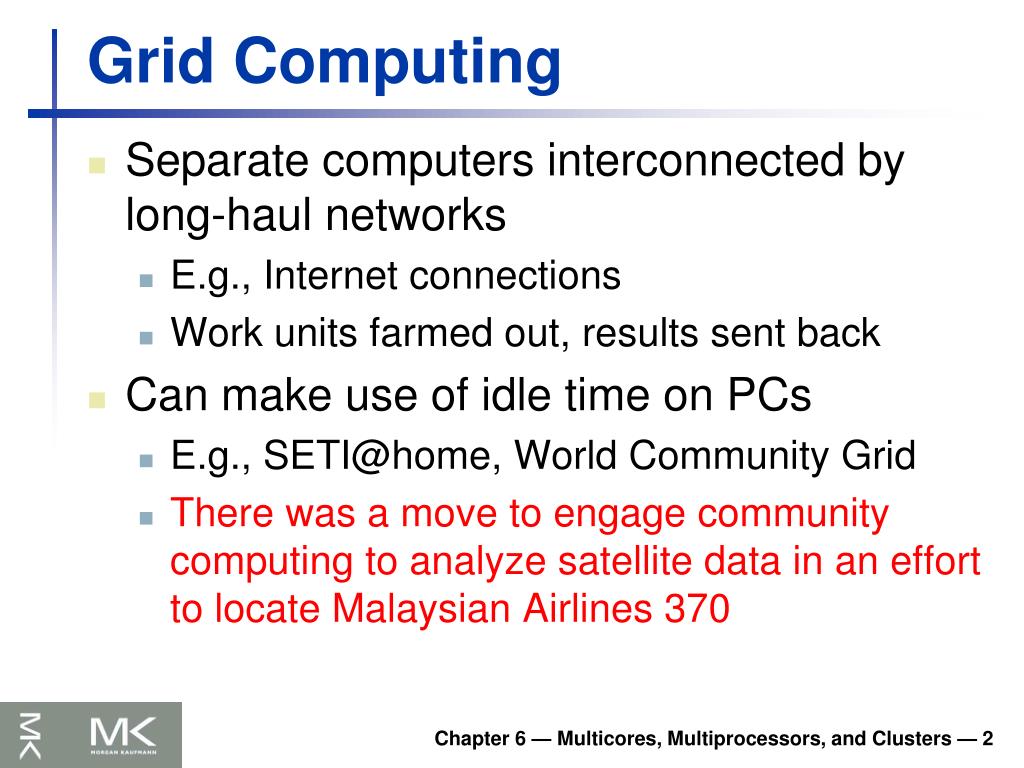

  8. Grid Computing • Separate computers interconnected by long-haul networks • E.g., Internet connections • Work units farmed out, results sent back • Can make use of idle time on PCs • E.g., SETI@home, World Community Grid • There was a move to engage community computing to analyze satellite data in an effort to locate Malaysian Airlines 370 Chapter 6 — Multicores, Multiprocessors, and Clusters — 2

  9. Multithreading • Performing multiple threads of execution in parallel • Replicate registers, PC, etc. • Fast switching between threads • Fine-grain multithreading • Switch threads after each cycle • Interleave instruction execution • If one thread stalls, others are executed • Coarse-grain multithreading • Only switch on long stall (e.g., L2-cache miss) • Simplifies hardware, but doesn’t hide short stalls (eg, data hazards) §7.5 Hardware Multithreading Chapter 6 — Multicores, Multiprocessors, and Clusters — 2

  10. Simultaneous Multithreading • In multiple-issue dynamically scheduled processor • Schedule instructions from multiple threads • Instructions from independent threads execute when function units are available • Within threads, dependencies handled by scheduling and register renaming • Example: Intel Pentium-4 HT • Two threads: duplicated registers, shared function units and caches Chapter 6 — Multicores, Multiprocessors, and Clusters — 2

  11. Future of Multithreading • Will it survive? In what form? • Power considerations  simplified microarchitectures • Simpler forms of multithreading • Tolerating cache-miss latency • Thread switch may be most effective • Multiple simple cores might share resources more effectively Chapter 6 — Multicores, Multiprocessors, and Clusters — 2

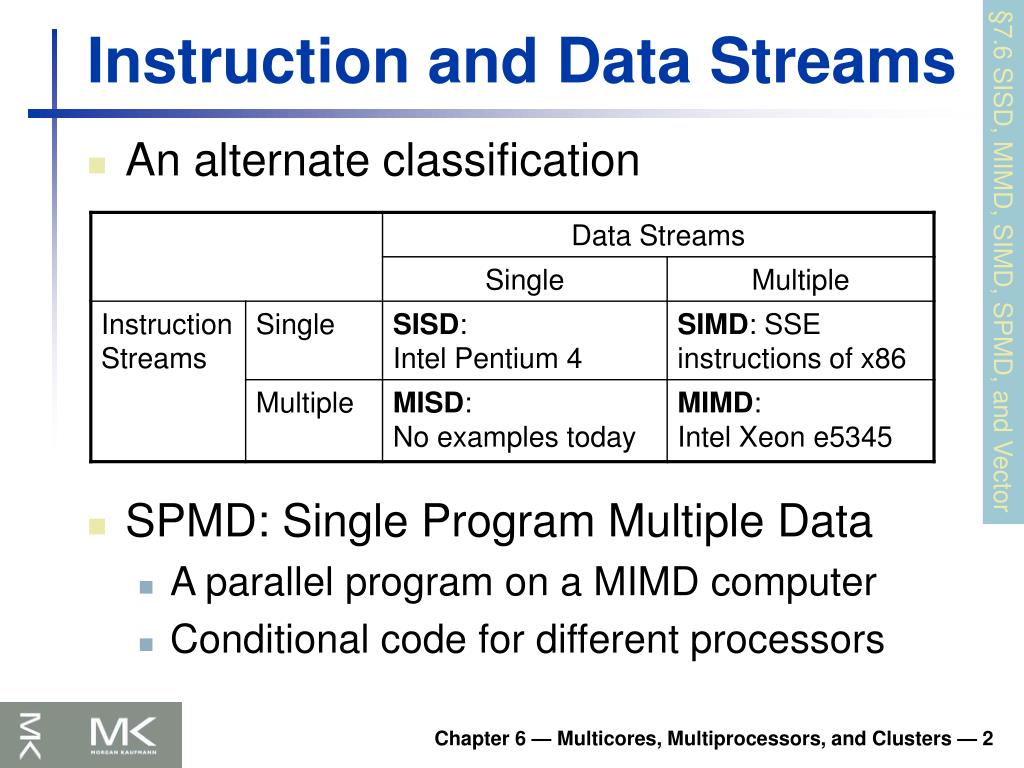

  12. Instruction and Data Streams • An alternate classification §7.6 SISD, MIMD, SIMD, SPMD, and Vector • SPMD: Single Program Multiple Data • A parallel program on a MIMD computer • Conditional code for different processors Chapter 6 — Multicores, Multiprocessors, and Clusters — 2

  13. SIMD • Operate elementwise on vectors of data • E.g., MMX and SSE instructions in x86 • Multiple data elements in 128-bit wide registers • All processors execute the same instruction at the same time • Each with different data address, etc. • Simplifies synchronization • Reduced instruction control hardware • Works best for highly data-parallel applications Chapter 6 — Multicores, Multiprocessors, and Clusters — 2

  14. Vector Processors • Highly pipelined function units • Stream data from/to vector registers to units • Data collected from memory into registers • Results stored from registers to memory • Example: Vector extension to MIPS • 32 × 64-element registers (64-bit elements) • Vector instructions • lv, sv: load/store vector • addv.d: add vectors of double • addvs.d: add scalar to each element of vector of double • Significantly reduces instruction-fetch bandwidth Chapter 6 — Multicores, Multiprocessors, and Clusters — 2

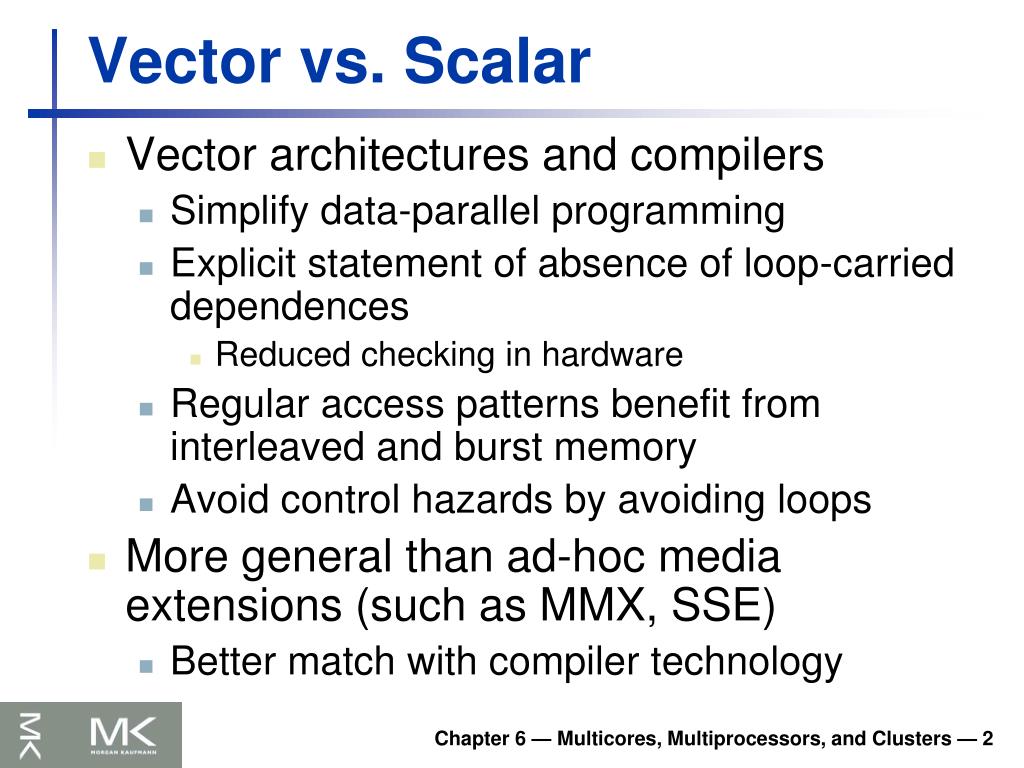

  15. Vector vs. Scalar • Vector architectures and compilers • Simplify data-parallel programming • Explicit statement of absence of loop-carried dependences • Reduced checking in hardware • Regular access patterns benefit from interleaved and burst memory • Avoid control hazards by avoiding loops • More general than ad-hoc media extensions (such as MMX, SSE) • Better match with compiler technology Chapter 6 — Multicores, Multiprocessors, and Clusters — 2

  16. History of GPUs • Early video cards • Frame buffer memory with address generation for video output • 3D graphics processing • Originally high-end computers (e.g., SGI) • Moore’s Law  lower cost, higher density • 3D graphics cards for PCs and game consoles • Graphics Processing Units • Processors oriented to 3D graphics tasks • Vertex/pixel processing, shading, texture mapping,rasterization §7.7 Introduction to Graphics Processing Units Chapter 6 — Multicores, Multiprocessors, and Clusters — 2

  17. Graphics in the System Chapter 6 — Multicores, Multiprocessors, and Clusters — 2

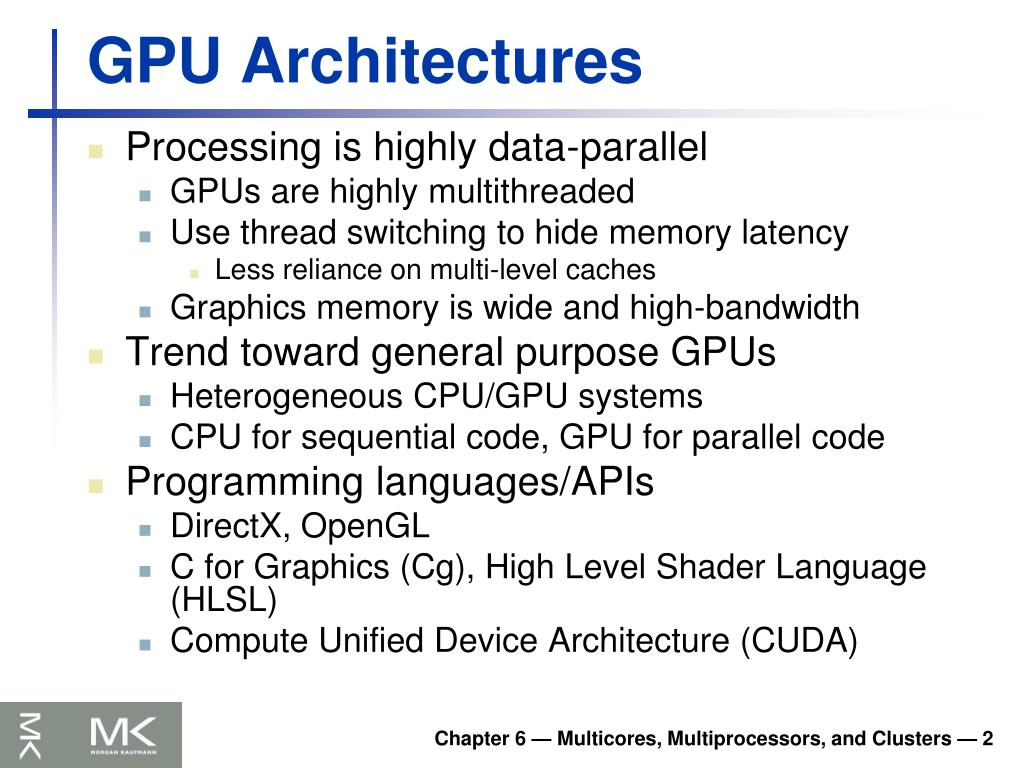

  18. GPU Architectures • Processing is highly data-parallel • GPUs are highly multithreaded • Use thread switching to hide memory latency • Less reliance on multi-level caches • Graphics memory is wide and high-bandwidth • Trend toward general purpose GPUs • Heterogeneous CPU/GPU systems • CPU for sequential code, GPU for parallel code • Programming languages/APIs • DirectX, OpenGL • C for Graphics (Cg), High Level Shader Language (HLSL) • Compute Unified Device Architecture (CUDA) Chapter 6 — Multicores, Multiprocessors, and Clusters — 2

  19. Example: NVIDIA Tesla Streaming multiprocessor 8 × Streamingprocessors Chapter 6 — Multicores, Multiprocessors, and Clusters — 2

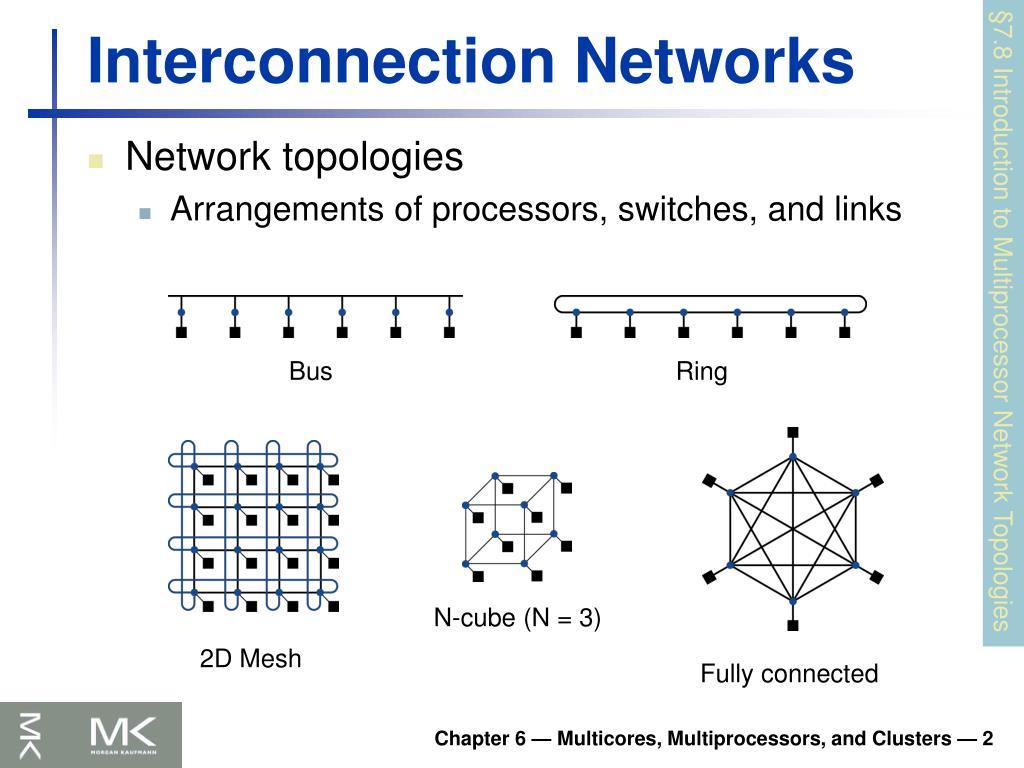

  20. Interconnection Networks • Network topologies • Arrangements of processors, switches, and links §7.8 Introduction to Multiprocessor Network Topologies Bus Ring N-cube (N = 3) 2D Mesh Fully connected Chapter 6 — Multicores, Multiprocessors, and Clusters — 2

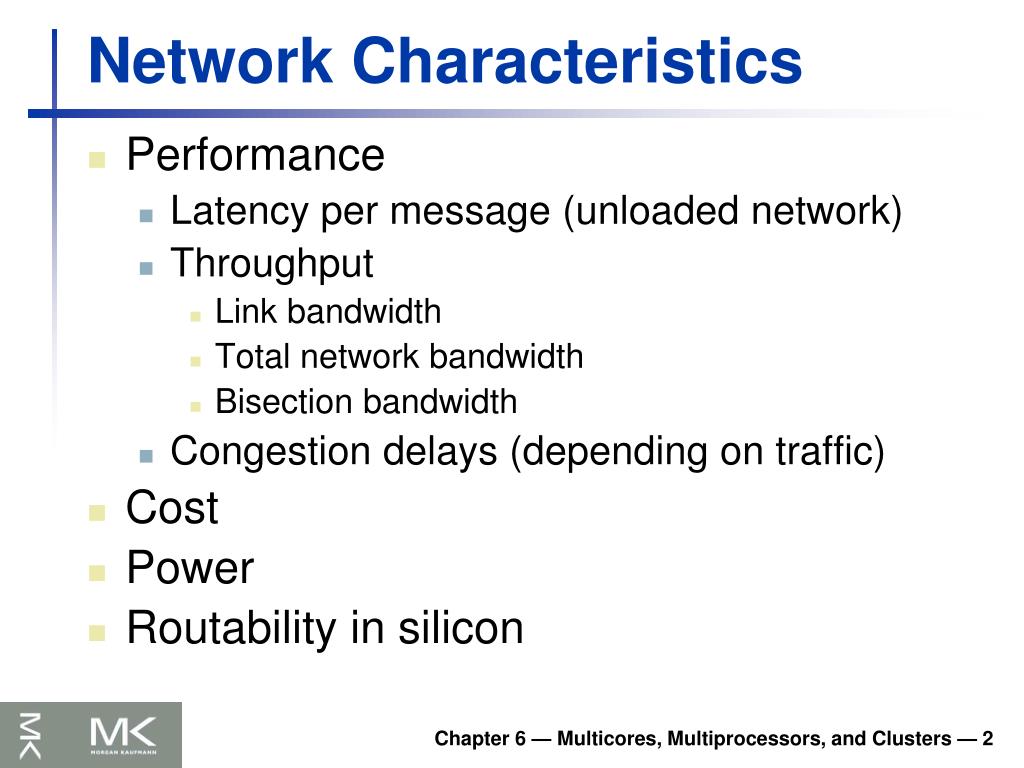

  21. Network Characteristics • Performance • Latency per message (unloaded network) • Throughput • Link bandwidth • Total network bandwidth • Bisection bandwidth • Congestion delays (depending on traffic) • Cost • Power • Routability in silicon Chapter 6 — Multicores, Multiprocessors, and Clusters — 2

  22. Parallel Benchmarks • Linpack: matrix linear algebra • SPECrate: parallel run of SPEC CPU programs • Job-level parallelism • SPLASH: Stanford Parallel Applications for Shared Memory • Mix of kernels and applications, strong scaling • NAS (NASA Advanced Supercomputing) suite • computational fluid dynamics kernels • PARSEC (Princeton Application Repository for Shared Memory Computers) suite • Multithreaded applications using Pthreads and OpenMP §7.9 Multiprocessor Benchmarks Chapter 6 — Multicores, Multiprocessors, and Clusters — 2

  23. Concluding Remarks • Goal: higher performance by using multiple processors • Difficulties • Developing parallel software • Devising appropriate architectures • Many reasons for optimism • Changing software and application environment • Chip-level multiprocessors with lower latency, higher bandwidth interconnect • An ongoing challenge for computer architects! §7.13 Concluding Remarks Chapter 6 — Multicores, Multiprocessors, and Clusters — 2
