Lecture 26: Numerical Integration

kalli avatar
kalli
12 diapositives · 2.7K Views · Aug 14, 2014

Lecture 26: Numerical Integration. Newton-Cotes Formulas. Trapezoid rule. Simpson's rule. Simpson's 3/8 rule. Boole’s rule. trapezoid1.m. function f1=trapezoid1(func1,a,b,n) %Integration function func1 %using composite trapezoid rule at n points between a and b

Lecture 26: Numerical Integration - slide 1
01 / 12Lecture 26: Numerical Integration
1 / 17

Télécharger la présentation

Lecture 26: Numerical Integration
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

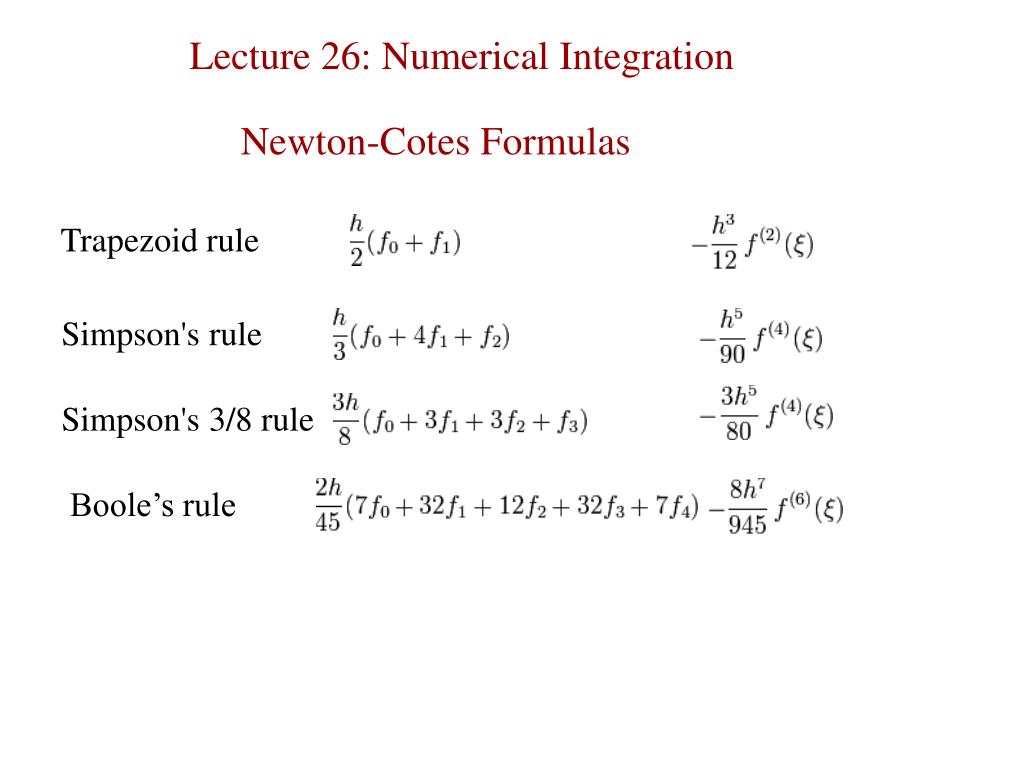

  1. Lecture 26: Numerical Integration Newton-Cotes Formulas Trapezoid rule Simpson's rule Simpson's 3/8 rule Boole’s rule

  2. trapezoid1.m function f1=trapezoid1(func1,a,b,n) %Integration function func1 %using composite trapezoid rule at n points between a and b h=(b-a)/n; f1=func1(a)/2; for i=1:n-1 f1=f1+func1(a+i*h); end f1=f1+func1(b)/2; f1=h*f1; trapezoid1test.m

  3. %examples of use of function f1=trapezoid1(func1,a,b,n) %Integration function func1 %using composite trapezoid rule at n points between a and b a=1; b=5; f1=inline('exp(-x)') disp(['a=',num2str(a),' b=',num2str(b)]) %display limits of integration intexact=-exp(-b)+exp(-a); i=1:10; nvec=2.^(i); for i=1:length(nvec) f1int=trapezoid1(f1,a,b,nvec(i)); disp(['n=',num2str(nvec(i)),' Error in composite trapezod rule =',num2str(f1int-intexact)]); %display value of function f(x) end

  4. >> trapezoid1test f1 = Inline function: f1(x) = exp(-x) a=1 b=5 n=2 Error in composite trapezod rule =0.11305 n=4 Error in composite trapezod rule =0.029605 n=8 Error in composite trapezod rule =0.0074926 n=16 Error in composite trapezod rule =0.001879 n=32 Error in composite trapezod rule =0.00047011 n=64 Error in composite trapezod rule =0.00011755 n=128 Error in composite trapezod rule =2.9389e-005 n=256 Error in composite trapezod rule =7.3474e-006 n=512 Error in composite trapezod rule =1.8369e-006 n=1024 Error in composite trapezod rule =4.5922e-007

  5. a=0; b=2*pi; f1=inline('exp(sin(x)^2)') disp(['a=',num2str(a),' b=',num2str(b)]) %display limits of integration intexact=trapezoid1(f1,a,b,200); i=1:5; nvec=2.^(i); for i=1:length(nvec) f1int=trapezoid1(f1,a,b,nvec(i)); disp(['n=',num2str(nvec(i)),' Error in composite trapezod rule =',num2str(f1int-intexact)]); %display value of function f(x) end

  6. f1 = Inline function: f1(x) = exp(sin(x)^2) a=0 b=6.2832 n=2 Error in composite trapezod rule =-4.7337 n=4 Error in composite trapezod rule =0.66447 n=8 Error in composite trapezod rule =0.0034145 n=16 Error in composite trapezod rule =7.8954e-009 n=32 Error in composite trapezod rule =-3.5527e-015 f1 = Inline function: f1(x) = exp(sin(x)^2) a=0 b=0.7854 n=2 Error in composite trapezod rule =0.021343 n=4 Error in composite trapezod rule =0.005305 n=8 Error in composite trapezod rule =0.0013228 n=16 Error in composite trapezod rule =0.00032898 n=32 Error in composite trapezod rule =8.0649e-005

  7. a=0; b=pi/4; f1=inline('exp(sin(x)^2)') disp(['a=',num2str(a),' b=',num2str(b)]) %display limits of integration intexact=trapezoid1(f1,a,b,200); i=1:5; nvec=2.^(i); for i=1:length(nvec) f1int=trapezoid1(f1,a,b,nvec(i)); disp(['n=',num2str(nvec(i)),' Error in composite trapezod rule =',num2str(f1int-intexact)]); %display value of function f(x) end

  8. simpson1.m function f1=simpson1(func1,a,b,n) %Integration function func1 %using composite simpson rule at n points between a and b h=(b-a)/n; f1=func1(a); for i=1:(n/2-1) f1=f1+4*func1(a+(2*i-1)*h)+2*func1(a+(2*i)*h); end f1=f1+4*func1(a+(n-1)*h)+func1(b); f1=(h/3)*f1; simpson1test.m

  9. %examples of use of function f1=simpson1(func1,a,b,n) %Integration function func1 %using composite Simpson's rule at n points between a and b; n must be even a=1; b=5; f1=inline('exp(-x)') disp(['a=',num2str(a),' b=',num2str(b)]) %display limits of integration intexact=-exp(-b)+exp(-a); i=1:10; nvec=2.^(i); for i=1:length(nvec) f1int=simpson1(f1,a,b,nvec(i)); disp(['n=',num2str(nvec(i)),' Error in composite trapezod rule =',num2str(f1int-intexact)]); %display value of function f(x) end …

  10. >> simpson1test f1(x) = exp(-x) a=1 b=5 n=2 Error in composite trapezod rule =0.021369 n=4 Error in composite trapezod rule =0.0017902 n=8 Error in composite trapezod rule =0.00012176 n=16 Error in composite trapezod rule =7.7793e-006 n=32 Error in composite trapezod rule =4.8892e-007 n=64 Error in composite trapezod rule =3.06e-008 n=128 Error in composite trapezod rule =1.9132e-009 n=256 Error in composite trapezod rule =1.1958e-010 n=512 Error in composite trapezod rule =7.4751e-012 n=1024 Error in composite trapezod rule =4.6674e-013 The same function with composite trapezoid rule: a=1 b=5 n=2 Error in composite trapezod rule =0.11305 n=4 Error in composite trapezod rule =0.029605 n=8 Error in composite trapezod rule =0.0074926 n=16 Error in composite trapezod rule =0.001879 n=32 Error in composite trapezod rule =0.00047011 n=64 Error in composite trapezod rule =0.00011755 n=128 Error in composite trapezod rule =2.9389e-005 n=256 Error in composite trapezod rule =7.3474e-006 n=512 Error in composite trapezod rule =1.8369e-006 n=1024 Error in composite trapezod rule =4.5922e-007

  11. Exercise Compute integral of function e^(-x^2) between a=0 and b=10 using composite trapezoid and composite Simpson’s rules for n=2,4,8,…, 1024. Compare with exact answer = sqrt(pi)/2 Use simpson1test.m as example.

  12. >> inclass26 f1 = Inline function: f1(x) = exp(-x^2) a=0 b=10 n=2 Error in composite trapezod rule =0.78044 n=4 Error in composite trapezod rule =-0.046459 n=8 Error in composite trapezod rule =-0.1186 n=16 Error in composite trapezod rule =-0.0010671 n=32 Error in composite trapezod rule =-6.2875e-012 n=64 Error in composite trapezod rule =0 n=128 Error in composite trapezod rule =2.2204e-016 n=256 Error in composite trapezod rule =5.5511e-016 n=512 Error in composite trapezod rule =0 n=1024 Error in composite trapezod rule =-1.3323e-015 The same function with composite trapezoid rule: a=0 b=10 n=2 Error in composite trapezod rule =1.6138 n=4 Error in composite trapezod rule =0.3686 n=8 Error in composite trapezod rule =0.0032014 n=16 Error in composite trapezod rule =1.8863e-011 n=32 Error in composite trapezod rule =0 n=64 Error in composite trapezod rule =-1.1102e-016 n=128 Error in composite trapezod rule =-1.1102e-016 n=256 Error in composite trapezod rule =-4.4409e-016 n=512 Error in composite trapezod rule =-6.6613e-016 n=1024 Error in composite trapezod rule =-4.4409e-016
