  1. 2007 New Product: Floor Standing UnitFVXS-F

  2. Product Concept • Stylish and Compact design • New Flat Panel & Improved Flexibility • Comfortable air flow • Improved energy efficiency • Stylish and easy-to-use new Remote Controller • LCD with backlight • Weekly Timer • Econo mode • Air purifying filter

  3. Product Line up Indoor unit Outdoor units RK/XS25/35F RK/XS50F FVXS25-50F

  4. Stylish and Compact Design Flat Panel Stylish outlook, easy-to-clean and compact design. Dimensions: 600mm [H] x 700mm [W] Enhanced freedom of installation.

  5. 115mm Stylish and Compact Design Improved Design Flexibility Half-embedded installation makes the visible unit depthsmaller, up to 115mm.

  6. Stylish and compact design Improved Design Flexibility A wallmounting plate is supplied as a standard accessory. The unit can easily be placed against the wall and above the skirting board. Easy cleaning of the floor below the unit. Easy cleaning of the flat panel.

  7. Comfortable air flow Double Air Flow for Enhanced Comfort Wide air flow coverage in both upward and downward directions allowing even air distribution. During heating operating, your feet stay warm and the temperature through the room is even.Maximum comfort will be ensured.

  8. Energy Saving Improved EER/COP COP comparison with current models

  9. Energy Saving Energy Saving Technology Technologies which realize high COP Heat exchanger with  6.35 tube:Low draft resistance and high efficiency Flat panel:Improves the suction air flow 3D air filter:Improves the suction air flow within the unit New design turbo fan:Quiet & high performance Titanium apatite photocatalytic deodorizing filter

  10. Energy Saving Flat Panel : Improvement of Air Flow Thanks to side suction, airflow short-circuit is reduced, therefore improving air distribution and increasing efficiency. New model Current model Discharge (upper part) Side view Suction grille Short-circuit Discharge (lower part) Short-circuit reduced

  11. Energy Saving 3D Air Filter Improved air flow suction thanks to the 3-dimensional filter. 3D Air Filter With a flat panel, the sucked air needs to be redirected by 90 degrees which can result in efficiency loss. The new 3D shape air filter ensures that the air is bended in the most efficient way.

  12. Energy Saving Heat Exchanger with 6.35 tube f6.35mm tube • Diameter of the heat exchanger tube has been reduced : • Current diameter:7.0mm • New diameter: 6.35mm. • Low draft resistance and high efficiency 3D blade New Turbo Fan Design Newly designed “3D wing-shaped slim turbo fan” is quiet and efficient. It blows the air along the smooth 3D wing-shaped blade and reduces the air disturbance.

  13. New Remote Control Stylish and User Friendly Increased user-friendliness in the dark such as in bedrooms. LCD with backlight and luminescent material for the buttons. LCD with backlight Luminous buttons Stylish new design At night

  14. New Remote Control Weekly Timer Increased controllability at hand. The weekly timer allows to program the unit on a weekly basis. Different combinations of settings will be allowed for each day of the week, so that end-users will be able to comfortably adapt the functioning of the unit to their needs and habits. Weekly timerdisplay area Weekly timersetting buttons

  15. New Remote Control Weekly Timer 4 settings available per day. Suitable temperature in the living room when you wake up in the morning. Unit turns off when you leave for work. Comfortable environment when back in the evening. Unit turns off in the living room when you go to sleep.

  16. ECONO mode ECONO mode is a function that enables efficient operation by limiting the running current and the maximum power consumption of the outdoor unit to 70% of the normal operation. This function is useful for reducing the air-conditioning consumption and thus preventing overloads especially when working together with other appliances. It is easily activated from the wireless remote controller by pushing the ECONO button. For illustrative purposes only. The maximum capacity decreases during ECONO Mode, meaning more time is required to reach the set temperature.

  17. Adsorbs Removes New Air-purifying Filter Better Air Quality New titanium apatite photocatalytic deodorizing filter. • The filter acts in 2 steps: • Adsorption of dust, pollen, cigarette smoke and all tiny particles in the air. • Decomposition of adsorbed particles. • Powerful decomposition bacteria and viruses.

  18. New Air-purifying Filter Photocatalytic Mechanism Titanium oxide in the photocatalyst becomes strongly oxidative when exposed to light. It decomposes substances adsorbed into carbon dioxide and water. Step1 Step2 Step3 Odorless substances Odors Light Odors Photocatalyst When the photocatalyst is exposed to light, it is activated and adsorbs odor particles. A chemical reaction decomposes the odors into CO2 and H2O. The odorless substances are then released into the air.

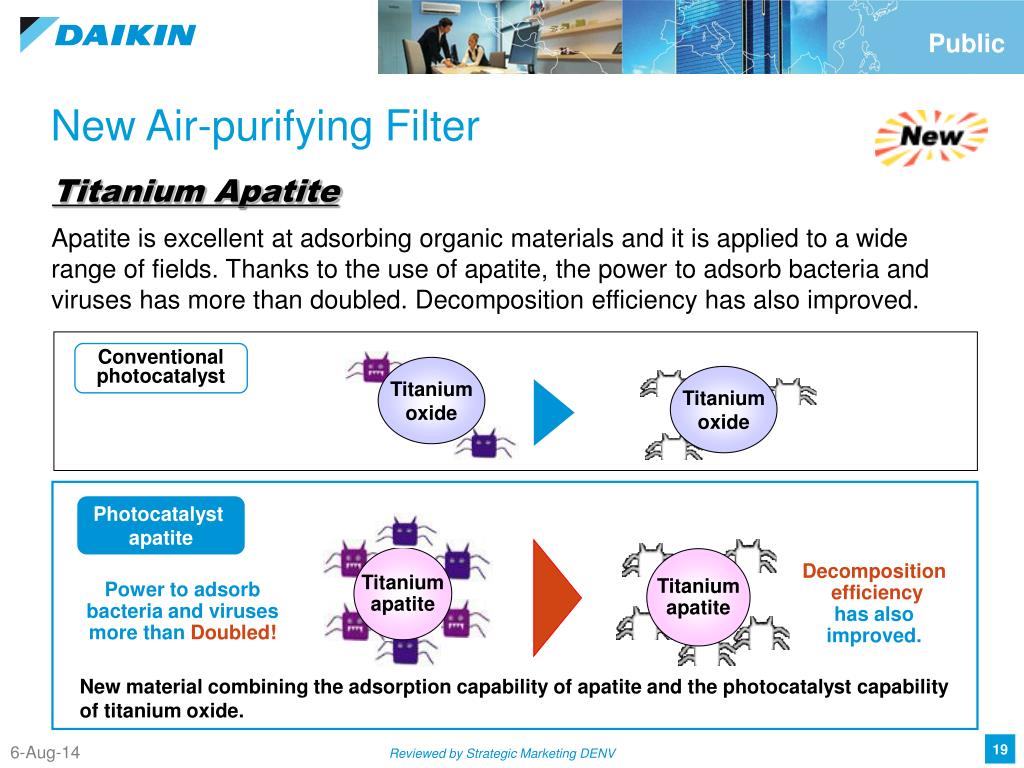

  19. New Air-purifying Filter Titanium Apatite Apatite is excellent at adsorbing organic materials and it is applied to a wide range of fields. Thanks to the use of apatite, the power to adsorb bacteria and viruses has more than doubled. Decomposition efficiency has also improved. Conventional photocatalyst Titanium oxide Titanium oxide Photocatalyst apatite Titanium apatite Titaniumapatite Decomposition efficiency has also improved. Power to adsorb bacteria and viruses more thanDoubled! New material combining the adsorption capability of apatite and the photocatalyst capability of titanium oxide.

  20. Swing Compressor Wipe-clean Flat Panel Titanium Apatite Photocatalytic Air-Purifying Filter Reluctance DC Motor Wide-Angle Louvers Weekly Timer Vertical Auto Swing (Up and Down) 24-hour ON/OFF Timer Indoor Unit Quiet Operation Night Set Mode Outdoor Unit Quiet Operation Remote Controller LCD with Backlight Intelligent Eye Pair/Multi Compatible Indoor Unit Inverter Powerful Operation Anticorrosion Treatment of Outdoor Heat Exchanger ECONO Mode Function List

  21. Main Specifications INV Heat Pump

  22. Specifications Comparison with Competitors 25 class

  23. Specifications Comparison with Competitors 35 class

  24. Specifications Comparison with Competitors 50 class
