Notes 6.2: Circular Motion

Notes 6.2: Circular Motion. Circular Motion – when a force causes an object to curve in a full circle. There are 2 types of circular motion to be familiar with: 1. Rotation – an object spins around an internal axis. Example: bike tire, figure skater

kedma
Télécharger la présentation

Notes 6.2: Circular Motion

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

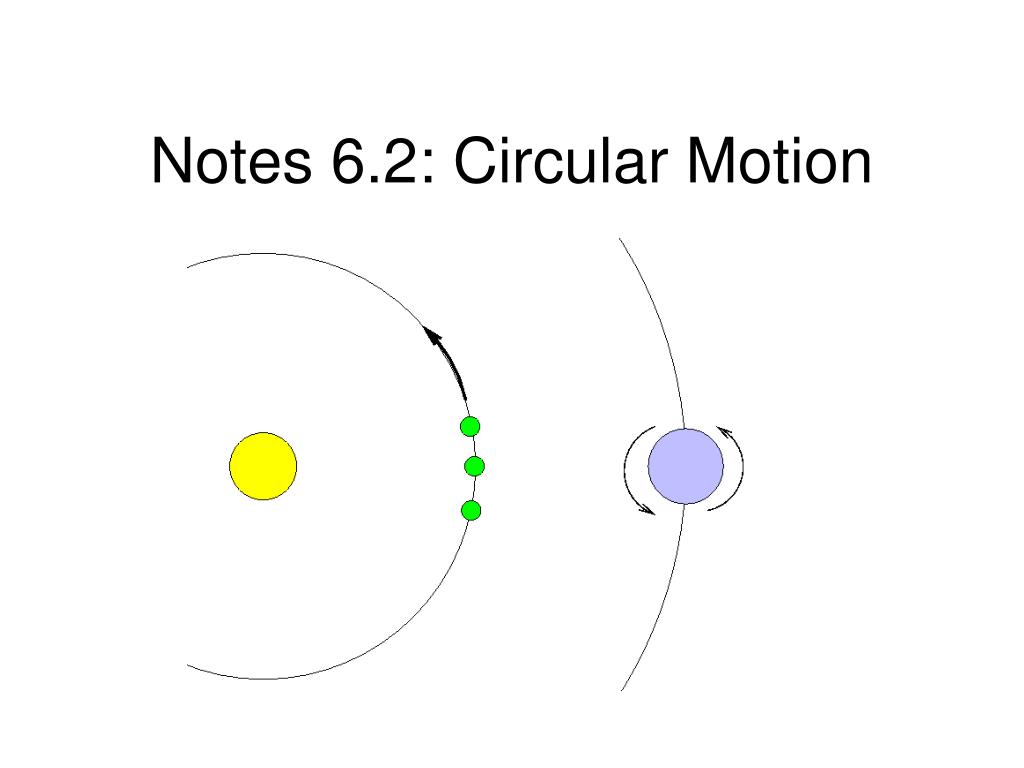

  1. Notes 6.2: Circular Motion

  2. Circular Motion – when a force causes an object to curve in a full circle. • There are 2 types of circular motion to be familiar with: • 1.Rotation – an object spins around an internal axis. • Example: bike tire, figure skater • Earth rotates once on it’s axis in 24 hours

  3. 2. Revolution – object moves around an external axis • Example: rider on a carousel • Earth revolves around the sun

  4. We can describe circular speeds in 2 ways. • 1. Angular speed – rate at which something turns (rpm) • A CD spins at 200 rpm

  5. 2. Linear speed- distance traveled around the circle divided by time. • Units: m/s

  6. Example: A CD takes 0.3 seconds to make one revolution. If the radius of the CD is 6 cm, how fast is a speck of dust on the outside of the CD moving? • Answer: • t = 0.3 sec. v =(2πr)/t • r = 6cm = 0.06m v = (2 x 3.14 x .06)/0.3 • v = ? v = 1.26 m/s

  7. When an object is rolling, it has both linear and rotational motion.
