Chapter 5. Noise in CW Modulation System

S w (f). f. R w (  ). . Chapter 5. Noise in CW Modulation System. 5.1 Introduction - Receiver Noise (Channel Noise) : additive, White, and Gaussian 으로 가정 5.2 Receiver Model 1. RX Model N 0 = KT e where K = Boltzmann’s constant

latham
Télécharger la présentation

Chapter 5. Noise in CW Modulation System

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

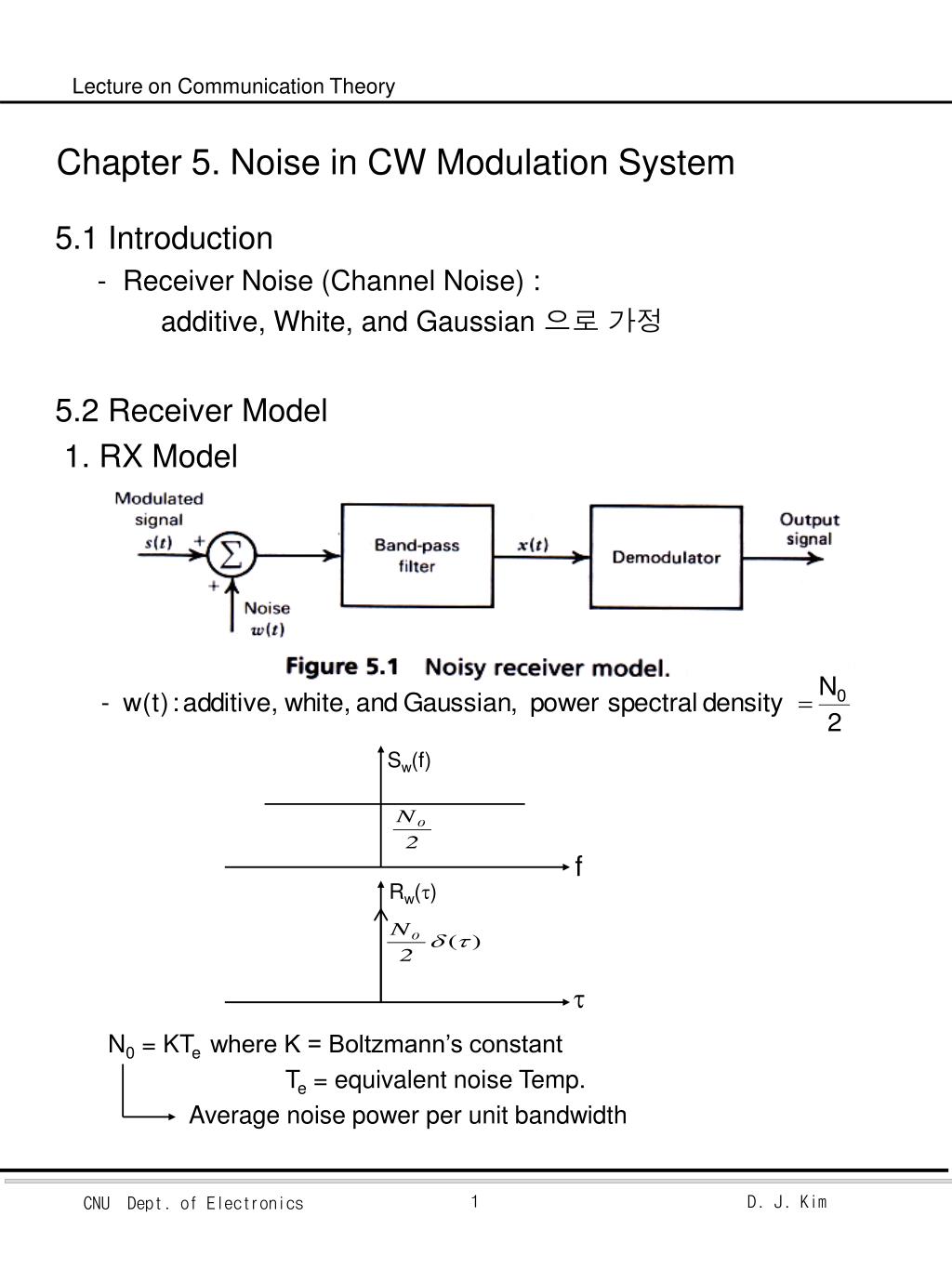

  1. Sw(f) f Rw()  Chapter 5. Noise in CW Modulation System • 5.1 Introduction • - Receiver Noise (Channel Noise) : • additive, White, and Gaussian 으로 가정 • 5.2 Receiver Model • 1. RX Model • N0 = KTe where K = Boltzmann’s constant • Te = equivalent noise Temp. • Average noise power per unit bandwidth

  2. SNI, SNQ N0 BPF 2B • - Band Pass Filter (Ideal case) • w(t) n(t) • - filtered noise as narrow-band noise • n(t) = nI(t)cos(2fCt) - nQ(t)sin(2fCt) • where nI(t) is inphase, nQ(t) is quadrature component • -  filtered signal x(t) • x(t) = s(t) + n(t) • - Average Noise Power = N0BT 2B

  3. SY(f) SM(f) SS(f) 1 f f f SS(f) f f 1 f f f f < DSB와 SSB의 Signal과 Noise Power Spectral Density 정리 > - DSB - SSB

  4. 2. 변복조간의 비교 • 1) 서로 다른 변복조 system을 비교하기 위한 조건 • - s(t) by each system has the same average power • - noise w(t) has the same average power measured in the message • BW =W • 2) Channel SNR • 3) • 5.3 Noise in DSB-SC Receivers • 1. Model of DSB-SC Receivers

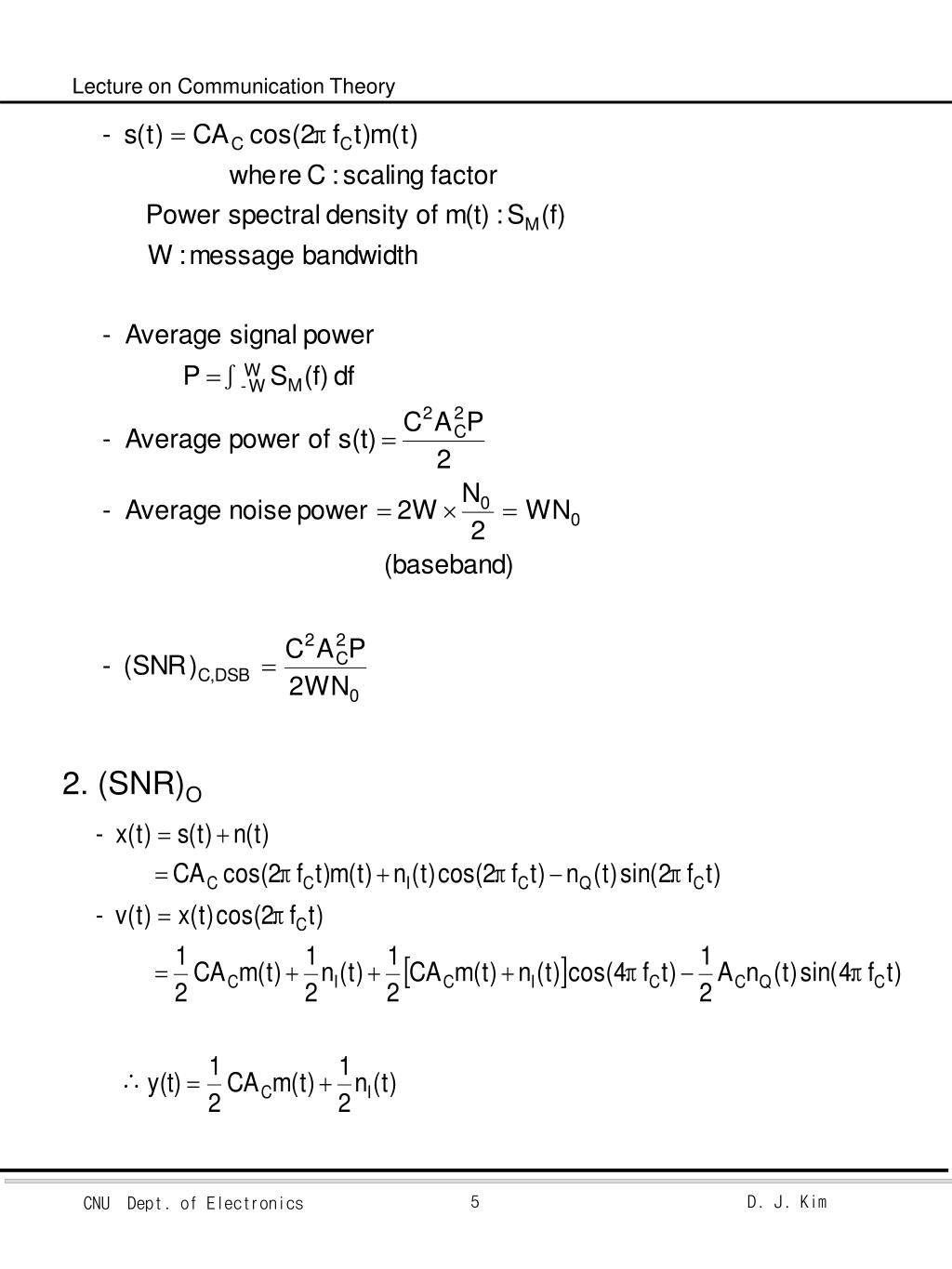

  5. 2. (SNR)O

  6. 5.4 Noise in SSB Receivers • - SSB Modulated wave

  7. 5.4 Noise in AM Receiver

  8. - By envelope detector • ex1) Single-Tone Modulation

  9. Threshold Effect • Carrier-to-noise < 1 • narrow-band noise n(t) • Threshold Effect : loss of message in an envelope detector that • operates at a low CNR.

  10. 5.6 Noise in FM Receivers • w(t) : zero mean white Gaussian noise with psd = No/2 • s(t) : carrier =fc, BW = BT즉 (fC BT/2) • - BPF : [fC -BT/2 ~ fC +BT/2] • - Amplitude limiter : remove amplitude variations • by clipping and BPF • - Discriminator • slope network or differentiator : varies linearly with frequency • envelope detector • - Baseband LPF : message BW에 맞추어서. • - FM signal • - Filtered noise n(t)

  11. - Discriminator output at discriminator output at Rx output

  12. - Figure of merit of FM • where P = message power • W = message bandwidth • kf = frequency sensitivity • <결론> BT Noise Performance • ex) Single-tone modulation trade off

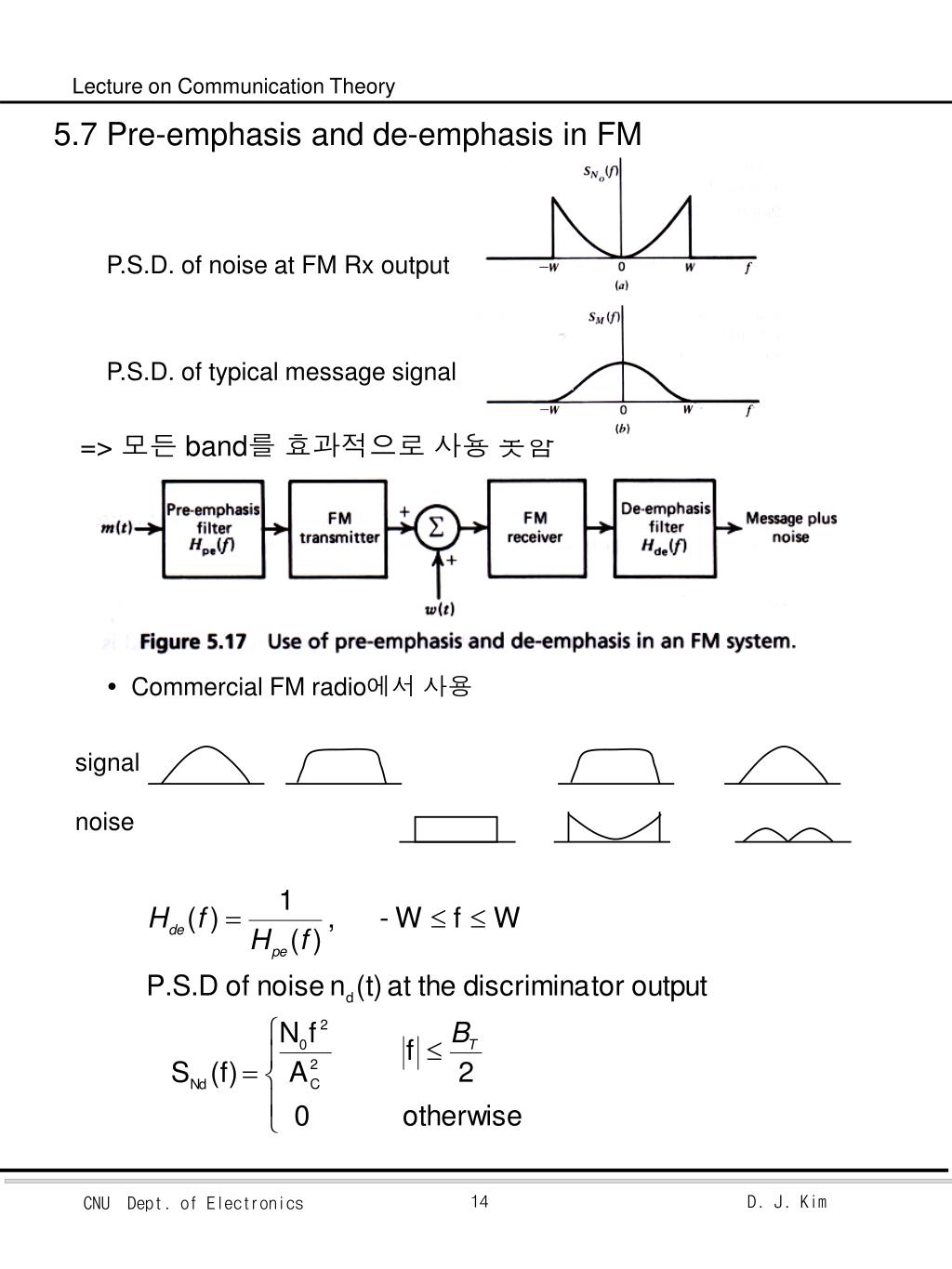

  13. 5.7 Pre-emphasis and de-emphasis in FM • P.S.D. of noise at FM Rx output • P.S.D. of typical message signal • => 모든 band를 효과적으로 사용 못함 • Commercial FM radio에서 사용 signal noise

  14. Applications) FM radio, audio-tape-recording • Dolby-A, Dolby-B, DBX : filtering+dynamic range compression

  15. 5.8 Summary and Discussion <H.W.> chap 5. 5.7 chap 6. 6.2, 6.7, 6.15, 6.17
