  1. Power systems engineering Mike He, NicBeutler, Sascha von Meier, Seth Sanders

  2. Questions • What are the technical advances that will be needed to enable this new world • Scale up or scale down - microgrids or utility-driven?

  3. Priorities of the Future Grid • Cheaper energy • More reliable energy (power quality) • Greener energy The smart grid challenge is how to reconcile these oft-competing priorities

  4. The Precarious State of the Grid • It is hard to know how close we are to wide-area failure • Recent outages were unforeseen • “Works in practice but not theory” • Security • Wide-area stability with renewables is unknown

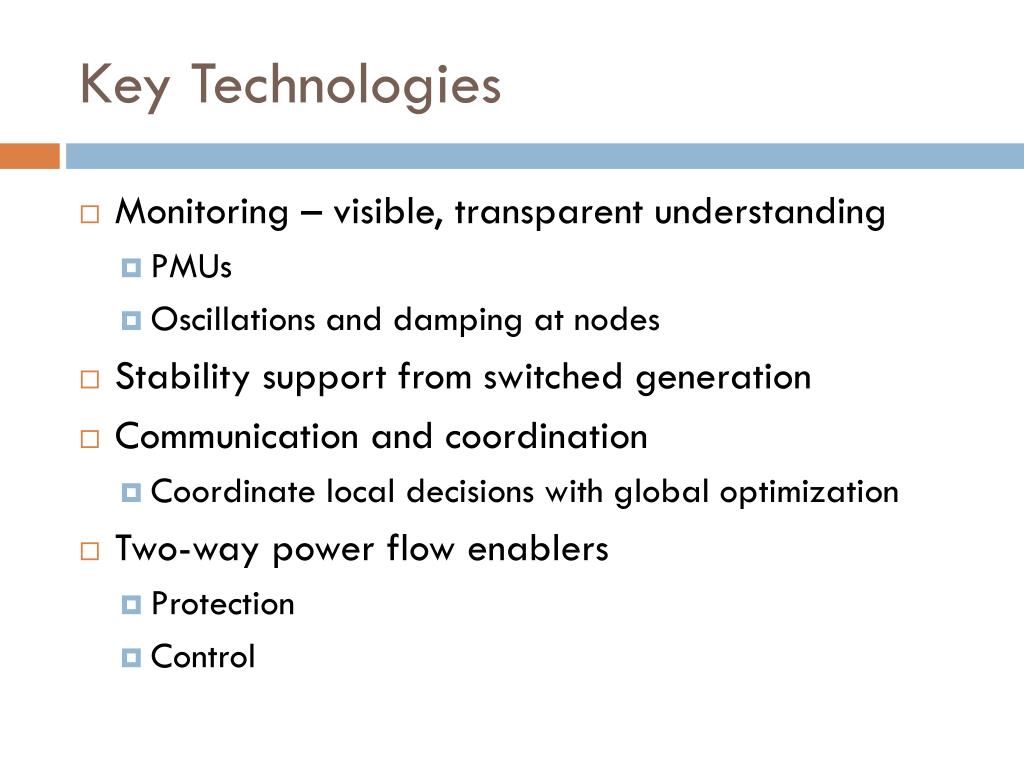

  5. Key Technologies • Monitoring – visible, transparent understanding • PMUs • Oscillations and damping at nodes • Stability support from switched generation • Communication and coordination • Coordinate local decisions with global optimization • Two-way power flow enablers • Protection • Control

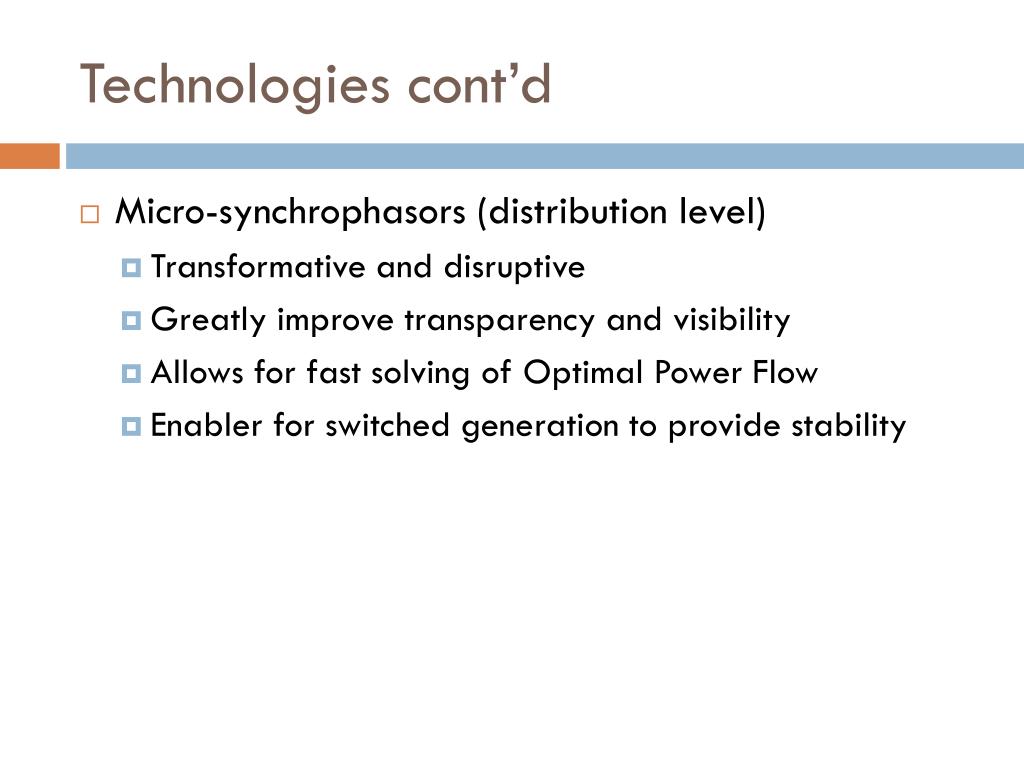

  6. Technologies cont’d • Micro-synchrophasors (distribution level) • Transformative and disruptive • Greatly improve transparency and visibility • Allows for fast solving of Optimal Power Flow • Enabler for switched generation to provide stability

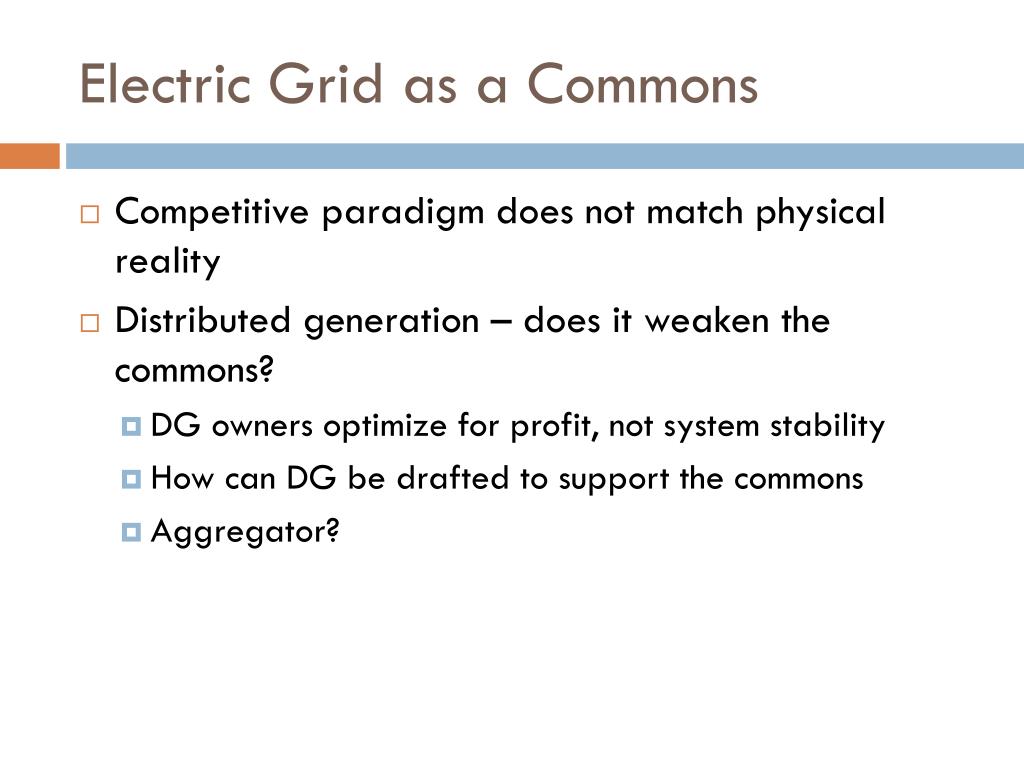

  7. Electric Grid as a Commons • Competitive paradigm does not match physical reality • Distributed generation – does it weaken the commons? • DG owners optimize for profit, not system stability • How can DG be drafted to support the commons • Aggregator?

  8. The Development of DG • 2.5% of CA generation • IEA estimates 25% of new capacity will be DG through 2030 • 13 GW of new DG in 2009 • 80% small (avg 100kW)

  9. Global dichotomy • Developed regions will remain mostly centralized • DG will begin to play significant role • CA: 12 GW of DG by 2020 • Developing regions may develop significant DG • Leapfrogging developed regions

  10. Questions?

  11. Modern Electricity Grid • Centrally Controlled • Large-scale Central Generation • One-way Power Flow • Homogeneous Power Quality, Reliability
