  1. Flash Memory Built-In Self-Diagnosis with Test Mode Control Jen-Chieh Yeh, Yan-Ting Lai,Yuan-Yuan Shih, and Cheng-Wen Wu Laboratory for Reliable Computing (LaRC) Department of Electrical EngineeringNational Tsing Hua University Hsinchu, Taiwan 30013

  2. Outline • Introduction • Flash Memory Diagnosis Methodology • BISD with Enhanced Test Mode Control • Experimental Results • Conclusions

  3. Introduction • Flash memory is enjoying a rapid market growth • System integration and new applications drive the demand for flash technologies [ITRS 2003] • Embedded flash memory is gaining popularity in SOC applications • BIST and BISD are considered a good solution for flash memory testing and diagnosis

  4. Flash Memory Fault Models • Flash memories are commonly tested for disturbance problems • Flash disturb fault models are defined in our DELTA02 and VTS02 papers • WPD, WED, BPD, BED, and OP faults are considered here for the BiNOR-type flash memory • SAF, TF, SOF, CFst and AF are also considered

  5. BiNOR-Type Flash Memory • Bi-directional tunneling program/erase NOR-type flash memory • Low power consumption and excellent reliability Source: IEEE Trans. Electron Devices, 2001

  6. Flash Memory Diagnosis Methodology SAF, TF, SOF, CFst, AF, Fault Models WPD, WED, BPD, BED, OP Fault Fault Dictionary (SA1) Simulator Error Catch Diagnosis March-FT and Analysis* Algorithm Parser (WPD) (to get Tester Log BISD signatures) (BPD) Fault Map Source: ICCAD00 Error Bit Map

  7. Part of the March-FT Fault Dictionary • March-FT:{ (f); (r1,p0,r0); (r0); (f); (r1,p0,r0); (r0); }< 0 0 0 1 1 0 0 0 1 1 >

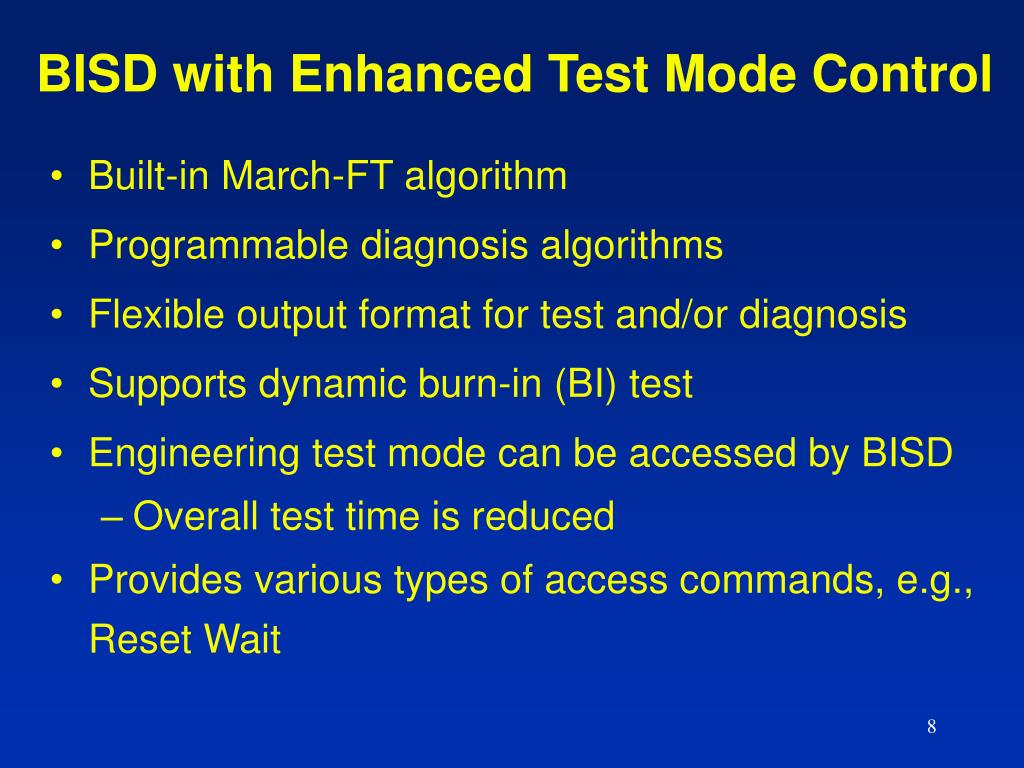

  8. BISD with Enhanced Test Mode Control • Built-in March-FT algorithm • Programmable diagnosis algorithms • Flexible output format for test and/or diagnosis • Supports dynamic burn-in (BI) test • Engineering test mode can be accessed by BISD • Overall test time is reduced • Provides various types of access commands, e.g., Reset Wait

  9. High Voltage (HI-V) Tests • HI-V tests usually employed to reduce the test time in the engineering test mode • TExecution(HI-V Erase) < TExecution(Erase) {A9, RSTB, OEB} HI-V Detector Normal flags Signal Memory {A[17:10], A[8:0]} Controller Test Collar DQ {WEB, CEB} Memory BISD Array

  10. BISD Architecture 2 RBB BSI MUX CMD Reg. FSMofTPG WPB FOPC Look-Up Table 5 CLK CMDDecision FSMofCTR 8 I/O1 5 BRS ADDR Generator BMS MarchOp.Counter I/O Selector BNS 8 BIM I/O2 DB Generator& Comparator BAC BFI CEB WEB E-info. SelectorE-info. Register E-info.Collector Control Signal Generator 7 5 43 BSO REB CLE ALE BISD Controller(CTR) Test Pattern Generator(TPG)

  11. Parallel Test Methods Original Program/Erase Unit Page buffer & SA Page buffer &SA Y-Decoder Block 0 Block 1024 Block 1 Block 1025 Block 2 Block 1026 Plane 0 Plane 1 FlashMemoryController Block 1023 Block 2047 Page buffer & SA Page buffer &SA Charge pump and other analog circuitry X-Decoder Proposed Program/Erase Unit

  12. Experimental Results • BISD circuit implemented on FPGA • BISD test results compared with those of ATE

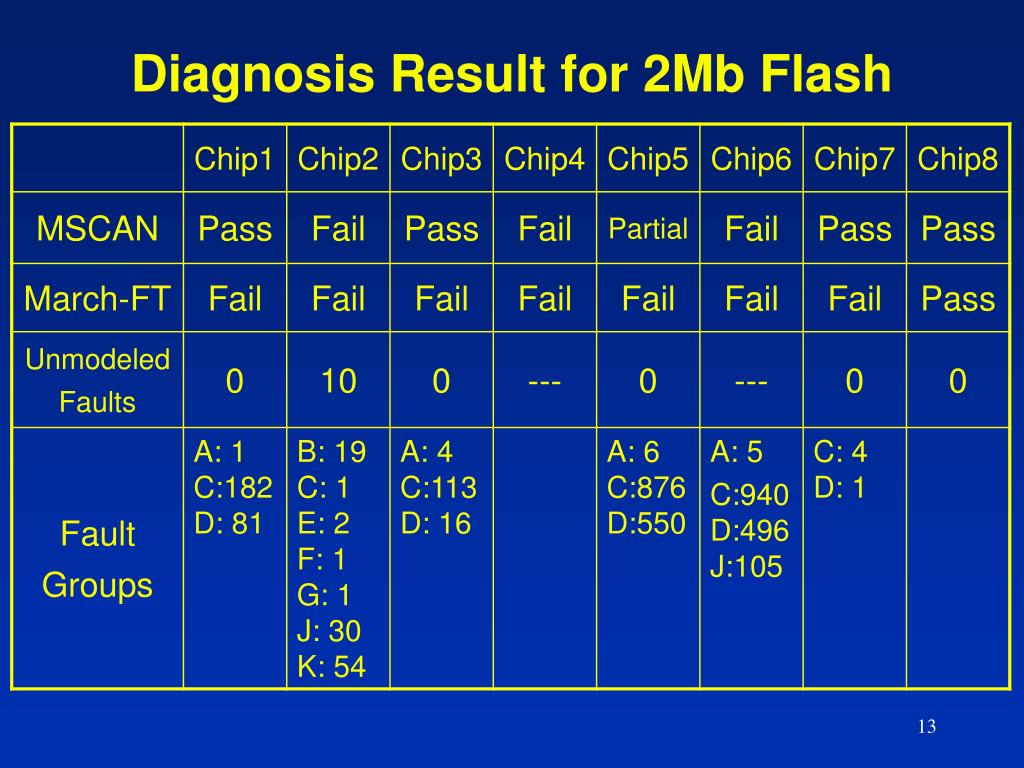

  13. Diagnosis Result for 2Mb Flash

  14. The Error Bitmap for Chip 5

  15. The Fault Bitmap for Chip 5

  16. Results for 256Mb Flash Memory • Three chips are tested in this case • ATE test result: one passed and two failed • FPGA (BISD prototype) test results: two passed and one failed • The difference between ATE and FPGA is clock rate • Real BISD can perform at-speed test • Diagnosis result for the failed chip: one block cannot be erased (SA0) • Same for ATE & FPGA

  17. Conclusions • We have proposed a flash memory diagnosis methodology and BISD design • Supports test, diagnosis, and BI modes • With enhanced test mode control • Area overhead is low • An FPGA-based low-cost flash memory diagnosis system is implemented • Real BISD required for at-speed test
