  1. IP-PBX High-speed SMT ADSL MP3 Contract Manufacturing Datacom VoiceCom Multimedia Aztech Systems Ltd VoIP HW Technical Training Prepared by : Terence Kwong – HK R&D 4 May, 2006 Aztech: Aggressive, Advancement & Achievement

  2. Agenda Day 1 : Voice Communication Products Training Aztech: Aggressive, Advancement & Achievement 27 Jan 2006

  3. Agenda Day 1 : Voice Communication Products Training Aztech: Aggressive, Advancement & Achievement 27 Jan 2006

  4. Agenda Day 1 : Voice Communication Products Training Aztech: Aggressive, Advancement & Achievement 27 Jan 2006

  5. Aztech VoIP Product Overview VoIP Complete Solution • IP-PBX System • Voice Mail Server • IP100 Phone • IP200 Phone • IP Soft Phone • WF365 WiFi Phone Aztech: Aggressive, Advancement & Achievement 27 Jan 2006

  6. Voice Communication Product Training 27 Jan 2006 Aztech: Aggressive, Advancement & Achievement

  7. IPX1050 : IP-PBX • IPX1050 is a IP-PBX with 2-ports 10/100 Base-Tx auto-negotiation ethernet (WAN + LAN) • Uses a CX86202 as the network processor • Memory : 8MB flash and 32MB SDRAM • 1 x Green LED for each ethernet port : Solid green indicates Link Up, blinking indicates activity on ethernet port • 1 x Green LED to indicate power status • 1 x Green LED to indicate operation ready status : Blinking indicates initializing in progress, solid indicates ready for operation Aztech: Aggressive, Advancement & Achievement

  8. IPX1050 : IP-PBX Views Aztech: Aggressive, Advancement & Achievement

  9. IPX1050 : IP-PBX Block Diagram FXO Expansion Slot Magnetics CX86202 RJ45 LAN Magnetics RJ45 WAN 25MHz OSC FXO Expansion Slot Power Supply Module 8MB Flash 32MB SDRAM Mains Supply 3.3V Regulator 5V 3.3V Aztech: Aggressive, Advancement & Achievement

  10. IPX1050 : IP-PBX Features • Half / Full duplex support • Fully IEEE 802.3 compliant. • Fully IEEE 802.3u compliant auto-negotiation. • Fully IEEE 802.3x compliant Full Duplex Flow Control. • 2 expansion slots for supporting up to 8 FXO ports • Plugs directly to the main power supply (110V to 240V AC input) • Supports 19” rack mount with optional mounting bracket • Allows end user upgrade from 0 to 4 or 8 FXO ports Aztech: Aggressive, Advancement & Achievement

  11. IPX1050 : IP-PBX Troubleshooting • Ethernet Ports • No data connection • Check link LED up on both ends • Check proper connection on both ends • Check for correct MDI/MDIX port setting • Check for correct cable used • Change cable • FXO Ports • Unable to detect FXO module • Check FXO module is correctly slide into the slot • Ensure that the module is fully inserted Aztech: Aggressive, Advancement & Achievement

  12. IPM1004 : IP-PBX FXO Module • IPM1004 is a 4-port FXO module for IPX1050 • Uses 2 pieces of CX90411 Conexant DSP, and 4 pieces of Conexant CX20493 codecs to implement the Subscriber Line Access Circuit (SLAC) for FXO interface • 4 x RJ11 jacks for easy direct connection without requiring of patch panel • 1 x Green LED per RJ11 port to indicate in-use status : On indicates off-hook, off indicates on-hook Aztech: Aggressive, Advancement & Achievement

  13. IPM1004 : 4-port FXO Module Block Diagram CX90411 FXO Expansion Slot CX20493 RJ11 FXO DAA CX90411 CX20493 RJ11 FXO DAA CX90411 CX20493 RJ11 FXO DAA CX90411 CX20493 RJ11 FXO DAA Aztech: Aggressive, Advancement & Achievement

  14. IPM1004 : 4-port FXO Module Features • Supports ring detection • Supports Type I FSK caller ID reception • Supports DTMF caller ID reception • Supports DTMF generation for tone dialing • Supports Pulse dialing • Programmable Flash timing support • Support for DID Aztech: Aggressive, Advancement & Achievement

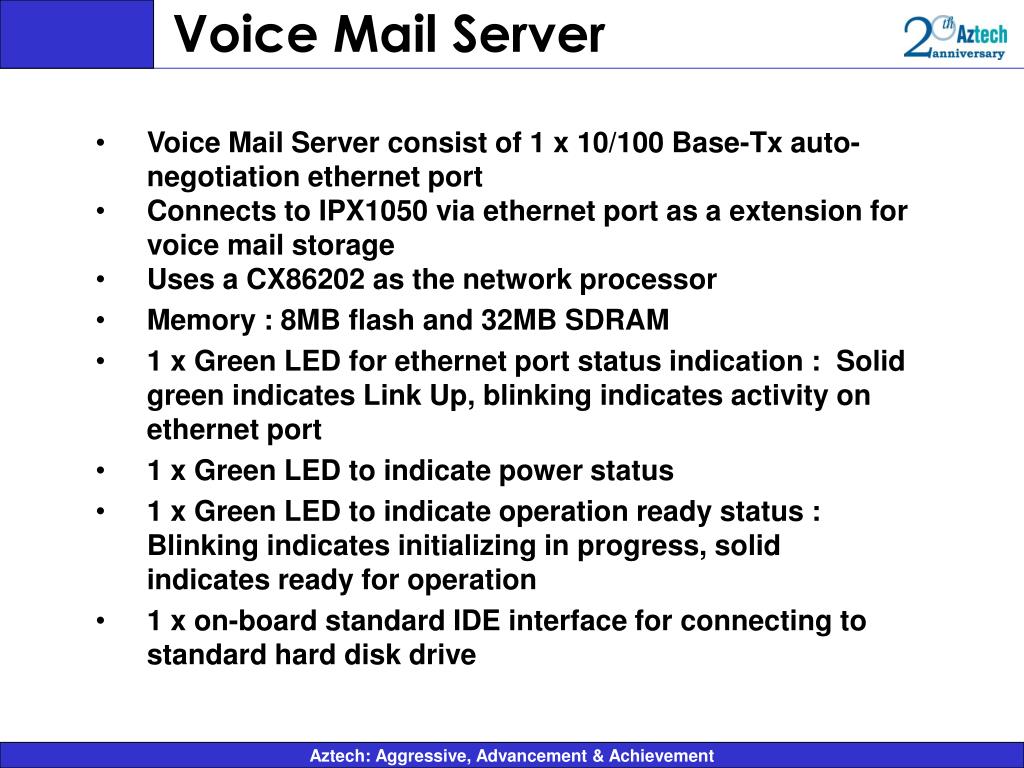

  15. Voice Mail Server • Voice Mail Server consist of 1 x 10/100 Base-Tx auto-negotiation ethernet port • Connects to IPX1050 via ethernet port as a extension for voice mail storage • Uses a CX86202 as the network processor • Memory : 8MB flash and 32MB SDRAM • 1 x Green LED for ethernet port status indication : Solid green indicates Link Up, blinking indicates activity on ethernet port • 1 x Green LED to indicate power status • 1 x Green LED to indicate operation ready status : Blinking indicates initializing in progress, solid indicates ready for operation • 1 x on-board standard IDE interface for connecting to standard hard disk drive Aztech: Aggressive, Advancement & Achievement

  16. Voice Mail Server Views Aztech: Aggressive, Advancement & Achievement

  17. Voice Mail Server Block Diagram Hardisk CX86202 IDE I/F Magnetics RJ45 Latches/ Buffers 25MHz OSC Power Supply Module 12V 8MB Flash 32MB SDRAM Mains Supply 3.3V Regulator 5V 3.3V Aztech: Aggressive, Advancement & Achievement

  18. Voice Mail Server Features • Half / Full duplex support • Fully IEEE 802.3 compliant. • Fully IEEE 802.3u compliant auto-negotiation. • Fully IEEE 802.3x compliant Full Duplex Flow Control. • 1 x 1GB hardisk for voice mail storage • Uses similar casing as IPX1050 • Plugs directly to the main power supply (110V to 240V AC input) • Supports 19” rack mount with optional mounting bracket • Supports up to 100 hours of voice recording Aztech: Aggressive, Advancement & Achievement

  19. Voice Mail Server Troubleshooting • Ethernet Ports • No data connection • Check link LED up on both ends • Check proper connection on both ends • Check for correct MDI/MDIX port setting • Check for correct cable used • Change cable Aztech: Aggressive, Advancement & Achievement

  20. Aztech IP100 Phone • Uses a CX82100 Network Processor • Uses a CX90411 Voice DSP and CX20442 Audio Codec • Supports SIP Protocol • Supports RTP/RTCP • DHCP, Static IP support • Supports IEEE802.3af PoE support (IP100(R) version) • Support G.711/G.726/G.729a codec • 2 line x 16 character alpha-numeric LCD • Caller ID display with names • 50 phone book memory • Last number redial • 3 way conference call • Wall mountable • Full duplex speakerphone • 2 Ethernet RJ45 ports Aztech: Aggressive, Advancement & Achievement 27 Jan 2006

  21. Aztech IP100 Phone Block Diagram 27 Jan 2006 Aztech: Aggressive, Advancement & Achievement

  22. Aztech IP200 Phone • Uses a CX82100 Network Processor • Uses a CX90411 Voice DSP and CX20442 Audio Codec • Supports SIP Protocol • Supports RTP/RTCP • Supports DHCP, Static IP support • IEEE802.3af PoE support • Built-in NAT support (IP200 (R) version) • Support G.711/G.726/G.729a codec • 102 x 64 full graphic 6 line LCD • Caller ID display with names • Supports instant messaging • 100 phone book memory • Last number redial • 3 way conference call • Wall mountable • Full duplex speakerphone • Build-in headphone jack • 2 Ethernet RJ45 ports Aztech: Aggressive, Advancement & Achievement 27 Jan 2006

  23. Aztech IP200 Phone Block Diagram 27 Jan 2006 Aztech: Aggressive, Advancement & Achievement

  24. WF365 WiFi Phone • Uses a CX90620 Network Processor • Supports SIP Protocol • Supports RTP/RTCP • Supports DHCP, Static IP support • Supports IEEE802.11b/g Dual Modes • Supports G.711/G.726/G.729a codec • 1.77” 65K CSTN LCD Display • Caller ID display with names • Graphical User Interface • 100 phone book memory • Last number redial • 3 way conference call • Full duplex speakerphone • Build-in headphone jack • Vibration mode • Illuminated keypad • USB 2.0 port (For FW upgrade and Batt Charging) Aztech: Aggressive, Advancement & Achievement 27 Jan 2006

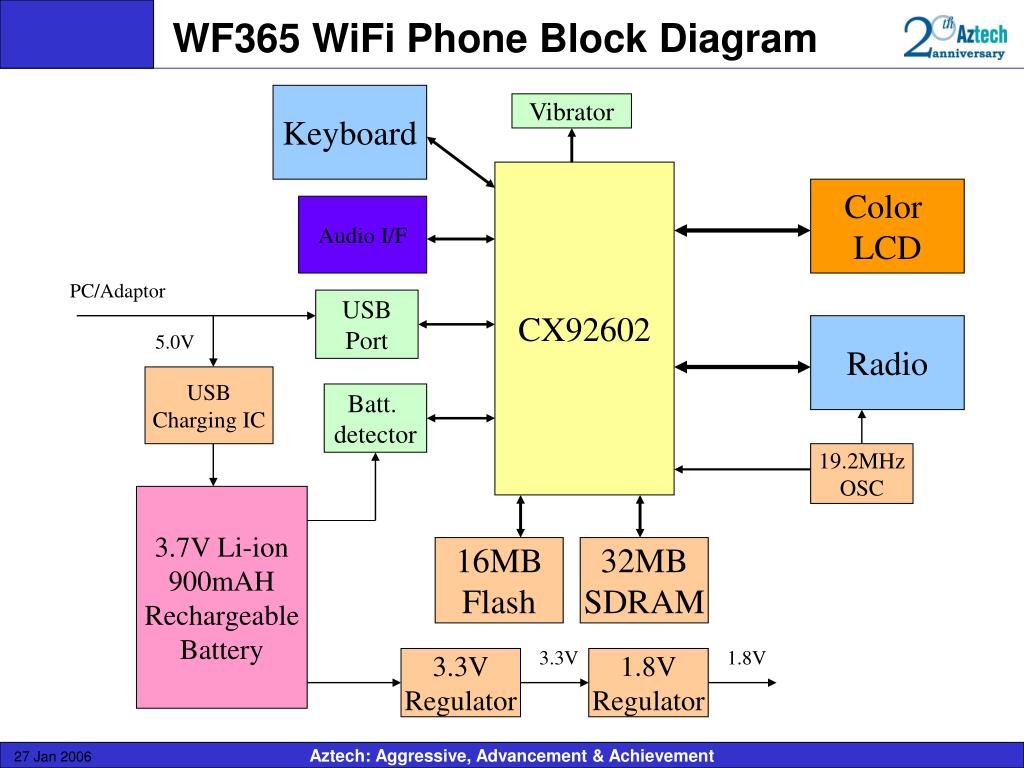

  25. WF365 WiFi Phone Block Diagram Keyboard Vibrator CX92602 Color LCD Audio I/F PC/Adaptor USB Port Radio 5.0V USB Charging IC Batt. detector 19.2MHz OSC 3.7V Li-ion 900mAH Rechargeable Battery 16MB Flash 32MB SDRAM 3.3V 1.8V 3.3V Regulator 1.8V Regulator 27 Jan 2006 Aztech: Aggressive, Advancement & Achievement

  26. Voice Communication Product Training Question and Answer Section Aztech: Aggressive, Advancement & Achievement 27 Jan 2006

  27. Voice Communication Product Training The End Thank You. Aztech: Aggressive, Advancement & Achievement 27 Jan 2006
