  1. Aztech Systems Ltd Your Choice Business Partner IP-PBX High-speed SMT PCTV ADSL MP3 Contract Manufacturing Consumer Datacom VoiceCom Multimedia Aztech: Aggressive, Advancement & Achievement 18 September 2006

  2. Agenda • What is a TV Tuner Card? • Media Center PCs • PCTV2000H – Specifications, Board Layout • Market Players • Target Customers • Pricing • Sample Availability

  3. What is a TV Tuner Card? • A TV tuner card is a computer component that allows television signals to be received by a computer. Most TV tuners also function as video capture cards, allowing them to record television programs onto a hard drive.

  4. PCTV2000-H PCI Multimedia Decoder Card in a Media Center PC • Media Center PCs are complete entertainment PCs • A TV tuner that captures your television signal from a cable, satellite, or antenna source. • A hardware encoder that enables you to record TV shows from cable, satellite, or antenna to your computer's hard disk. Aztech: Aggressive, Advancement & Achievement

  5. PCTV2000-H PCI Multimedia Decoder Card in a Media Center PC • Enables the Media Center PC to be able to receive, record and watch broadcast TV, Digital TV, HDTV and listen to FM Radio Music via PC Platform • Personal Video Recording to record favourite TV Shows • Watch high quality De-interlacing TV with DBX-stereo in Full or Window screen • Record and store your personal videos for display to friends and family Aztech: Aggressive, Advancement & Achievement

  6. PCTV2000-H Introducing… PCI DVB-T/ANALOG HYBRID TV TUNER CARD Aztech: Aggressive, Advancement & Achievement

  7. PCTV2000-H Specifications • Hybrid – DVB-T/Analog TV/FM Radio • Low Profile PCI – 119mm (L) x 63mm (W) • PCI specification 2.2 compliant • PCI-bus Power Management Interface Specification, rev. 1.1, compliant (supported states: D0, D1, D2 and D3-hot) • Fully DVB-T compliant • Analog TV broadcast standard support • (PAL B/G, PAL D/K, PAL I, PAL L/L’/SECAM) • TV Audio standard support (FM, Nicam) Aztech: Aggressive, Advancement & Achievement

  8. PCTV2000-H Specifications • FM Radio Stereo Decoding • Video decoder standard (PAL, SECAM, NTSC) • VBI raw data capture for Teletext and Closed caption decode support • Three-level Macrovision copy protection detection according to Macrovision detect specification Rev.1 • Simultaneous raw video and raw audio, and using software MPEG (3rd party application software) for encoding • Watch TV and listen to FM radio on your PC • Supports Microsoft Windows XP Media Center Edition • Microsoft WHQL HCT compliant Aztech: Aggressive, Advancement & Achievement

  9. PCTV2000-H Board Layout Tuner DVB-T Receiver Decoder

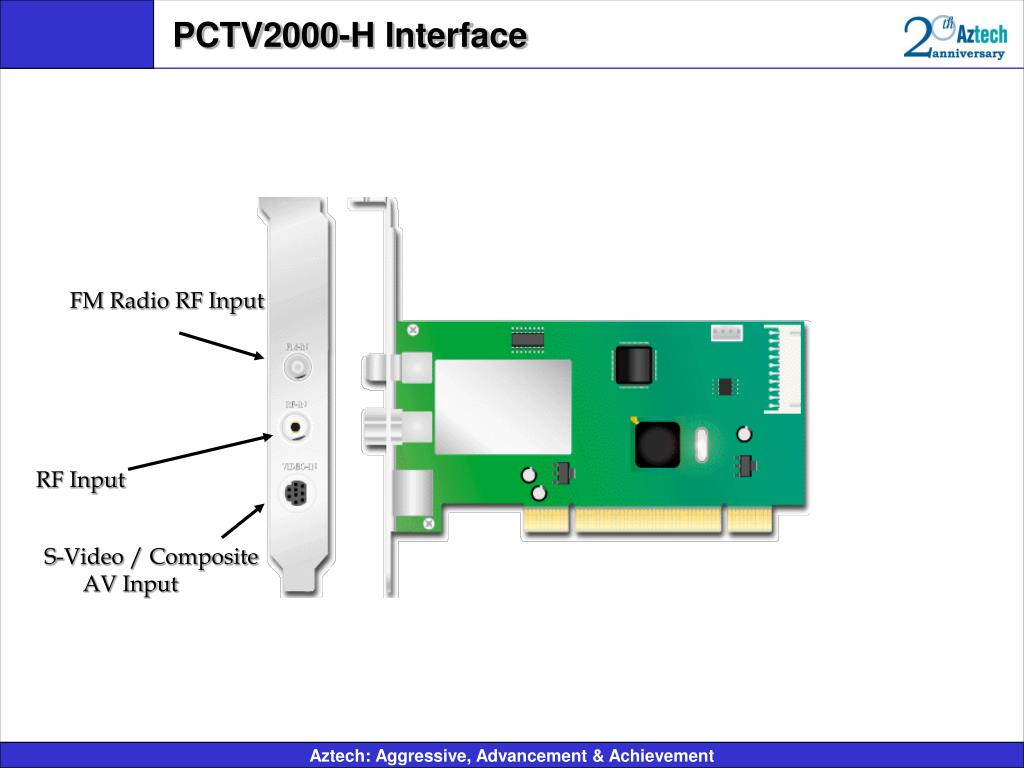

  10. PCTV2000-H Interface FM Radio RF Input RF Input S-Video / Composite AV Input Aztech: Aggressive, Advancement & Achievement

  11. PCTV2000-H Block Diagram TDA 10046A DVB-T Channel Receiver DVB-T / Analog TV / Radio Inputs TDA 8275A Multimedia Silicon Tuner FM Radio S-Video/ CVBS Inputs SAA 7131E PCI Video Decoder Audio Inputs Aztech: Aggressive, Advancement & Achievement

  12. Why Aztech PCTV HYBRID PCI TUNER CARD • Hybrid - DVB-T/Analog TV/FM Radio • Watch TV and listen to FM radio on your PC • Low Profile PCI • Smaller form factor • High quality technology powered by Philips • Philips SAA 7131E PCI Video Decoder Chipset • Philips TDA 10046A DVB-T Channel Receiver • Philips TDA 8275A Multimedia Silicon Tuner Aztech: Aggressive, Advancement & Achievement

  13. Market Players • NVIDIA • KWorld • AVerMedia • Hauppauge • Compro • DVico • ATI • TerraTec • TechnoTrend • Pinnacle Systems • Formac - TV Tuners for Macintosh

  14. Target Customers • Current Customer Base • Fujitsu Siemens • NEC • SEMP Toshiba • Positivo • “Media Center” Manufacturers • PC Manufacturers

  15. Sample Availability • Available Date: 29 Sept 06 • Quantity: 20pcs * Please qualify customers carefully before sending samples due to limited sample quantity.

  16. Pricing (as at 1 Sept 06) MOQ: 1K per order and delivery

  17. Aztech Systems Ltd Thank You Visit us at:http://www.aztech.com Aztech: Aggressive, Advancement & Achievement Last Updated 18 Sept 06
