  1. OWTU Operation Presented by : Ali Redha POT - 18

  2. CONTENT • INTRODUCTION • PURPOSE • MAIN EQUIPMENT • PFD • OPERATION • SAFETY DEVICES & EQUIPMENT • CONCLUSION

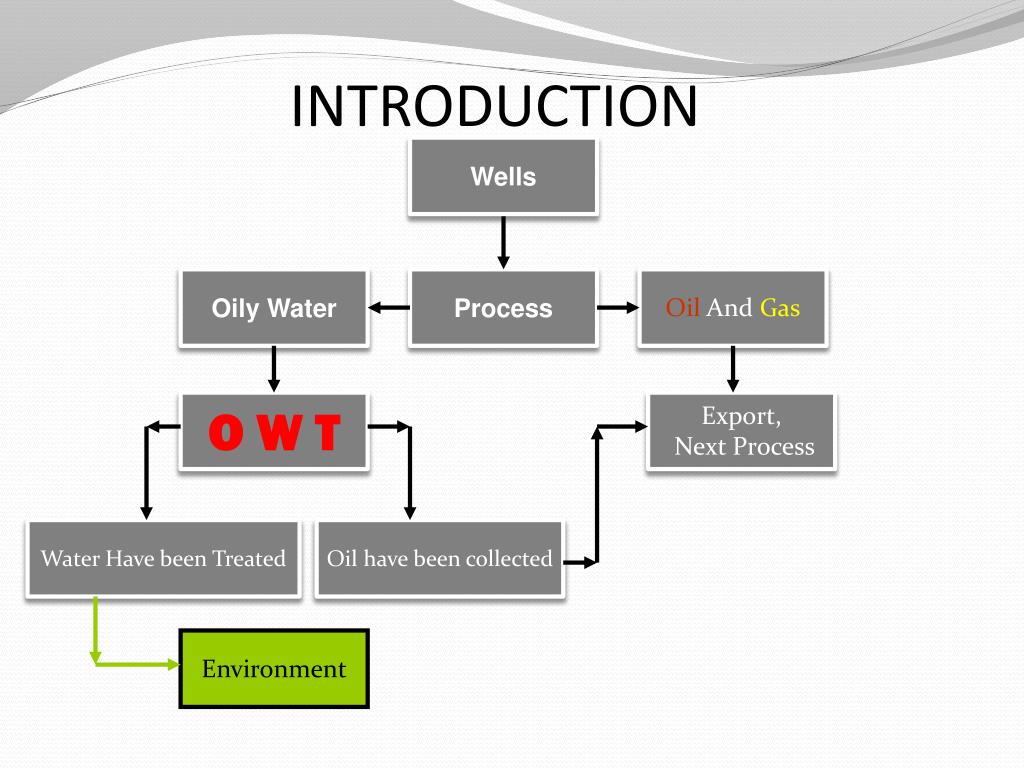

  3. INTRODUCTION Wells Oily Water Process Oil And Gas O W T Export, Next Process Water Have been Treated Oil have been collected Environment

  4. PURPOSE OWTU is designed to treat an effluent water before it is disposed into environment.

  5. MAIN EQUIPMENT • Degassing Drum (V-9000A/B) • API Separator (T-9100A/B) • Oil Tank (T-9130) • Oil Pump (P-9150/9160) • Water Tank (T-9140A/B) • Water sand jetting pump (P-9170/9180) • Flotation Unit (V-9200) • Skimmer Tank (T-920) • Skimmer Pump (P-920/921) • Disposal Tube

  6. V-9000A/B PFD T-9140 a T-9140 b T-9130 Reverse deemulsifier From sump tank of processing area Water from field separator V-110/250 V-9200 T-9300 Water from process separator V-450/460/470 P-9150/60 Reverse deemulsifier T-920 To suction P-480 P-920/921

  7. OPERATION Reverse deemulsifier V-9000A/B T-9140 a T-9140 b T-9130 v-9200 From sump tank of processing area Water from field separator V-110/250 T-9300 P-9150/60 Water from process separator V-450/460/470 Reverse deemulsifier T-920 To suction P-480 P-920/921

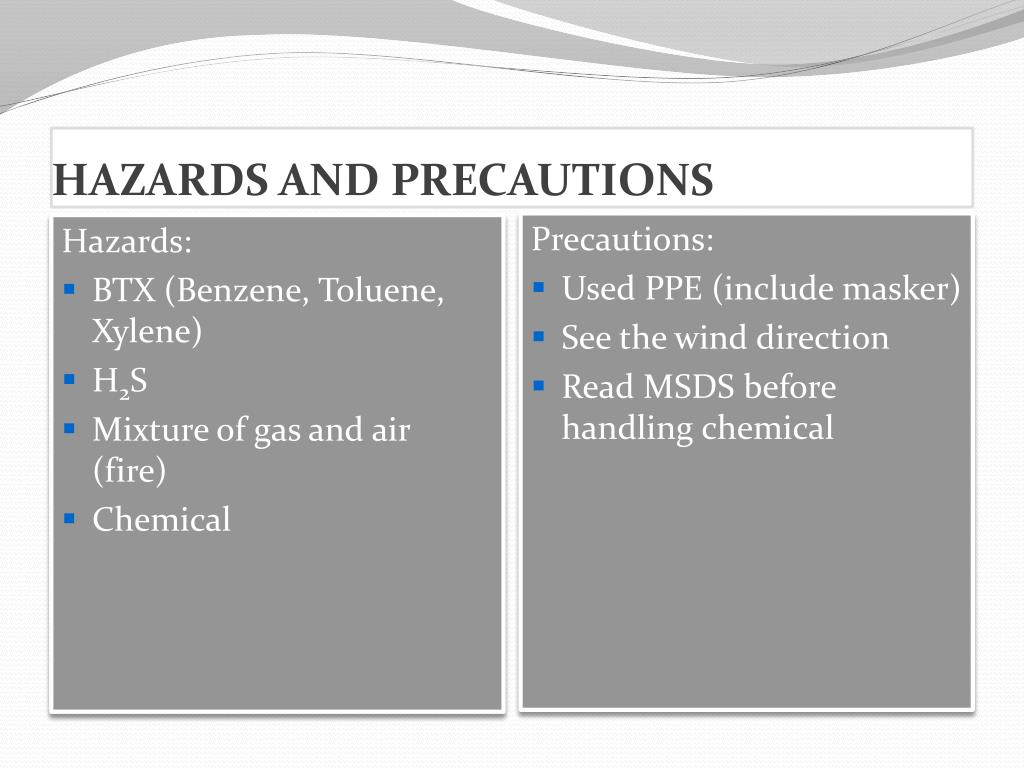

  8. Hazards: BTX (Benzene, Toluene, Xylene) H2S Mixture of gas and air (fire) Chemical Precautions: Used PPE (include masker) See the wind direction Read MSDS before handling chemical HAZARDS AND PRECAUTIONS

  9. SAFETY DEVICES & EQUIPMENT Safety devices: • LSHH • LSLL • Fire detector (UV/IR) • PALL Safety equipment: • Fire blanket • Ring buoy • Emergency eye washer and shower • Deluge valve + foam • Water cannon • Hydrant • Flame arrestor • Portable extinguisher • Fire box • Oil boom • Wind shock

  10. CONCLUSION OWT is a process that treats the effluent water before it is disposed to the environment (follow the regulation, respect the environment). The equipment which is used at CPA are API Unit and Flotation Unit.

  11. THANK YOU FOR YOUR ATTENTION
