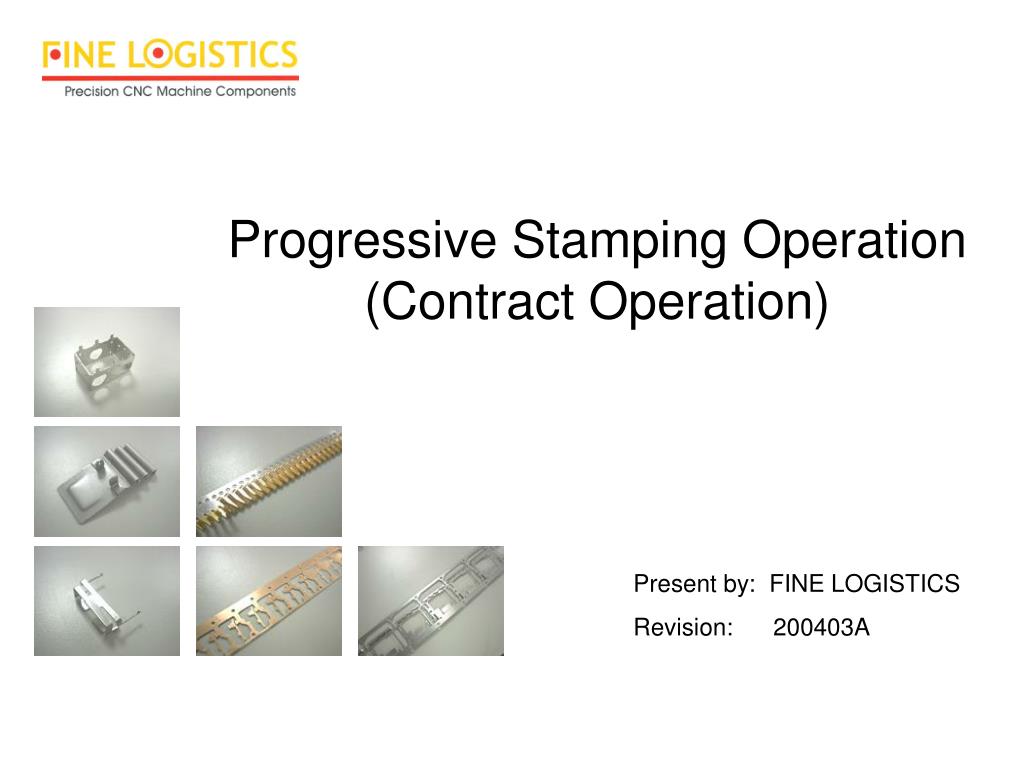

  1. Progressive Stamping Operation(Contract Operation) Present by: FINE LOGISTICS Revision: 200403A

  2. FACILITIES OVERVIEW Main Production Area Progressive Stamping Operation

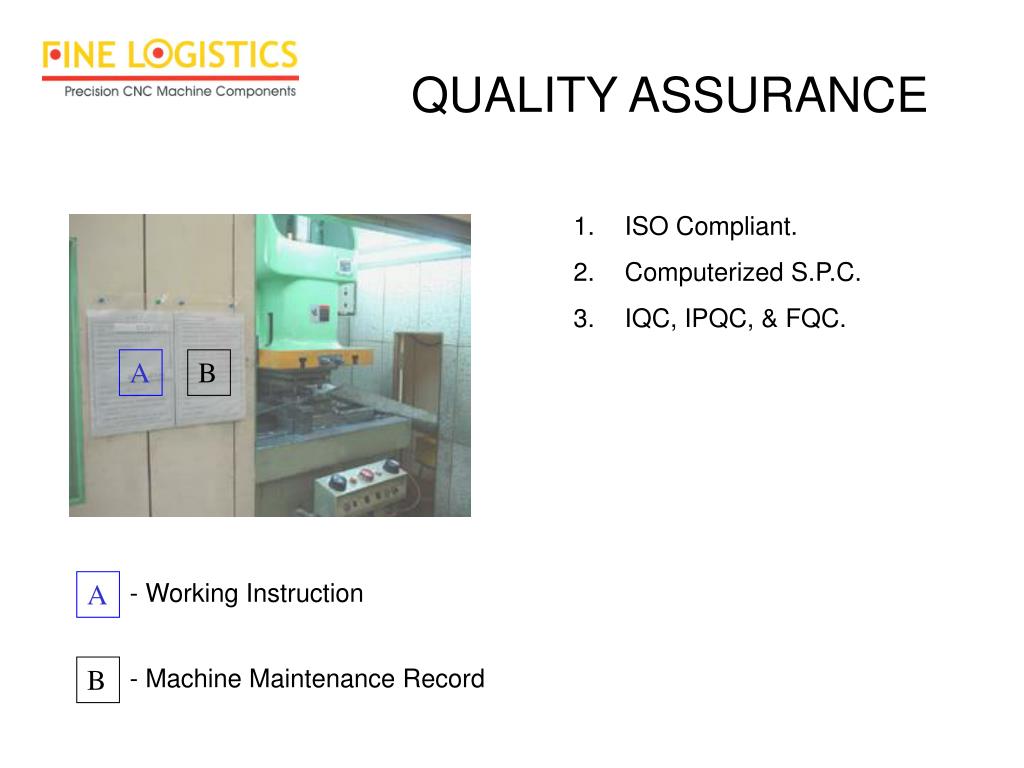

  3. QUALITY ASSURANCE • ISO Compliant. • Computerized S.P.C. • IQC, IPQC, & FQC. A B A - Working Instruction B - Machine Maintenance Record

  4. CAPABILITIES • Short To Long Run. • Fine Blanking (Burr-Free). • Able to working with over 35 stages. • Complex Forming & Bending. • Over 1,000 strokes / min. • Tool-up Lead-time: 4~5 weeks. • Capacity: 4 ~ 5 dies / month Figure 1-1 Progressive Stamping Die

  5. SAMPLE GALLERY Carrier Type Stampings Progressive Type Stampings • Material: • SUS303 & SUS304 • Carbon Steel • Brass & Copper & Beryllium Copper • Aluminum • Others Others

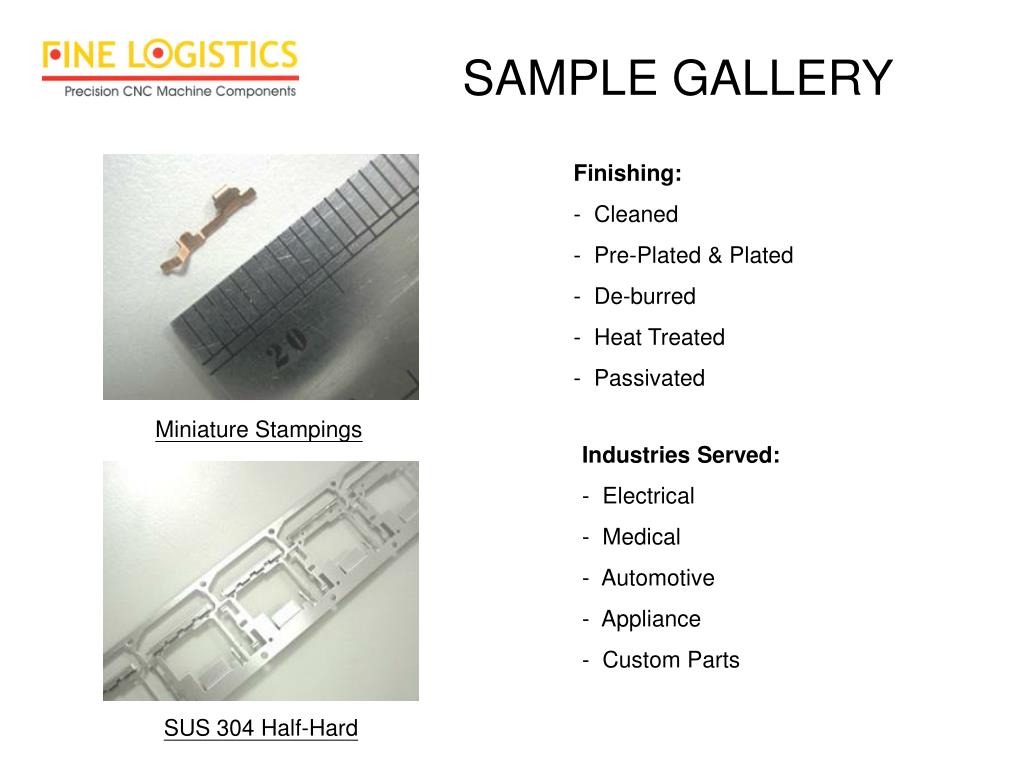

  6. SAMPLE GALLERY • Finishing: • - Cleaned • Pre-Plated & Plated • De-burred • Heat Treated • Passivated Miniature Stampings • Industries Served: • - Electrical • Medical • Automotive • Appliance • Custom Parts SUS 304 Half-Hard
