  1. Cytoskeleton

  2. Mobility of Cells Crawling ameoba.mov neutrophil chase.mov Beating heart cell.mov Adhesion between cells.mov

  3. The cytoskeleton is responsible for the organisation of the organelles inside a cell. It is the bulk of the cell and assists with cell motility, mitosis and meiosis, and maintaining the shape and stability of the cell. The cytoskeleton is made up of long fibres of polymers and subunits that form into one of the following: Microtubules Intermediate Filaments Microfilaments

  4. Microtubules • Microtubules are long, straight, hollow and rigid cylinders of about 25nm in diameter. • They are constructed of alternating identical subunits of alpha and beta protein tubulin, forming a protofilament.

  5. Its walls are made up of 13 protofilaments which correlate with one another laterally and the filament is able to increase or decrease in length by adding or removing proteins.

  6. Polymerization of tubulin in vitro

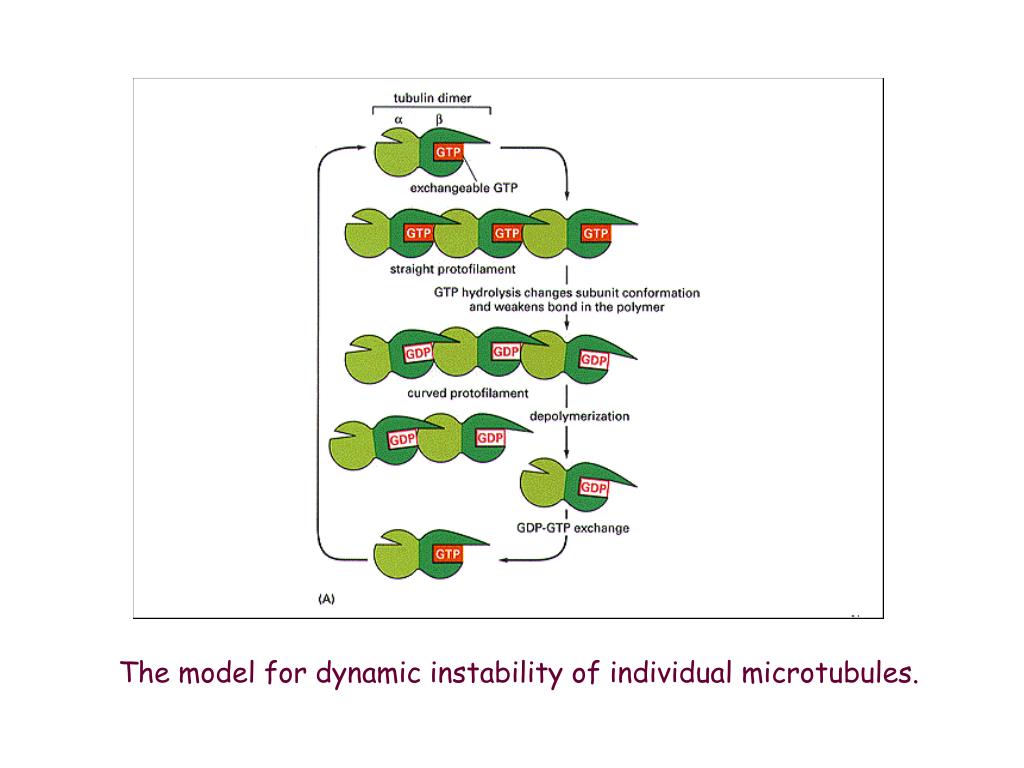

  7. The model for dynamic instability of individual microtubules.

  8. The model for dynamic instability of individual microtubules.

  9. Microtubules are highly labile structures that are sensitive to specific antimitotic drugs Chemical structures of colchicine(秋水仙碱) and taxol(紫杉醇)

  10. Microtubules are dynamic structure which is seen in bundles and found in the cytoplasm of all eukaryotic cells. microtubule dynamic in vivo.mov

  11. Microtubules growing from the centrosome. • Centrosome-Microtubules Organizing Center centrosome • Normal tissue-culture cell • (B) The cell were treated with colcemid for 1 hour to depolymerize their microtubules and were then allowed to recover; microtubules appear first in a starlike aster and then elongate toward the periphery of the cell

  12. Microtubule-associated proteins MAP-1 MAP-2 Tau MAP-4 MAPs bind to microtubules and modify their properties.

  13. Functions of Microtubules • Maintenance of the cell morphology • Cilia and flagella and centrioles are made from microtubule • Maintenance organelles position and organelles movement • Membrane vesicle and protein transport • Chromosome movement and regulation of mitosis • Cell signal transduction

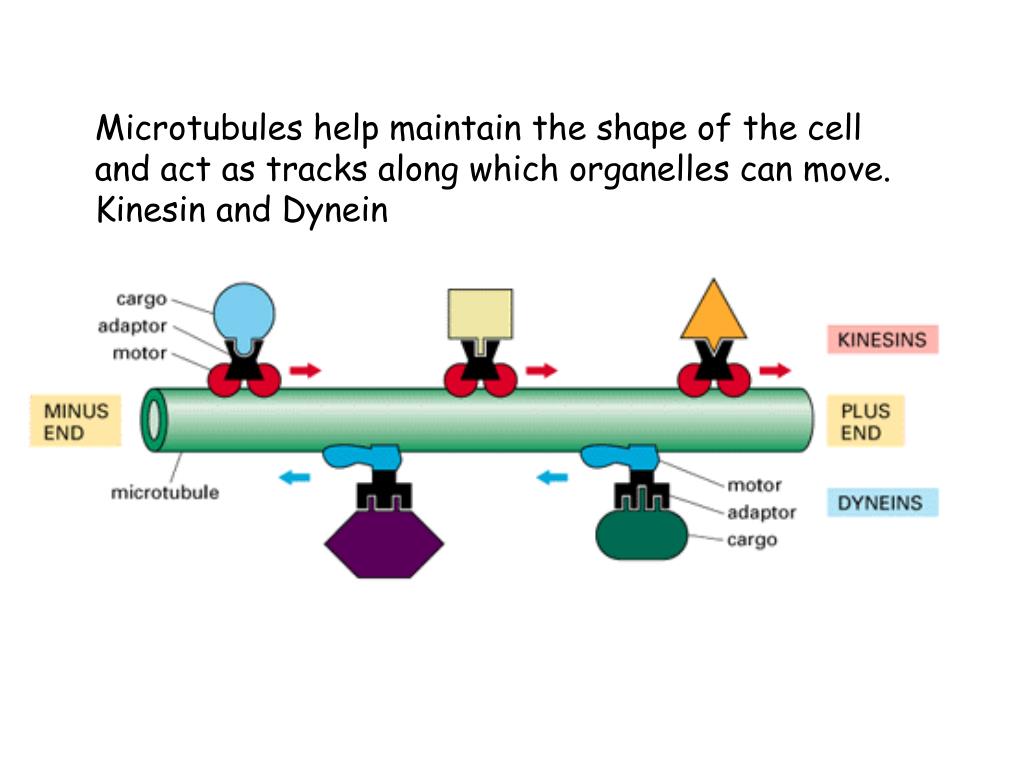

  14. Microtubules help maintain the shape of the cell and act as tracks along which organelles can move. Kinesin and Dynein

  15. Centrioles Centrioles are short cylinders with a 9 + 0 pattern of microtubule triplets. Centrioles may be involved in microtubule formation and disassembly during cell division and in the organization of cilia and flagella.

  16. The interphase array of microtubules in a cultured fibroblast

  17. Cilia and flagella Cilia (small and numerous) and flagella (large and single) have a 9 + 2 pattern of microtubules and are involved in cell movement. Cilia and flagella move when the microtubule doublets slide past one another. Each cilium and flagellum has a basal body at its base.

  18. Microfilaments • Microfilaments are left-handed helices formed by two-strands of F-actin (fibrinous-actin) polymers.These are composed of rough spherical G-actin (globular-actin) monomers. • They are the thinnest of the three cytoskeleton filaments and are about 8nm in diameter.

  19. The trapping of ADP in an actin filament. An actin molecule has a structure with two domains that are hinged around an ATP-binding site. The bound ATP is hydrolyzed to ADP immediately after the molecule becomes incorporated into an actin filament. In order for the ADP to be replaced by ATP, the hinge would have to open.

  20. Three-dimensional structure of an actin molecule. Each actin molecule is a single polypeptide 375 amino acids long that has a molecule of ATP tightly associated with it.

  21. (B) Actin molecule has the binding site for ATP (C) Actin molecule interact with each other to form helical polymer (D) Minus end and Plus end

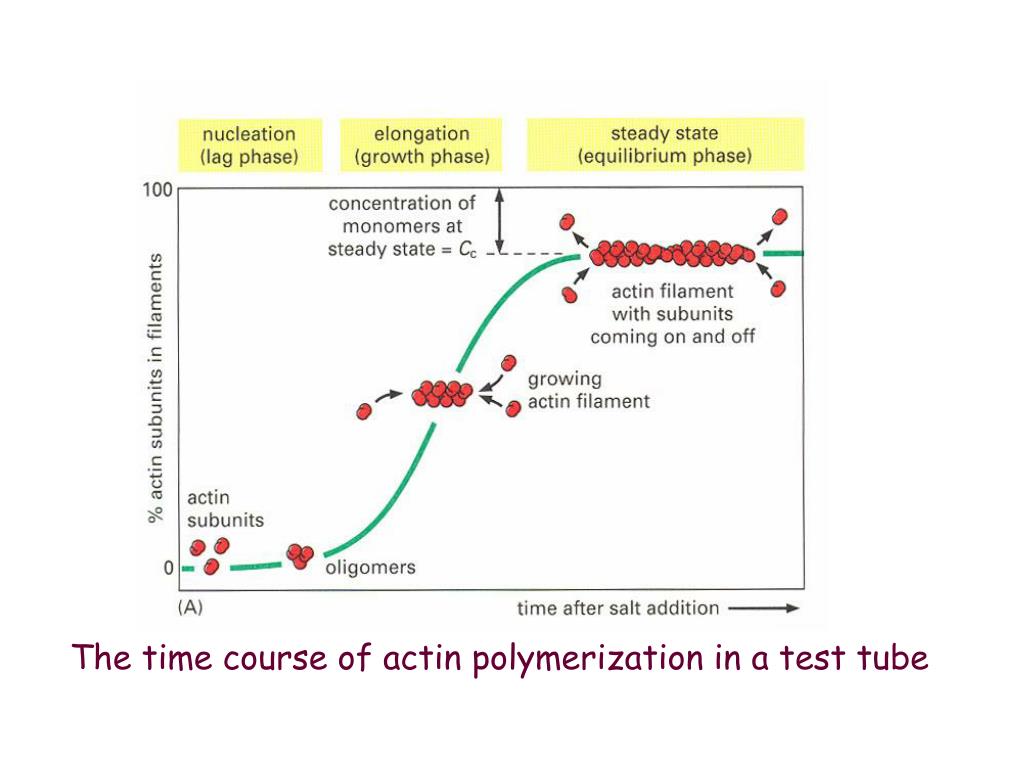

  22. The time course of actin polymerization in a test tube

  23. Specific drugs change the state of actin polymerization and thereby affect cell behavior • Cytochalasins-- to bind specifically to the fast-growing plus ends of actin filaments, preventing the addition of actin molecules. • Phalloidin—to stabilize actin filaments and inhibits their depolymerization.

  24. The bulk of these filaments are anchored to the cytoplasmic side of cell plasma membranes and its nearby structures. The rest is evenly distributed throughout the cell.

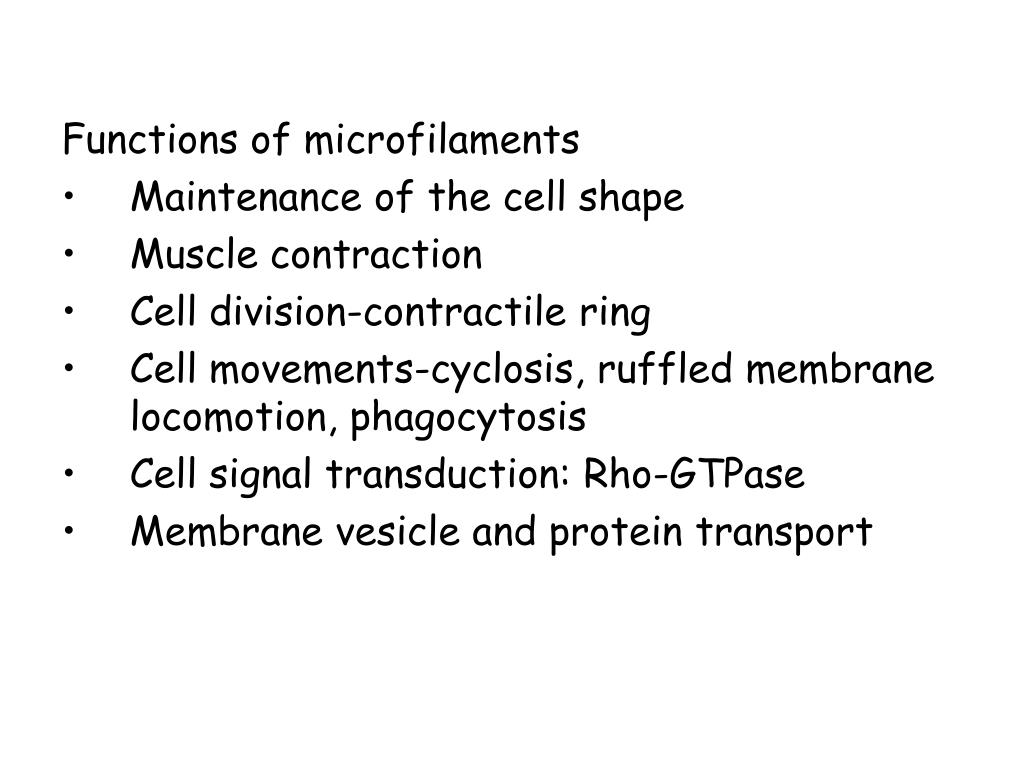

  25. Functions of microfilaments • Maintenance of the cell shape • Muscle contraction • Cell division-contractile ring • Cell movements-cyclosis, ruffled membrane locomotion, phagocytosis • Cell signal transduction: Rho-GTPase • Membrane vesicle and protein transport

  26. Actin filaments play a structural role in intestinal microvilli and also interact with motor molecules, such as myosin. actin_dynamics.mov

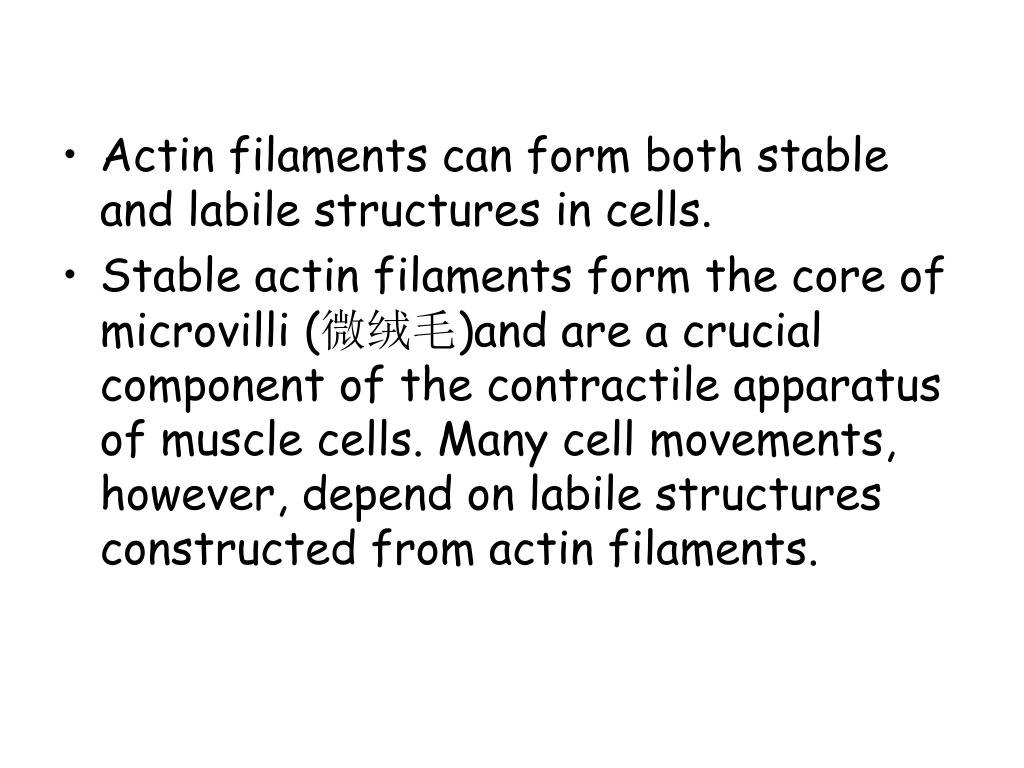

  27. Actin filaments can form both stable and labile structures in cells. • Stable actin filaments form the core of microvilli (微绒毛)and are a crucial component of the contractile apparatus of muscle cells. Many cell movements, however, depend on labile structures constructed from actin filaments.

  28. Microvilli
