Anode Wire Read Out (top)

Anode Wire Read Out (top). Cathode Pad Read Out (side). High Voltage (bottom). Frontend Board Connection. The fronted board has one full ground layer. The connection to this ground layer happens on 4 large ground pads on the corner of the chamber. Frontend Board Connection.

nicola
Télécharger la présentation

Anode Wire Read Out (top)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Anode Wire Read Out (top) T.Schneider/LHCb Muon

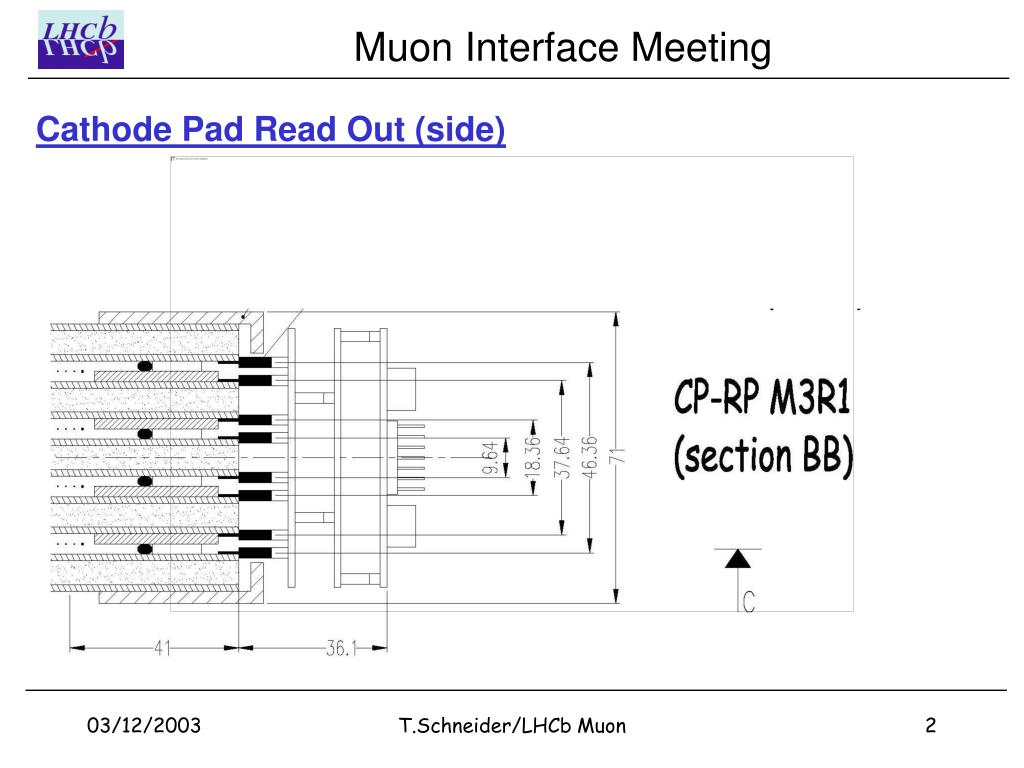

  2. Cathode Pad Read Out (side) T.Schneider/LHCb Muon

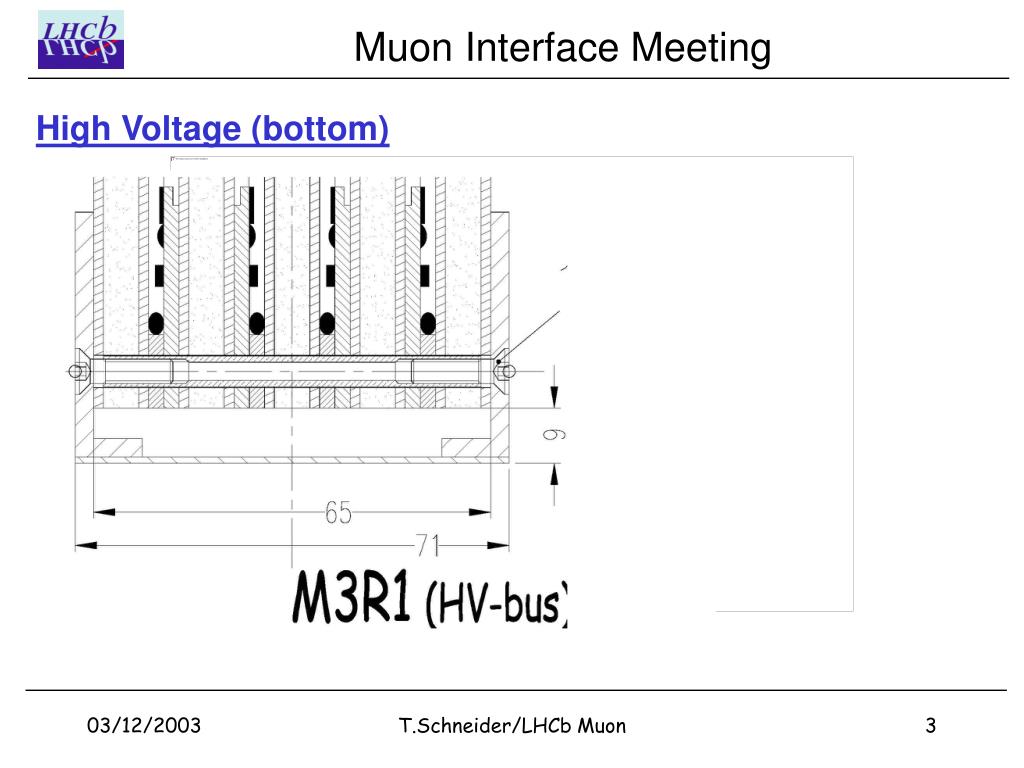

  3. High Voltage (bottom) T.Schneider/LHCb Muon

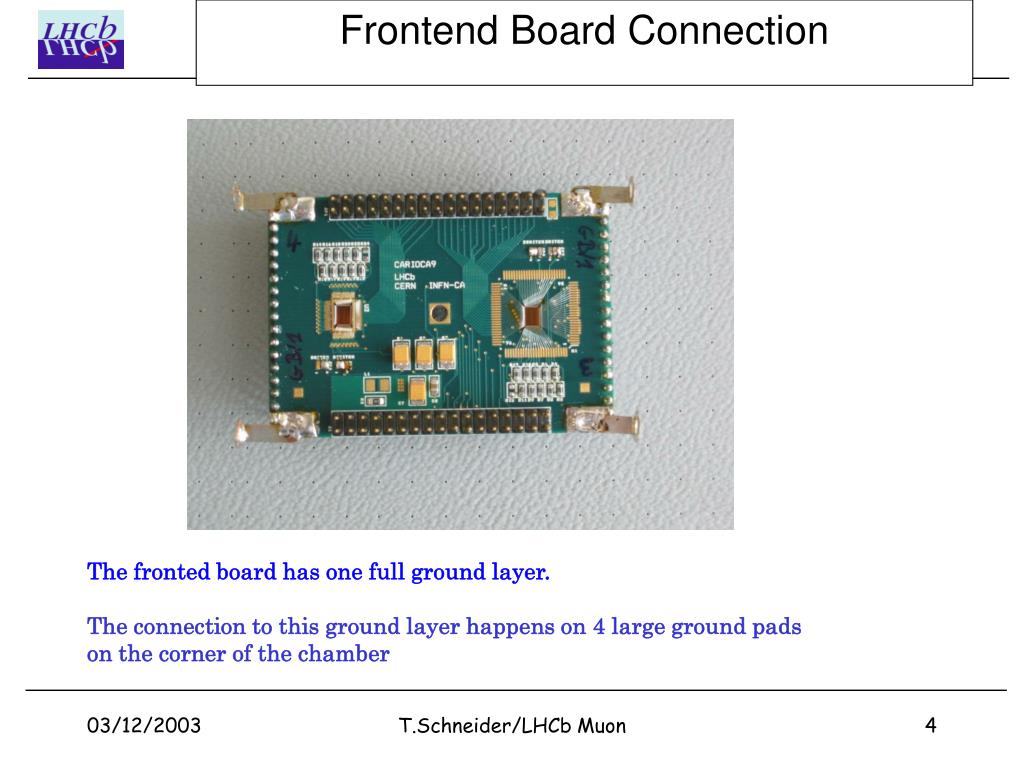

  4. Frontend Board Connection The fronted board has one full ground layer. The connection to this ground layer happens on 4 large ground pads on the corner of the chamber T.Schneider/LHCb Muon

  5. Frontend Board Connection We use screws to fix the board to the Faraday cage. T.Schneider/LHCb Muon

  6. In order to assure good long term contact of the aluminum parts we will alodine them. ‘Alodining is the chemical application of a protective chromate conversion coating on aluminum’ This procedure is used by the ATLAS MDT system …. Frontend Board Connection T.Schneider/LHCb Muon

  7. Shielding Dimensions • Distance sensitive area <-> surface chip board in black( ) • Conservative number in green (depending on board/connector design) • +78 • (+68) • +90 (+80) Sensitive (+80) +90 • Area • +50 T.Schneider/LHCb Muon

  8. Low Voltage Regulator Board • 2 cards(*2LWR) per chamber in the upper corner of the shielding • Dimensions: • 63mm *(max)60mm T.Schneider/LHCb Muon
