Chapter 4. Angle Modulation. 4.4 Narrow-Band Frequency Modulation. We first consider the simple case of a single-tone modulation that produces a narrow-band FM wave We next consider the more general case also involving a single-tone modulation, but this time the FM wave is wide-band

Télécharger la présentation
## Chapter 4. Angle Modulation

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

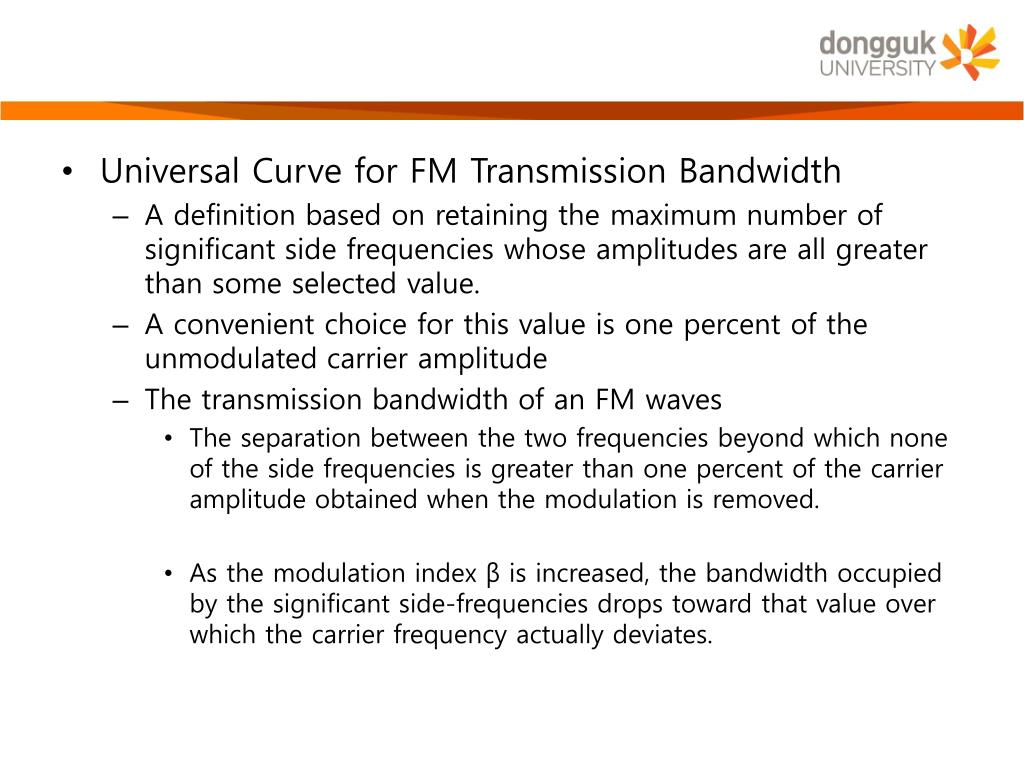

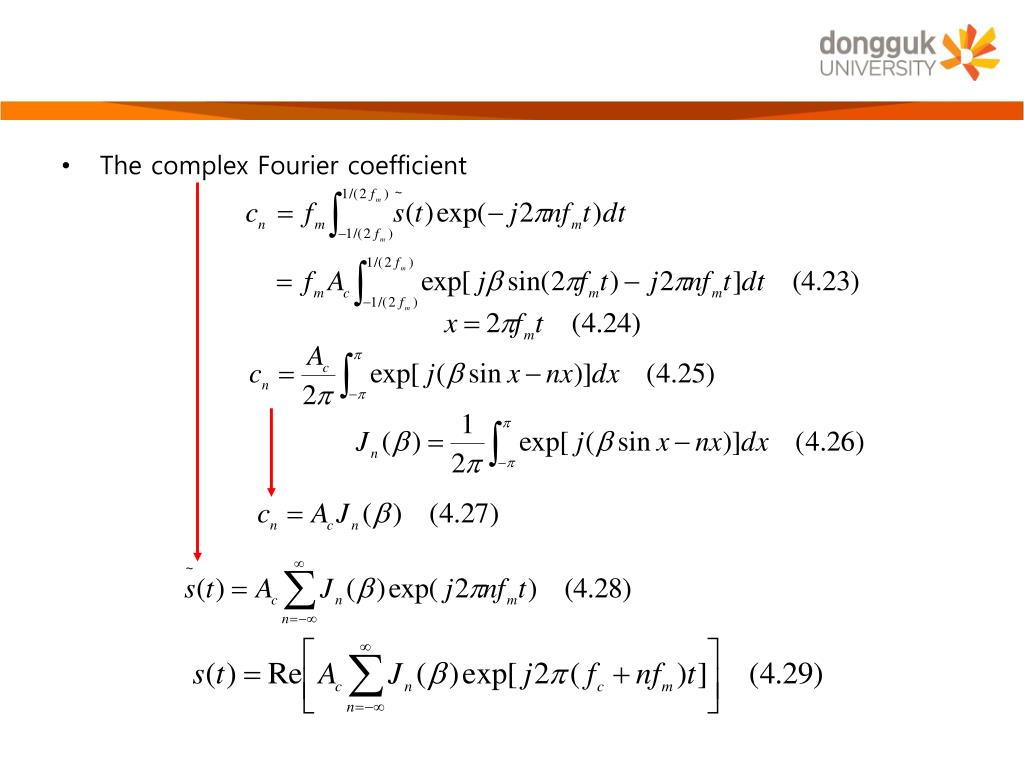

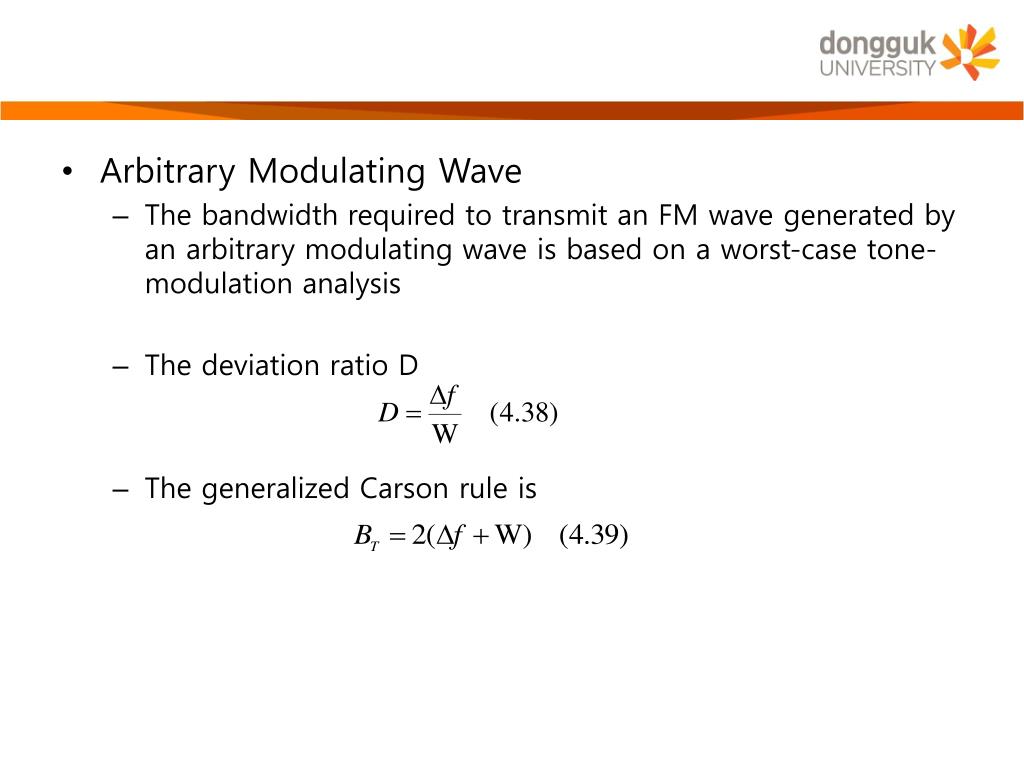

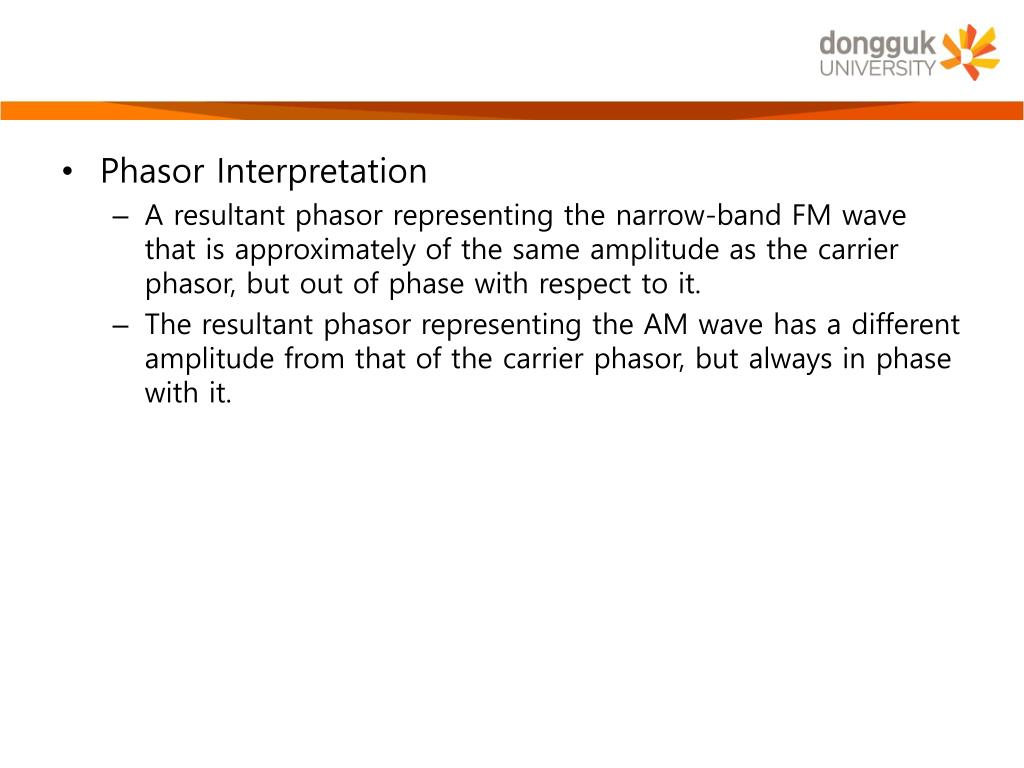

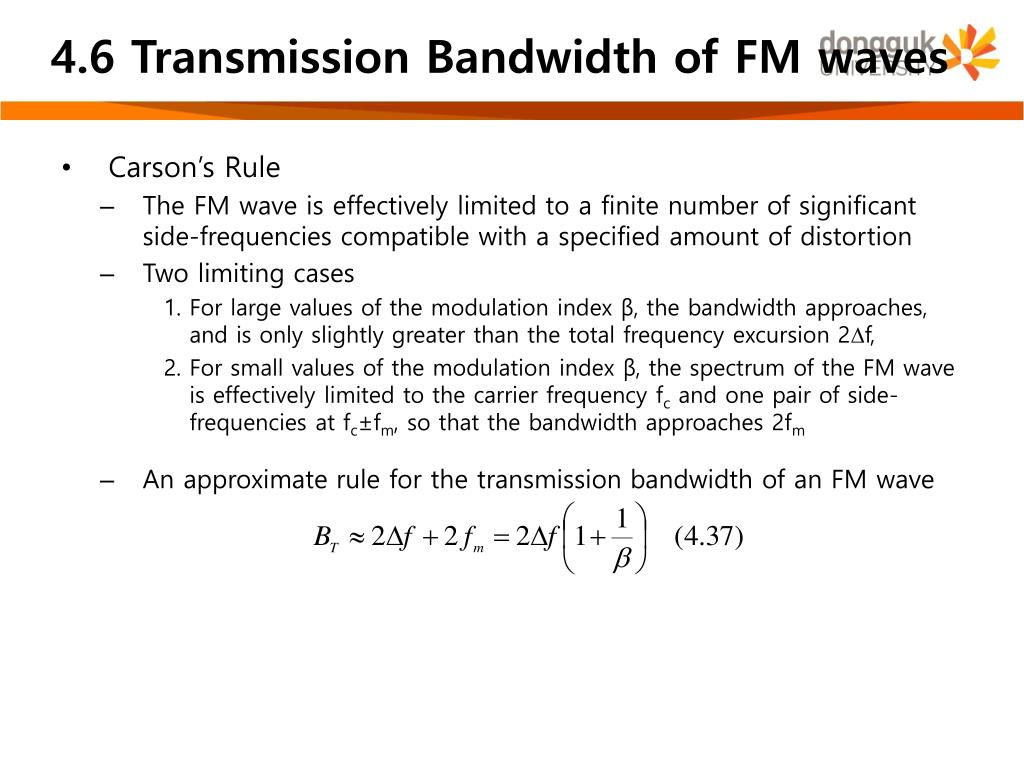

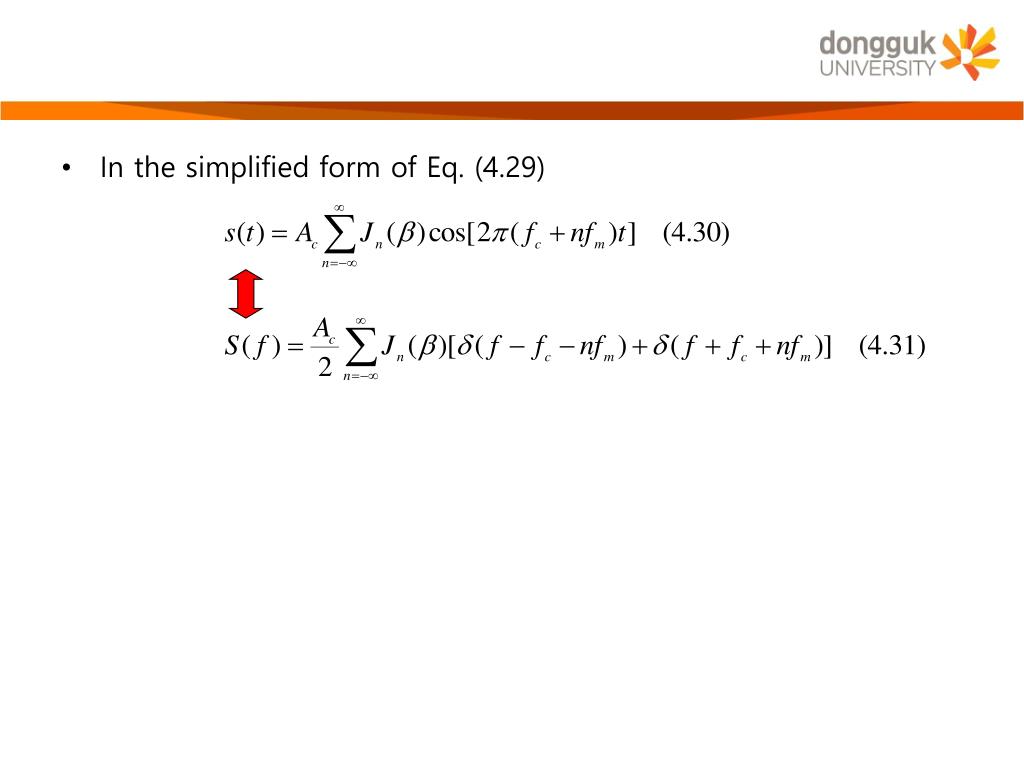

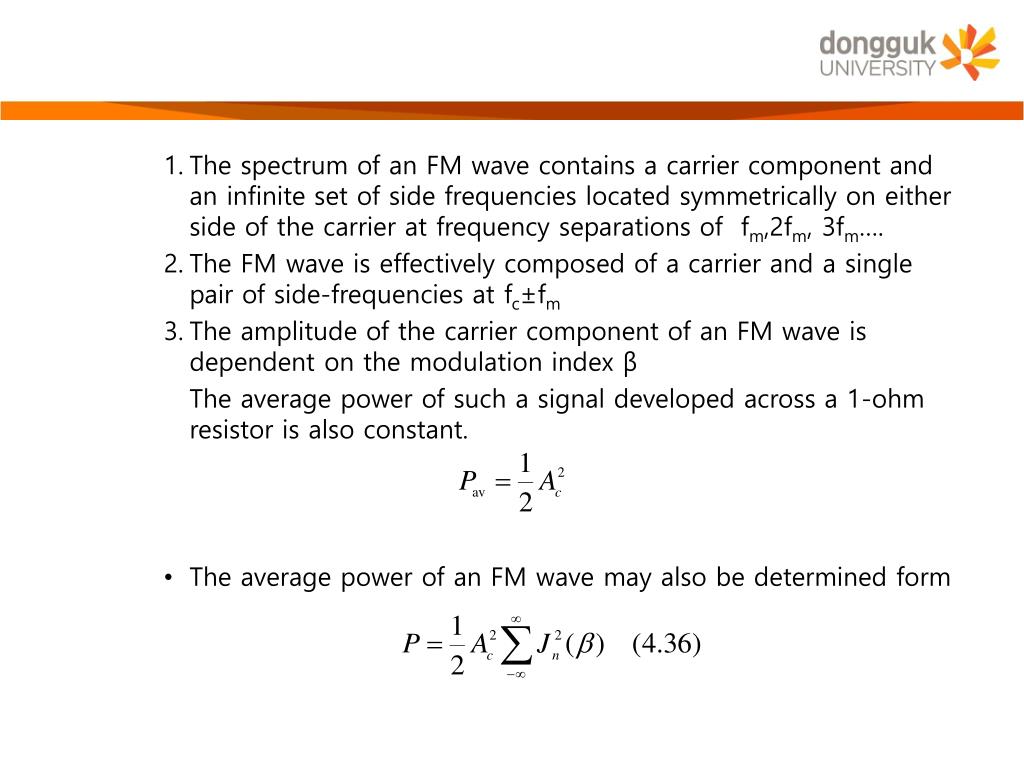

**4.4 Narrow-Band Frequency Modulation**• We first consider the simple case of a single-tone modulation that produces a narrow-band FM wave • We next consider the more general case also involving a single-tone modulation, but this time the FM wave is wide-band • The two-stage spectral analysis described above provides us with enough insight to propose a useful solution to the problem • An FM signal is The frequency deviation Modulation index The phase deviation**The FM wave is**• If the modulation index is small compared to one radian, the approximate form of a narrow-band FM wave is • The envelope contains a residual amplitude modulation that varies with time • The angel θi(t) contains harmonic distortion in the form of third- and higher order harmonics of the modulation frequency fm**We may expand the modulated wave further into three**frequency components • The basic difference between and AM wave and a narrow-band FM wave is that the algebraic sign of the lower side-frequency in the narrow-band FM is reversed • A narrow-band FM wave requires essentially the same transmission bandwidth as the AM wave.**Phasor Interpretation**• A resultant phasor representing the narrow-band FM wave that is approximately of the same amplitude as the carrier phasor, but out of phase with respect to it. • The resultant phasor representing the AM wave has a different amplitude from that of the carrier phasor, but always in phase with it.**4.5 Wide-Band Frequency Modulation**• Assume that the carrier frequency fc is large enough to justify rewriting Eq. 4.15) in the form • The complex envelope is**Properties of single-tone FM for arbitrary modulation index**β • For different integer values of n, • For small values of the modulation index β • The equality holds exactly for arbitrary β**The spectrum of an FM wave contains a carrier component and**an infinite set of side frequencies located symmetrically on either side of the carrier at frequency separations of fm,2fm, 3fm…. • The FM wave is effectively composed of a carrier and a single pair of side-frequencies at fc±fm • The amplitude of the carrier component of an FM wave is dependent on the modulation index β The average power of such a signal developed across a 1-ohm resistor is also constant. • The average power of an FM wave may also be determined form**4.6 Transmission Bandwidth of FM waves**• Carson’s Rule • The FM wave is effectively limited to a finite number of significant side-frequencies compatible with a specified amount of distortion • Two limiting cases • For large values of the modulation index β, the bandwidth approaches, and is only slightly greater than the total frequency excursion 2∆f, • For small values of the modulation index β, the spectrum of the FM wave is effectively limited to the carrier frequency fc and one pair of side-frequencies at fc±fm, so that the bandwidth approaches 2fm • An approximate rule for the transmission bandwidth of an FM wave**Universal Curve for FM Transmission Bandwidth**• A definition based on retaining the maximum number of significant side frequencies whose amplitudes are all greater than some selected value. • A convenient choice for this value is one percent of the unmodulated carrier amplitude • The transmission bandwidth of an FM waves • The separation between the two frequencies beyond which none of the side frequencies is greater than one percent of the carrier amplitude obtained when the modulation is removed. • As the modulation index β is increased, the bandwidth occupied by the significant side-frequencies drops toward that value over which the carrier frequency actually deviates.**Arbitrary Modulating Wave**• The bandwidth required to transmit an FM wave generated by an arbitrary modulating wave is based on a worst-case tone-modulation analysis • The deviation ratio D • The generalized Carson rule is
