  1. Lecture 2: IBM PC/AT and ISA Bus

  2. 80386-based PC/AT-Compatible System DRAM 82345 Data Buffer 386DX+82340 chip set 386DX SYSTEM BUS LOCAL BUS 82346 System Controller 82341 Peripheral Combo 387 DX 82344 ISA Controller 82385DX Cache Controller Cache BIOS Industry Standard Architecture(ISA) Bus

  3. Pentium Processor/82430 PCIset ISA Host Bus Pentium Processor CNTL ADDR DATA Latch 82434 PCMC 82433 LBX DRAM SRAM PCI BUS CNTL ADDR/DATA 82378 SIO Grahics PCI devices ISA BUS

  4. ISA Bus Interface Signals

  5. ISA Bus Interface Signals

  6. Block Diagram of the System Board • All signal lines are TTL compatible. Fan-out are two low power Shottkey(LS) TTLs. • SA0 through SA19: System Address Bus:(I/O) • to address memory and I/O devices; 16MB of memory with LA17 through LA23 • input when CPUHLDA is high and MASTER* is low; output at all other times • SA bus driven by CPU when CPUHLDA is low; SA bus driven by 8237 DMA controller when CPUHLDA is high • latched with an internally generated ALE signal External Master data CPU addr ISA Bus Memory addr data MEM DMA I/O

  7. LA17 through LA23 (Latchable Address Bus); I/O • the same as SA19-SA0 • MEMR* (Memory Read, active low); I/O • Input when CPUHLDA is high and MASTER* is low • it is driven from the 288 bus controller when CPUHLDA is low and MASTER* is high • it is driven by the 8237 DMA controller when CPUHLDA is high and MASTER* is high • requires an external 10K pull-up registor • MEMW*(Memory Write, active low): I/O • Input/output determination: the same as MEMR* • requires an external 10K pull-up registor • SMEMR*(Memory Read): I/O • Input/Output determination: the same as MEMR* • active on memory read cycles to addresses below 1 MB. • requires an external 10KW pull-up registor • SMEMW*(Memory Write):I/O • Input/Output determination: the same as MEMR* • active on memory read cycles to addresses below 1 MB. • requires an external 10K pull-up registor • SBHE*(System Byte High Enable) : I/O • controlled the same way as the SA bus

  8. REFRESH*(Refresh signal); I/O • SYSCLK(System CLock) : O • this output is half the frequency of the BUSCLK input • BALE, IOR*, IOW*, MEMR*, MEMW* are synchronized to SYSCLK • OSC(Oscillator): I-TTL • the buffered inout of the external 14.318 MHz oscillator. • RSTDRV(Reset Drive): O • BALE(Buffered Address Latch Enable): O • A pulse which is generated at the beginning of any bus cycle initiated from the CPU. • AEN (Address Enable): O • goes high anytime the inputs CPUHLDA and MASTER* are both high • DMA controller has control when this signal is active • T/C (Terminal Count): O • indicates that one of the DMA channels terminal count has been reached • DACK7*- DACK5*, DACK3*- DACK0* (DMA Acknowledge): O • DRQ7-DRQ5, DRQ3-DRQ0 (DMA Request) : I • DRQ0-DRQ3 : from 8-bit I/O adapters to/from system memory • DRQ5-DRQ7: from 16-bit I/O to/from system memory • DRQ4 is not available externally as it is used to cascade the two DMA controllers together.

  9. IRQ15-IRQ9, IRQ7-IRQ3, IRQ1 (Interrupt Request) : I • inputs for the 8259 megacells • IRQ0, IRQ2, IRQ8 ; not available as external inputs • MASTER* (Master) : I • used by an external device to disable the internal DMA controllers and get access to the system bus • when asserted it indicates that an external bus master has control of the bus. • MEMCS16* (Memory Chip Select 16-bit) : I • used to determine when a 16-bit to 8-bit conversion is needed for CPU addresses • A 16 to 8 conversion is done anytime the System Controller requests a 16-bit memory cycle and MASTER* is sampled high. • IOCS16* (I/O Chip Select 16-bit) : I • functions the same way as MEMCS16* signals • IOCHK* (I/O Channel Check): I • used to indicate that an error has taken place on the I/O bus • IOCHRDY (I/O Channel Ready) : I • pulled low in order to extend the read or write cycles of any bus access when required • the default number of wait states for cycles initiated by the CPU; • four wait states for 8-bit peripherals • one wait state for 16-bit peripherals • three wait states for ROM cycles • One wait state is inserted as the default for all DMA cycles

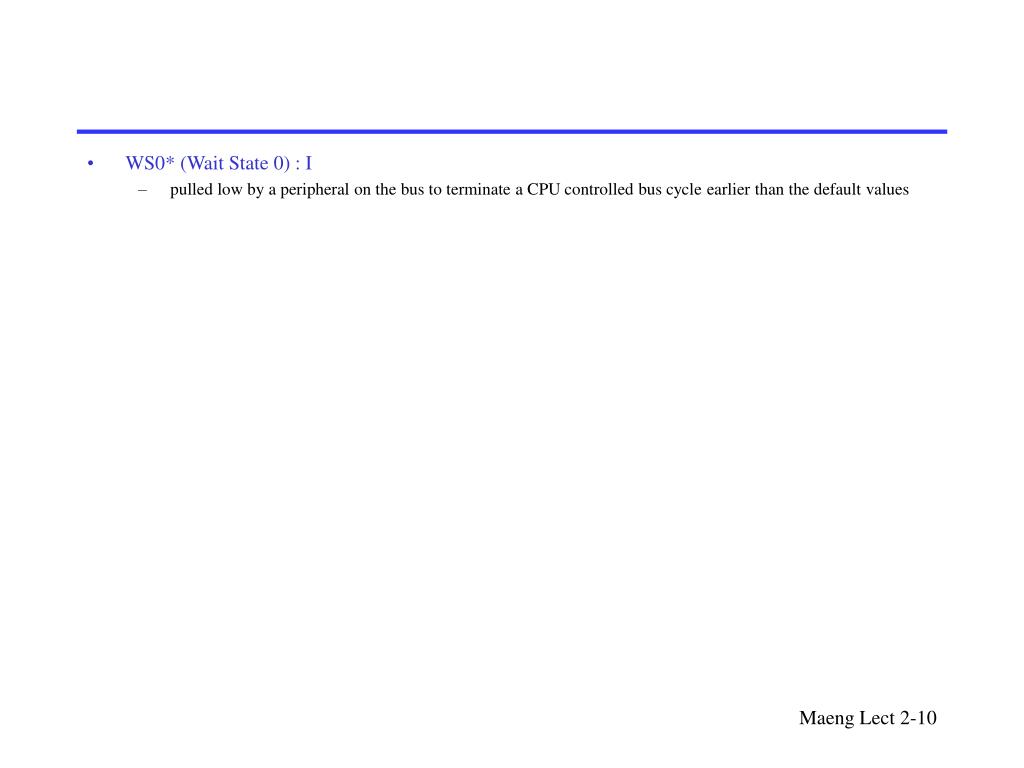

  10. WS0* (Wait State 0) : I • pulled low by a peripheral on the bus to terminate a CPU controlled bus cycle earlier than the default values
