  1. Earthquakes

  2. Vibration of earth produced by rapid release of energy (seismic waves) with radiate in all directions from the source (focus) Elastic Rebound Theory Explains how this works.

  3. Like ripples from dropping a stone in a pond, energy dissipates with distance

  4. Earthquakes don't occur randomly. Occur on faults or fractures within the earth

  5. Explained by plate tectonics. Most occur on plate boundaries. Sometimes in plate interiors if enough stress is built up

  6. Earthquakes Most destructive forces on Earth. But it is buildings and other human structures that cause injury and death, not the earthquake itself 1988 - Soviet Armenia: magnitude 6.9, 25,000 people died 1985 - Mexico City: magnitude 8.1, 9500 people 1989 - Loma Prieta, CA: magnitude 7.1, 40 people died 1995 - Kobe, Japan: magnitude 7, ~6000 people died

  7. Soviet Armenia: 1988

  8. Mexico City - 1985

  9. Kobe, Japan 1995

  10. Alaska 1964

  11. 30,000 earthquakes occur worldwide annually that are strong enough to be felt, but typically only 75 of them are considered to be significant

  12. Mechanism Elastic rebound theory • Forces bend rock on either side of fault, rock strains ever so slowly, then weakest point breaks. Break sends out shock waves, which migrate outwards from the original break, causing shaking. Stress is released • Aftershocks are adjustments to that change in stress. They are always less strong than the main shock, but they may cause more damage to weakened structures. Duration of Shaking Varies • 1960 San Francisco: 40 seconds • 1989 Loma Prieta: 15 seconds • 1962 Alaska: 4 minutes!!!!

  13. Earth material can either fold or fault when put under stress

  14. If the Earth folds, it is said to be ductile.

  15. If the Earth faults, it is said to be brittle.

  16. Normal Reverse

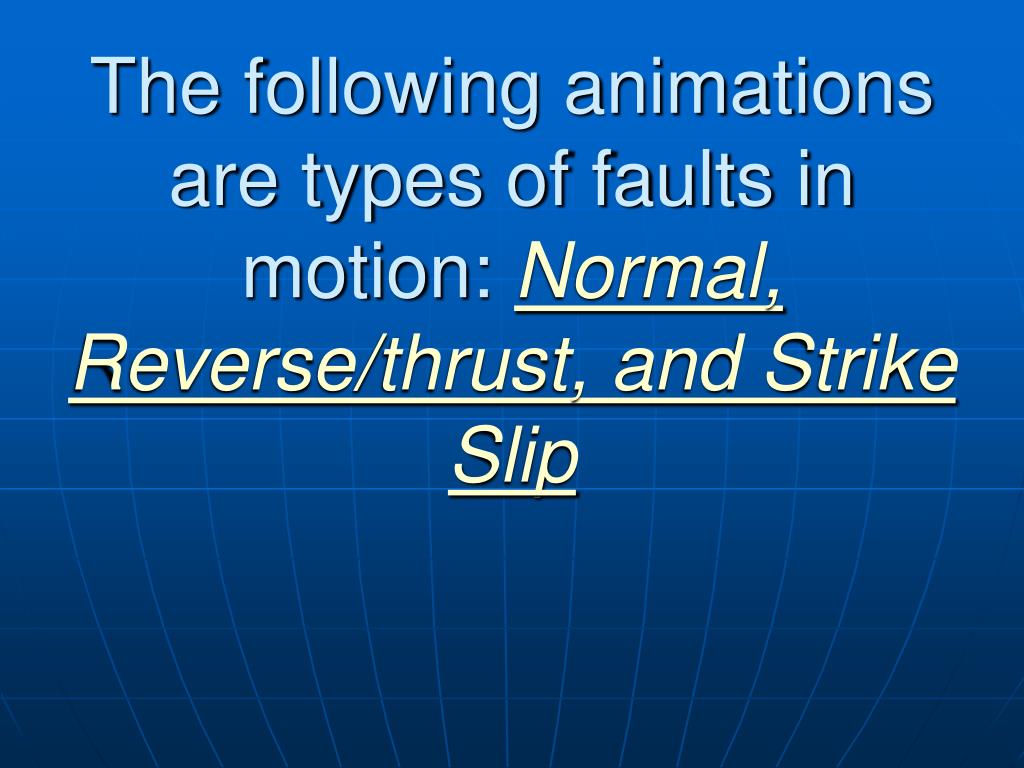

  17. The following animations are types of faults in motion: Normal, Reverse/thrust, and Strike Slip

  18. There are 2 types of Earthquake Waves: Body Waves and Surface Waves

  19. Body Waves: Because they travel through the body of the earth.

  20. Body Waves P waves: • Pressure or compressional waves. Vibrate parallel to direction of wave travel like a slinky. • Fast travel: 4-7 km/sec (15,000 mph) • P is primary, or first wave to arrive at recording station

  21. Body Waves S waves: • Shear waves. Vibrates perpendicular to direction of wave travel. Like snapping a rope • Slower than P wave: 2-5 km/sec (11,000 mph) • So S is secondary, or second wave to arrive at recording station

  22. Body Waves S waves: • Shear waves. Vibrates perpendicular to direction of wave travel. Like snapping a rope • Slower than P wave: 2-5 km/sec (11,000 mph) • So S is secondary, or second wave to arrive at recording station

  23. Earthquake waves in review

  24. Examples of Body Waves on a Seismogram

  25. Surface Waves: Because they travel along the surface of the Earth. These waves travel slower than Body Waves and are very destructive.

  26. Love Waves: cause particles to move from side to side, perpendicular to direction of travel, similar to S wave.

  27. Rayleigh Waves: travel more slowly than Love Waves and cause particles to move in elliptical patterns

  28. Types of Waves Earthquake waves = seismic waves. Recorded on seismometers on seismographs. Types of Waves • Surface waves - travel on Earth's surface, away from epicenter. • Very slow waves. Cause a lot of damage, rolling feeling at end of earthquake • Body Waves - travel through Earth's interior, spread outward from focus

  29. Earthquake waves in review

  30. Seismogram Tracings

  31. Locating the Epicenter of an Earthquake • P, S and surface waves all start out at same time. • The further you are away from the quake, the longer the time span between arrival of P and S wave. • The distance of the seismometer to the earthquake can be determined by the time between the arrival of P wave and arrival of S waves. • Can tell the distance, but not the direction. • Therefore, at least 3 sites must be used to find epicenter.

  32. Studying Earth’s Interior

  33. Travel of P and S Waves Through the Body of the Earth • How did geophysicists discover what was inside of our earth?

  34. Travel of P and S Waves Through the Body of the Earth • They discovered that P waves will travel through solid and liquid, whereas S Waves will only travel through a solid.
