  1. Chapter 6 Current State of XBRL IFRS Taxonomy Discoverable Taxonomy Set Extension Taxonomies Validation of XBRL vs xml

  2. Current State of XBRL

  3. Who Must File • All companies are now required to file using XBRL • Foreign Private Issuers are required to file using IFRS taxonomy

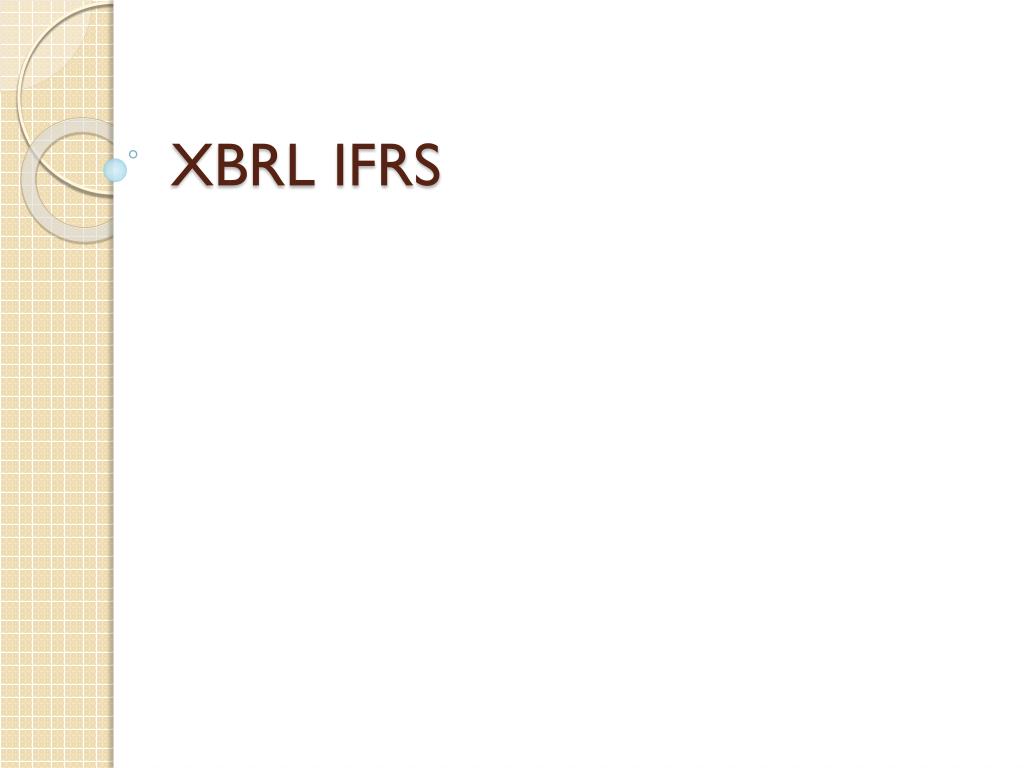

  4. XBRL IFRS

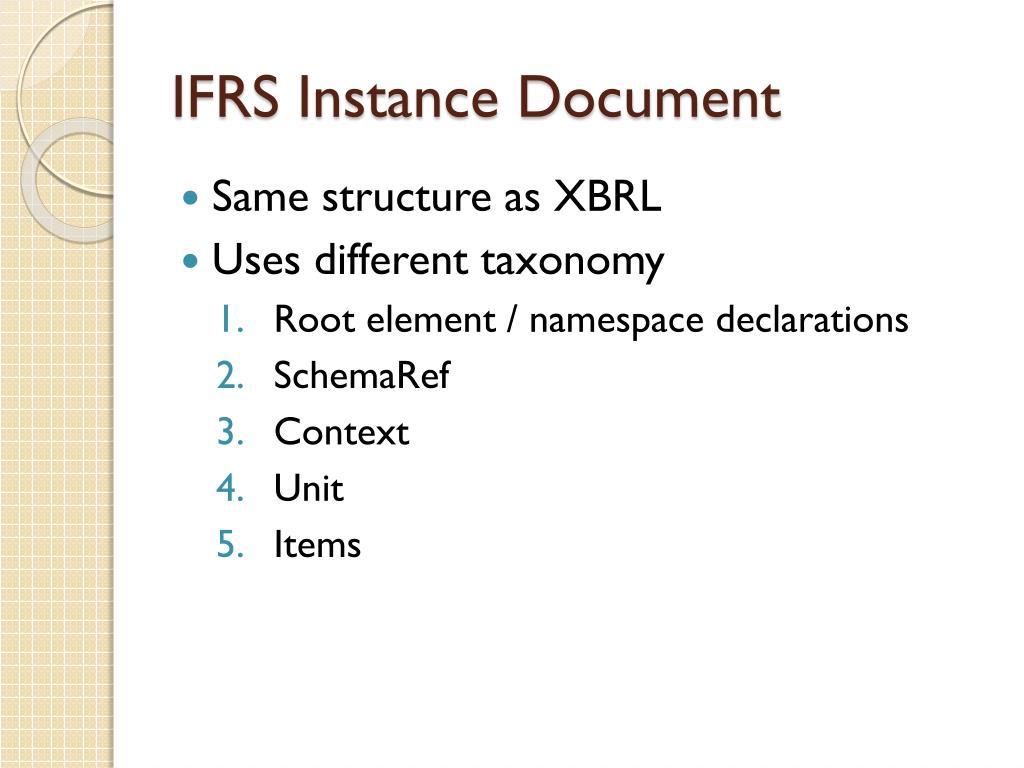

  5. IFRS Instance Document • Same structure as XBRL • Uses different taxonomy • Root element / namespace declarations • SchemaRef • Context • Unit • Items

  6. IFRS Taxonomy • 2011 Taxonomy Issued March 25, 2011 • Compared to US GAAP, ~ 4000 elements vs. 15,000 • Documentation is not included in IFRS (as it is NOT rule based). • Instead disclosures and example references are included

  7. Illustrations of IFRS XBRL • iXBRL (next week) • XBRL IFRS

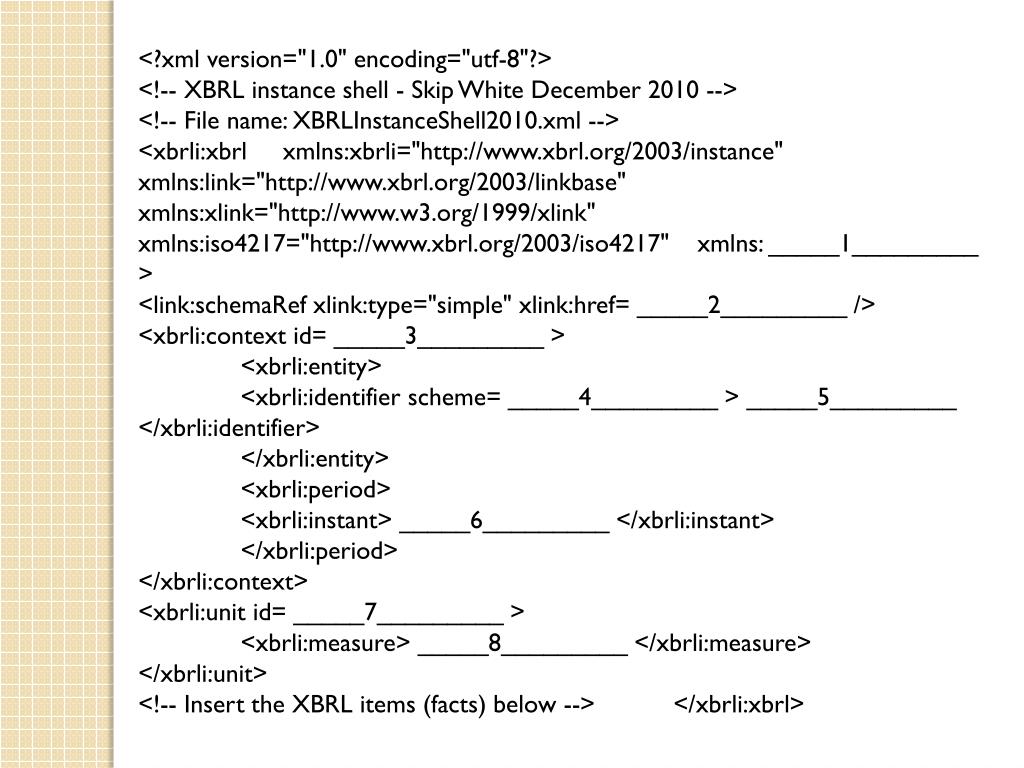

  8. <?xml version="1.0" encoding="utf-8"?> <!-- XBRL instance shell - Skip White December 2010 --> <!-- File name: XBRLInstanceShell2010.xml --> <xbrli:xbrlxmlns:xbrli="http://www.xbrl.org/2003/instance" xmlns:link="http://www.xbrl.org/2003/linkbase" xmlns:xlink="http://www.w3.org/1999/xlink" xmlns:iso4217="http://www.xbrl.org/2003/iso4217" xmlns: _____1_________ > <link:schemaRefxlink:type="simple" xlink:href= _____2_________ /> <xbrli:context id= _____3_________ > <xbrli:entity> <xbrli:identifier scheme= _____4_________ > _____5_________ </xbrli:identifier> </xbrli:entity> <xbrli:period> <xbrli:instant> _____6_________ </xbrli:instant> </xbrli:period> </xbrli:context> <xbrli:unit id= _____7_________ > <xbrli:measure> _____8_________ </xbrli:measure> </xbrli:unit> <!-- Insert the XBRL items (facts) below --> </xbrli:xbrl>

  9. Discoverable Taxonomy Set (DTS)

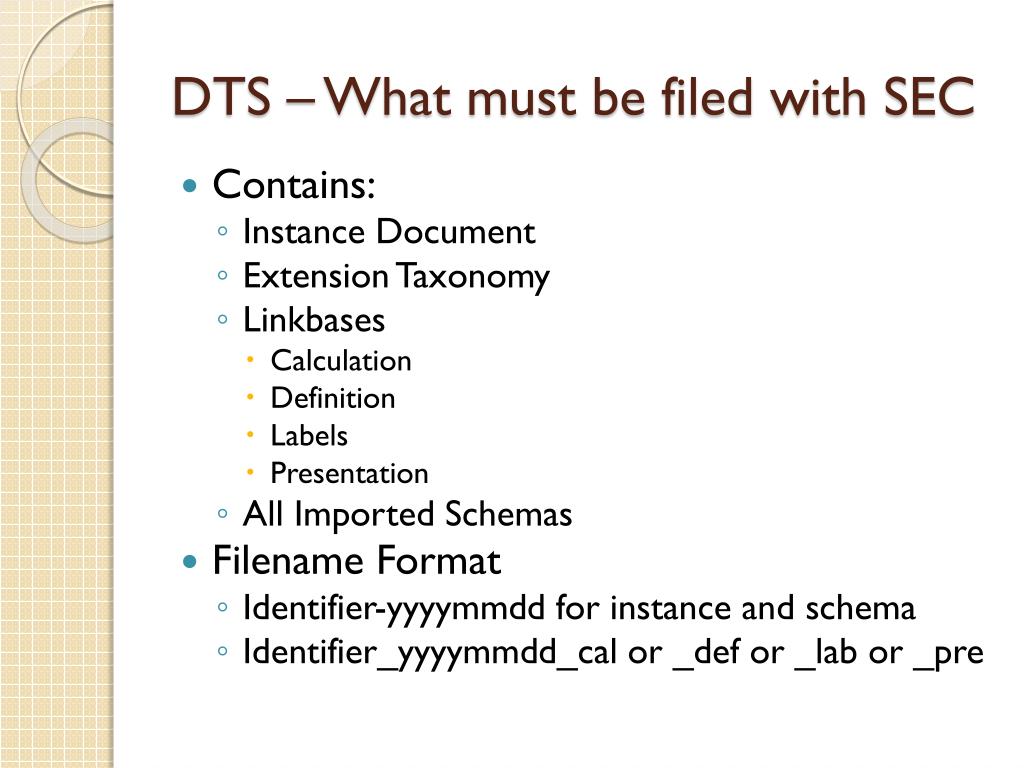

  10. DTS – What must be filed with SEC • Contains: • Instance Document • Extension Taxonomy • Linkbases • Calculation • Definition • Labels • Presentation • All Imported Schemas • Filename Format • Identifier-yyyymmdd for instance and schema • Identifier_yyyymmdd_cal or _def or _lab or _pre

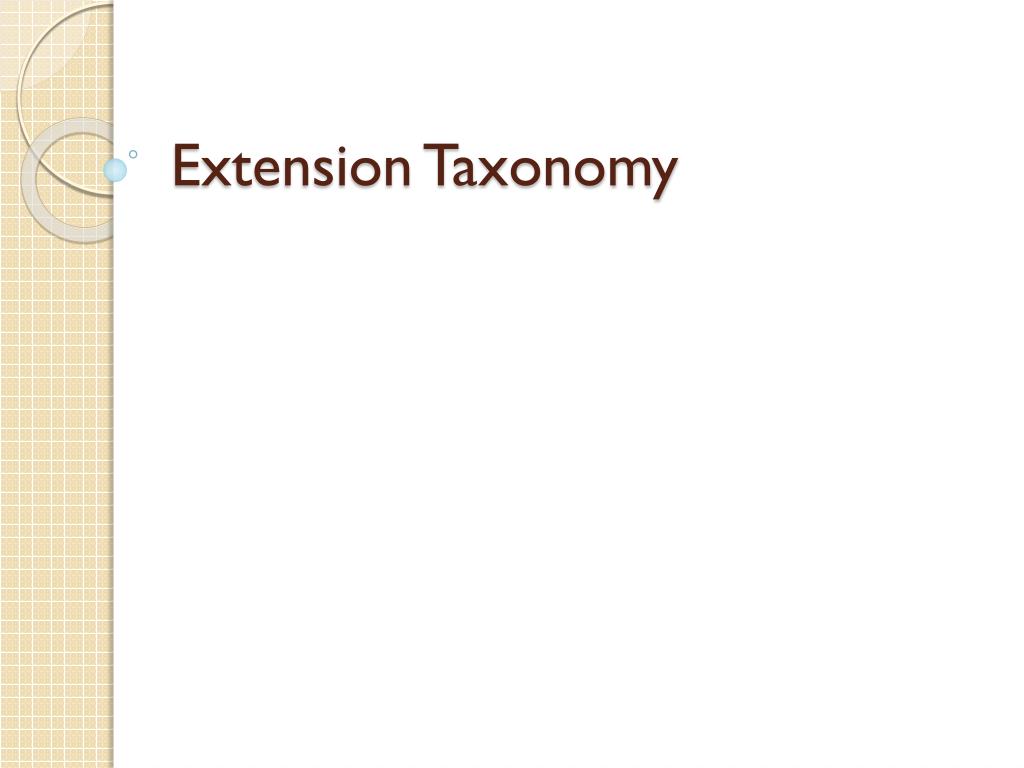

  11. Extension Taxonomy

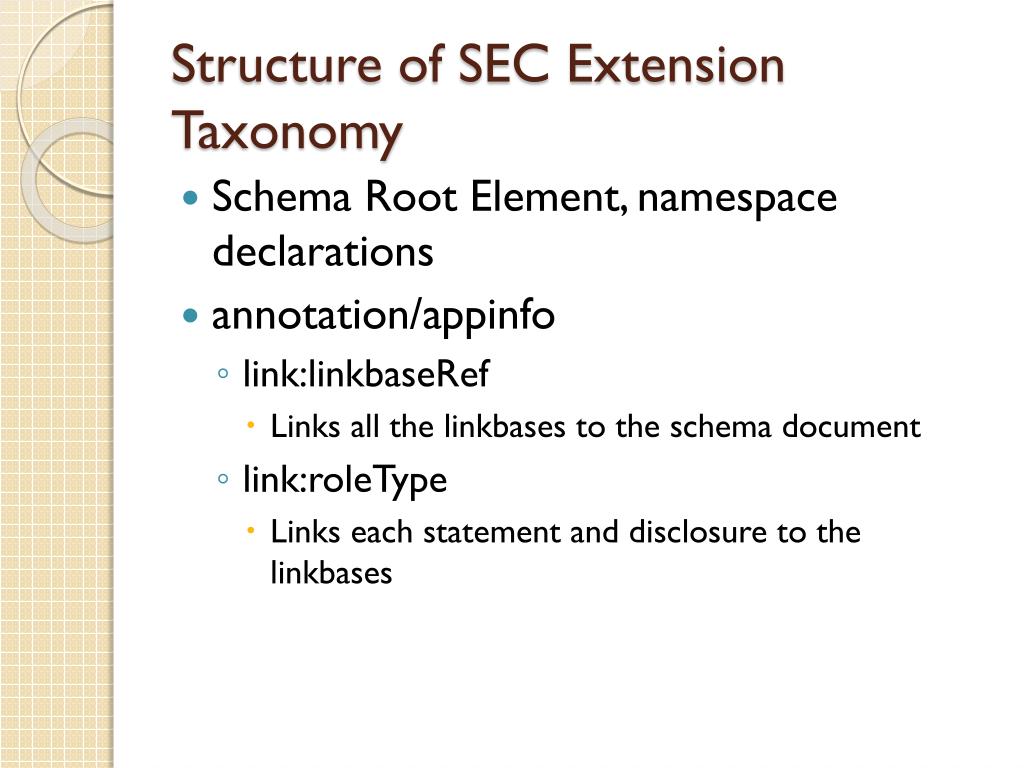

  12. Structure of SEC Extension Taxonomy • Schema Root Element, namespace declarations • annotation/appinfo • link:linkbaseRef • Links all the linkbases to the schema document • link:roleType • Links each statement and disclosure to the linkbases

  13. link:linkbaseRef (International Speedway Corp 10Q) • <link:linkbaseRefxlink:type="simple" xlink:href="isca-20110531_cal.xml" xlink:role="http://www.xbrl.org/2003/role/calculationLinkbaseRef" xlink:arcrole="http://www.w3.org/1999/xlink/properties/linkbase" xlink:title="Calculation Links, all"/> • <link:linkbaseRefxlink:type="simple" xlink:href="isca-20110531_pre.xml" xlink:role="http://www.xbrl.org/2003/role/presentationLinkbaseRef" xlink:arcrole="http://www.w3.org/1999/xlink/properties/linkbase" xlink:title="Presentation Links, all"/> • <link:linkbaseRefxlink:type="simple" xlink:href="isca-20110531_lab.xml" xlink:role="http://www.xbrl.org/2003/role/labelLinkbaseRef" xlink:arcrole="http://www.w3.org/1999/xlink/properties/linkbase" xlink:title="Label Links, all"/> • <link:linkbaseRefxlink:type="simple" xlink:href="isca-20110531_def.xml" xlink:role="http://www.xbrl.org/2003/role/definitionLinkbaseRef" xlink:arcrole="http://www.w3.org/1999/xlink/properties/linkbase" xlink:title="Definition Links, all"/>

  14. link:roleType (International Speedway Corp 10Q) • <link:roleTyperoleURI="http://internationalspeedwaycorporation.com/role/BalanceSheetsParenthetical" id="BalanceSheetsParenthetical"> • <link:definition>0111 - Statement - Consolidated Balance Sheets (Unaudited) (Parenthetical)</link:definition> • <link:usedOn>link:presentationLink</link:usedOn> • <link:usedOn>link:calculationLink</link:usedOn> • <link:usedOn>link:definitionLink</link:usedOn> • </link:roleType>

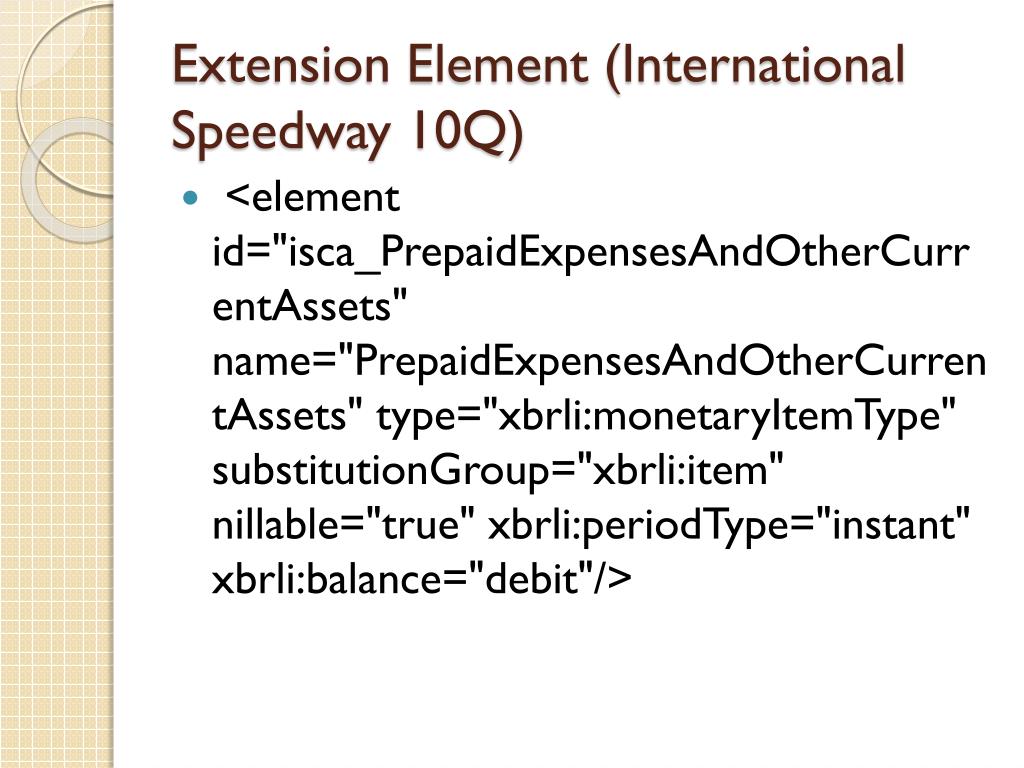

  15. Extension Element (International Speedway 10Q) • <element id="isca_PrepaidExpensesAndOtherCurrentAssets" name="PrepaidExpensesAndOtherCurrentAssets" type="xbrli:monetaryItemType" substitutionGroup="xbrli:item" nillable="true" xbrli:periodType="instant" xbrli:balance="debit"/>

  16. XBRL Validation

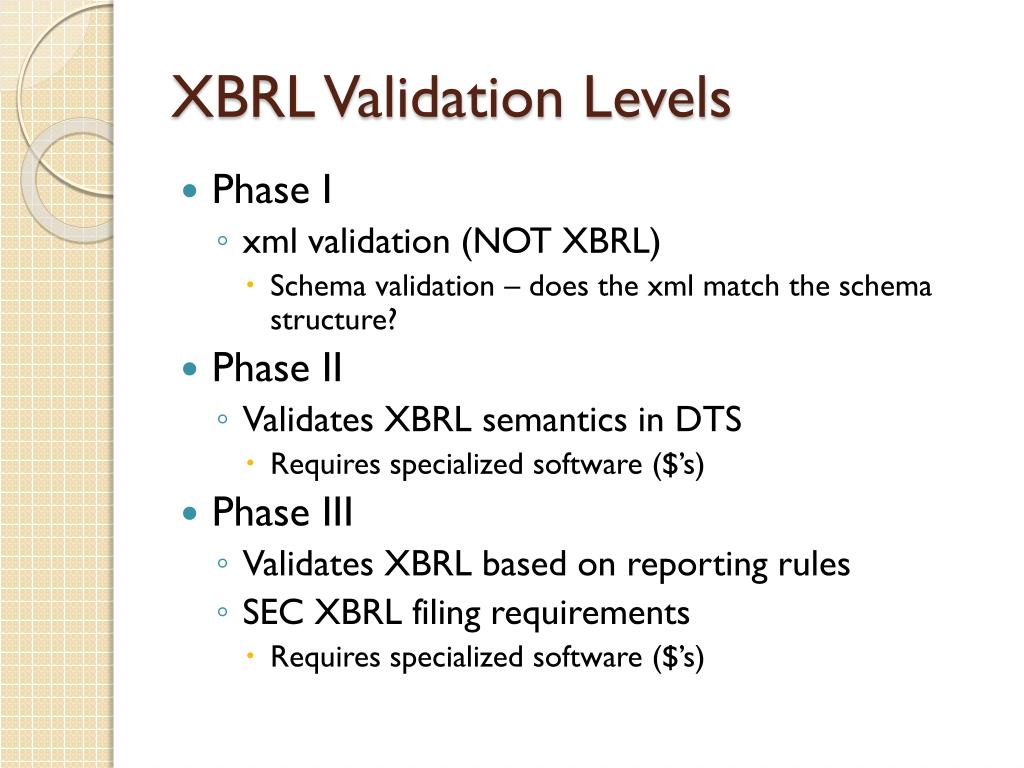

  17. XBRL Validation Levels • Phase I • xml validation (NOT XBRL) • Schema validation – does the xml match the schema structure? • Phase II • Validates XBRL semantics in DTS • Requires specialized software ($’s) • Phase III • Validates XBRL based on reporting rules • SEC XBRL filing requirements • Requires specialized software ($’s)
