  1. DAWN

  2. DAWN • DAWN is a vectorized 3D PostScript processor developed at the Fukui University • Well suited to prepare high quality outputs for presentation and/or documentation • Useful for detector geometry debugging (it comes with a facility, DAVID, which allows to detect overlapping volumes) • Remote visualization, cut view, off-line re-visualization are supported by DAWN • A DAWN process is automatically invoked as a co-process of Geant4 when visualization is performed and 3D data is passed with inter-process communication via a file or the TCP/IP socket

  3. DAWN (2) • There are two kinds of DAWN drivers • DAWN-File • DAWN-Network • The DAWN-File driver send 3D data to DAWN via an intermediate file (called g4.prim) in the current directory. The contents of the file can be re-visualized (without running Geant4) by simply running DAWN on it dawn g4.prim • The DAWN-Network driver send 3D data to DAWN via the TCP/IP socket or the named pipe and it can be used to perform remote visualization • If you have no network, set the environment variable G4DAWN_NAMED_PIPE to 1, to switch the default socket connection to the named pipe within the same host machine

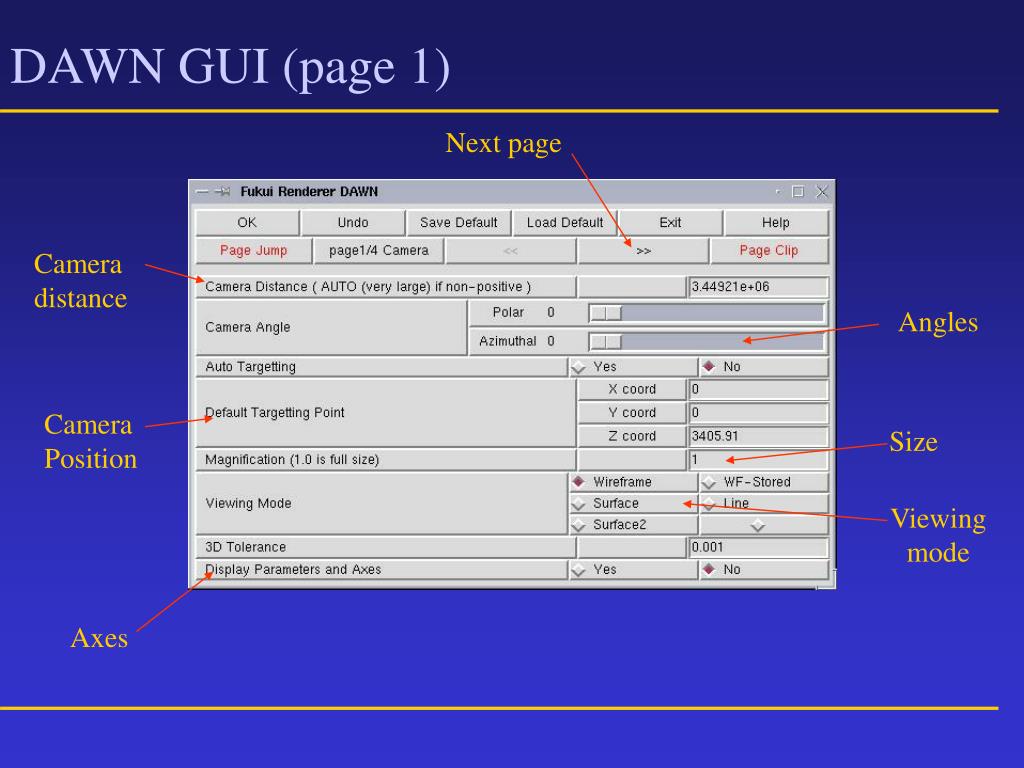

  4. DAWN GUI (page 1) Next page Camera distance Angles Camera Position Size Viewing mode Axes

  5. DAWN GUI (page 2)

  6. DAWN GUI (page 3)

  7. DAWN GUI (page 4) Save the picture in an EPS file Don’t forget this! Have a preview of the picture
