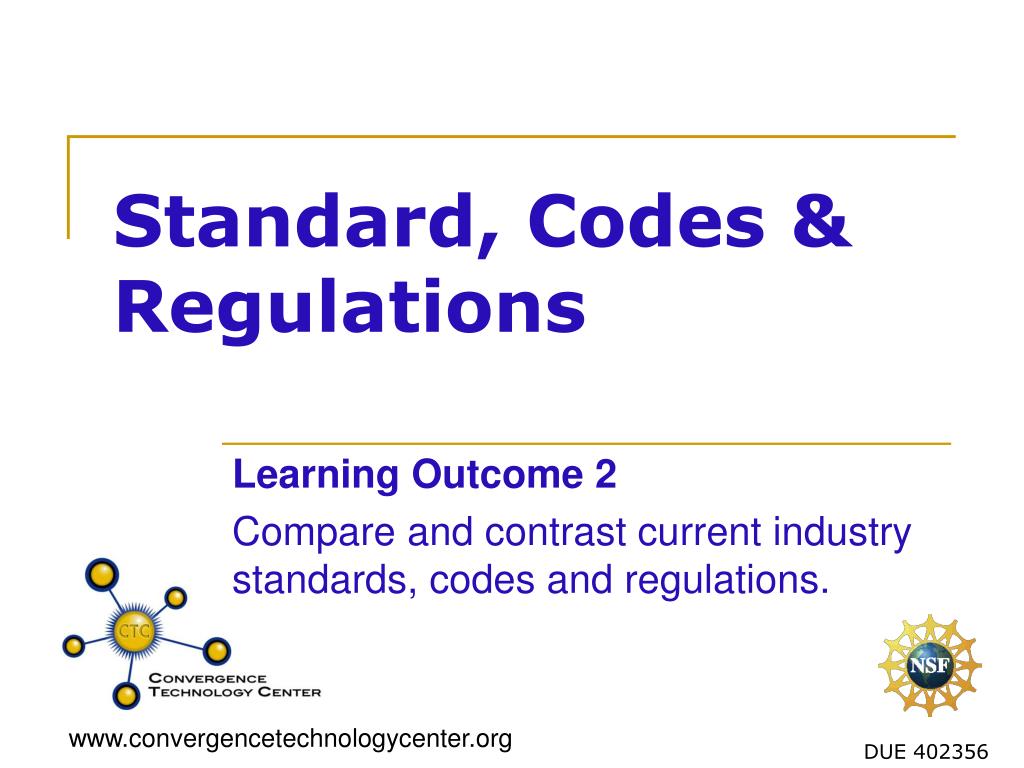

1. Standard, Codes & Regulations Learning Outcome 2 Compare and contrast current industry standards, codes and regulations.

2. Regulations • Mandatory rules • Issued by official organization • FCC • Federal Communications Commission • Enforcement of codes and Laws • AHJ • Authority having jurisdiction

3. Standards • Universally agreed guidelines • Specifications and guidelines • Not mandatory rules • Usually written by organizations in a particular industry • Make products or technologies the same • Organizations • ANSI • TIA • IEEE • HTI • Industry standards • Manufacturer standards

4. Codes • Rules • Protect consumers • Provide minimum safety requirements • National or local enforcement • National Electrical Code - NEC

5. Standards • Organizations • ANSI – www.ansi.org • American National standards Institute • TIA – www.tiaonline.org • Telecommunications industry Association • EIA – www.eia.org • Electronic Industries Alliance

6. ANSI/TIA/EIA Standards • ANSI/TIA/EIA-570-A • Residential Telecommunications Cabling standard • ANSI/TIA/EIA-568-B • Commercial Building Telecommunications • ANSI/TIA/EIA-568-A • Commercial Building Telecommunications Pathways and Spaces

7. Product Ratings • 3 Categories • Listed • Product has been tested • Classified • Classification by Industry • Recognized • Certified for equipment use • Tests • Mechanical • Electrical • Thermal • Performance • Hazards • Regulation codes

8. Implementation • New construction • Additions • Remodeling • Single Unit • MDU – Multi-dwelling unit • Townhouse • Condominium • Apartments

9. 570-A • Voice • Data • Video • Multimedia • Home Automation Systems • Environmental control • Security • Audio • TV • Sensors • Alarms

10. 570-A • Design requirements • Star topology for cable • 568-A outlets & connectors • 1 outlet to each major part of house • Kitchen • Master bedroom • Living room • Cable • UTP • Coax

11. 570-A Section 4 • Cable Grade Systems • Grade I • Minimum requirements for telecommunications • 1 Cat 5 • 1 Coax • Grade II • Minimum requirements for advances telecommunications • 2 Cat 5E • 2 Coax

12. 570-A Sections • Section 5 • Single Residential Unit Cabling • Section 6 • Multi-Dwelling Units • Section 7 • Residential Cabling components • Section 8 • General Requirements • Minimum bend radius • Tension on cable • Annexes • Fiber-optic • Requirements to do field tests • Addenda • Security Cabling for residences • Whole-Home Audio Cabling for Residences

13. 570-A Terms • AP – Access Provider • Provide telecommunications to customer • NID – Network Interface Device • Demarcation Point • ADO – Auxiliary Disconnect Outlet • Customer can disconnect from provider • SMC – Structured Media Center • All devices connect

14. Codes • Building codes & Fire codes • Inconsistent application of codes • City or County Government • City • County • State • National • Mix Note : Consult local authority for proper code

15. NEC • National electrical Code • 3 year revision • Protection of people and property from hazards (electrical) • Local Municipality enforces code • Local • State • National

16. NEC - Used • HTI • Electrical Inspectors • Fire marshals • Lawyers • Insurance companies • Manufacturers • Suppliers

17. Organizations • UL – www.ul.com • Underwriter Laboratories • Non-profit • Test devices for safety • IEEE – www.ieee.orgwww.standards.ieee.org • Institute of Electrical and Electronic Engineers • Publishes standards on electrical and electronic equipment • IEEE 802.3 Ethernet • IEEE 1394 FireWire • ISO - www.iso.org/iso/en/ISOOnline.frontpage • International Organization for Standardization • Develops global standards in electrical and electronic field • ISO/IEC Standard 11801 – Cabling standards

18. Regulations • Telecommunications wiring • FCC & OSHA regulate • FCC • Federal Communications Commission • Handle equipment manufacturing • Telephone • Modems • Wireless devices • TV – check back of TV • OSHA – www.osha.gov or www.allaboutosha.com • Occupational Safety and Health Administration • Health and Safety of workers • Federal and State program

19. Codes • Home codes regulated by NFPA • NFPA • National Fire Protection Association • International organization • Develops fire safety codes and standards • NFPA Codes and standards • ANSI/NFPA 70 – NEC – National Electrical Code • http://www.nfpa.org/aboutthecodes/AboutTheCodes.asp?DocNum=70 • ANSI/NFPA 71 • ANSI/NFPA 72 – National Fire Alarm Code • http://www.nfpa.org/aboutthecodes/AboutTheCodes.asp?DocNum=72 • ANSI/NFPA 75 – Protection of Information Technology Equipment • http://www.nfpa.org/aboutthecodes/AboutTheCodes.asp?DocNum=75
