Graphing Acceleration

Graphing Acceleration. Can use 2 kinds of graphs Speed vs. time Distance vs. time. Graphing Acceleration: Speed vs. Time Graphs. If speed is changing with time = accelerating If the line is straight = acceleration is constant

ursala
Télécharger la présentation

Graphing Acceleration

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

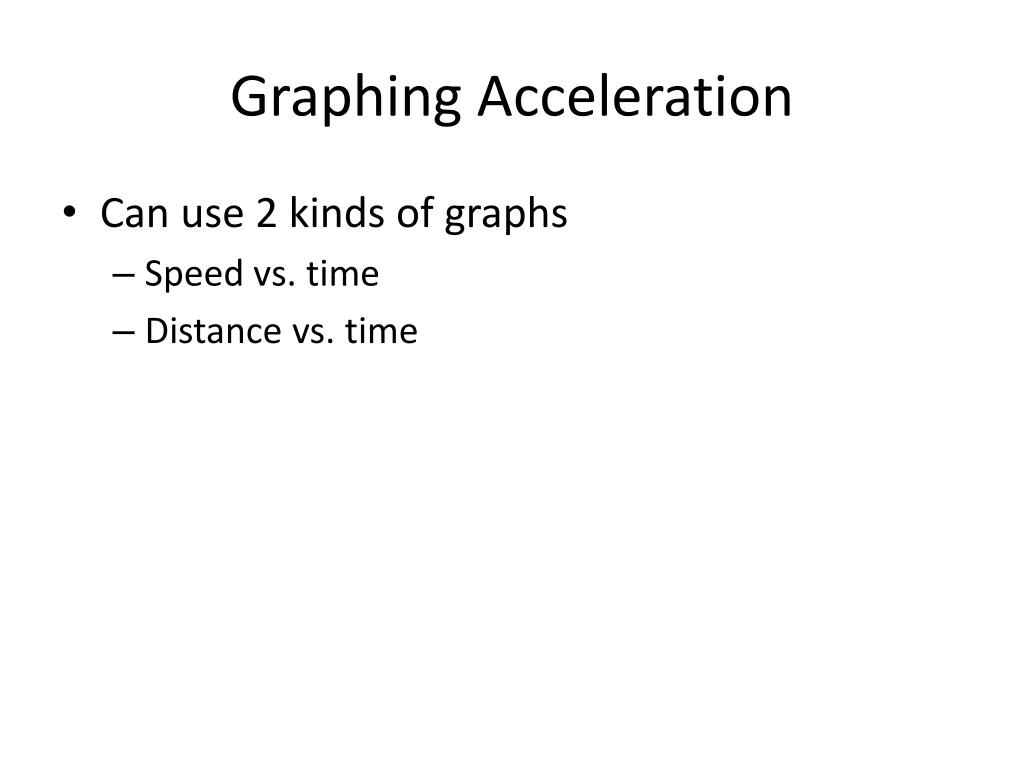

  1. Graphing Acceleration • Can use 2 kinds of graphs • Speed vs. time • Distance vs. time

  2. Graphing Acceleration:Speed vs. Time Graphs • If speed is changing with time = accelerating • If the line is straight = acceleration is constant • So what is happening below?

  3. Graphing Acceleration:Speed vs. Time Graphs Rise = 4 m/s Run = 2 s • In Speed vs. Time graphs: • Acceleration = Rise/Run • = 4 m/s ÷ 2 s = 2 m/s2

  4. Graphing Acceleration:Distance vs. Time Graphs • On Distance vs. Time graphs a curved line means the object is accelerating. • Curved line also means your speed is increasing. Remember slope = speed.

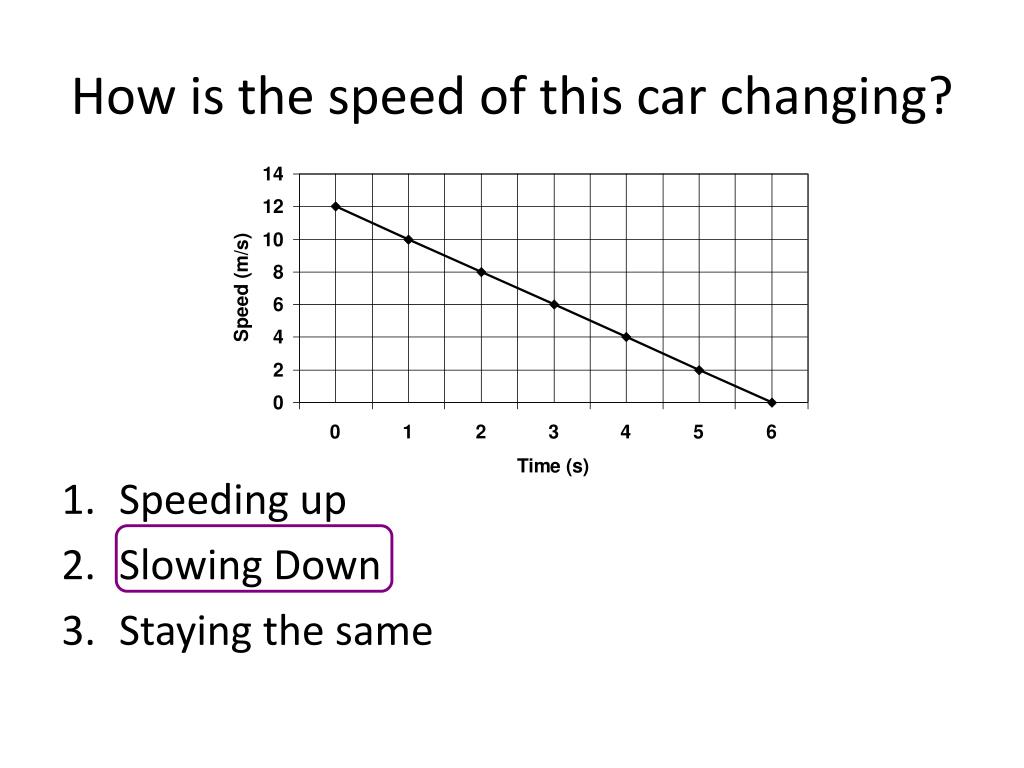

  5. How is the speed of this car changing? • Speeding up • Slowing Down • Staying the same

  6. Calculate this car’s acceleration. • 6 m/s • -6 m/s • 2 m/s2 • -2 m/s2

  7. Explanation of Answer Run = 3 s Rise = -6 m/s Acceleration = rise/run = -6m/s ÷3s = -2 m/s2

  8. Question: The black and red lines represent objects that are accelerating. Black is going a greater distance each second, so it must be speeding up. Red is going less each second, so must be slowing down Remember: in distance vs. time graphs: curved line = accelerating, flat line = constant speed • Which line represents an object that is accelerating?

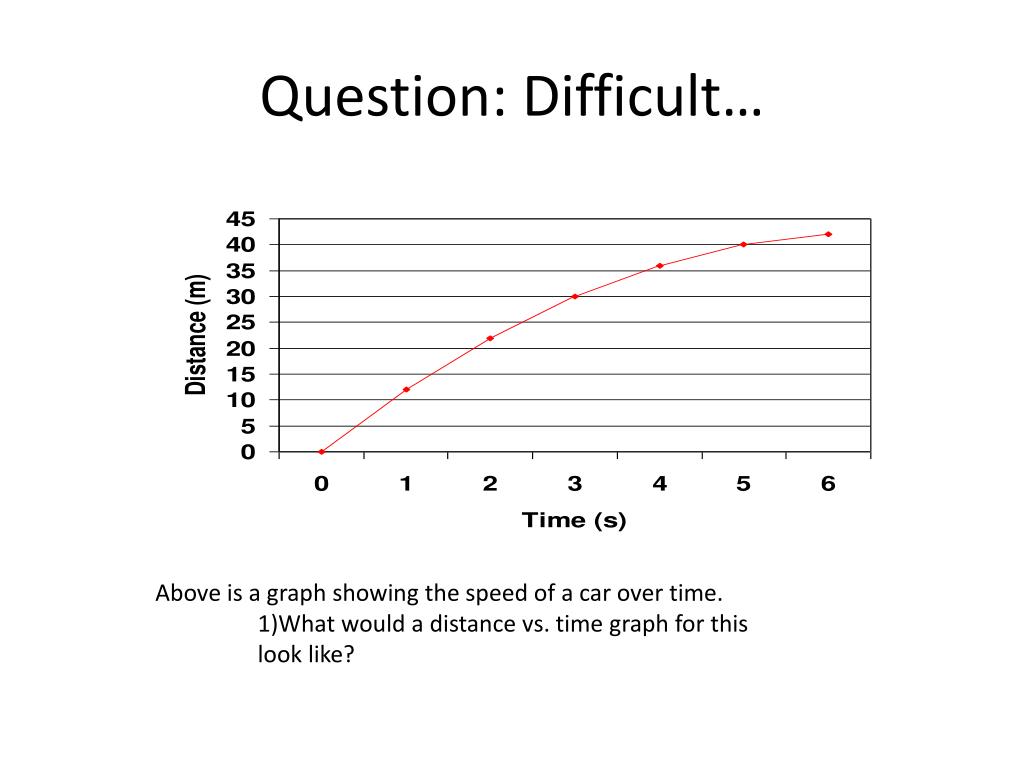

  9. Question: Difficult… Above is a graph showing the speed of a car over time. 1)What would a distance vs. time graph for this look like?
