  1. Post-Processing PipelineGDC March 2nd, 2011by Michael Alling

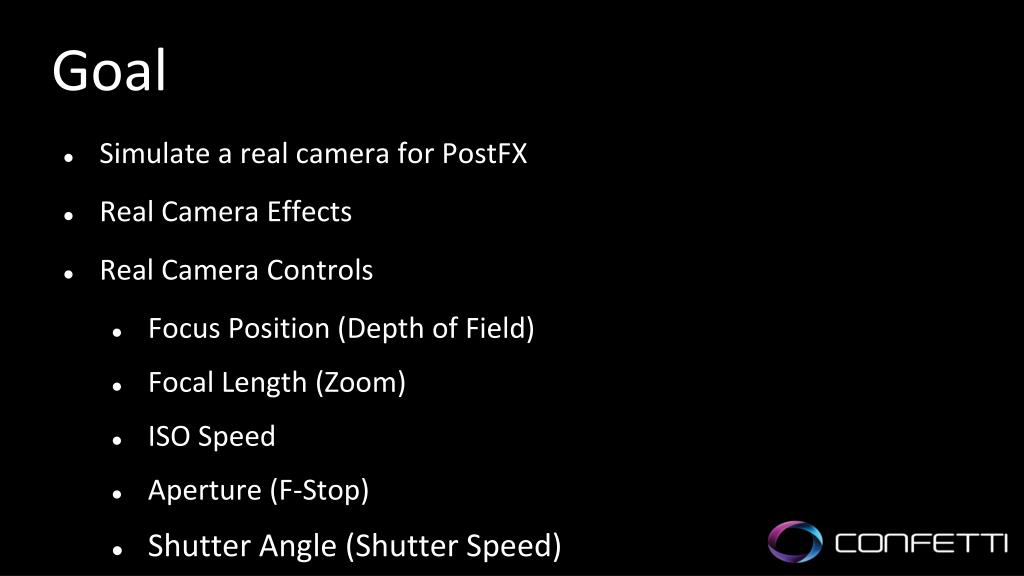

  2. Goal • Simulate a real camera for PostFX • Real Camera Effects • Real Camera Controls • Focus Position (Depth of Field) • Focal Length (Zoom) • ISO Speed • Aperture (F-Stop) • Shutter Angle (Shutter Speed)

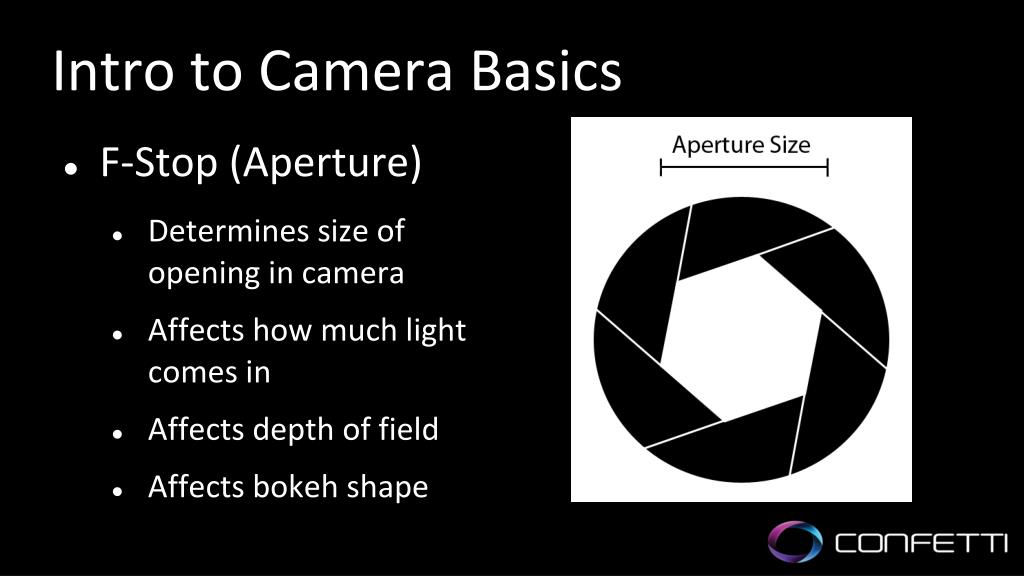

  3. Intro to Camera Basics • F-Stop (Aperture) • Determines size of opening in camera • Affects how much light comes in • Affects depth of field • Affects bokeh shape

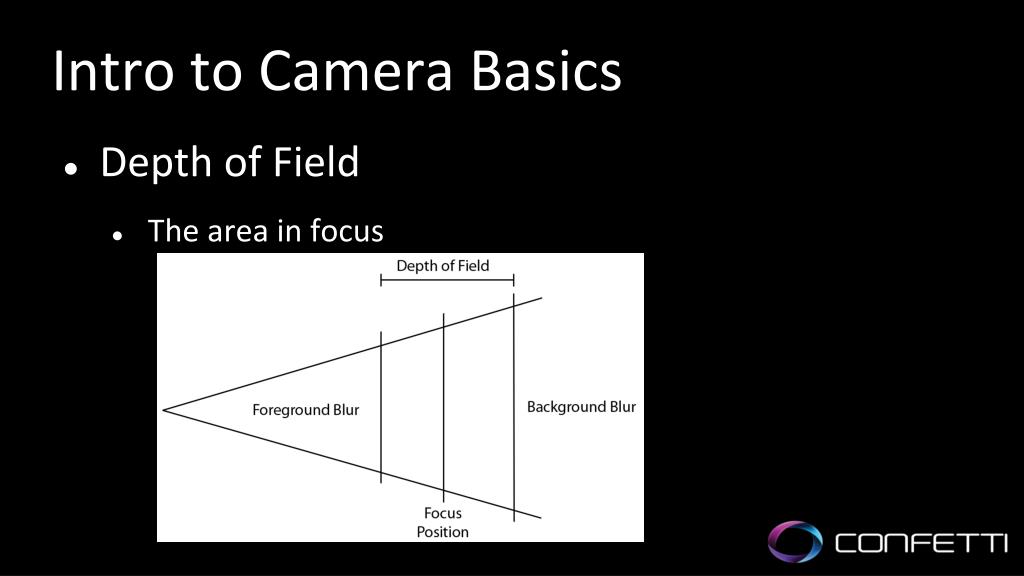

  4. Intro to Camera Basics • Depth of Field • The area in focus

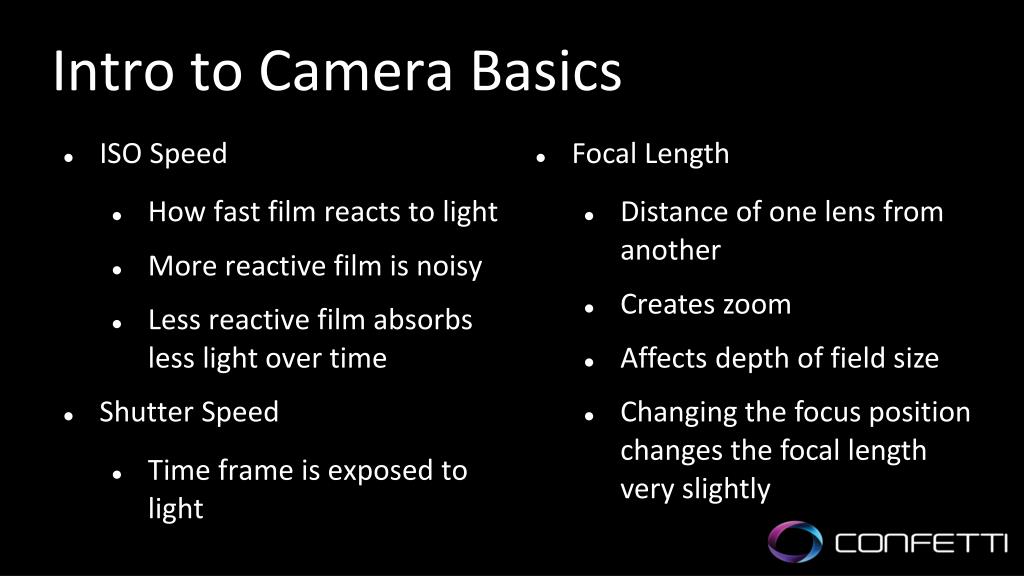

  5. Intro to Camera Basics • ISO Speed • How fast film reacts to light • More reactive film is noisy • Less reactive film absorbs less light over time • Shutter Speed • Time frame is exposed to light • Focal Length • Distance of one lens from another • Creates zoom • Affects depth of field size • Changing the focus position changes the focal length very slightly

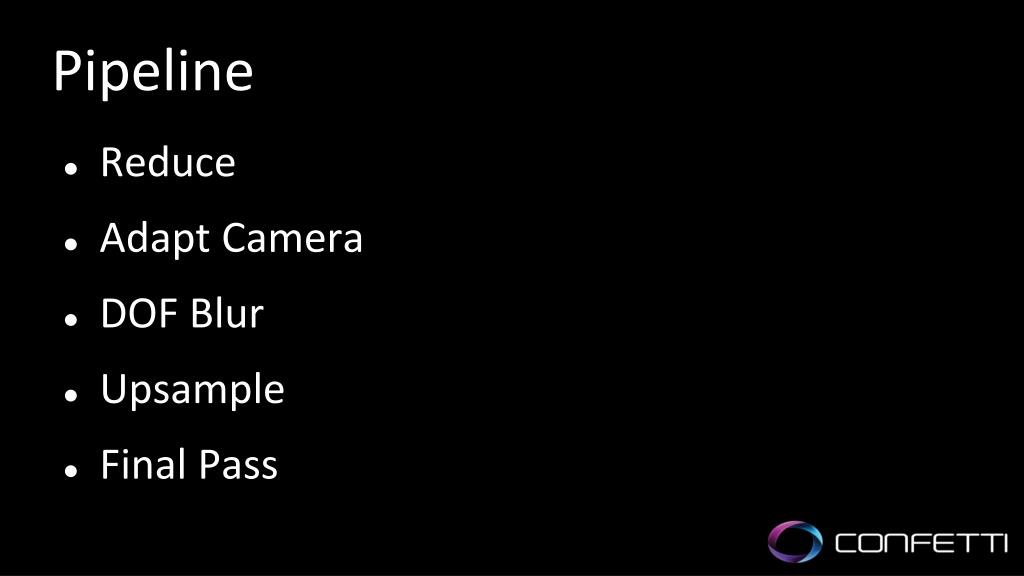

  6. Pipeline • Reduce • Adapt Camera • DOF Blur • Upsample • Final Pass

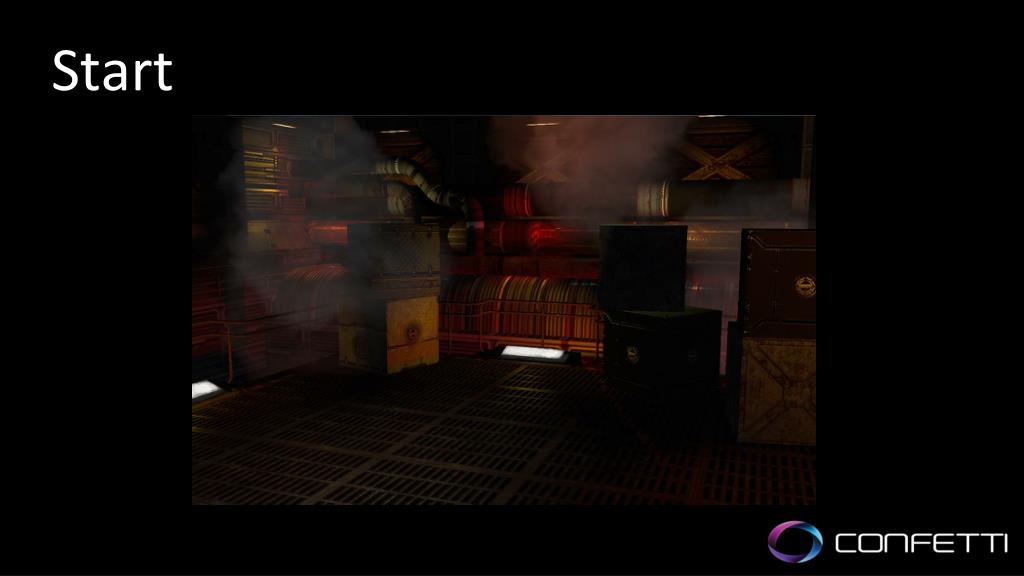

  7. Start

  8. Reduction • Reduce the scene to a size that will balance performance and quality

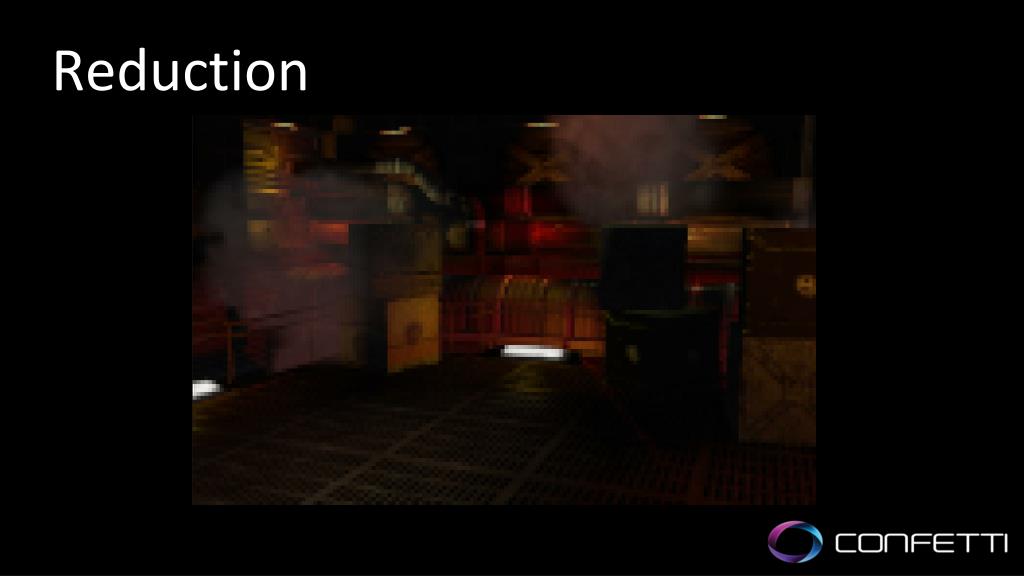

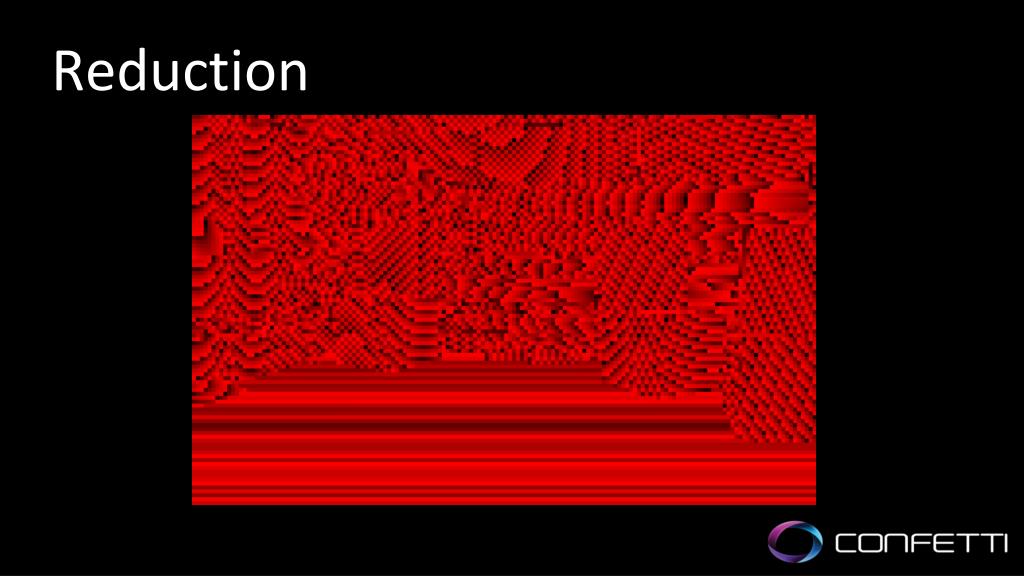

  9. Reduction

  10. Reduction

  11. Camera Adaptation • Convert reduced texture to log luminance • Reduce to 1x1 and store in a history texture • Average the history

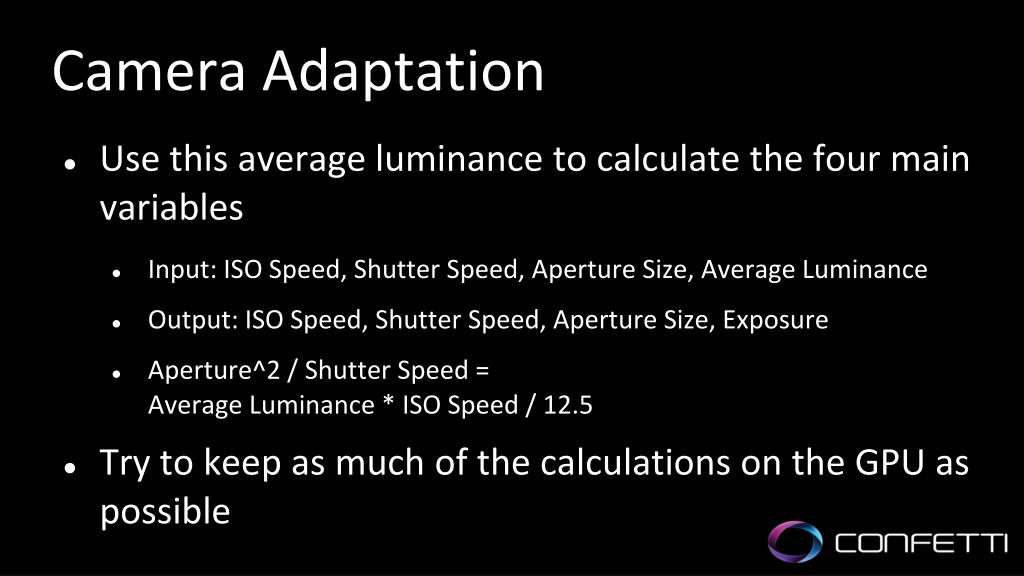

  12. Camera Adaptation • Use this average luminance to calculate the four main variables • Input: ISO Speed, Shutter Speed, Aperture Size, Average Luminance • Output: ISO Speed, Shutter Speed, Aperture Size, Exposure • Aperture^2 / Shutter Speed = Average Luminance * ISO Speed / 12.5 • Try to keep as much of the calculations on the GPU as possible

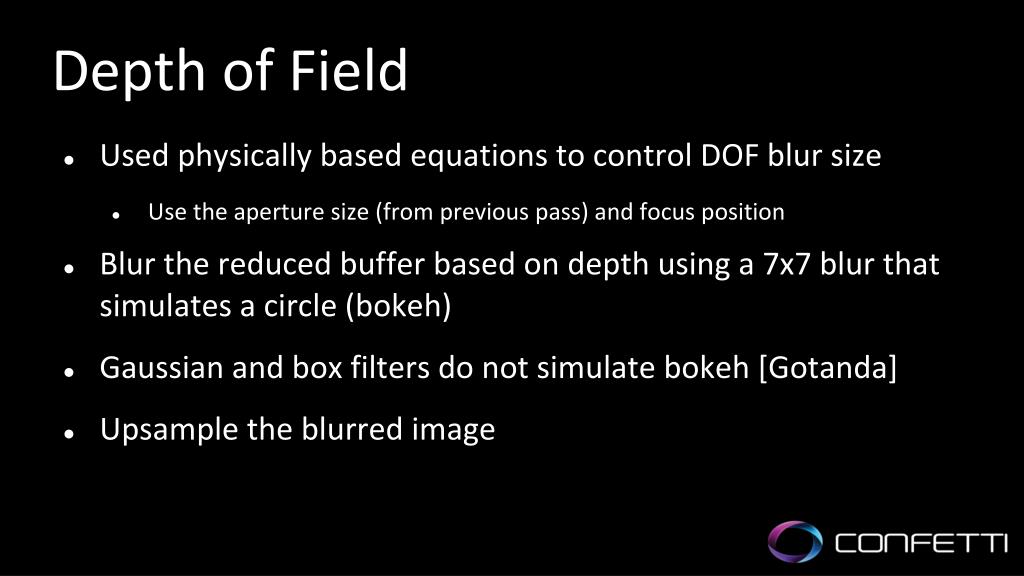

  13. Depth of Field • Used physically based equations to control DOF blur size • Use the aperture size (from previous pass) and focus position • Blur the reduced buffer based on depth using a 7x7 blur that simulates a circle (bokeh) • Gaussian and box filters do not simulate bokeh [Gotanda] • Upsample the blurred image

  14. Depth of Field Blur

  15. Upsample

  16. Upsample

  17. Final Pass • Generate blur size and lerp between blurred image and the original image • Resolve MSAA afterward

  18. Camera controls • Use focal length, aperture size, and focus position controls to generate blur size float GetRangeCoefficient( float focalLength, float fStop, float focusDist ){ //http://en.wikipedia.org/wiki/Circle_of_confusion return (focalLength * focalLength) / (fStop * (focusDist – focalLength));}float GetBlurSize( float depth, float focalLength, float fStop, float focusDist, float blurScale ){ //http://en.wikipedia.org/wiki/Circle_of_confusion float factor = abs( depth - focusDist ) / depth; float rangeC = GetRangeCoefficient( focalLength, fStop, focusDist ); float scale = blurScale; float result = abs( scale * factor * rangeC ); //prevents artifacts from the algorithm (you probably don't need) return min( result, 20.0f ); //can't be lower than 0 since abs()}

  19. F-Stop 0.5

  20. F-Stop 2

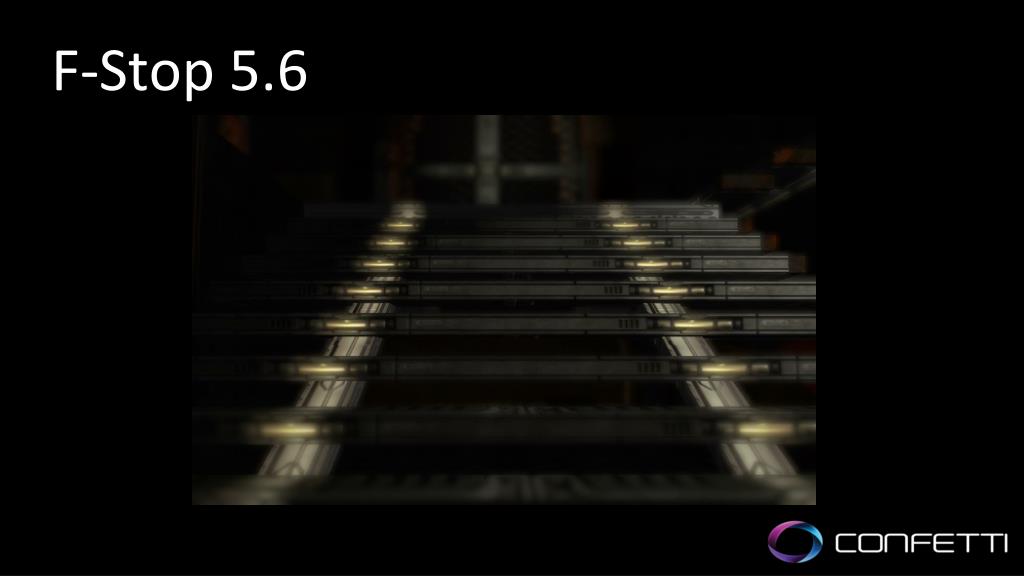

  21. F-Stop 5.6

  22. F-Stop 64

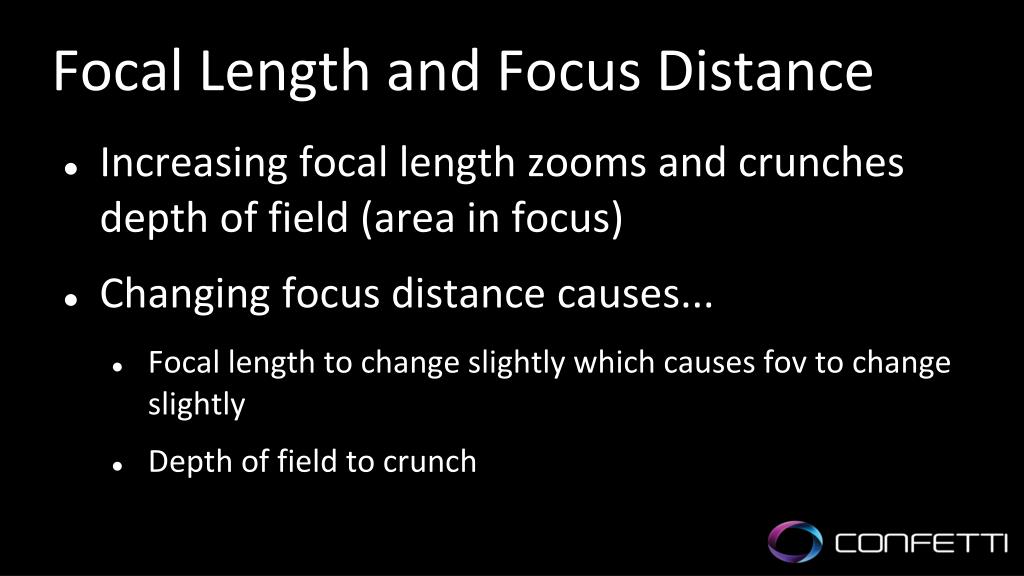

  23. Focal Length and Focus Distance • Increasing focal length zooms and crunches depth of field (area in focus) • Changing focus distance causes... • Focal length to change slightly which causes fov to change slightly • Depth of field to crunch

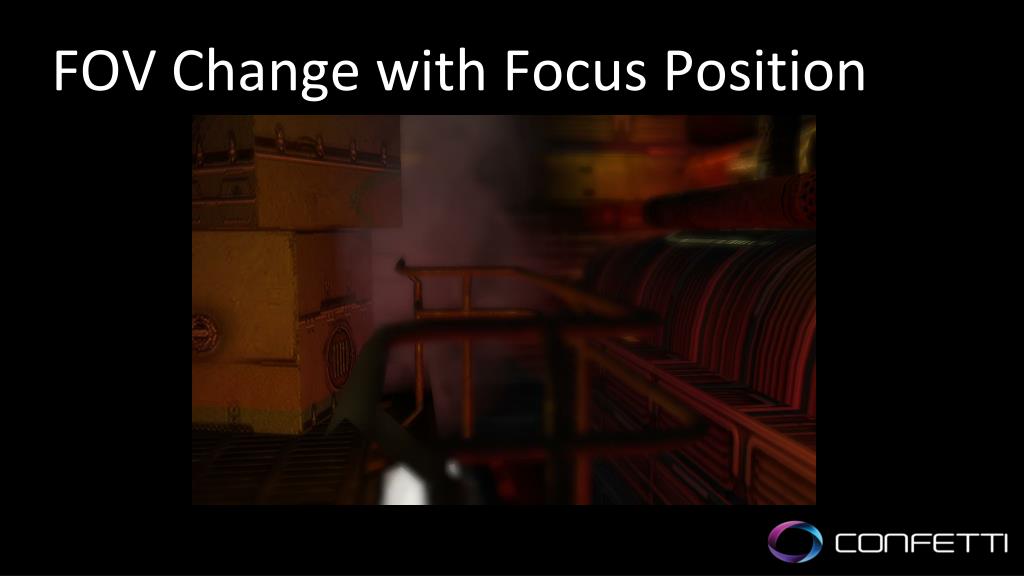

  24. FOV Change with Focus Position

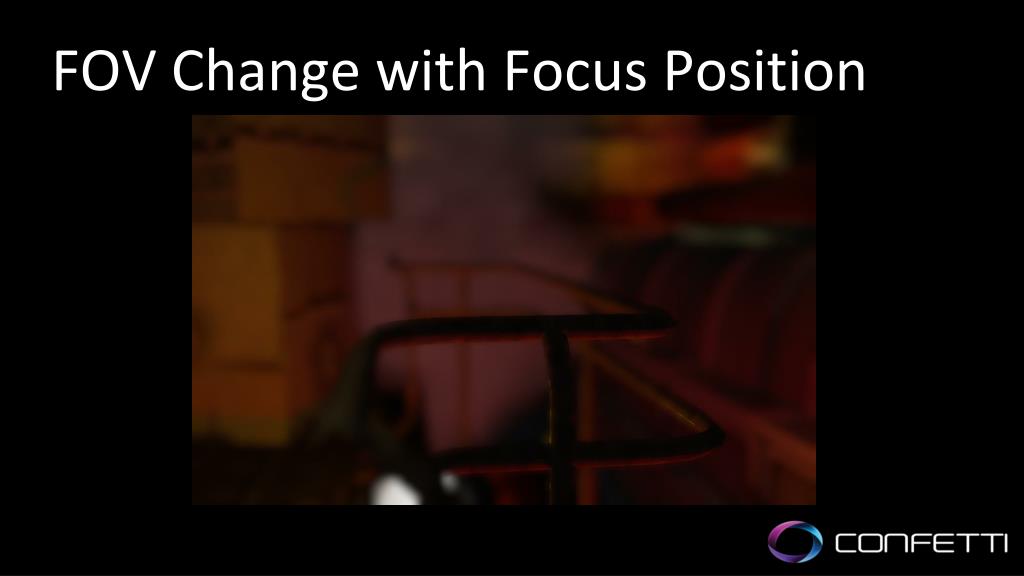

  25. FOV Change with Focus Position

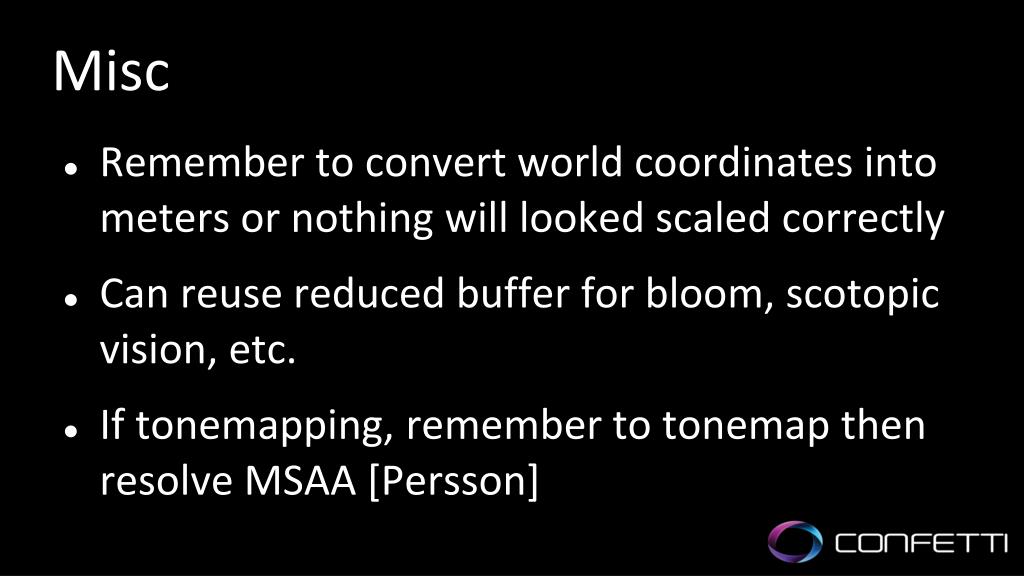

  26. Misc • Remember to convert world coordinates into meters or nothing will looked scaled correctly • Can reuse reduced buffer for bloom, scotopic vision, etc. • If tonemapping, remember to tonemap then resolve MSAA [Persson]

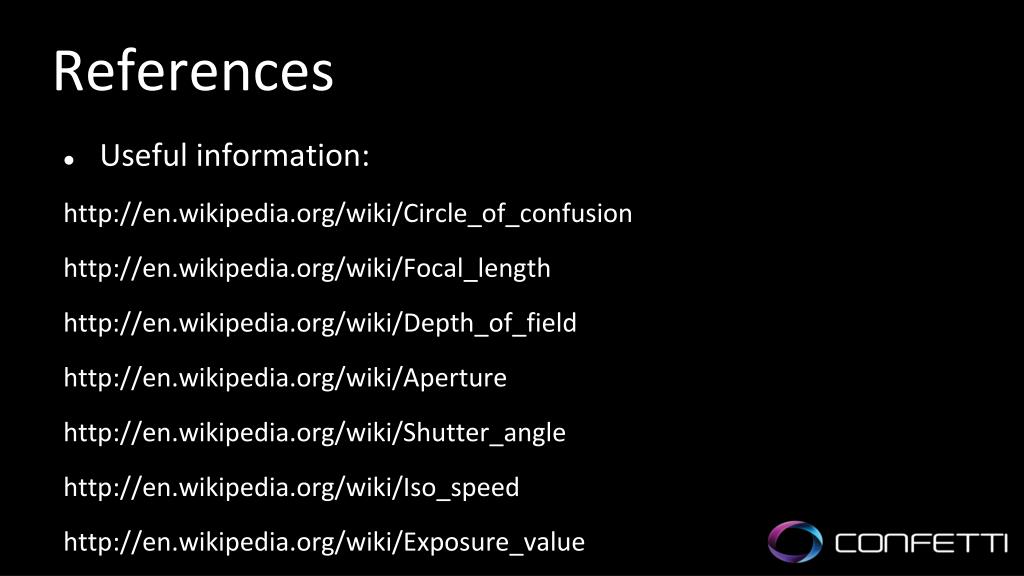

  27. References • Useful information: http://en.wikipedia.org/wiki/Circle_of_confusion http://en.wikipedia.org/wiki/Focal_length http://en.wikipedia.org/wiki/Depth_of_field http://en.wikipedia.org/wiki/Aperture http://en.wikipedia.org/wiki/Shutter_angle http://en.wikipedia.org/wiki/Iso_speed http://en.wikipedia.org/wiki/Exposure_value

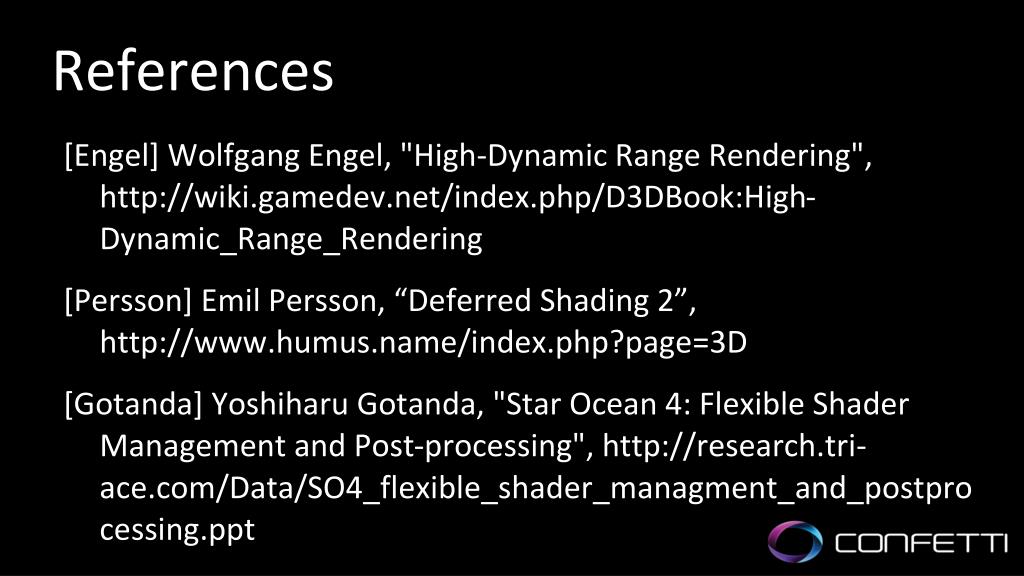

  28. References [Engel] Wolfgang Engel, "High-Dynamic Range Rendering", http://wiki.gamedev.net/index.php/D3DBook:High-Dynamic_Range_Rendering [Persson] Emil Persson, “Deferred Shading 2”, http://www.humus.name/index.php?page=3D [Gotanda] Yoshiharu Gotanda, "Star Ocean 4: Flexible Shader Management and Post-processing", http://research.tri-ace.com/Data/SO4_flexible_shader_managment_and_postprocessing.ppt

  29. Finish
