  1. Mixture modelling of continuous variables

  2. Mixture modelling • So far we have dealt with mixture modelling for a selection of binary or ordinal variables collected at a single time point (c/s) or longitudinally across time • The simplest example of a mixture model consists of a single continuous manifest variable • The multivariate extension to this simple model is known as Latent Profile Analysis

  3. Single continuous variable • An underlying latent grouping might present itself as a multi-modal distribution for the continuous variable Height

  4. Single continuous variable • An underlying latent grouping might present itself as a multi-modal distribution for the continuous variable Females Height

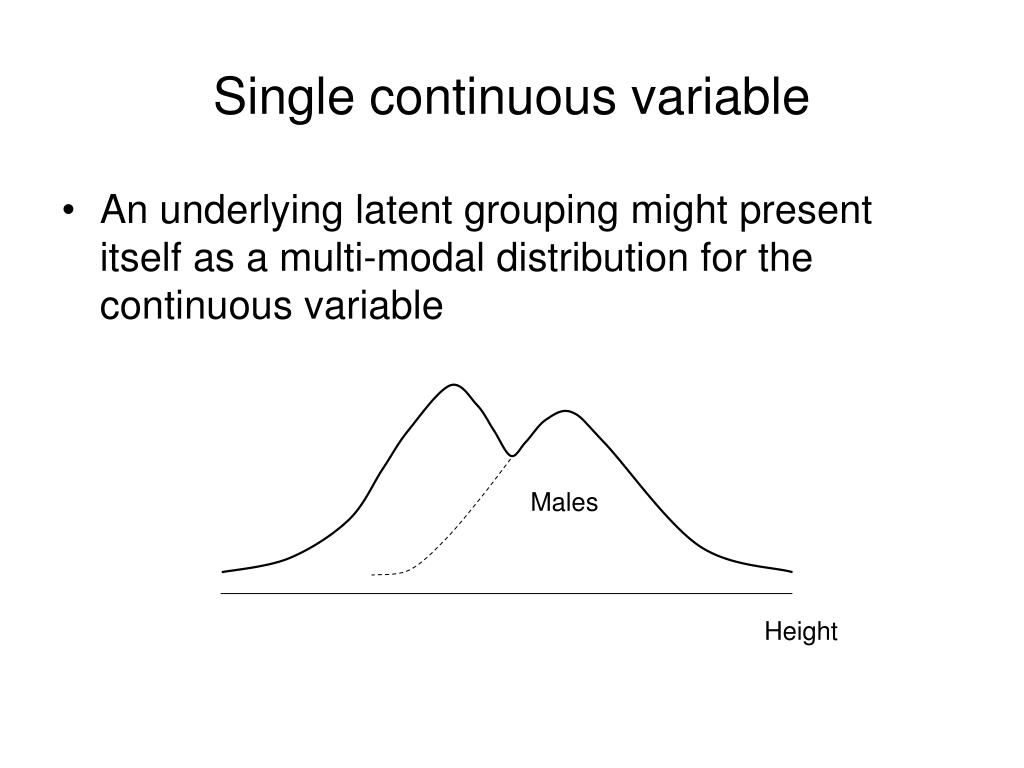

  5. Single continuous variable • An underlying latent grouping might present itself as a multi-modal distribution for the continuous variable Males Height

  6. Single continuous variable • But the distance between modes may be small or even non-existent • Depends on the variation in the item being measured and also the sample in which the measurement is taken (e.g. clinical or general population)

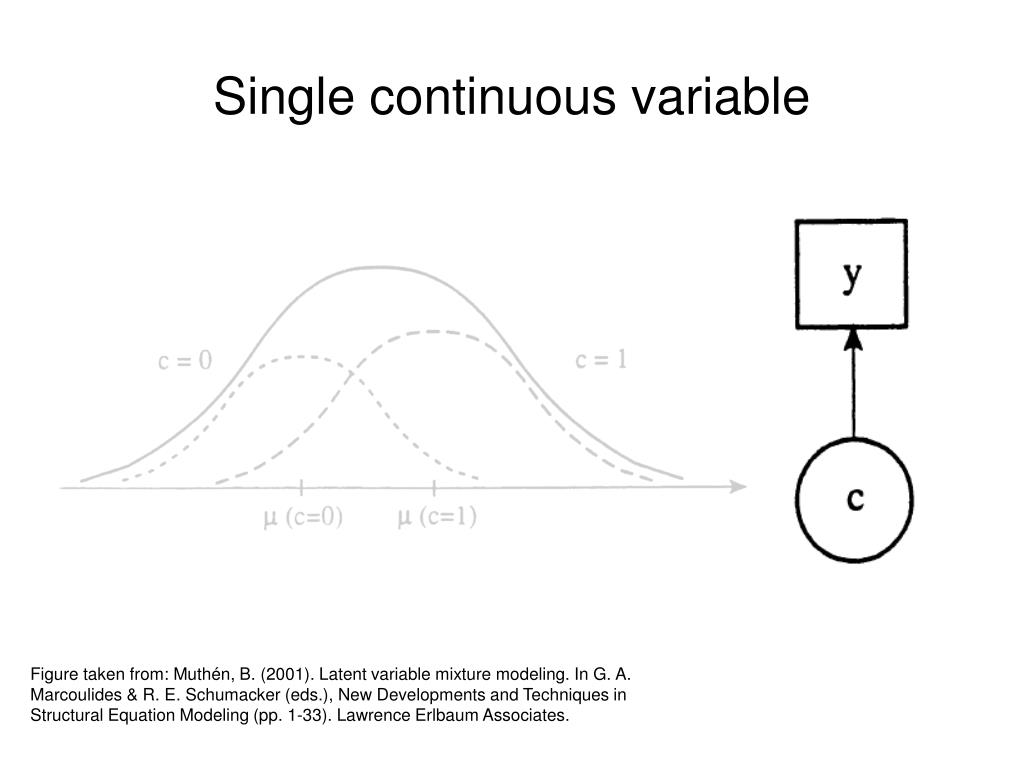

  7. Single continuous variable Figure taken from: Muthén, B. (2001). Latent variable mixture modeling. In G. A. Marcoulides & R. E. Schumacker (eds.), New Developments and Techniques in Structural Equation Modeling (pp. 1-33). Lawrence Erlbaum Associates.

  8. Single continuous variable Figure taken from: Muthén, B. (2001). Latent variable mixture modeling. In G. A. Marcoulides & R. E. Schumacker (eds.), New Developments and Techniques in Structural Equation Modeling (pp. 1-33). Lawrence Erlbaum Associates.

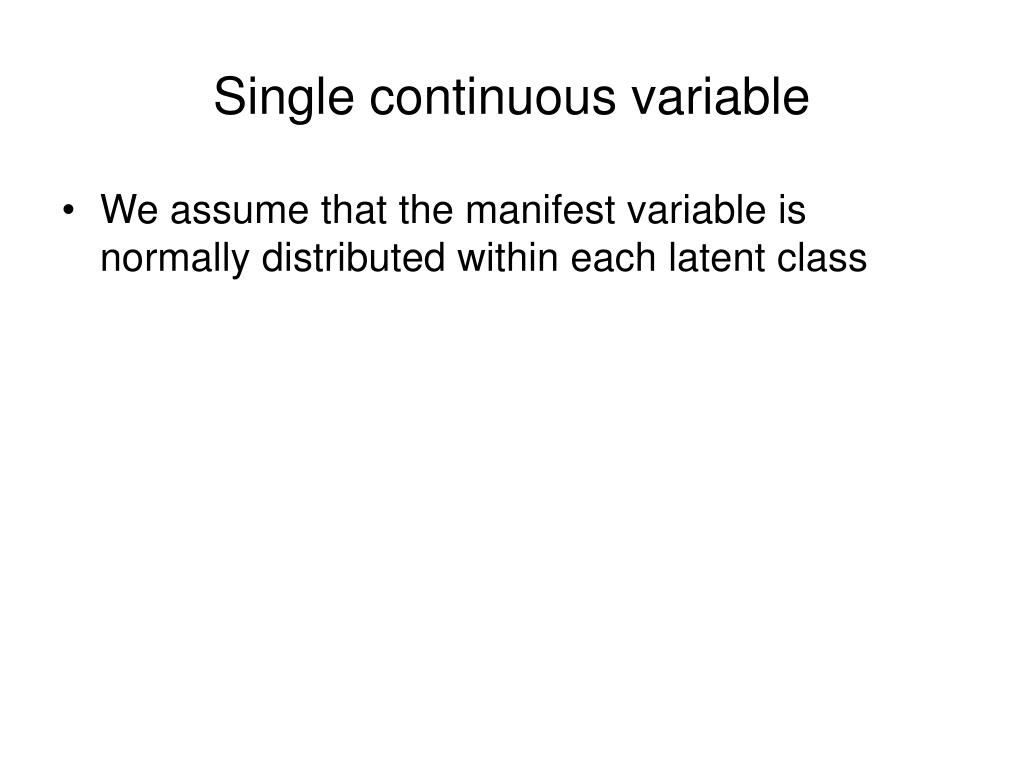

  9. Single continuous variable • We assume that the manifest variable is normally distributed within each latent class

  10. GHQ Example Data: File is "ego_ghq12_id.dta.dat" ; Define: sumodd = ghq01 +ghq03 +ghq05 +ghq07 +ghq09 +ghq11; sumeven = ghq02 +ghq04 +ghq06 +ghq08 +ghq10 +ghq12; ghq_sum = sumodd + sumeven; Variable: Names are ghq01 ghq02 ghq03 ghq04 ghq05 ghq06 ghq07 ghq08 ghq09 ghq10 ghq11 ghq12 f1 id; Missing are all (-9999) ; usevariables = ghq_sum; Analysis: Type = basic ; plot: type is plot3; Here we derive a single sum-score from the 12 ordinal GHQ items The syntax shows that variables can be created in the define statement which are not then used in the final model

  11. Examine the distribution of the scale Scale appears unimodal, although there is a long upper-tail

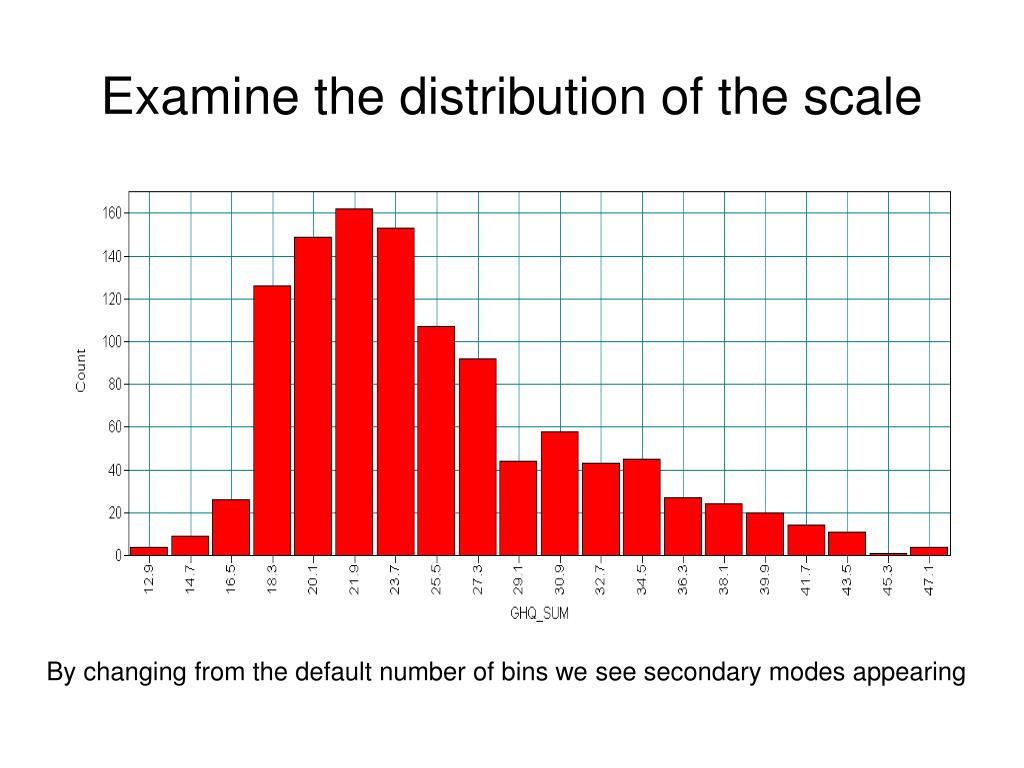

  12. Examine the distribution of the scale By changing from the default number of bins we see secondary modes appearing

  13. Fit a 2-class mixture Variable: <snip> classes = c(2); Analysis: type = mixture ; proc = 2 (starts); starts = 100 20; stiterations = 20; stscale = 15; model: %overall% %c#1% [ghq_sum]; ghq_sum (equal_var); %c#2% [ghq_sum]; ghq_sum (equal_var);

  14. Fit a 2-class mixture Variable: <snip> classes = c(2); Analysis: type = mixture ; proc = 2 (starts); starts = 100 20; stiterations = 20; stscale = 15; model: %overall% %c#1% [ghq_sum]; ghq_sum (equal_var); %c#2% [ghq_sum]; ghq_sum (equal_var); This funny set of symbols refers to the first class Means are referred to using square brackets. Variances are bracket-less. Here we have constrained the variances to be equal between classes by having the same bit of text in brackets at the end of the two variance lines Means will be freely estimated.

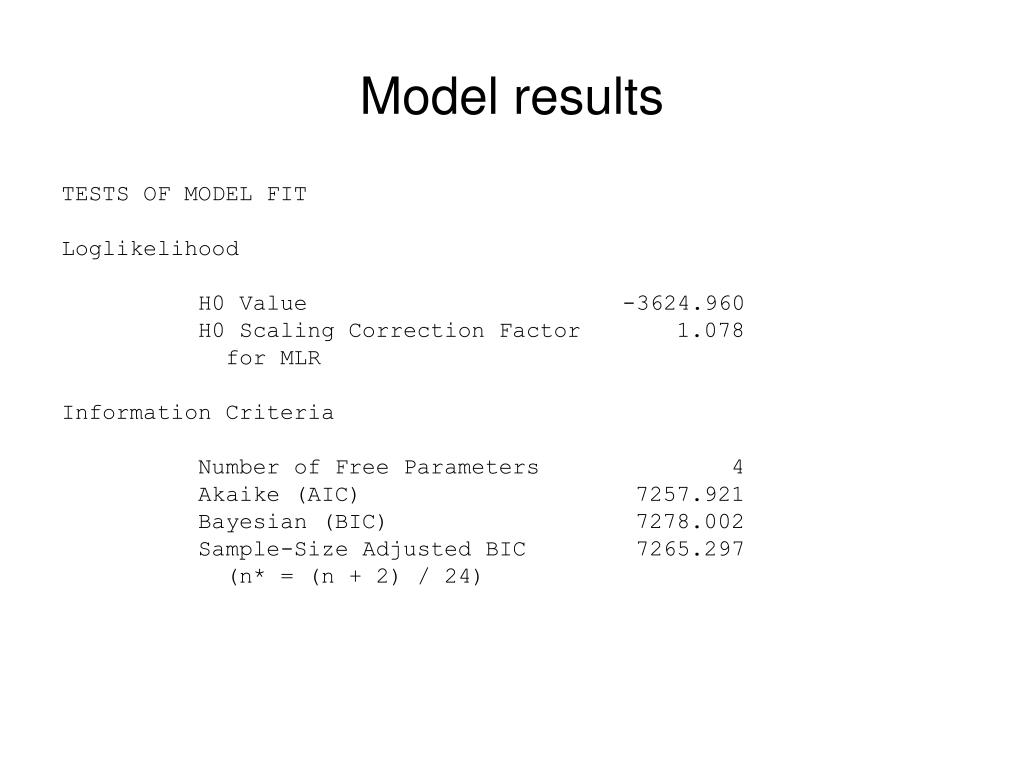

  15. Model results TESTS OF MODEL FIT Loglikelihood H0 Value -3624.960 H0 Scaling Correction Factor 1.078 for MLR Information Criteria Number of Free Parameters 4 Akaike (AIC) 7257.921 Bayesian (BIC) 7278.002 Sample-Size Adjusted BIC 7265.297 (n* = (n + 2) / 24)

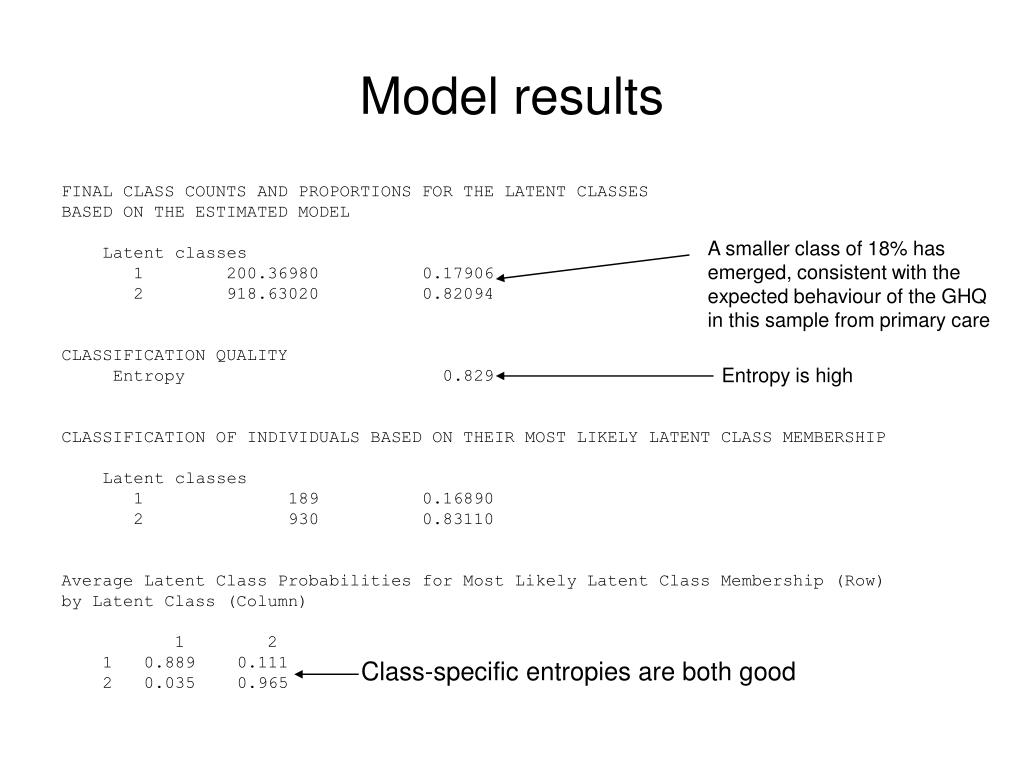

  16. Model results FINAL CLASS COUNTS AND PROPORTIONS FOR THE LATENT CLASSES BASED ON THE ESTIMATED MODEL Latent classes 1 200.36980 0.17906 2 918.63020 0.82094 CLASSIFICATION QUALITY Entropy 0.829 CLASSIFICATION OF INDIVIDUALS BASED ON THEIR MOST LIKELY LATENT CLASS MEMBERSHIP Latent classes 1 189 0.16890 2 930 0.83110 Average Latent Class Probabilities for Most Likely Latent Class Membership (Row) by Latent Class (Column) 1 2 1 0.889 0.111 2 0.035 0.965 A smaller class of 18% has emerged, consistent with the expected behaviour of the GHQ in this sample from primary care Entropy is high Class-specific entropies are both good

  17. Model results Two-Tailed Estimate S.E. Est./S.E. P-Value Latent Class 1 Means GHQ_SUM 37.131 0.574 64.737 0.000 Variances GHQ_SUM 18.876 1.016 18.581 0.000 Latent Class 2 Means GHQ_SUM 23.618 0.202 117.046 0.000 Variances GHQ_SUM 18.876 1.016 18.581 0.000 Categorical Latent Variables Means C#1 -1.523 0.118 -12.947 0.000 Huge separation in means since SD = 4.3 (i.e. sqrt(18.88))

  18. Examine within-class distributions

  19. Examine within-class distributions

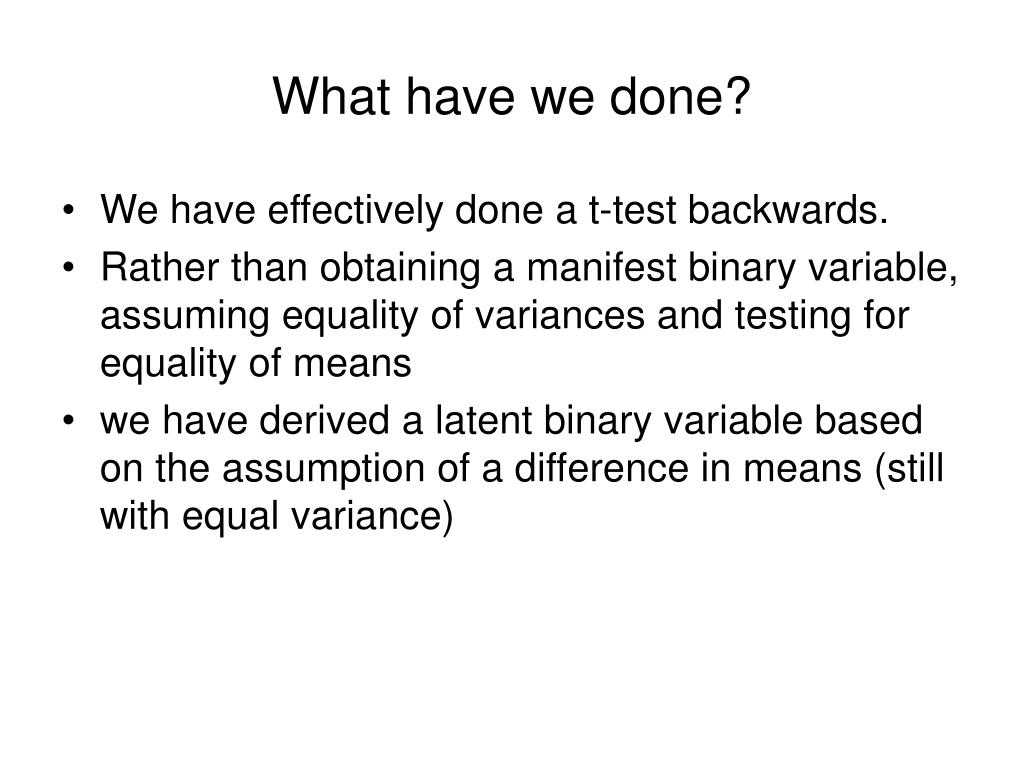

  20. What have we done? • We have effectively done a t-test backwards. • Rather than obtaining a manifest binary variable, assuming equality of variances and testing for equality of means • we have derived a latent binary variable based on the assumption of a difference in means (still with equal variance)

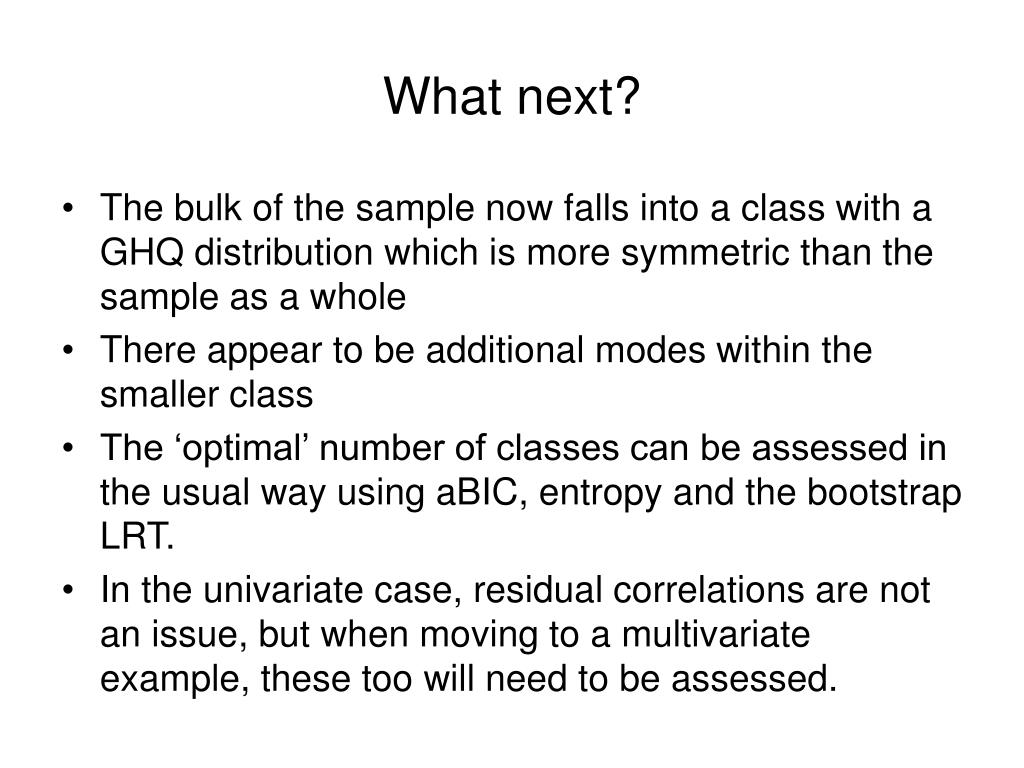

  21. What next? • The bulk of the sample now falls into a class with a GHQ distribution which is more symmetric than the sample as a whole • There appear to be additional modes within the smaller class • The ‘optimal’ number of classes can be assessed in the usual way using aBIC, entropy and the bootstrap LRT. • In the univariate case, residual correlations are not an issue, but when moving to a multivariate example, these too will need to be assessed.

  22. What next? • As before, posterior probabilities can be exported and modelled in a weighted regression analysis • A logistic regression analysis using a latent binary variable derived from the data is likely to be far more informative than a linear-regression analysis using the manifest continuous variable

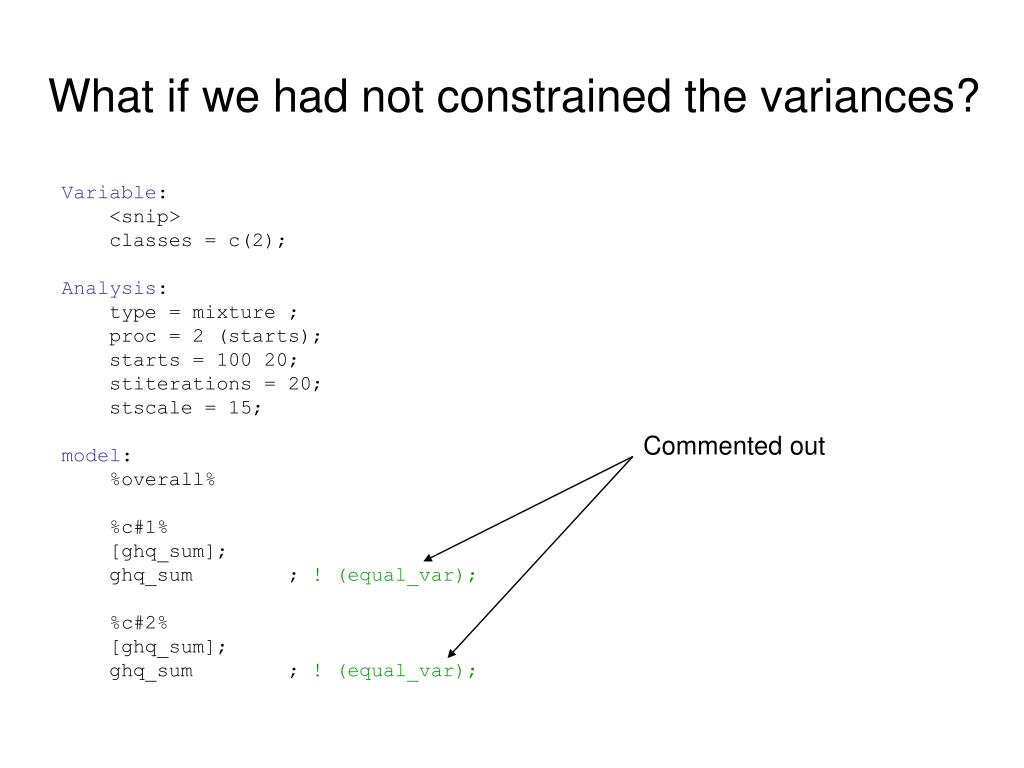

  23. What if we had not constrained the variances? Variable: <snip> classes = c(2); Analysis: type = mixture ; proc = 2 (starts); starts = 100 20; stiterations = 20; stscale = 15; model: %overall% %c#1% [ghq_sum]; ghq_sum ; ! (equal_var); %c#2% [ghq_sum]; ghq_sum ; ! (equal_var); Commented out

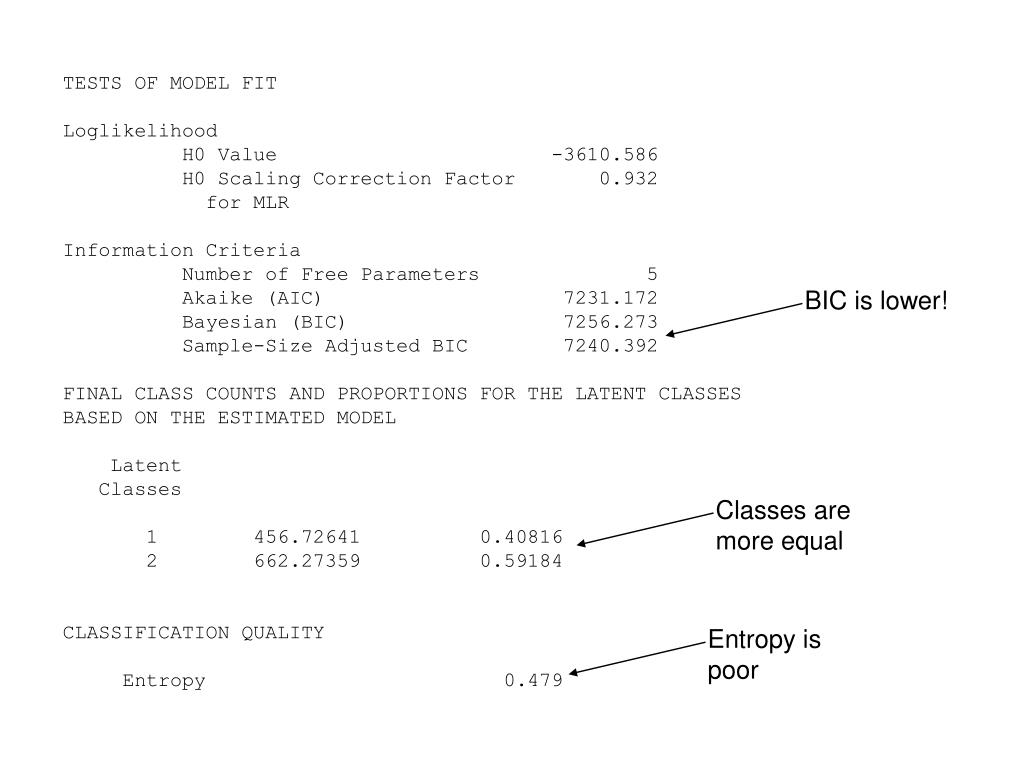

  24. TESTS OF MODEL FIT Loglikelihood H0 Value -3610.586 H0 Scaling Correction Factor 0.932 for MLR Information Criteria Number of Free Parameters 5 Akaike (AIC) 7231.172 Bayesian (BIC) 7256.273 Sample-Size Adjusted BIC 7240.392 FINAL CLASS COUNTS AND PROPORTIONS FOR THE LATENT CLASSES BASED ON THE ESTIMATED MODEL Latent Classes 1 456.72641 0.40816 2 662.27359 0.59184 CLASSIFICATION QUALITY Entropy 0.479 BIC is lower! Classes are more equal Entropy is poor

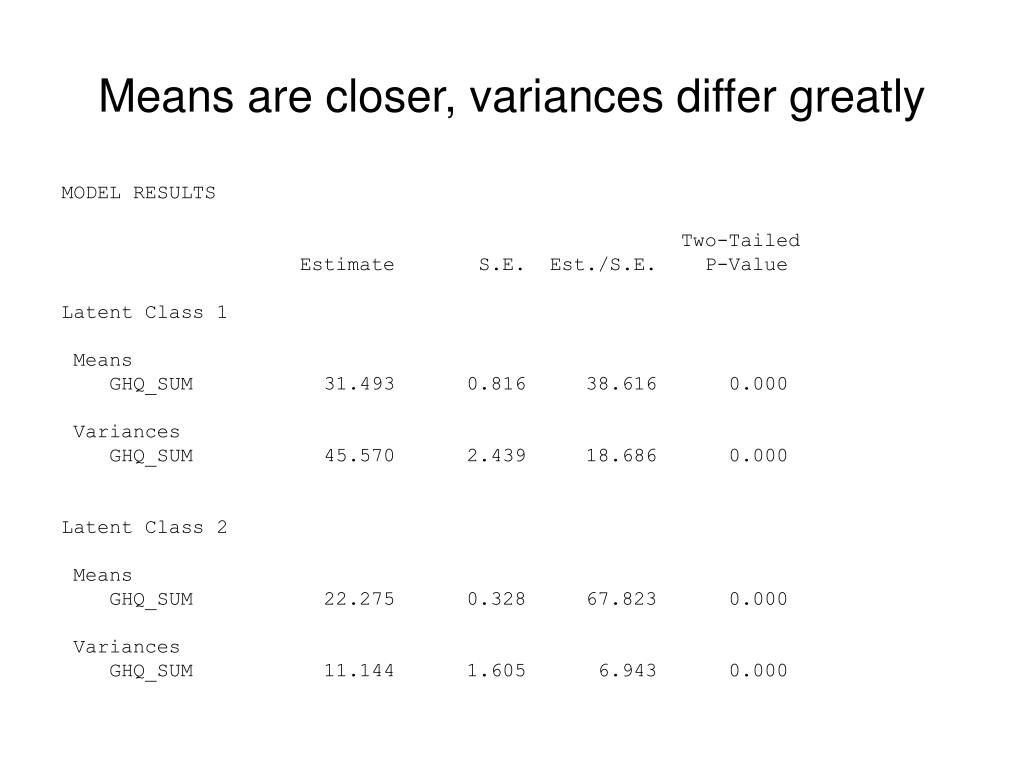

  25. Means are closer, variances differ greatly MODEL RESULTS Two-Tailed Estimate S.E. Est./S.E. P-Value Latent Class 1 Means GHQ_SUM 31.493 0.816 38.616 0.000 Variances GHQ_SUM 45.570 2.439 18.686 0.000 Latent Class 2 Means GHQ_SUM 22.275 0.328 67.823 0.000 Variances GHQ_SUM 11.144 1.605 6.943 0.000

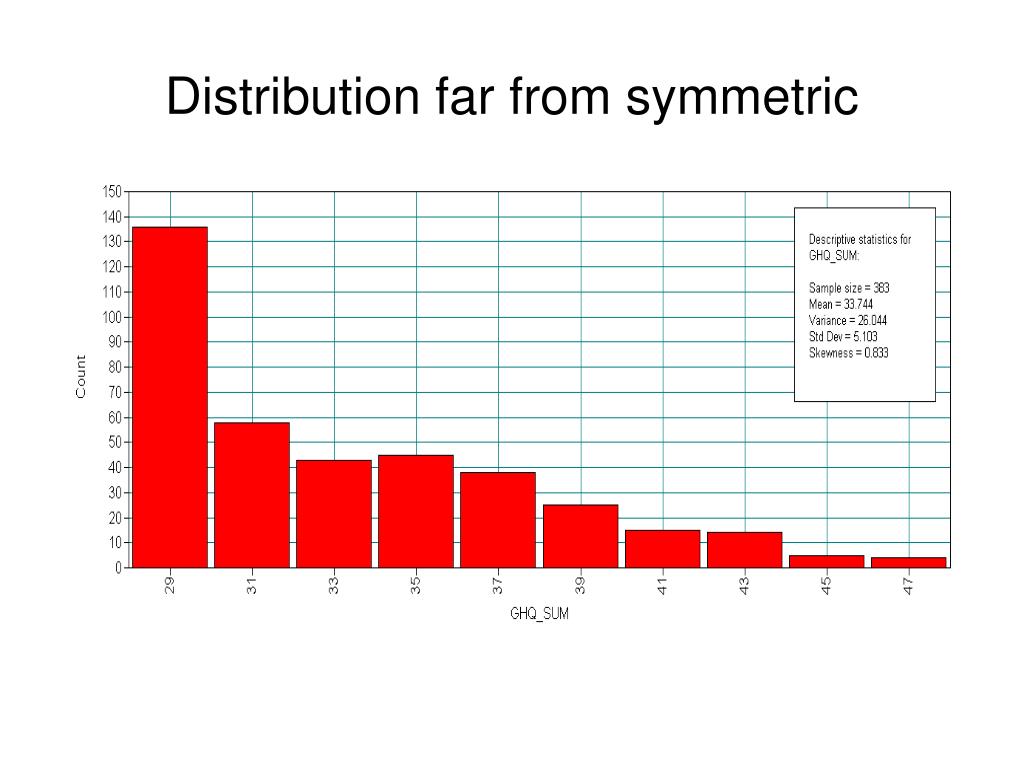

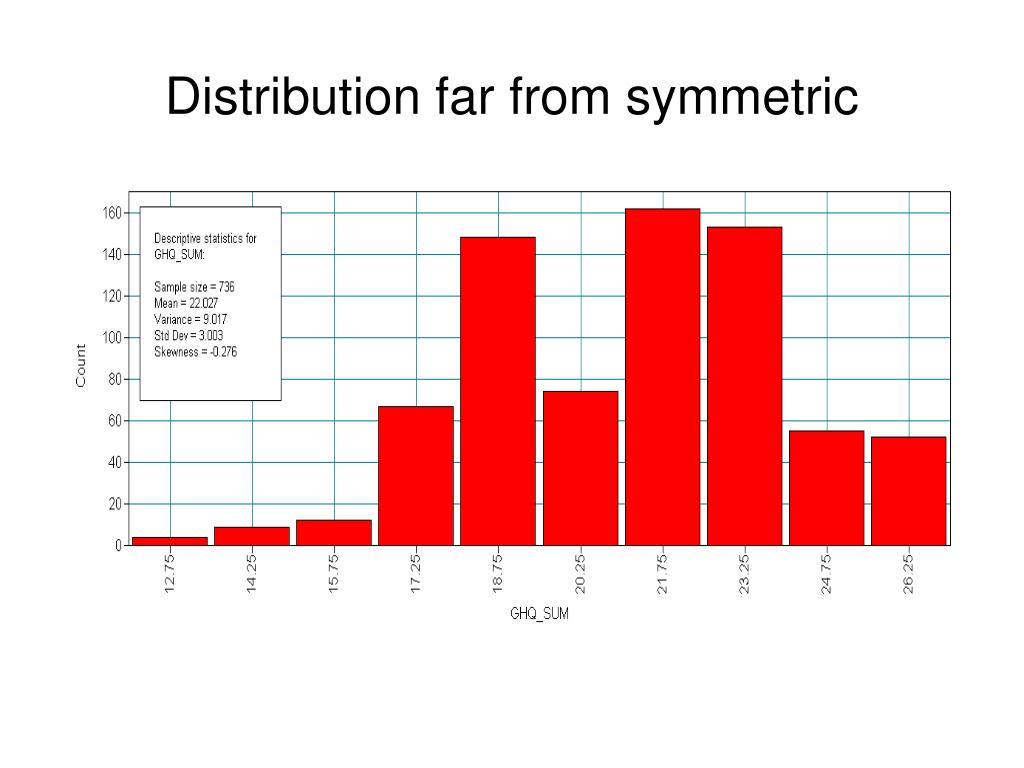

  26. Distribution far from symmetric

  27. Distribution far from symmetric
