Spin Tissue Processor FM-STP-A100 - Compact Tissue Processor

Fison Spin Tissue Processor features a 12-station carousel with 2.3 L capacity for uniform tissue processing. Automated timing vacuum options and LCD control reduce manual handling and support consistent workflow. Suitable for tissue dehydration, infiltration, and paraffin embedding in clinical and research laboratories.

AlexiaFison
Télécharger la présentation

Spin Tissue Processor FM-STP-A100 - Compact Tissue Processor

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

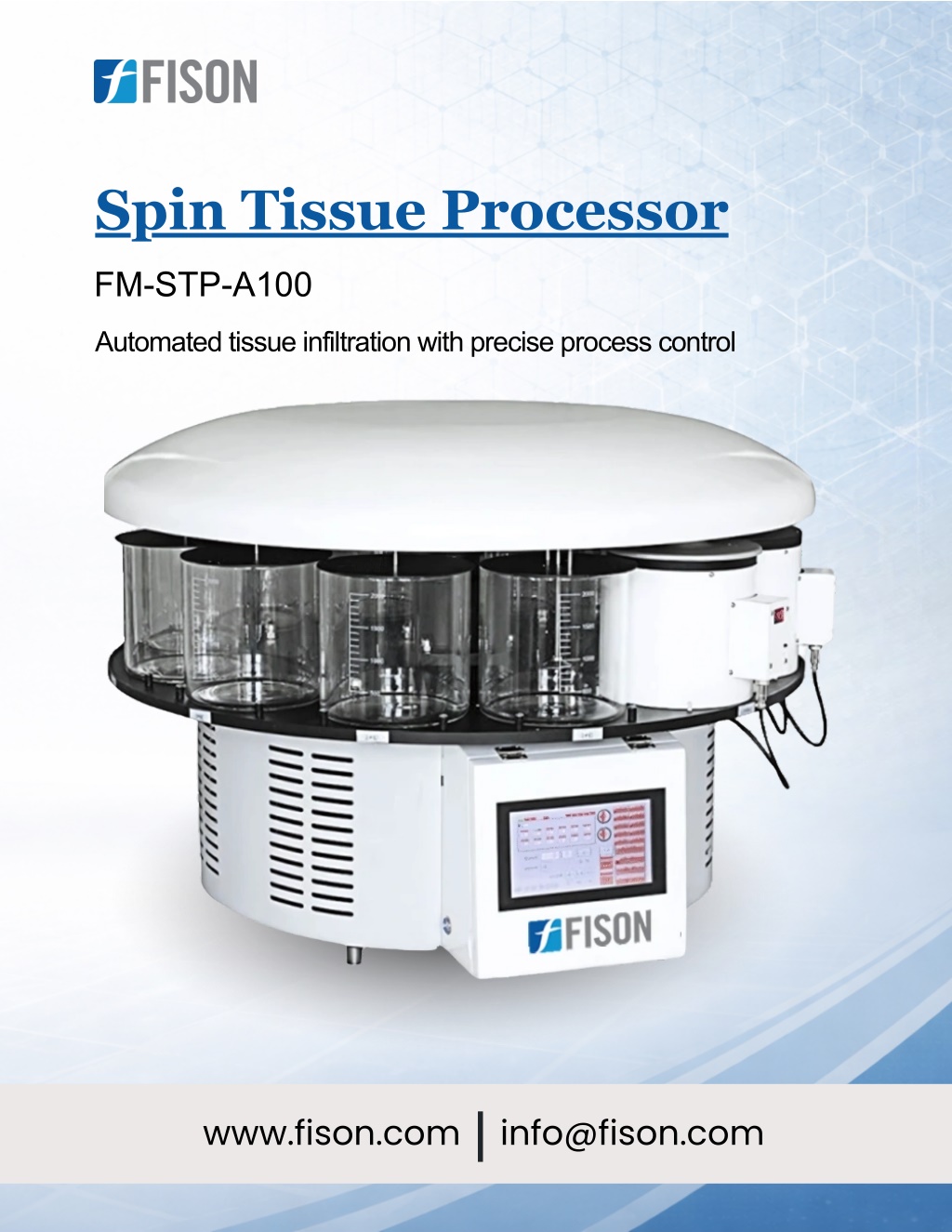

  1. Spin Tissue Processor FM-STP-A100 Automated tissue infiltration with precise process control | www.fison.com info@fison.com

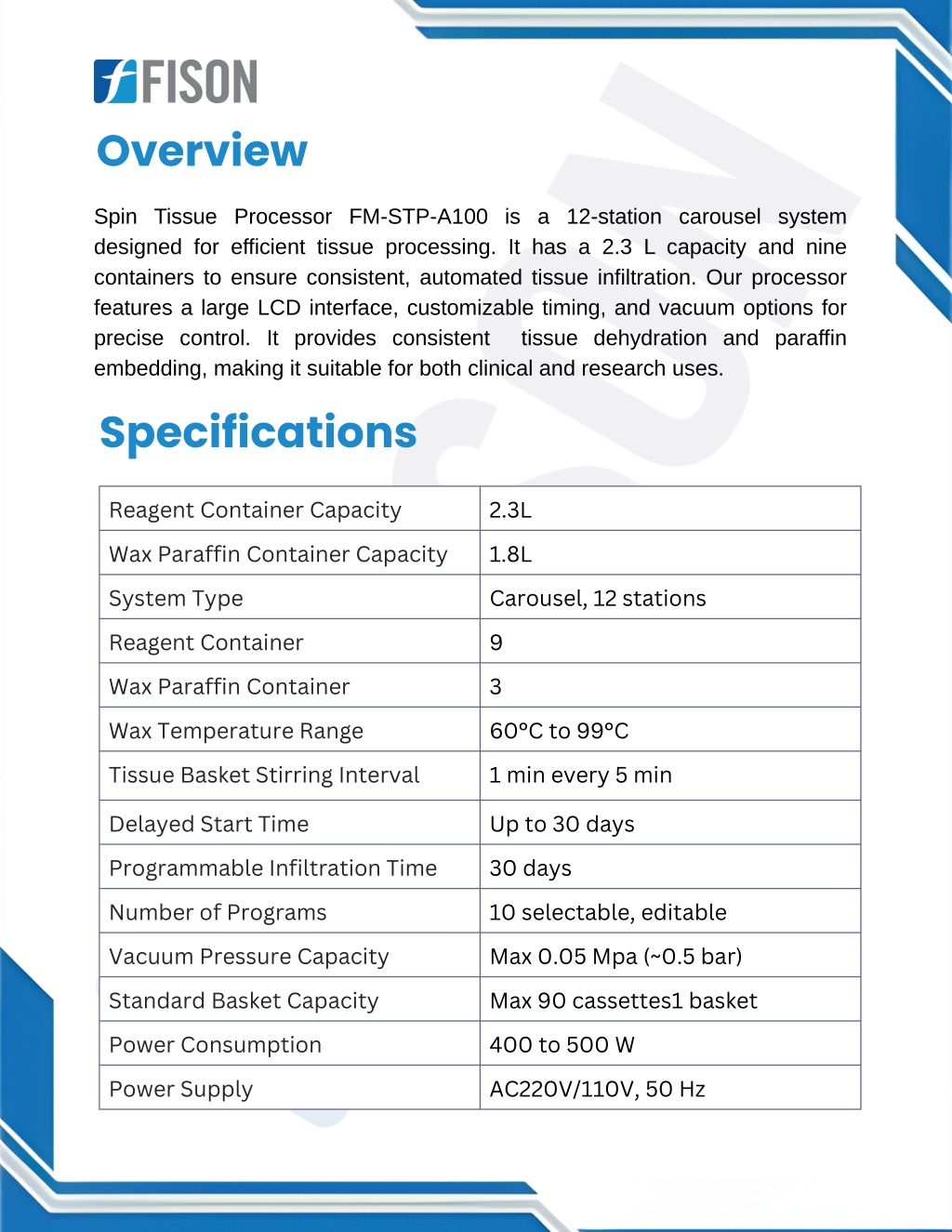

  2. Overview Spin Tissue Processor FM-STP-A100 is a 12-station carousel system designed for efficient tissue processing. It has a 2.3 L capacity and nine containers to ensure consistent, automated tissue infiltration. Our processor features a large LCD interface, customizable timing, and vacuum options for precise control. It provides consistent tissue dehydration and paraffin embedding, making it suitable for both clinical and research uses. Specifications Reagent Container Capacity 2.3L Wax Paraffin Container Capacity 1.8L System Type Carousel, 12 stations Reagent Container 9 Wax Paraffin Container 3 Wax Temperature Range 60°C to 99°C Tissue Basket Stirring Interval 1 min every 5 min Delayed Start Time Up to 30 days Programmable Infiltration Time 30 days Number of Programs 10 selectable, editable Vacuum Pressure Capacity Max 0.05 Mpa (~0.5 bar) Standard Basket Capacity Max 90 cassettes1 basket Power Consumption 400 to 500 W Power Supply AC220V/110V, 50 Hz

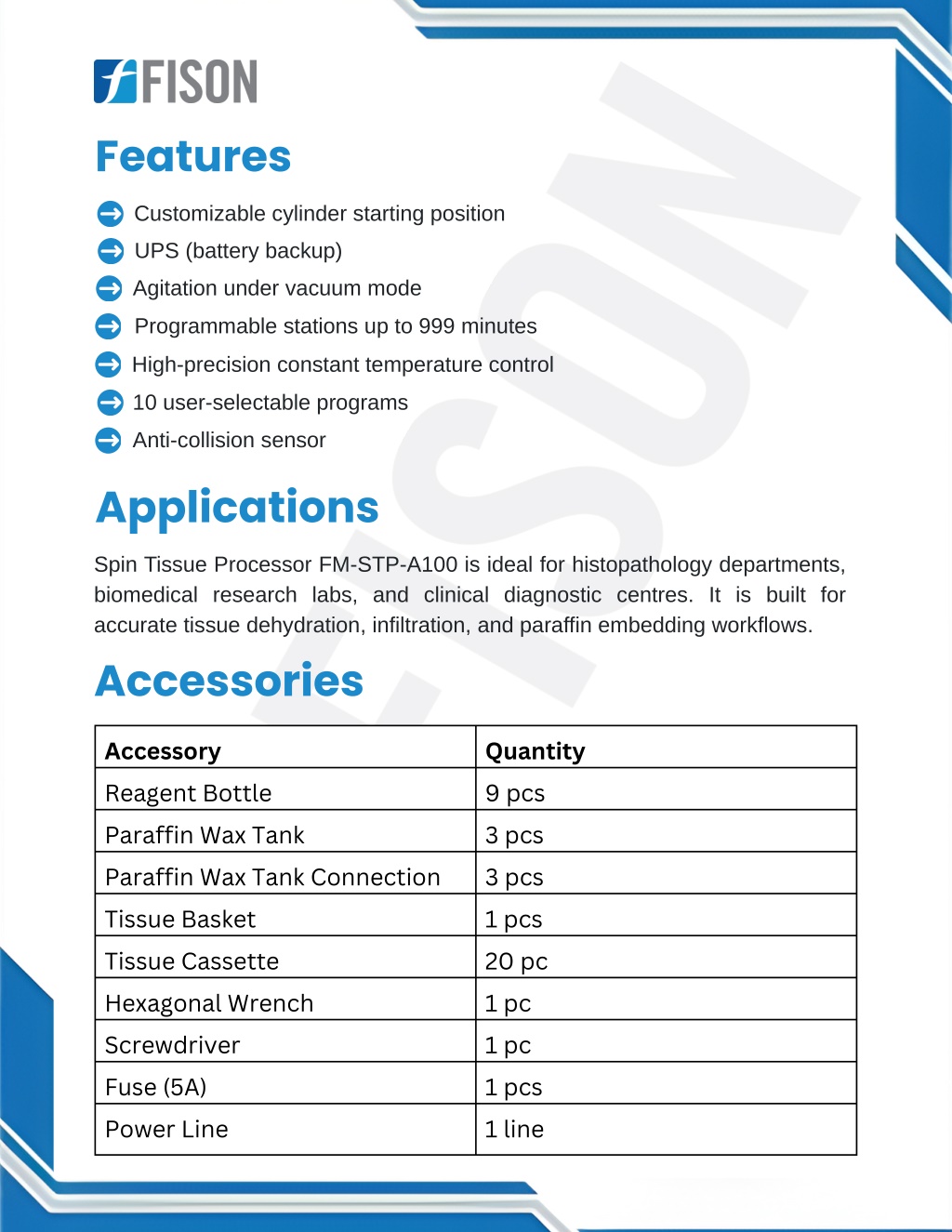

  3. Features Customizable cylinder starting position UPS (battery backup) Agitation under vacuum mode Programmable stations up to 999 minutes High-precision constant temperature control 10 user-selectable programs Anti-collision sensor Applications Spin Tissue Processor FM-STP-A100 is ideal for histopathology departments, biomedical research labs, and clinical diagnostic centres. It is built for accurate tissue dehydration, infiltration, and paraffin embedding workflows. Accessories Accessory Reagent Bottle Paraffin Wax Tank Paraffin Wax Tank Connection Tissue Basket Tissue Cassette Hexagonal Wrench Screwdriver Fuse (5A) Power Line Quantity 9 pcs 3 pcs 3 pcs 1 pcs 20 pc 1 pc 1 pc 1 pcs 1 line

  4. www.fison.com info@fison.com
