WARM UP

WARM UP. A secant and a tangent to a circle intersect in a 42 degree angle. The two arcs of the circle intercepted by the secant and tangent have measures in a 7:3 ratio. Find the measure of the third arc. Find the measures of angle 1 and 2. 60 o. 90 o. 30 o. 90 o. 60 o. 65 o. 25 o.

aaron-davenport
Télécharger la présentation

WARM UP

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. WARM UP • A secant and a tangent to a circle intersect in a 42 degree angle. The two arcs of the circle intercepted by the secant and tangent have measures in a 7:3 ratio. Find the measure of the third arc. • Find the measures of angle 1 and 2.

  2. 60o 90o 30o 90o 60o 65o 25o 55o 125o 90o 35o

  3. Section 9.7 Circles and Lengths of Segments

  4. Interior Segments Draw the following. ac = bd

  5. Find the value of x. x(x - 2) = 12(2) x2 – 2x = 24 It’s a quadratic so set it = 0 x2 – 2x – 24 = 0 (x – 6)(x + 4) = 0 x – 6 = 0 and x + 4 = 0 x = 6 and x = - 4

  6. TWO SECANTS Draw the following. kg = jh

  7. Find the measure of x. 10x = 12(3) 10x = 36 x = 3.6

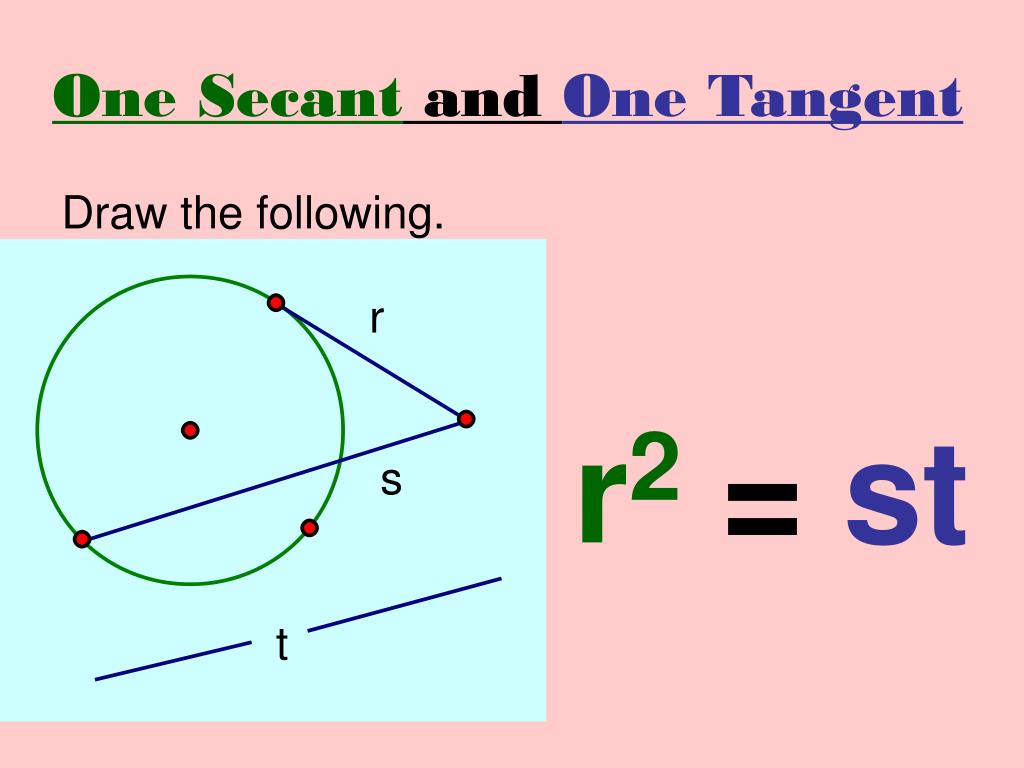

  8. One Secant and One Tangent Draw the following. r2 = st

  9. Find the missing measure x2 = 10(4) x2 = 40

  10. Practice Problems • Page 363 - 364 • Classroom Exercises #1 - 6 • DRAW IT!!!!!!!
