Binary Counters

This guide explores various types of 3-bit binary counters, focusing on up, down, and up-down counters. Each counter's functioning is analyzed through its state transition tables, equations, and simulations. Key components like clock pins, output pins, and truth tables for 7-segment displays are examined to provide a comprehensive understanding of binary counting operations. We'll delve into practical implementations with push-button switches, output vectors, and segmentation for real-world applications, enhancing your grasp of digital design.

abbott
Télécharger la présentation

Binary Counters

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Binary Counters Module M10.3 Section 7.2

  2. Counters • 3-Bit Up Counter • 3-Bit Down Counter • Up-Down Counter

  3. State Q2 Q1 Q0 Q2.D Q1.D Q0.D D Q Q0.D Q0 CLK !Q s0 0 0 0 0 0 1 s1 0 0 1 0 1 0 s2 0 1 0 0 1 1 s3 0 1 1 1 0 0 s4 1 0 0 1 0 1 s5 1 0 1 1 1 0 s6 1 1 0 1 1 1 s7 1 1 1 0 0 0 D Q Q1.D Q1 CLK !Q D Q Q2.D Q2 CLK !Q Divide-by-8 Counter

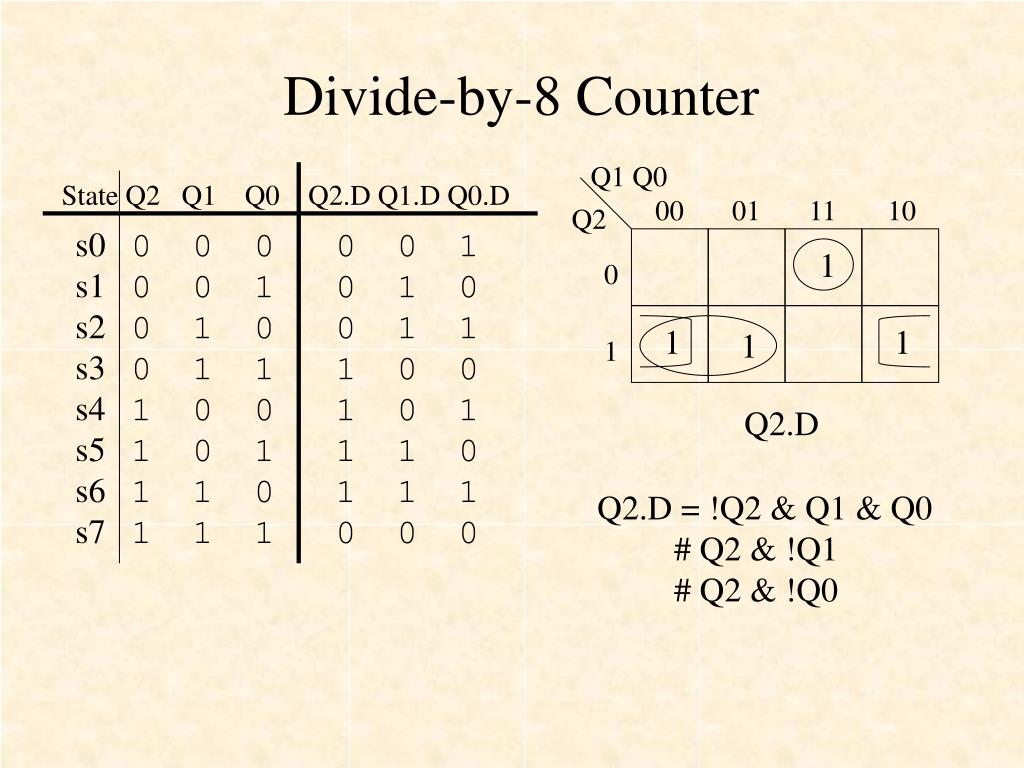

  4. State Q2 Q1 Q0 Q2.D Q1.D Q0.D s0 0 0 0 0 0 1 s1 0 0 1 0 1 0 s2 0 1 0 0 1 1 s3 0 1 1 1 0 0 s4 1 0 0 1 0 1 s5 1 0 1 1 1 0 s6 1 1 0 1 1 1 s7 1 1 1 0 0 0 Divide-by-8 Counter Q1 Q0 00 01 11 10 Q2 1 0 1 1 1 1 Q2.D Q2.D = !Q2 & Q1 & Q0 # Q2 & !Q1 # Q2 & !Q0

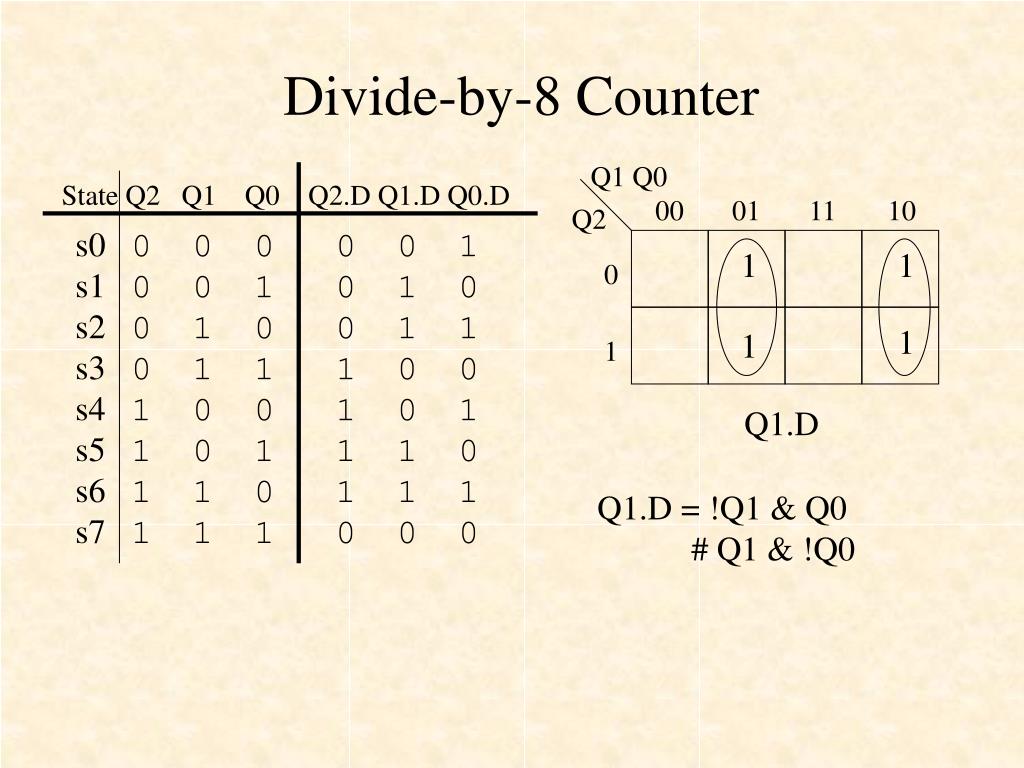

  5. State Q2 Q1 Q0 Q2.D Q1.D Q0.D s0 0 0 0 0 0 1 s1 0 0 1 0 1 0 s2 0 1 0 0 1 1 s3 0 1 1 1 0 0 s4 1 0 0 1 0 1 s5 1 0 1 1 1 0 s6 1 1 0 1 1 1 s7 1 1 1 0 0 0 Divide-by-8 Counter Q1 Q0 00 01 11 10 Q2 1 1 0 1 1 1 Q1.D Q1.D = !Q1 & Q0 # Q1 & !Q0

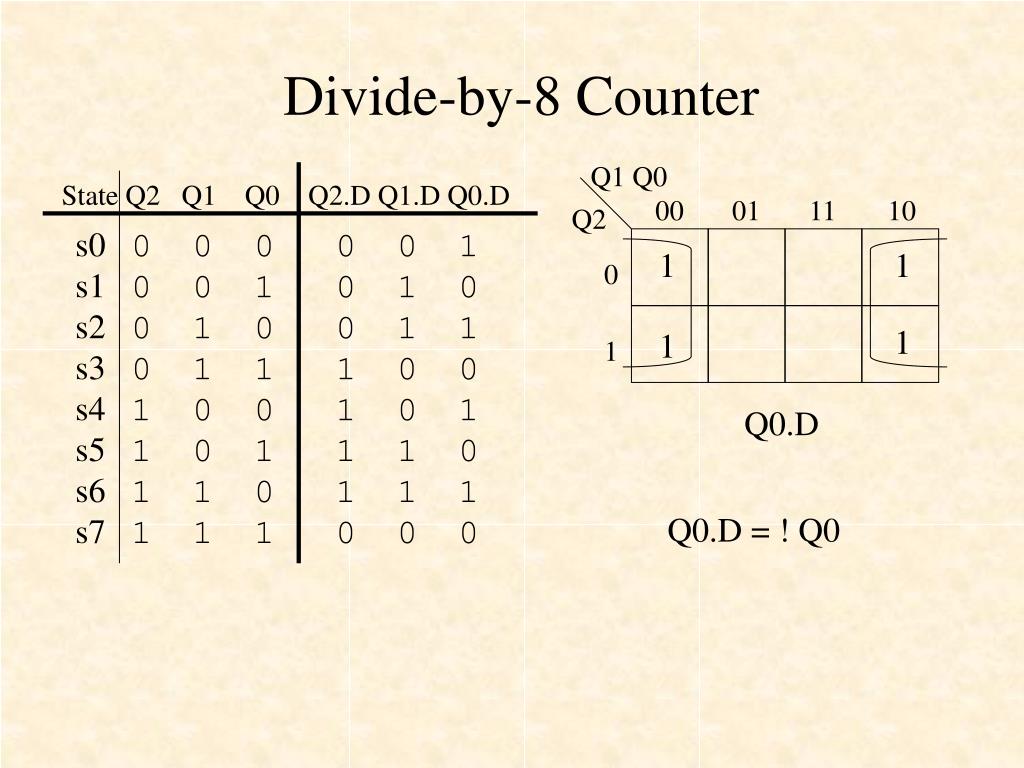

  6. State Q2 Q1 Q0 Q2.D Q1.D Q0.D s0 0 0 0 0 0 1 s1 0 0 1 0 1 0 s2 0 1 0 0 1 1 s3 0 1 1 1 0 0 s4 1 0 0 1 0 1 s5 1 0 1 1 1 0 s6 1 1 0 1 1 1 s7 1 1 1 0 0 0 Divide-by-8 Counter Q1 Q0 00 01 11 10 Q2 1 1 0 1 1 1 Q0.D Q0.D = ! Q0

  7. div8cnt.abl MODULE Div8Cnt TITLE 'Divide by 8 Counter, D. Hanna, 7/20/02' DECLARATIONS " INPUT PINS " PB PIN 10; " push-button switch (clock) " OUTPUT PINS " Q2..Q0 PIN 37,36,35 ISTYPE 'reg buffer'; " LED 6..8 Q = [Q2..Q0]; " 3-bit output vector [A,B,C,D,E,F,G,DP] PIN 15,18,23,21,19,14,17,24 ISTYPE 'com'; Segments = [A,B,C,D,E,F,G]; " 7-segment LED display

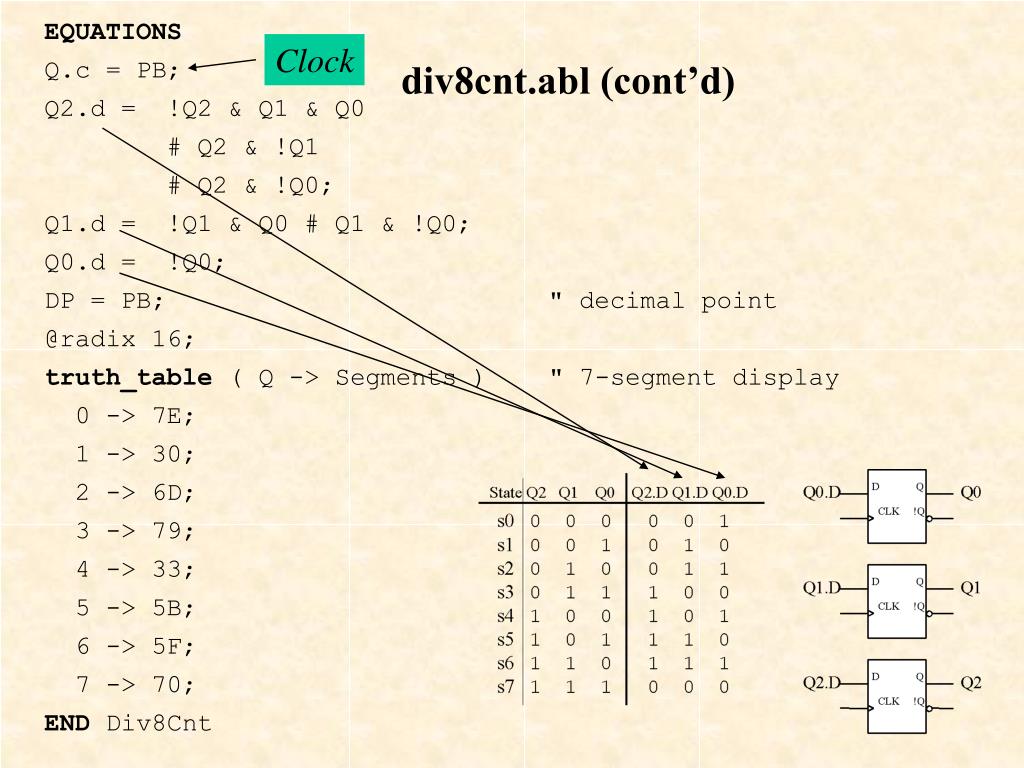

  8. EQUATIONS Q.c = PB; Q2.d = !Q2 & Q1 & Q0 # Q2 & !Q1 # Q2 & !Q0; Q1.d = !Q1 & Q0 # Q1 & !Q0; Q0.d = !Q0; DP = PB; " decimal point @radix 16; truth_table ( Q -> Segments ) " 7-segment display 0 -> 7E; 1 -> 30; 2 -> 6D; 3 -> 79; 4 -> 33; 5 -> 5B; 6 -> 5F; 7 -> 70; END Div8Cnt Clock div8cnt.abl (cont’d)

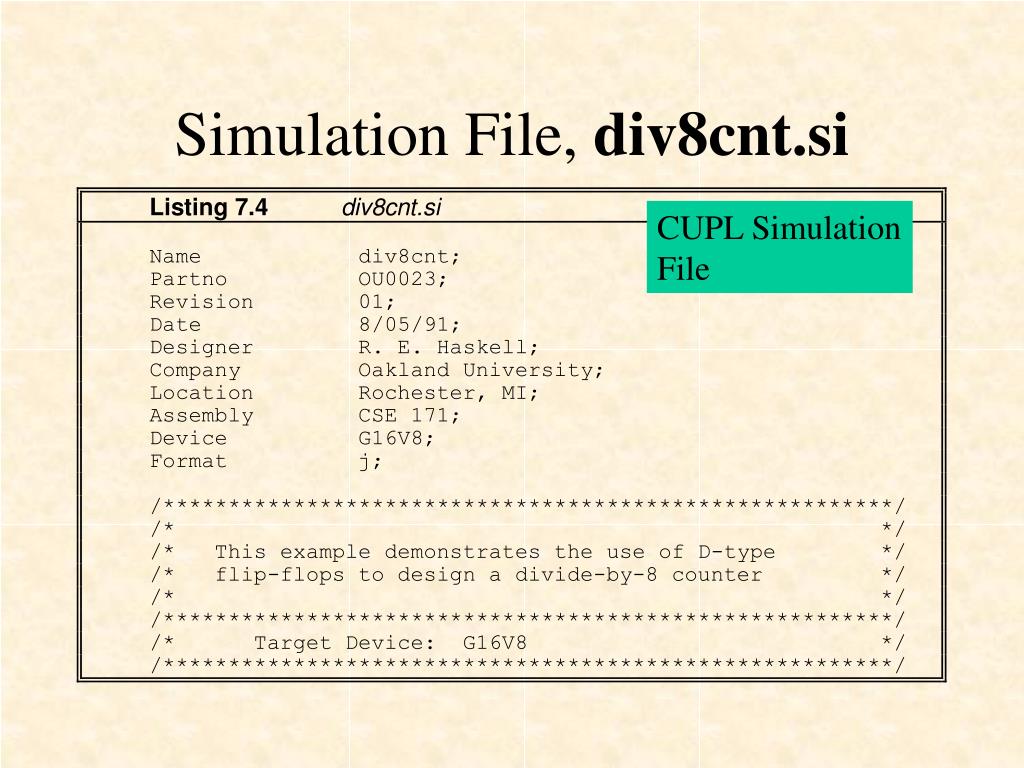

  9. Simulation File, div8cnt.si CUPL Simulation File

  10. div8cnt.si CUPL Simulation File

  11. CUPL Simulation Output File

  12. Counters • 3-Bit Up Counter • 3-Bit Down Counter • Up-Down Counter

  13. State Q2 Q1 Q0 Q2.D Q1.D Q0.D D Q Q0.D Q0 CLK !Q s0 0 0 0 1 1 1 s1 0 0 1 0 0 0 s2 0 1 0 0 0 1 s3 0 1 1 0 1 0 s4 1 0 0 0 1 1 s5 1 0 1 1 0 0 s6 1 1 0 1 0 1 s7 1 1 1 1 1 0 D Q Q1.D Q1 CLK !Q D Q Q2.D Q2 CLK !Q 3-Bit Down Counter

  14. State Q2 Q1 Q0 Q2.D Q1.D Q0.D s0 0 0 0 1 1 1 s1 0 0 1 0 0 0 s2 0 1 0 0 0 1 s3 0 1 1 0 1 0 s4 1 0 0 0 1 1 s5 1 0 1 1 0 0 s6 1 1 0 1 0 1 s7 1 1 1 1 1 0 3-Bit Down Counter Q1 Q0 00 01 11 10 Q2 1 0 1 1 1 1 Q2.D Q2.D = !Q2 & !Q1 & !Q0 # Q2 & Q1 # Q2 & Q0

  15. State Q2 Q1 Q0 Q2.D Q1.D Q0.D s0 0 0 0 1 1 1 s1 0 0 1 0 0 0 s2 0 1 0 0 0 1 s3 0 1 1 0 1 0 s4 1 0 0 0 1 1 s5 1 0 1 1 0 0 s6 1 1 0 1 0 1 s7 1 1 1 1 1 0 3-Bit Down Counter Q1 Q0 00 01 11 10 Q2 1 1 0 1 1 1 Q1.D Q1.D = !Q1 & !Q0 # Q1 & Q0

  16. State Q2 Q1 Q0 Q2.D Q1.D Q0.D s0 0 0 0 1 1 1 s1 0 0 1 0 0 0 s2 0 1 0 0 0 1 s3 0 1 1 0 1 0 s4 1 0 0 0 1 1 s5 1 0 1 1 0 0 s6 1 1 0 1 0 1 s7 1 1 1 1 1 0 3-Bit Down Counter Q1 Q0 00 01 11 10 Q2 1 1 0 1 1 1 Q0.D Q0.D = ! Q0

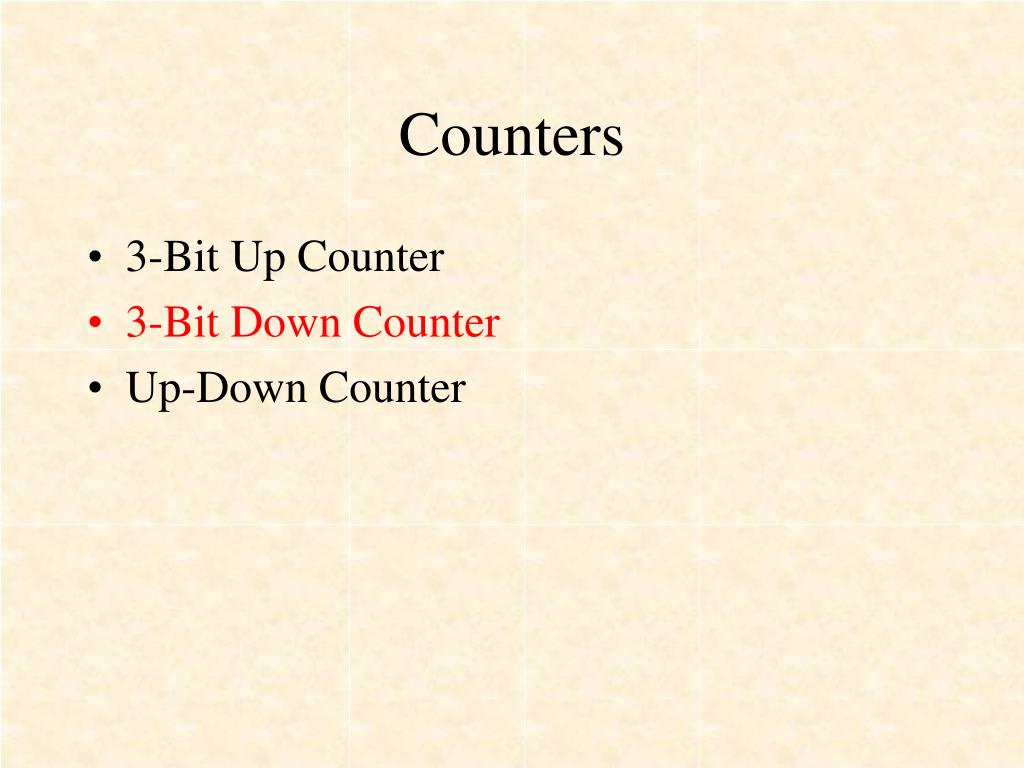

  17. Counters • 3-Bit Up Counter • 3-Bit Down Counter • Up-Down Counter

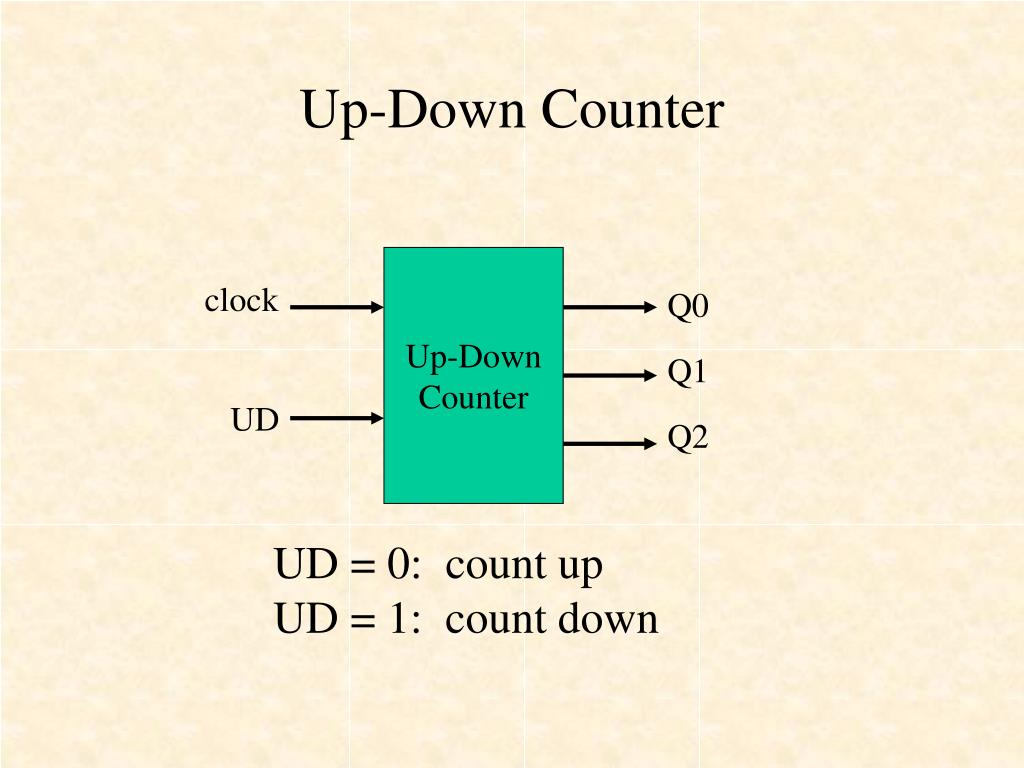

  18. Up-Down Counter Up-Down Counter clock Q0 Q1 Q2 UD UD = 0: count up UD = 1: count down

  19. Up-Down Counter UD Q2 Q1 Q0 Q2.D Q1.D Q0.D UD Q2 Q1 Q0 Q2.D Q1.D Q0.D 0 0 0 0 0 0 1 0 0 0 1 0 1 0 0 0 1 0 0 1 1 0 0 1 1 1 0 0 0 1 0 0 1 0 1 0 1 0 1 1 1 0 0 1 1 0 1 1 1 0 1 1 1 0 0 0 1 0 0 0 1 1 1 1 0 0 1 0 0 0 1 0 1 0 0 0 1 1 0 1 1 0 1 0 1 1 0 0 0 1 1 1 1 0 1 1 0 0 1 1 1 0 1 0 1 1 1 1 1 1 1 0 Up-Counter Down-Counter

  20. Up-Down Counter Q1 Q0 00 01 11 10 UD Q2 00 01 11 10 Make Karnaugh maps for Q2.D, Q1.D, and Q0.D
