Impedance Matching with Lumped Elements

jX 1. jB 2. Y L. Impedance Matching with Lumped Elements. jX 1. Z L. jB 2. Single-Stub Matching. Load impedance . Input admittance=S. Series Stub. Voltage minimum. Input impedance=1/S. Double Stub Matching Network. a. b. Y L. jB 2. jB 1. b. a. x=1. Y L. P open circuit .

bao
Télécharger la présentation

Impedance Matching with Lumped Elements

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. jX1 jB2 YL Impedance Matching with Lumped Elements

  2. jX1 ZL jB2

  3. Single-Stub Matching Load impedance Input admittance=S

  4. Series Stub Voltage minimum Input impedance=1/S

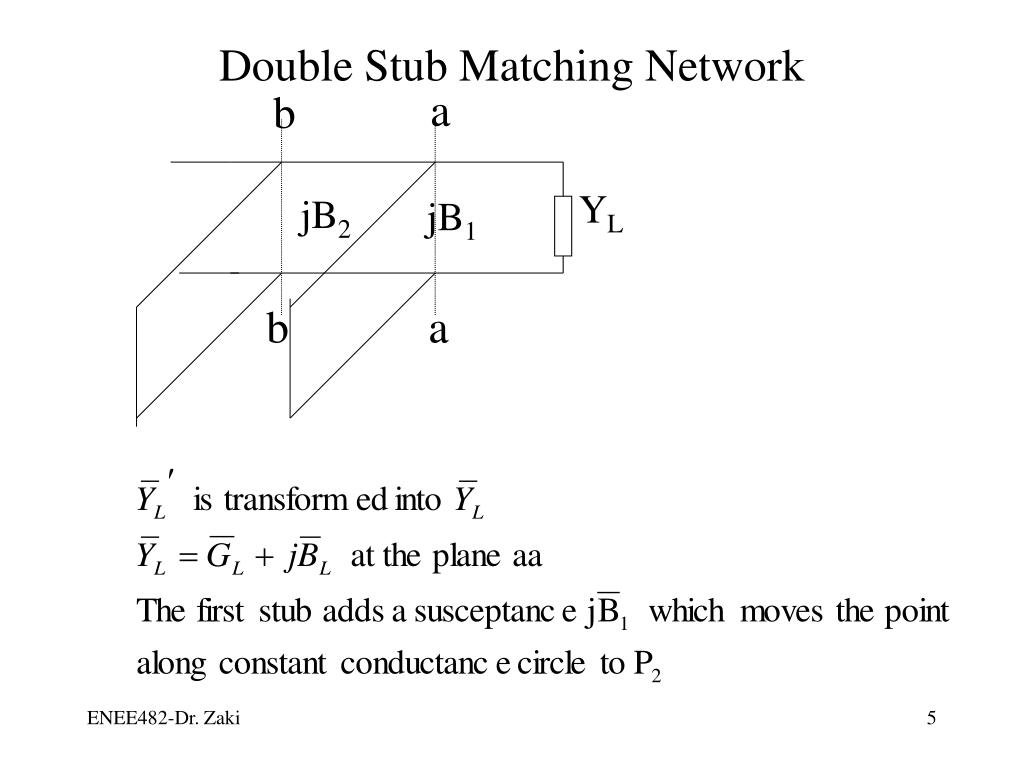

  5. Double Stub Matching Network a b YL jB2 jB1 b a

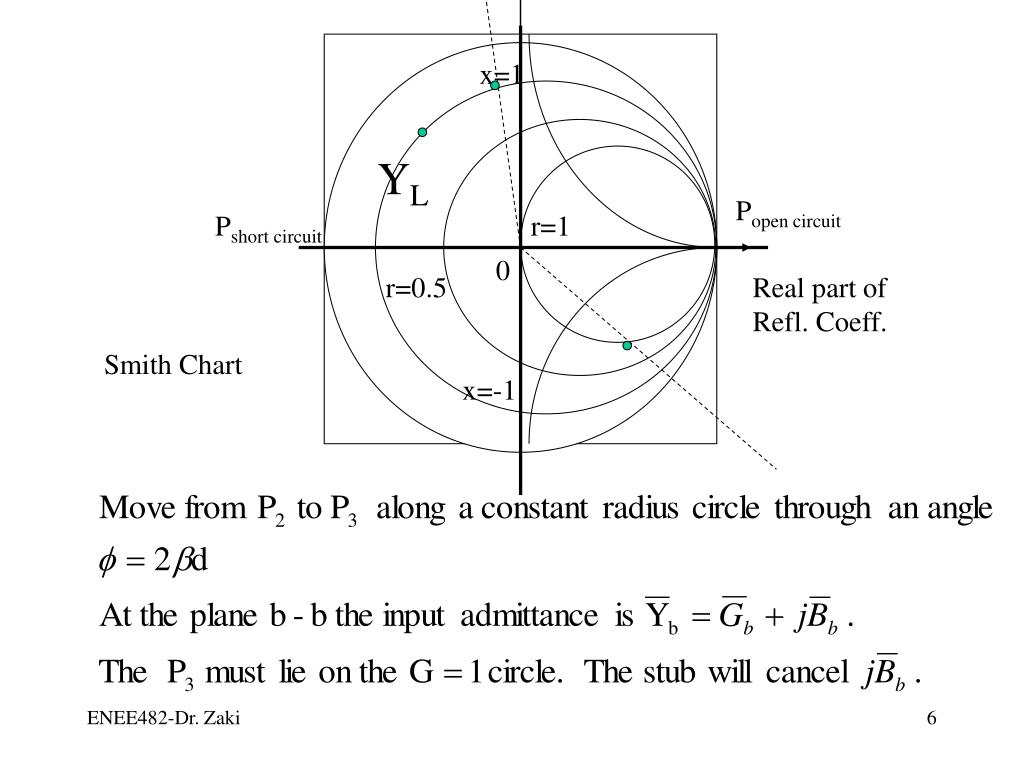

  6. x=1 YL Popen circuit Pshort circuit r=1 0 r=0.5 Real part of Refl. Coeff. Smith Chart x=-1

  7. x=1 P2 YL G1=1 Popen circuit Pshort circuit r=1 0 r=0.5 Real part of Refl. Coeff. P3 Smith Chart x=-1 Rotate the the G=1 circle through an angle -f The intersection of G=1 and the GL circle determine The point P2

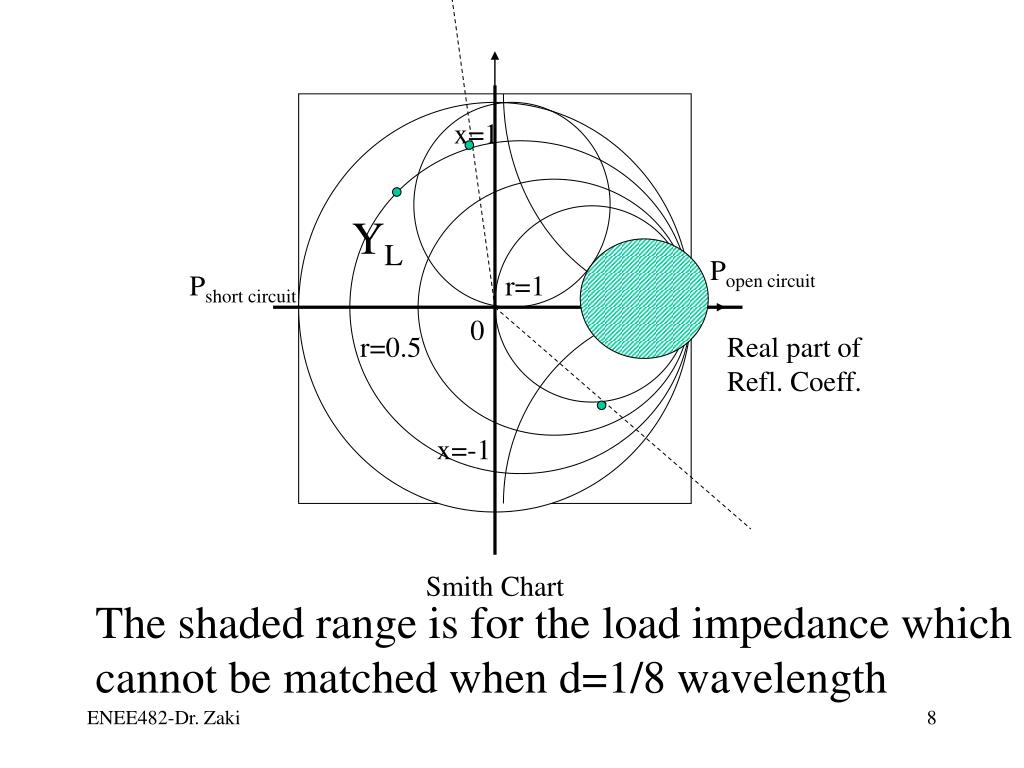

  8. x=1 YL Popen circuit Pshort circuit r=1 0 r=0.5 Real part of Refl. Coeff. x=-1 Smith Chart The shaded range is for the load impedance which cannot be matched when d=1/8 wavelength

  9. Quarter-Wave Transformers ZC=Z0 ZL ZC=Z1 l /4

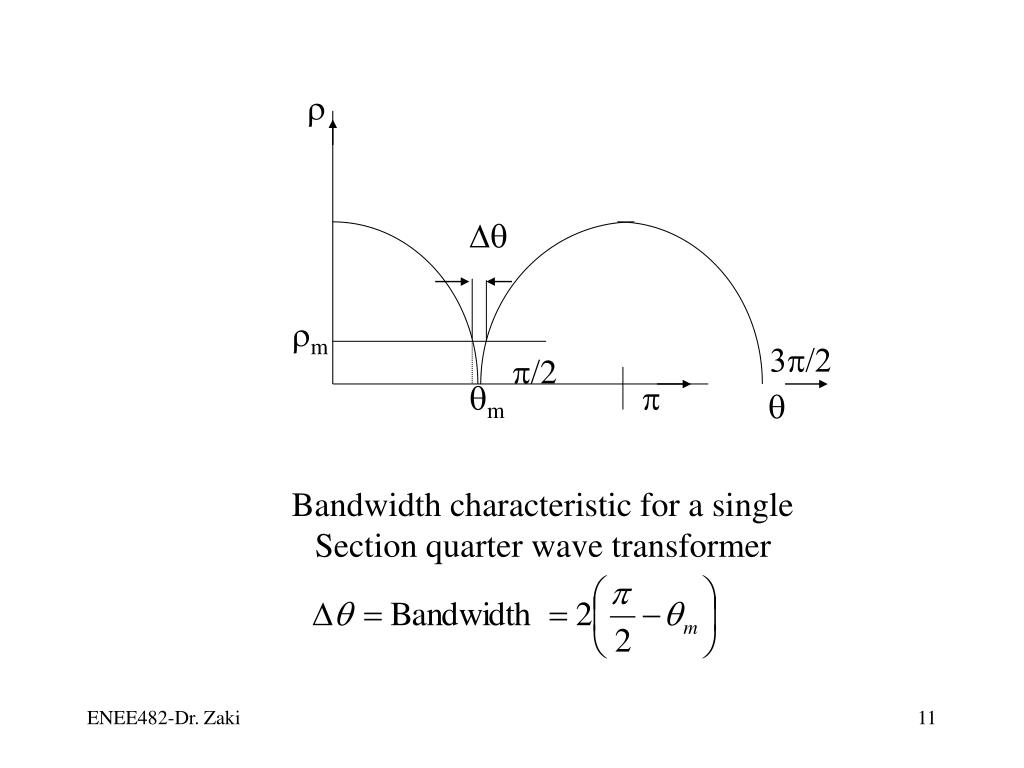

  10. r Dq rm 3p/2 p/2 qm p q Bandwidth characteristic for a single Section quarter wave transformer

  11. 1 Z2 G3 G1 ZL Z1 G2 G T12 T21 Theory of Small Reflection q

  12. T21 1 G1 Multiple reflection of waves for a circuit with two reflection junctions

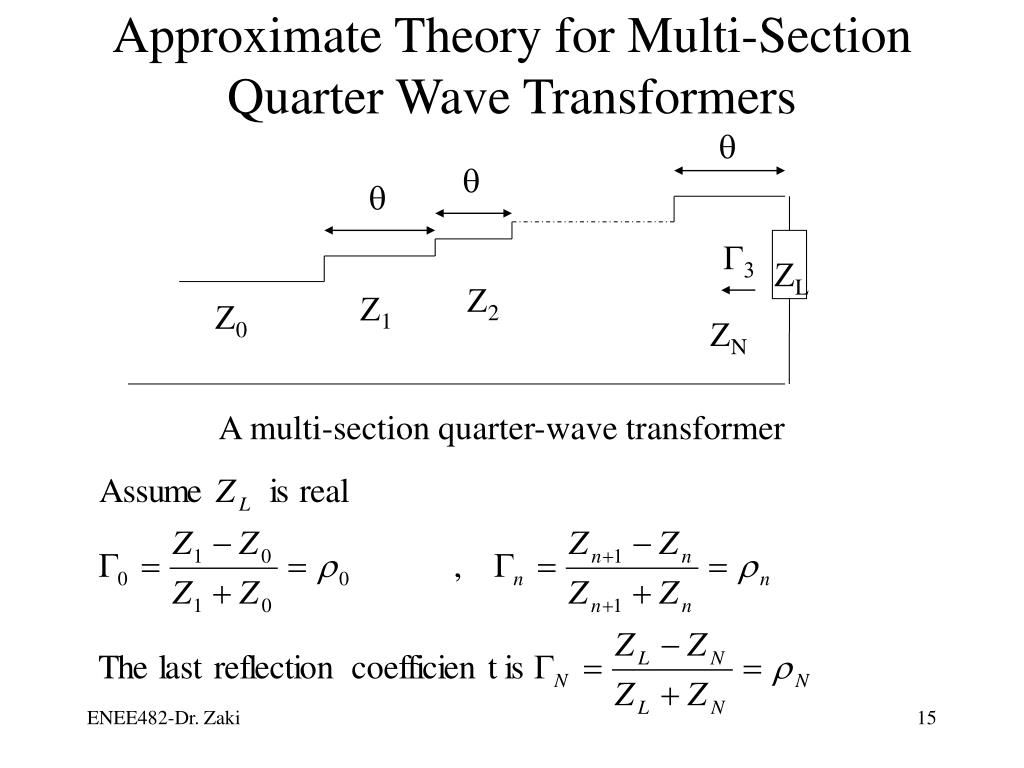

  13. Approximate Theory for Multi-Section Quarter Wave Transformers q q q G3 ZL Z2 Z1 Z0 ZN A multi-section quarter-wave transformer

  14. Binomial Transformer

  15. Example Z3 ZL Z2 Z1 Z0 Design a three section binomial transformer to match a 50 Ohms load to a 100 Ohms line. Calculate the bandwidth For max reflection =.05 over the passband.

  16. rm qm p/2 q p- qm Chebyshev Transformer

  17. Example Design a two section Chebyshev transformer (two sections) to Match a line of load impedance =2. The maximum tolerance Value of r is 0.05.

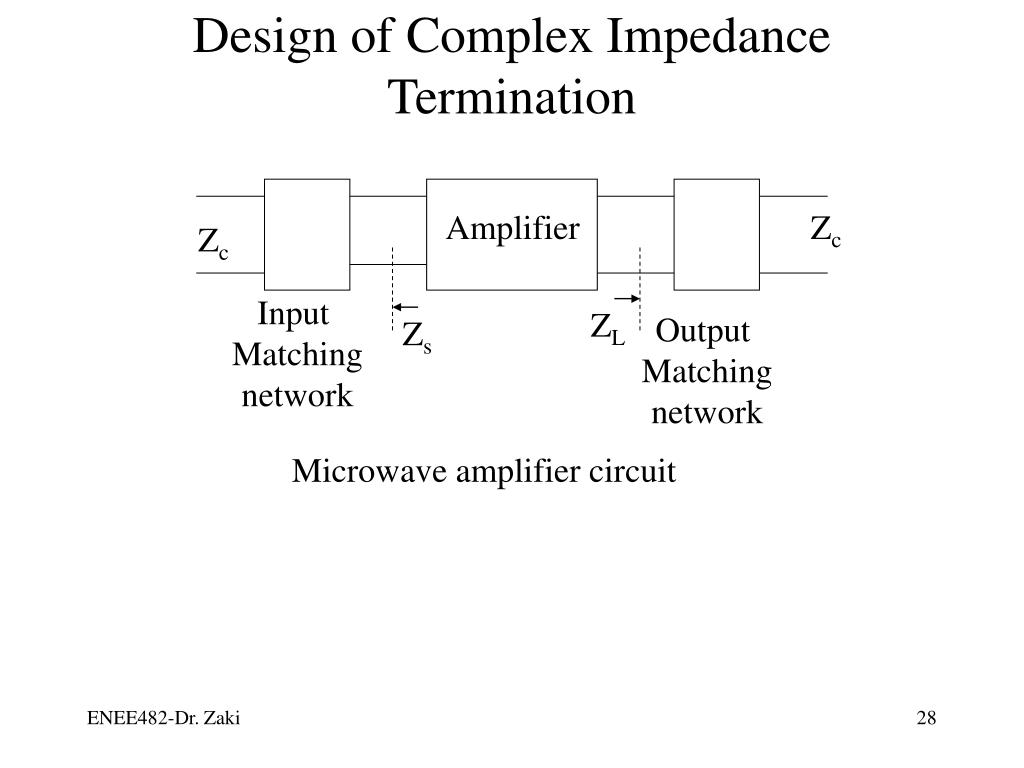

  18. Design of Complex Impedance Termination Amplifier Zc Zc Input Matching network ZL Output Matching network Zs Microwave amplifier circuit

  19. l l jB1 = ZL ZL G=1 Zc Stub Transmission Line Matching Network jX1 jX2 jB2 jB1 ZL ZL G=1 G=1 Alternative Matching Networks

  20. l/l = 0.0626 l/l = 0.4375 j1 Generator 1 Y’in YL G=2 ZL= 0.4-j0.2 2 Load Y”in G=1 -j1 Design Procedure for the Matching Network with Shunt Stub

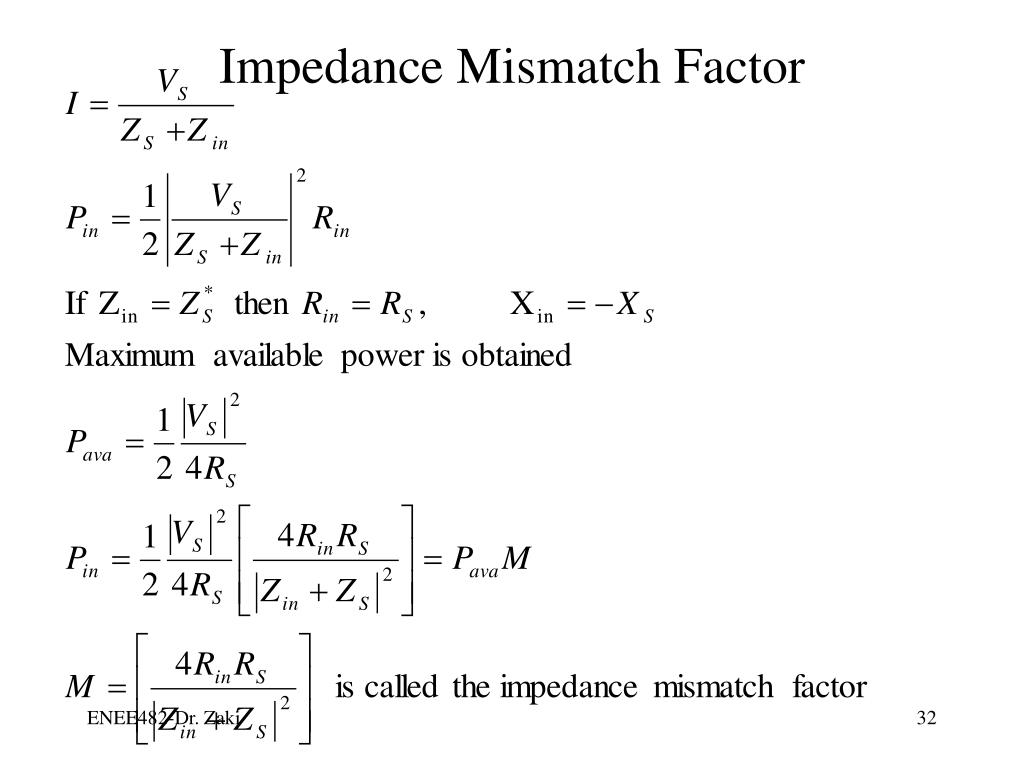

  21. Impedance Mismatch Factor

  22. Z22-Z12 Z11-Z12 ZT ZS ZL ZL Z12 VS Voc ML Zin A T matching network Thevenin equivalent network

  23. Zg Z0 Vg ZL Impedance Transformation and Matching Review of Transmission Lines and Smith Chart Z=L Z=0 Finite Transmission Line terminated with load impedance L

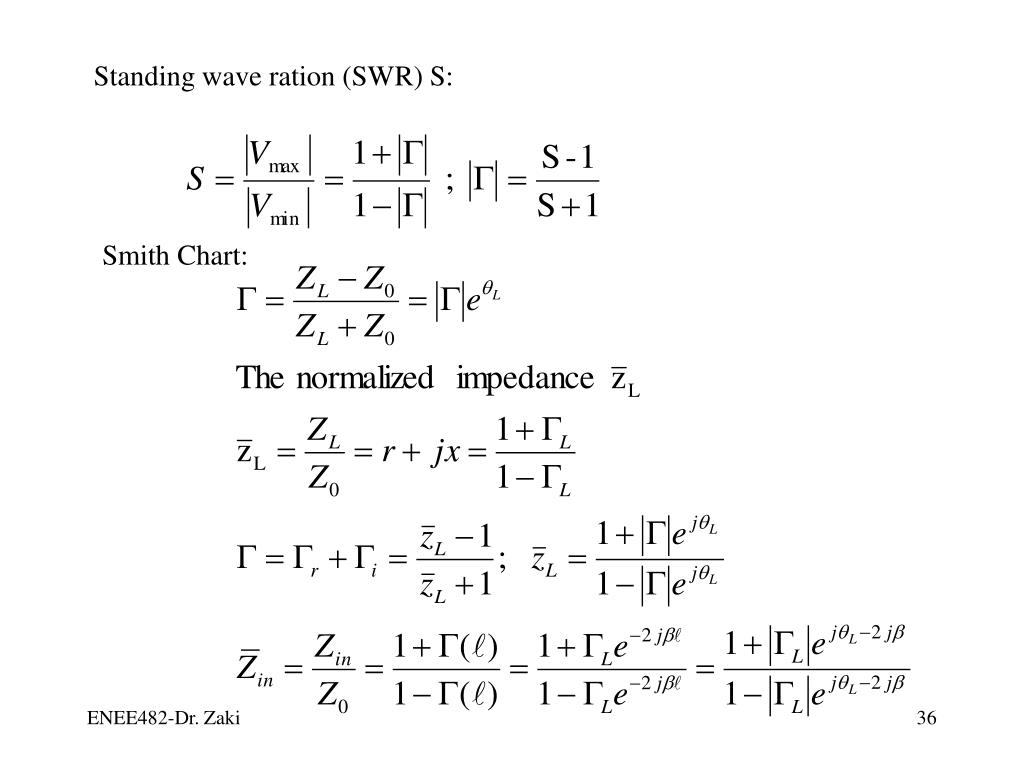

  24. Standing wave ration (SWR) S: Smith Chart:

  25. Imaginary part of Refl. Coeff. x=1 Popen circuit Pshort circuit r=1 0 r=0.5 Real part of Refl. Coeff. x=-1 Smith Chart

  26. Review of Transmission Lines and Smith Chart Zg Z0 Z=L Vg Z=0 ZL L Finite Transmission Line terminated with load impedance
