Aromatic Compounds

Aromatic Compounds. Aromatic compounds contain benzene. Benzene C 6 H 6 has 6 C atoms and 6 H Atoms Two possible ring structures show benzene. Benzene Structure.

bell
Télécharger la présentation

Aromatic Compounds

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

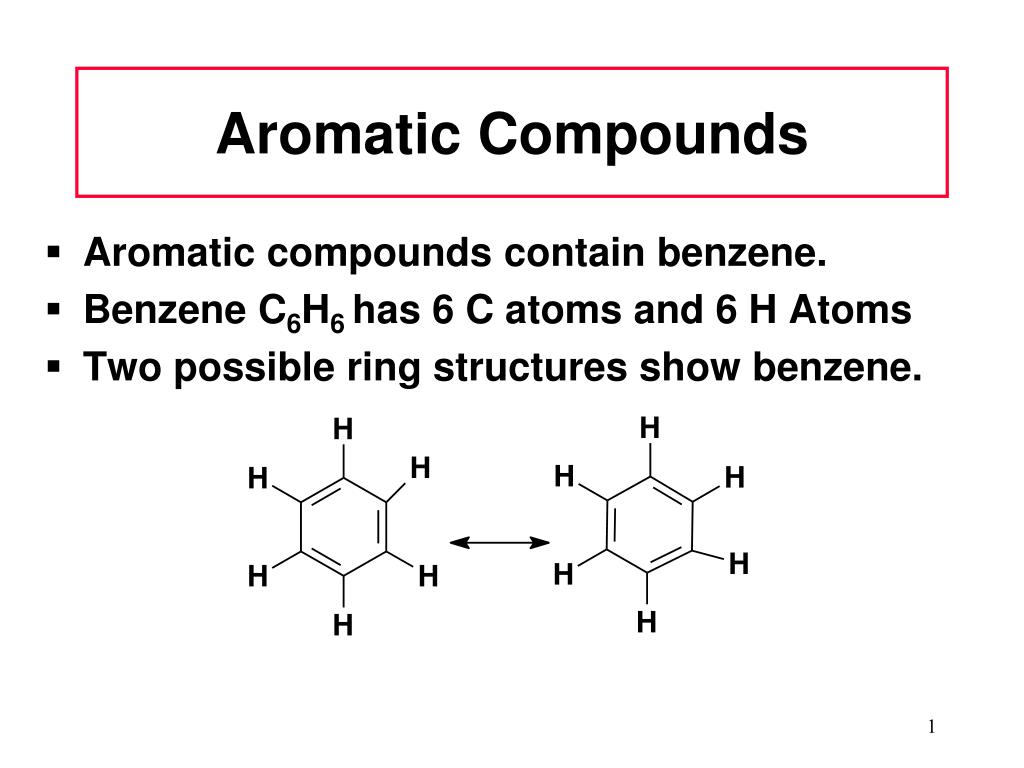

  1. Aromatic Compounds • Aromatic compounds contain benzene. • Benzene C6H6 has 6 C atoms and 6 H Atoms • Two possible ring structures show benzene.

  2. Benzene Structure The structures for benzene are also written as one formula with a circle within the ring to represented the alternating double bonds. Benzene structure

  3. Aromatic Compounds in Nature and Health Many aromatic compounds are common in nature and in medicine.

  4. Naming Aromatic Compounds Aromatic compounds are named with benzene as the parent chain. One side group is named in front of the name benzene. methylbenzene chlorobenzene

  5. Naming Aromatic Compounds When two groups are attached to benzene, the ring is numbered to give the lower numbers to the side groups. The prefixes ortho (1,2), meta (1,3-) and para (1,4-) arealso used.

  6. Some Common Names Some substituted benzene rings also use a common name. Then naming with additional more side groups uses the ortho-, meta-, para- system.
