  1. < Loop Water Controller > Updated by: Yap Boon Thiam Technical Engineer Email: yapbt@oyl.com.my Date: 9/5/2012

  2. Controller Layout

  3. Hardware Outlook

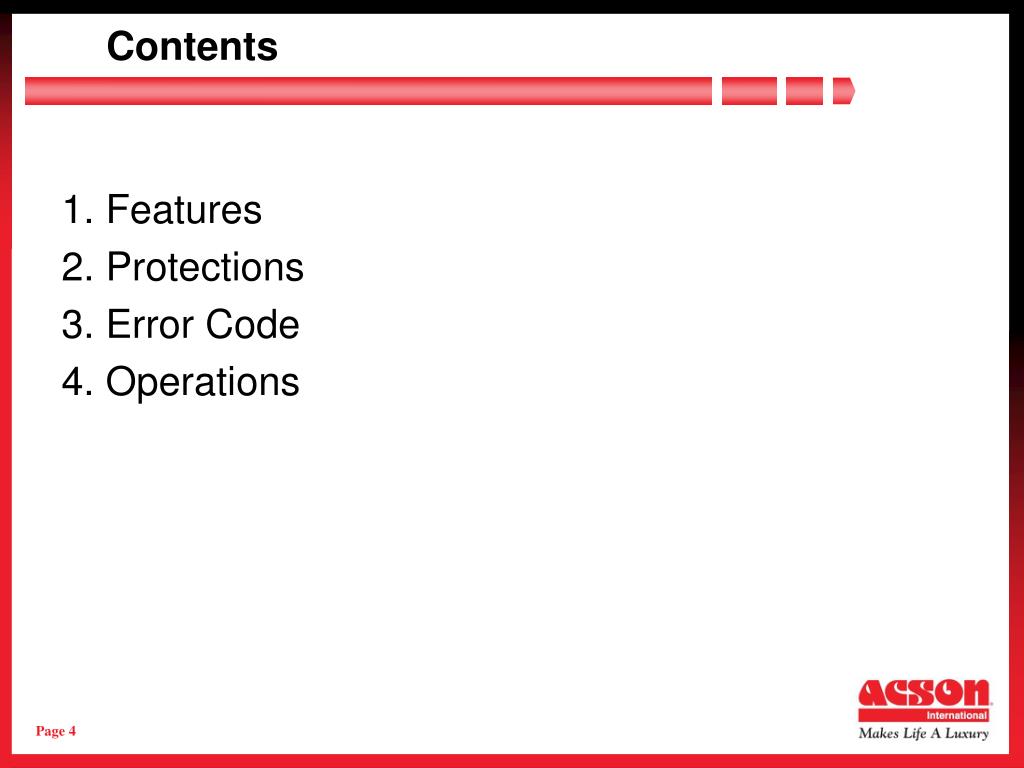

  4. 1. Features 2. Protections 3. Error Code 4. Operations Contents

  5. 1.1 System On/Off 1.2 Pump Control Function 1.3 Heat Rejection & Addition Output Stages 1.4 Outdoor Air Preset 1.5 Pre-cool / Pre-heat Protection Features

  6. Features 1.1 System On/Off • To Using remote On/Off switch (S1): • i) Standard Switch (without Smart Manager) • ii) Smart Manager • To start or stop the operation of the LWC. • The LWC shall function as: • i) System On if the remote On/Off switch (S1) is in closed circuit. • ii) System Off if the remote On/Off switch (S1) is in opened circuit.

  7. Features 1.2 Pump Control Function • Allows 2 loop circulating pumps with manual or auto lead lag control where operation is interchangeable. (a) Automatic 10sec 15sec Alarm • Lead pump on Water flow switch 10sec 15sec Alarm Lag pump on Water flow switch Off • Only one pump can operate. • If the water problem is verified and fixed, user can reset the remote • switch (S2) and the pump will resume operation. Alternatively it can • be reset by power supply. (b) Manual

  8. Features 1.3 Heat Rejection & Addition Output Stages • Total 12 sets of data output can be pre-set as heat addition or heat rejection stages. • The heat rejection and heat addition temperature setting shall be distributed in sequence and continuous (difference by 1ºC). 1.4 Outdoor Air Reset • The heat addition ON / OFF limit setting of the system is able to be increased in respond to a drop in the OD air temperature

  9. Features 1.5 Pre heat & Pre Cool Protection • To provide protection when the temperature exceeding the too high / low temperature (when system is OFF) Note: Pre-cool/heat temperature differential: 5ºC (fixed)

  10. 2.1 Low / Too Low Temperature 2.2 High / Too High Temperature 2.3 Loss of Flow 2.4 Sensor Error Protections

  11. System On No TW ≤ TLW ? Yes Sound Alarm System Continue Running No Yes System Off Sound Alarm TW ≤ TTLW ? Protections 2.1 Low / Too Low Temperature Note: TW = Water Temp TLW = Low Water Temp TTLW = Too Low Water Temp

  12. System On No TW ≥ TLW ? Yes Sound Alarm System Continue Running No Yes System Off Sound Alarm TW ≥ TTLW ? Protections 2.2 High / Too High Temperature Note: TW = Water Temp TLW = Low Water Temp TTLW = Too Low Water Temp

  13. 10s after System On Normal Check water flow for 15s Error Sound Alarm Lead Pump Off Lag Pump On Normal Error Check water flow for 15s System Off Sound Alarm Protections 2.3 Loss of Flow

  14. Protections 2.4 Sensor Error • If either the Water Supply sensor or OD Air sensor or both of • them gives an error signal during the system operates, the alarm • will activate 20 times per minute. • The unit will be Off. All heat rejection and heat addition stages • shall be shut down.

  15. 3.1 Error Descriptions Error Code

  16. Error Code 3.1 Error Descriptions

  17. 4.1 LCD Panel Descriptions 4.2 Main Menu 4.2.1 Status 4.2.2 Setting 4.2.3 Test 4.2.4 Error 4.3 Operation Limits 4.4 Default Protections

  18. Operations 4.1 LCD Panel Descriptions

  19. Status Setting Main Menu Test Error ESC Operations 4.2 Main Menu By pressing the Button

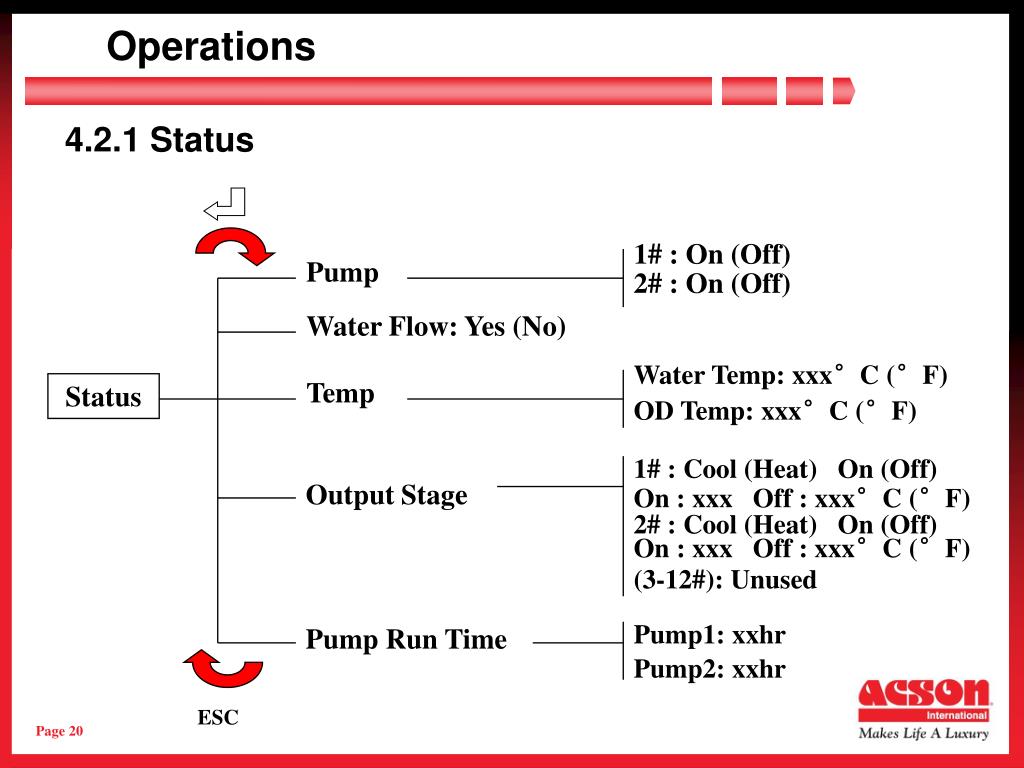

  20. 1# : On (Off) Pump 2# : On (Off) Water Flow: Yes (No) Water Temp: xxx°C (°F) Temp Status OD Temp: xxx°C (°F) 1# : Cool (Heat) On (Off) Output Stage On : xxx Off : xxx°C (°F) 2# : Cool (Heat) On (Off) On : xxx Off : xxx°C (°F) (3-12#): Unused Pump1: xxhr Pump Run Time Pump2: xxhr ESC Operations 4.2.1 Status

  21. Operations 4.2.2 Setting • Password Protected • During power ON, the ‘Setting’ can only be viewed. • The system MUST be turned OFF in order to change the Setting • parameters.

  22. Mode: Auto (Manual) Pump Lead Pump: 1# (2#) Switch Cycle: xxxhr Output Config Setting Pump Switch Check Time: xxxs Temp Reset Run Time Min Run TM: xxxs ODA reset Enable (Disable) Other ESC ESC Operations 4.2.2.1 Pump

  23. Operations 4.2.2.1 Pump • Mode: - Auto >The lead lag cycle operation is activated • - Manual >Only the lead pump is activated • Lead Pump :1# / 2# • >The 1st or 2nd pump can be set as lead pump in the operation • Switch Cycle: xxxhr • >The time for a pump to switch over to another pump • Pump Switch Check Time: • >The time to check the water flow after pump is On • Reset Run Time: • >To reset the record of the total pump run time • Min Run TM: xxxs • >The minimum time required for a pump to operate

  24. Pump Cool Stage: xx Output Config Heat Stage: xx Setting Interstage Time: xxs Temp ODA reset Enable (Disable) Other ESC ESC Operations 4.2.2.2 Output Config

  25. Operations 4.2.2.2 Output Config • Cool Stage: • >To set the number of cool stage for the system operation • Heat Stage: • >To set the number of heat stage for the system operation • Interstage Time: xxs • >The delay time between every stages to start operation

  26. Pump High TMP: xxx°C (°F) Too Hi TMP: xxx°C (°F) Low TMP: xxx°C (°F) Too Low TMP: xxx°C (°F) OD reset TMP: xxx°C (°F) Output Config Water Temp Alarm Setting Temp Temp Hysterysis Set Stage Temp ODA reset Enable (Disable) ESC Other ESC Operations 4.2.2.3 Temp

  27. Operations 4.2.2.3 Temp • (a) Water Temp Alarm • High TMP: xxx°C / °F • >Water temperature in warning temperature (system still on) • Too Hi TMP: xxx°C / °F • >Maximum allowable water temperature before system shut off • Low TMP: xxx°C / °F • >Water temperature in warning temperature (system still on) • Too Low TMP: xxx°C / °F • >Minimum allowable water temperature before system shut off • ODresetTMP: xxx°C / °F • >The temperature range for heat addition On/Off stages that responding to the OD air temperature

  28. Pump Output Config Water Temp Alarm Setting Cool Stage: xxx°C (°F) Heat Stage: xxx°C (°F) Temp Temp Hysterysis Set Stage Temp ODA reset Enable (Disable) ESC Other ESC Operations 4.2.2.3 Temp

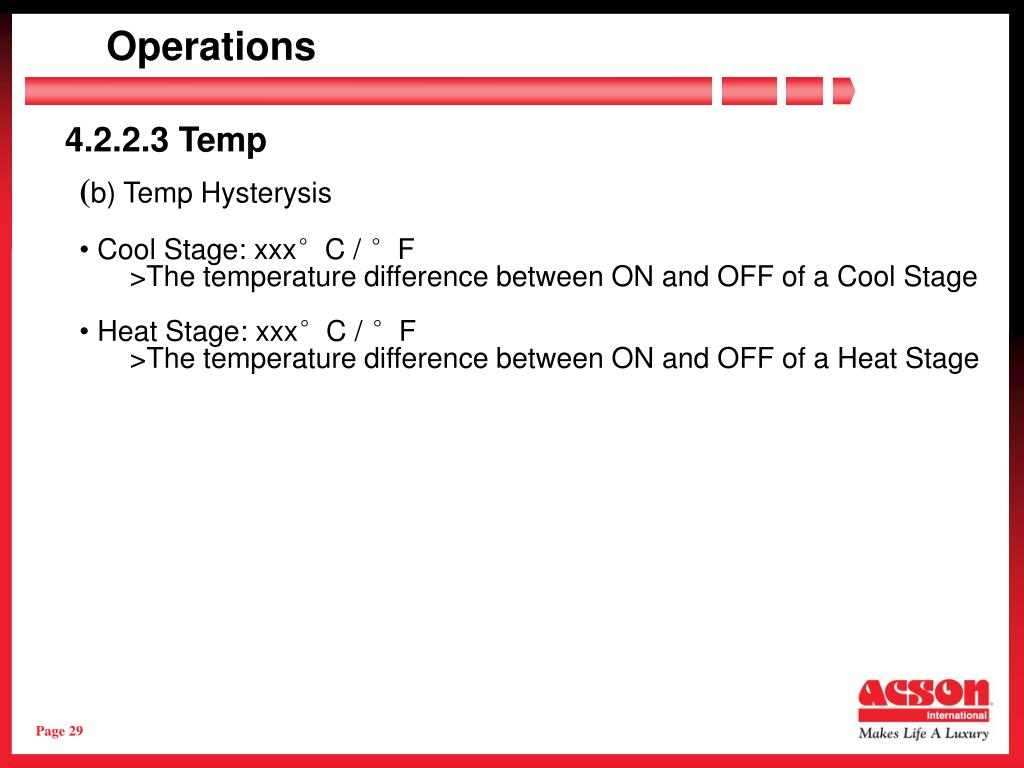

  29. Operations 4.2.2.3 Temp • (b) Temp Hysterysis • Cool Stage: xxx°C / °F • >The temperature difference between ON and OFF of a Cool Stage • Heat Stage: xxx°C / °F • >The temperature difference between ON and OFF of a Heat Stage

  30. Pump Output Config Water Temp Alarm Setting Temp Temp Hysterysis Heat Rej: xxx°C (°F) Heat Add: xxx°C (°F) Set Stage Temp ODA reset Enable (Disable) Other ESC ESC Operations 4.2.2.3 Temp

  31. Operations 4.2.2.3 Temp • (c) Set Stage Temp • Heat Rej: xxx°C / °F • >The first cool stage temperature setting • Heat Add: xxx°C / °F • >The first heat stage temperature setting

  32. ESC Operations 4.2.2.4 ODA reset Enable Pump Output Config Setting Temp ODA reset Enable (Disable) Other

  33. Pump New Password: xxxx Temp Unit: °C (°F) Key Back Light: Enable (Disable) LCD Back Light: Enable (Disable) Buzzer: Enable (Disable) Set Date: DD-MM-YY Set Time: hh:mm:ss Output Config Temp Setting ODA reset Enable (Disable) Other ESC ESC Operations 4.2.2.5 Others

  34. Operations 4.2.2.5 Others • New Password: xxxx • >To set new password. Default password = 8888 • Temp Unit: °C / °F • >To set the temperature unit • Key Back Light: Enable / Disable • >To enable / disable the LCD panel key back light • LCD Back Light: Enable / Disable • >To enable / disable LCD panel screen back light • Buzzer: Enable / Disable • >To enable / disable the buzzer on LCD panel • Set Date: DD-MM-YY • >To set the date for the LWC system • Set Time: hh:mm:ss • >To set the time for the LWC system

  35. 1#Pump: On (Off) 2#Pump: On (Off) 1#Stage: On (Off) 2#Stage: On (Off) 3#Stage: On (Off) 4#Stage: On (Off) 5#Stage: On (Off) 6#Stage: On (Off) 7#Stage: On (Off) 8#Stage: On (Off) 9#Stage: On (Off) 10#Stage: On (Off) 11#Stage: On (Off) 12#Stage: On (Off) Buzzer: On (Off) Alarm Out: On (Off) Test ESC Operations 4.2.3 Test • Must be operated only when the system is OFF or dry run • To check the function ability of the system • The display returns to default menu after 3 minutes when user stop operating the system or by pressing ESC button

  36. History Delete Error ESC Operations 4.2.4 Error • To store the error records of the system • Maximum 10 errors can be recorded or check • Error records can be deleted

  37. Operations 4.3 Operation Limits

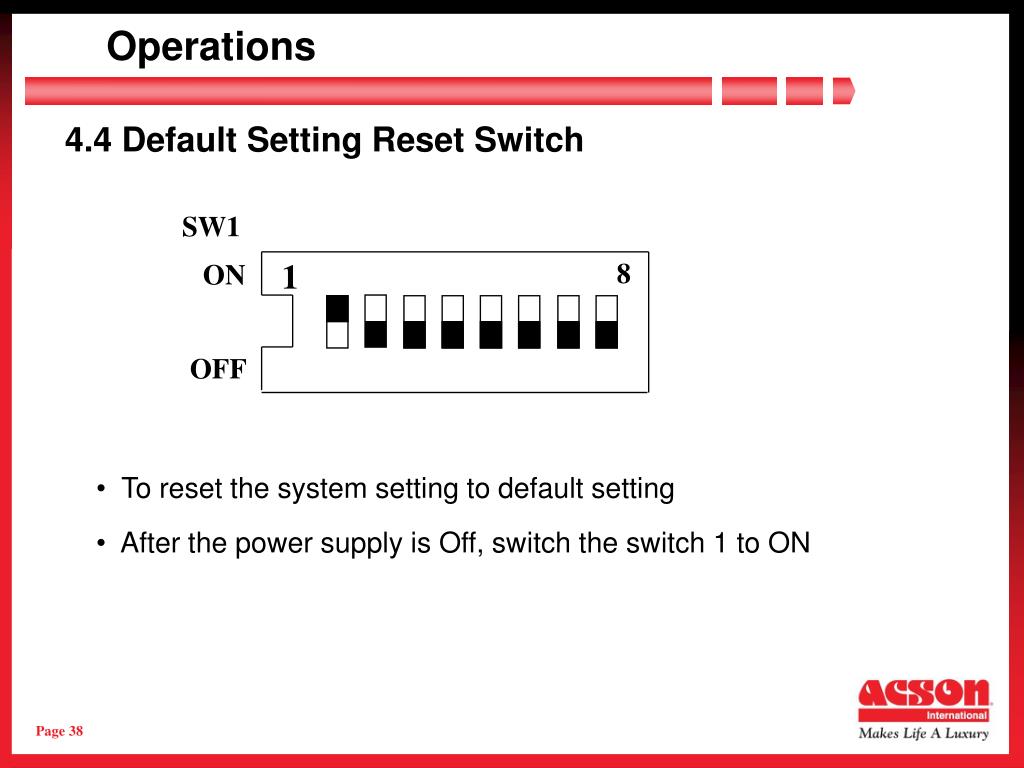

  38. Operations 4.4 Default Setting Reset Switch SW1 1 8 ON OFF • To reset the system setting to default setting • After the power supply is Off, switch the switch 1 to ON

  39. Thank You
