The Stochastic Motion Roadmap: A Sampling Framework for Planning with Markov Motion Uncertainty. Changsi An You-Wei Cheah. Introduction. Problem. a narrow passageway is unlikely to be robust to motion uncertainty. Sources of uncertainty Imprecision of execution of action.

Télécharger la présentation
## The Stochastic Motion Roadmap: A Sampling Framework for Planning with Markov Motion Uncertainty

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

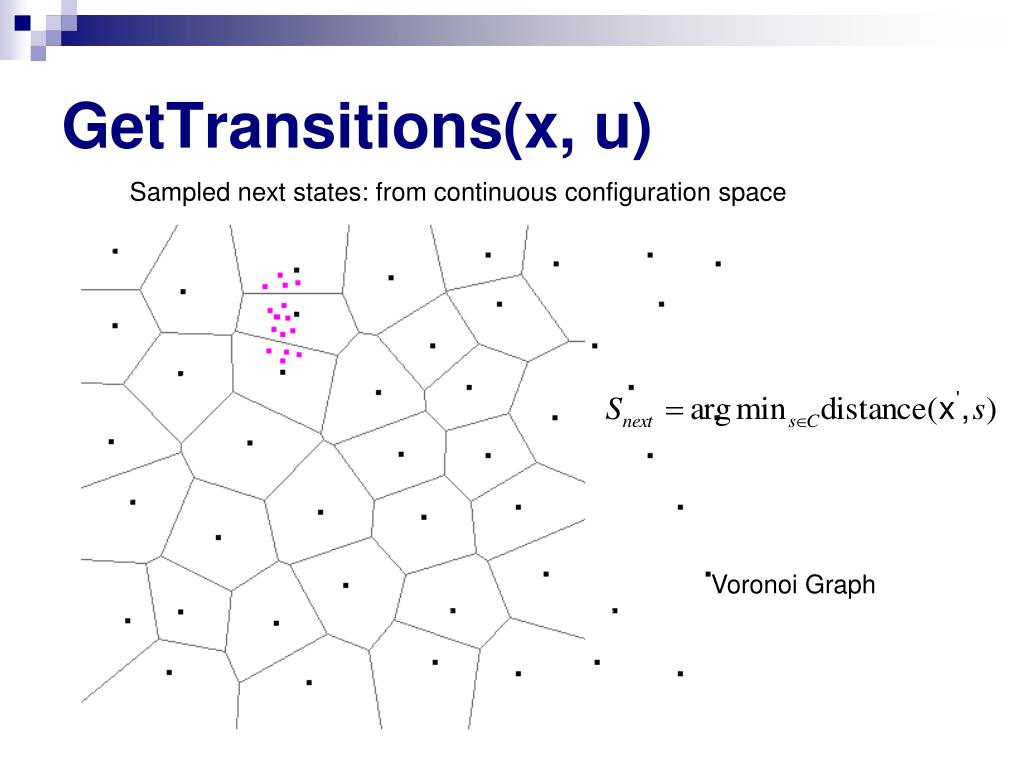

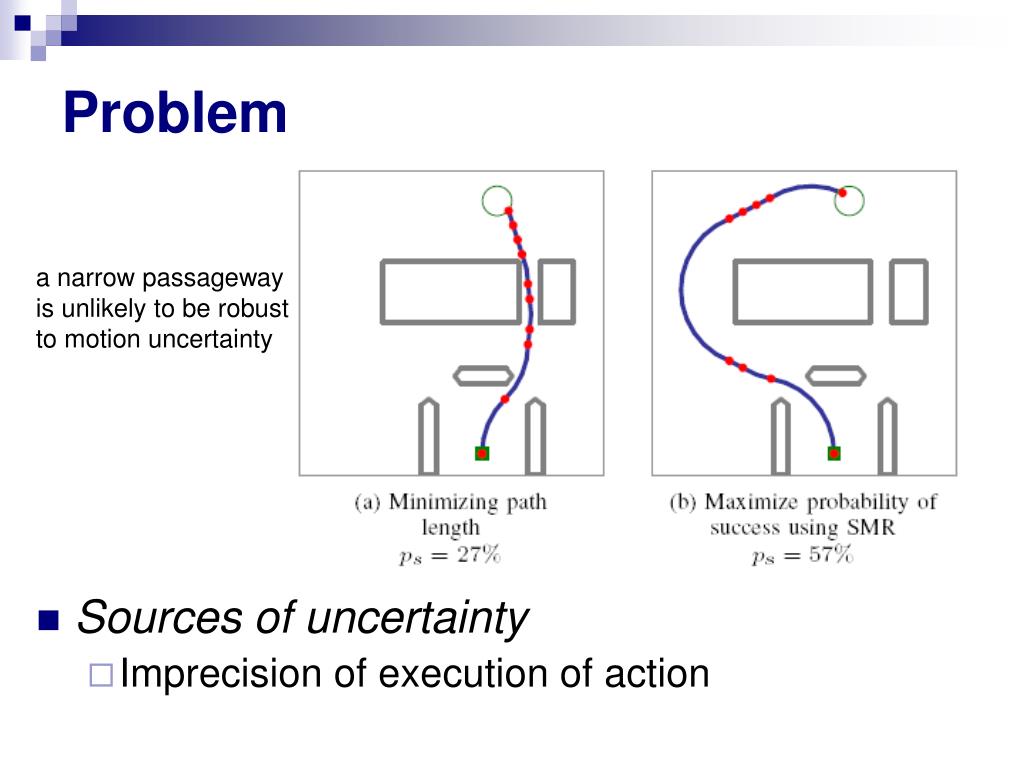

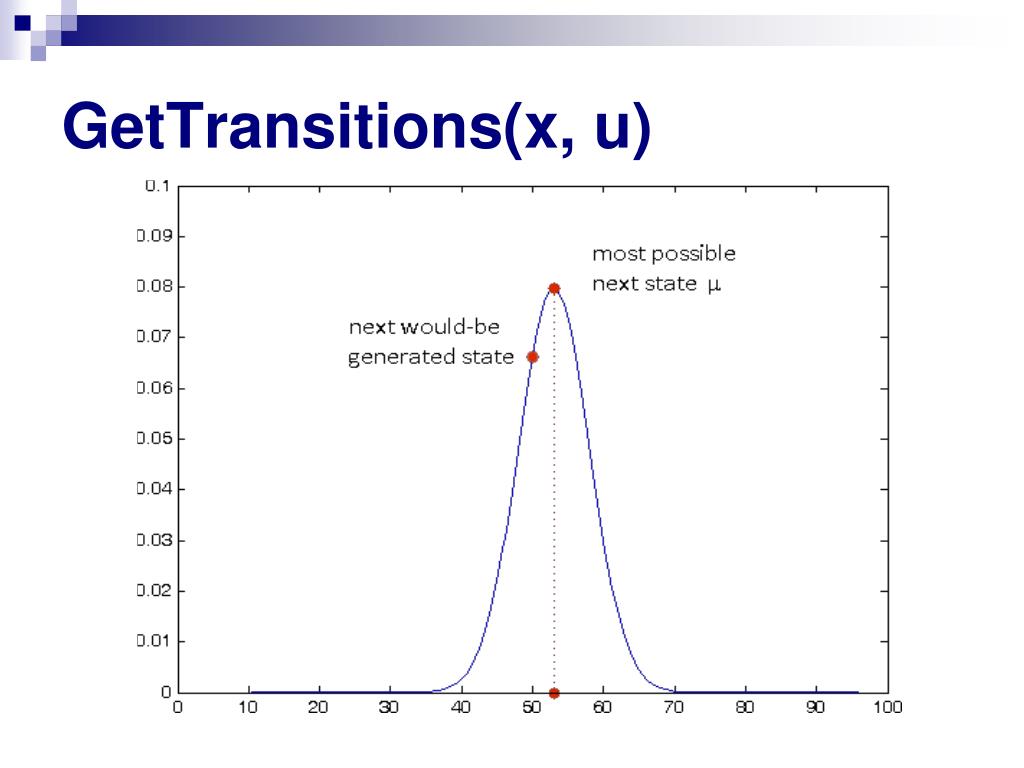

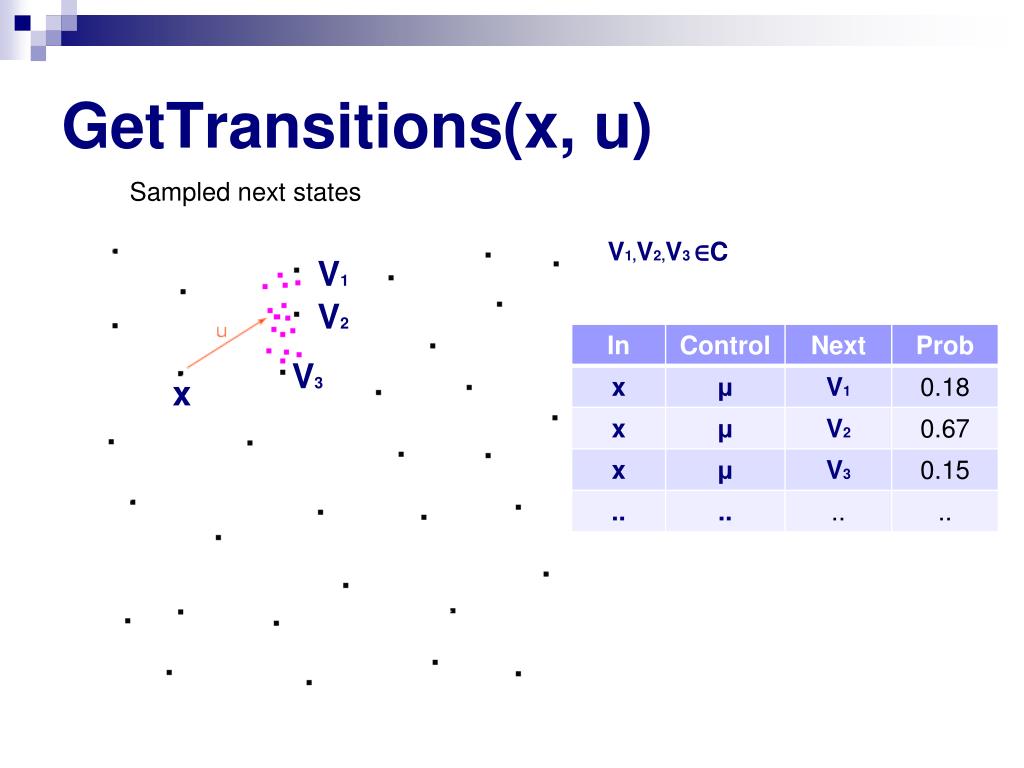

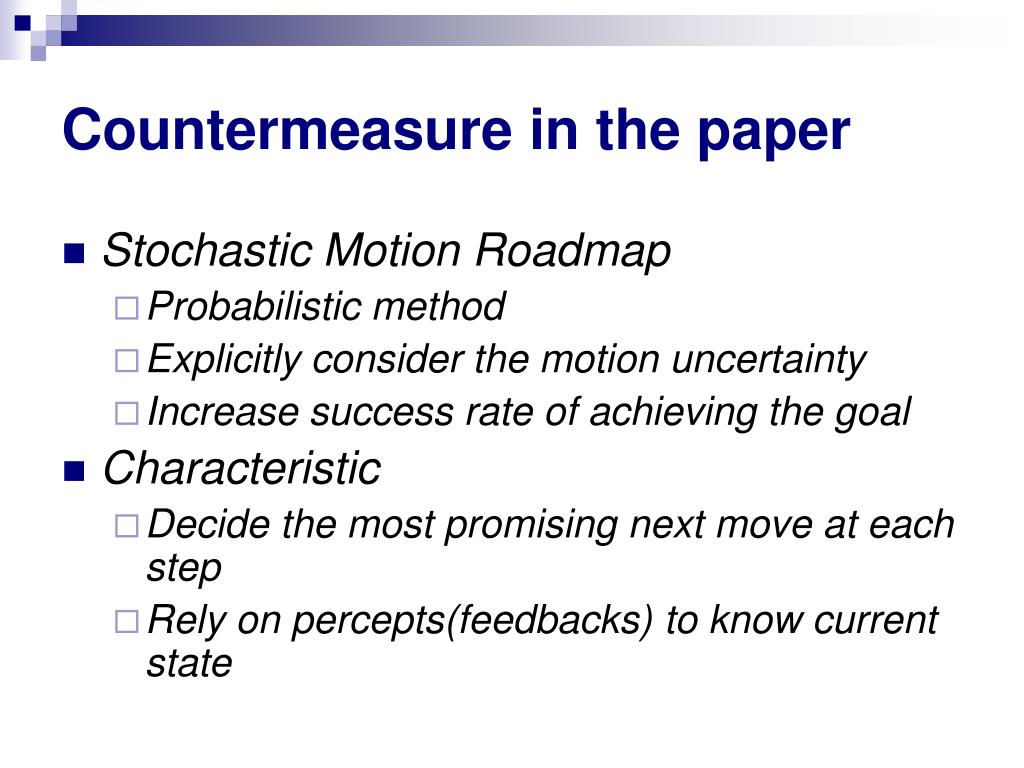

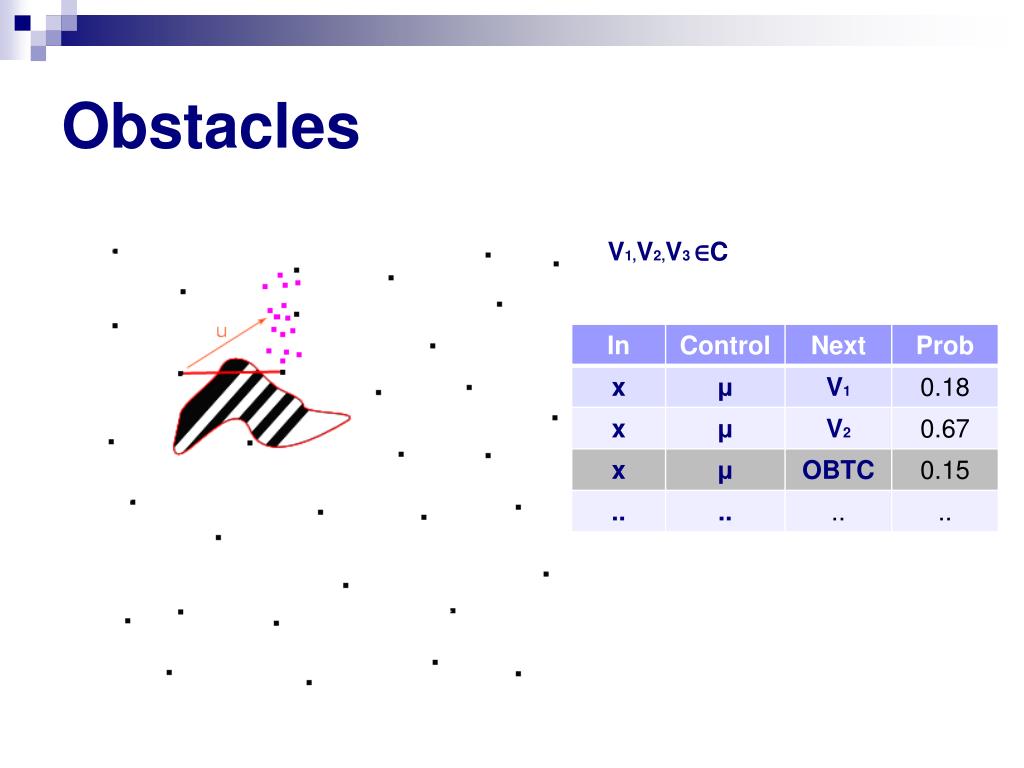

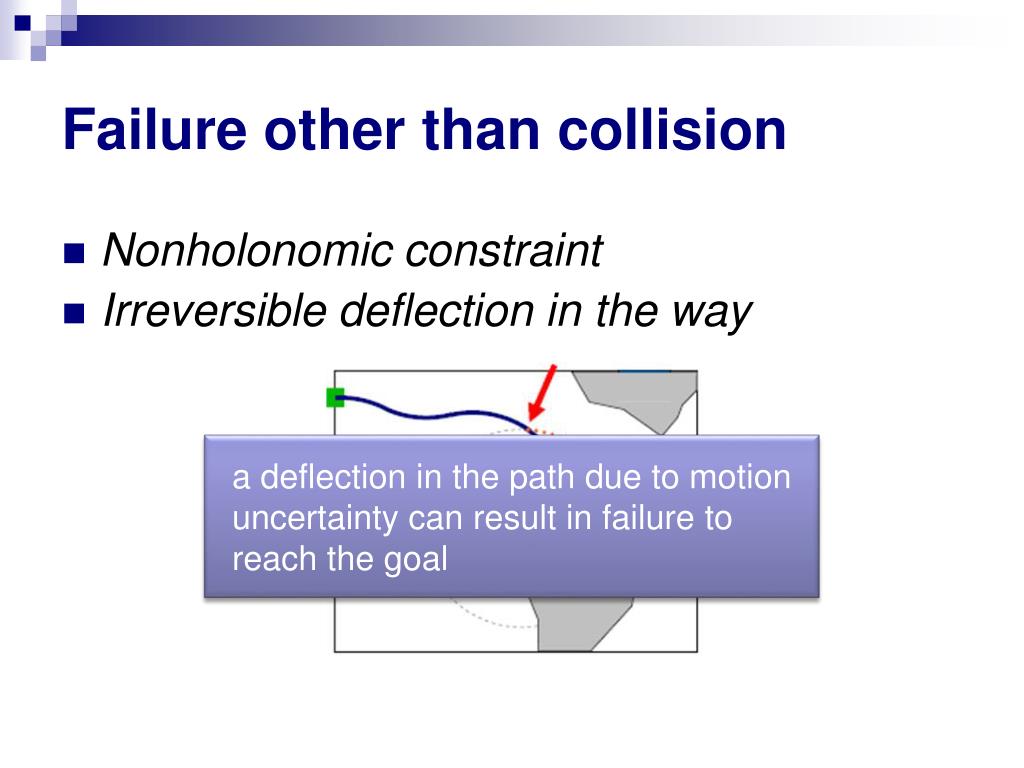

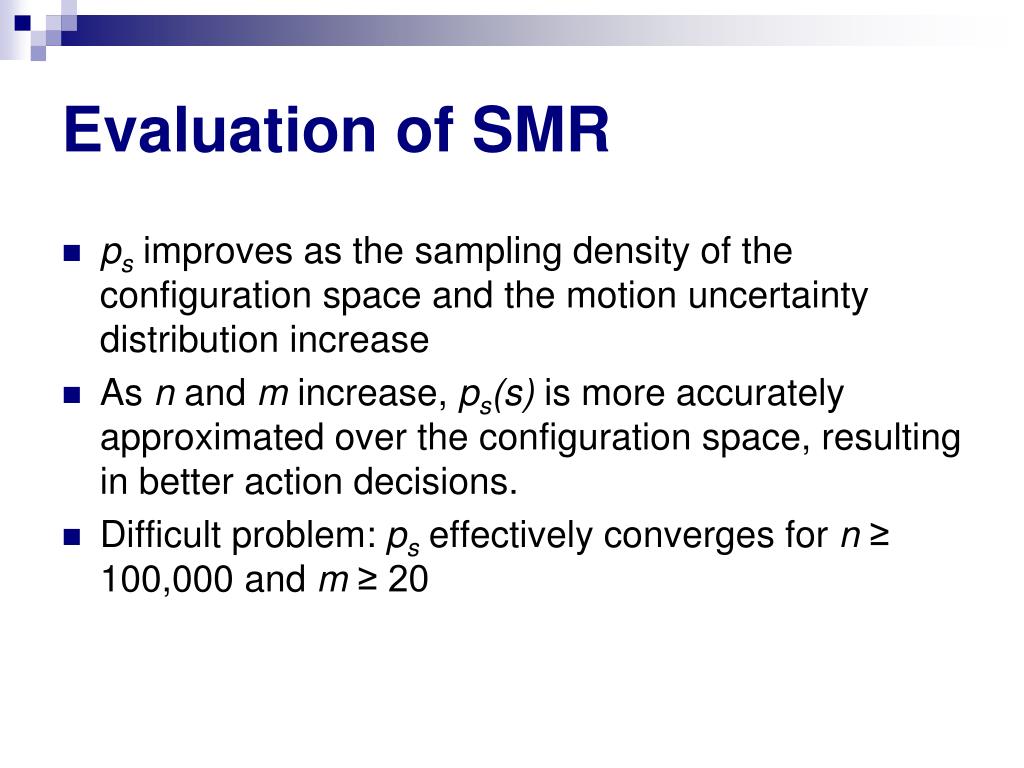

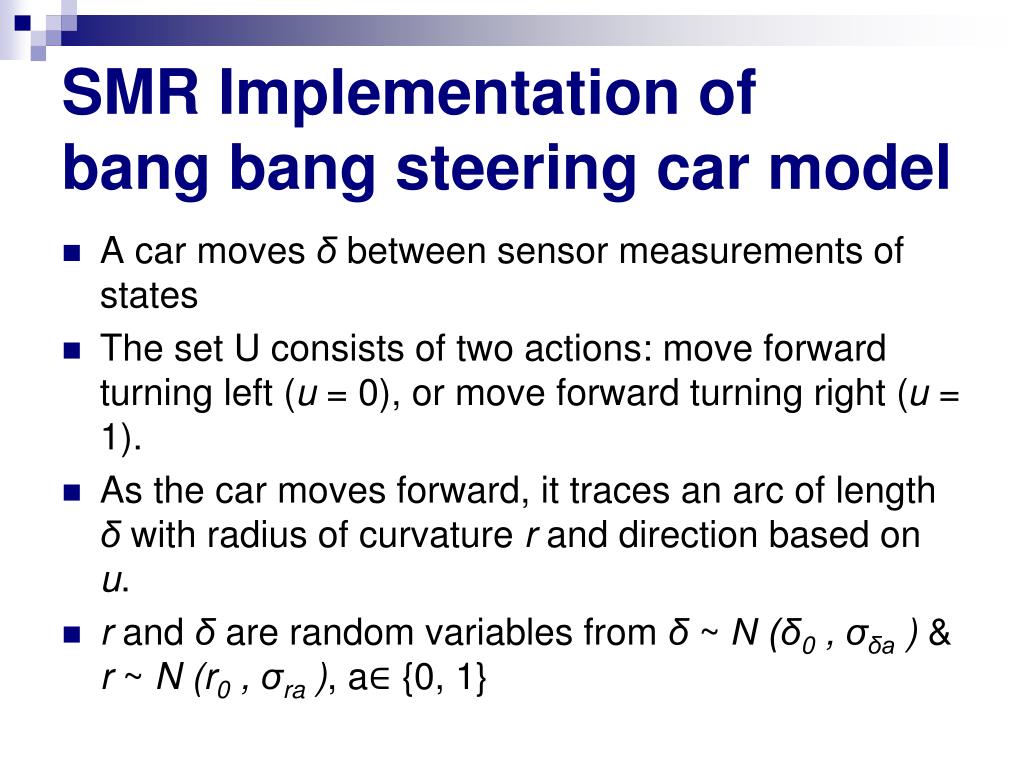

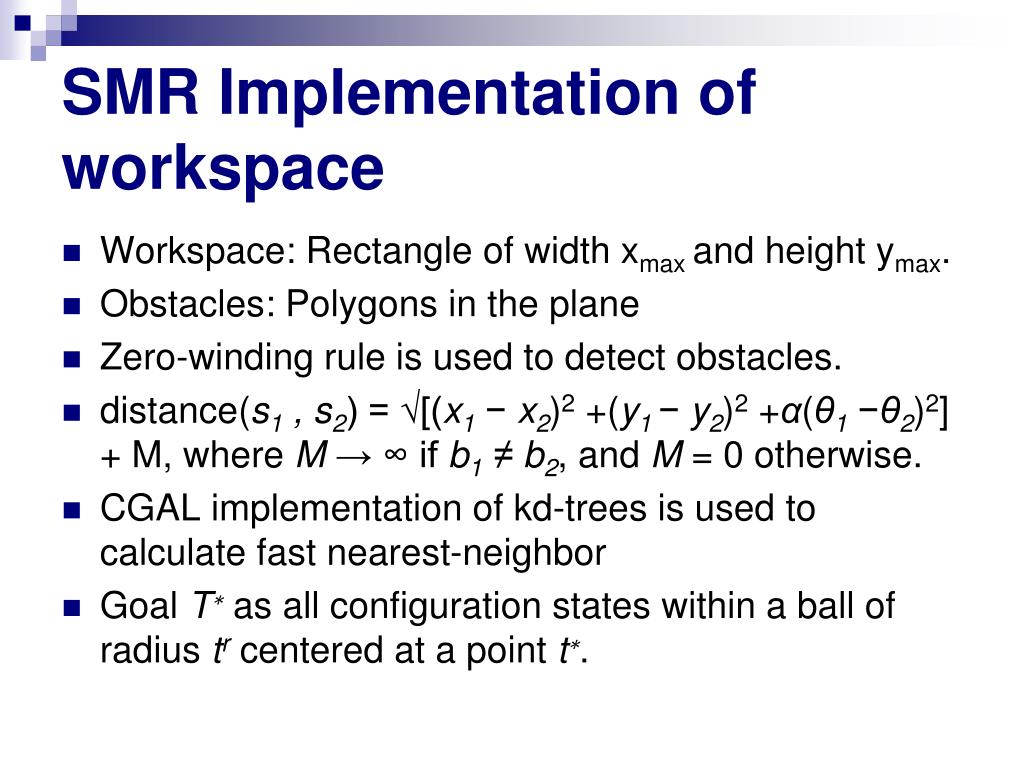

**The Stochastic Motion Roadmap: A Sampling Framework for**Planning with Markov Motion Uncertainty Changsi An You-Wei Cheah**Problem**a narrow passageway is unlikely to be robust to motion uncertainty • Sources of uncertainty • Imprecision of execution of action**Failure other than collision**• Nonholonomic constraint • Irreversible deflection in the way a deflection in the path due to motion uncertainty can result in failure to reach the goal**Countermeasure in the paper**• Stochastic Motion Roadmap • Probabilistic method • Explicitly consider the motion uncertainty • Increase success rate of achieving the goal • Characteristic • Decide the most promising next move at each step • Rely on percepts(feedbacks) to know current state**g**s Build Road Map • Probabilistic Road Map (PRM) • Stochastic Motion Roadmap (SMR) SMR: Enhanced PRM Describe the possibility of transition from one state to another PRM Capture the connectivity**g**s Stochastic Motion Roadmap Motion uncertainty**Build SMR**• Same as PRM • isCollisionFree(x) • isCollisionFreePath(x, y) • Sample configurations • Motion emulator with uncertainty • getTransitions(x, u) Environment Describer x, y : configurations x, y u: control**GetTransitions(x, u)**Sampled next states: from continuous configuration space x Voronoi Graph**GetTransitions(x, u)**Sampled next states V1,V2,V3 ∈C V1 V2 V3 x**GetTransitions(x, u)**Obstacles Sampled next states V1,V2,V3 ∈C V1 V2 V3 x**Obstacles**V1,V2,V3 ∈C**Obstacles**V1,V2,V3 ∈C**Obstacles**V1,V2,V3 ∈C V1 V2 V3**Transition Probability Matrix**Vi,Xi∈C μi∈Μ The table means: when currently at state In, if control Control is taken, there is Probchance to move to state Next**Query**• Goal • At configuration i∈C, choose μi∈Μ • maximize the success probability**Bellman equation**• State Evaluation Employ the idea of Dynamic Programming to memorize the intermediate results of J*(j) , If j is within destination area , If j will lead to collision with obstacle Compute recursively with BE , If otherwise**Circle in Recursion**• Cyclic transition probability graph • Utility function: penalty penalty**Stochastic Road Map**• Strengths • Maximize the success rate for nonholonomic systems • High fault tolerance from dynamic decisions • General framework, very flexible for modeling the uncertainty • Drawbacks • Rely on an accurate percepts of current state • Omit goal and obstacle dynamics • Optimality restricted by magnitude of discrete representatives of CSpace**SMR for Medical Needle Steering**• Steerable needles are controlled by 2 degrees of freedom: • Insertion distance • Bevel direction • Workspace is extracted from a medical image • Obstacles are tissues that should not be cut by the needle**Bang bang steering car model**State of the car is represented by a 4 dimension state space, si= (xi, yi, θi, bi) Bevel direction of needle can be set to point left (b= 0) or right (b= 1)**SMR Implementation of bang bang steering car model**A car moves δ between sensor measurements of states The set U consists of two actions: move forward turning left (u = 0), or move forward turning right (u = 1). As the car moves forward, it traces an arc of length δ with radius of curvature r and direction based on u. randδare random variables from δ~ N (δ0 , σδa ) &r~ N (r0 , σra ),a∈ {0, 1}**SMR Implementation of workspace**Workspace: Rectangle of width xmaxand height ymax. Obstacles: Polygons in the plane Zero-winding rule is used to detect obstacles. distance(s1 , s2) = √[(x1 − x2)2 +(y1 − y2)2 +α(θ1 −θ2)2] + M, where M → ∞ if b1≠b2, and M = 0 otherwise. CGAL implementation of kd-trees is used to calculate fast nearest-neighbor Goal T∗ as all configuration states within a ball of radius tr centered at a point t∗.**Evaluation of SMR**ps improves as the sampling density of the configuration space and the motion uncertainty distribution increase As n and m increase, ps(s) is more accurately approximated over the configuration space, resulting in better action decisions. Difficult problem: ps effectively converges for n ≥ 100,000 and m ≥ 20
