Continuous Probability Distributions

Continuous Probability Distributions. Many continuous probability distributions, including: Uniform Normal Gamma Exponential Chi-Squared Lognormal Weibull. Normal Distribution. The “ bell-shaped curve ” Also called the Gaussian distribution

nathan-mooney
Télécharger la présentation

Continuous Probability Distributions

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Continuous Probability Distributions • Many continuous probability distributions, including: • Uniform • Normal • Gamma • Exponential • Chi-Squared • Lognormal • Weibull ISE 327 Fall 2008

  2. Normal Distribution • The “bell-shaped curve” • Also called the Gaussian distribution • The most widely used distribution in statistical analysis • forms the basis for most of the parametric tests we’ll perform later in this course. • describes or approximates most phenomena in nature, industry, or research • Random variables (X) following this distribution are called normal random variables. • the parameters of the normal distribution are μand σ(sometimes μand σ2.) ISE 327 Fall 2008

  3. (μ = 5, σ = 1.5) Normal Distribution • The density function of the normal random variable X, with mean μ and variance σ2, is all x. ISE 327 Fall 2008

  4. Standard Normal RV … • Note: the probability of X taking on any value between x1 and x2 is given by: • To ease calculations, we define a normal random variable where Z is normally distributed with μ = 0 and σ2= 1 ISE 327 Fall 2008

  5. Standard Normal Distribution • Table A.1 : “Areas under the standard normal curve from - ∞ to z” • Page 915 negative values for z • Page 916 positive values for z ISE 327 Fall 2008

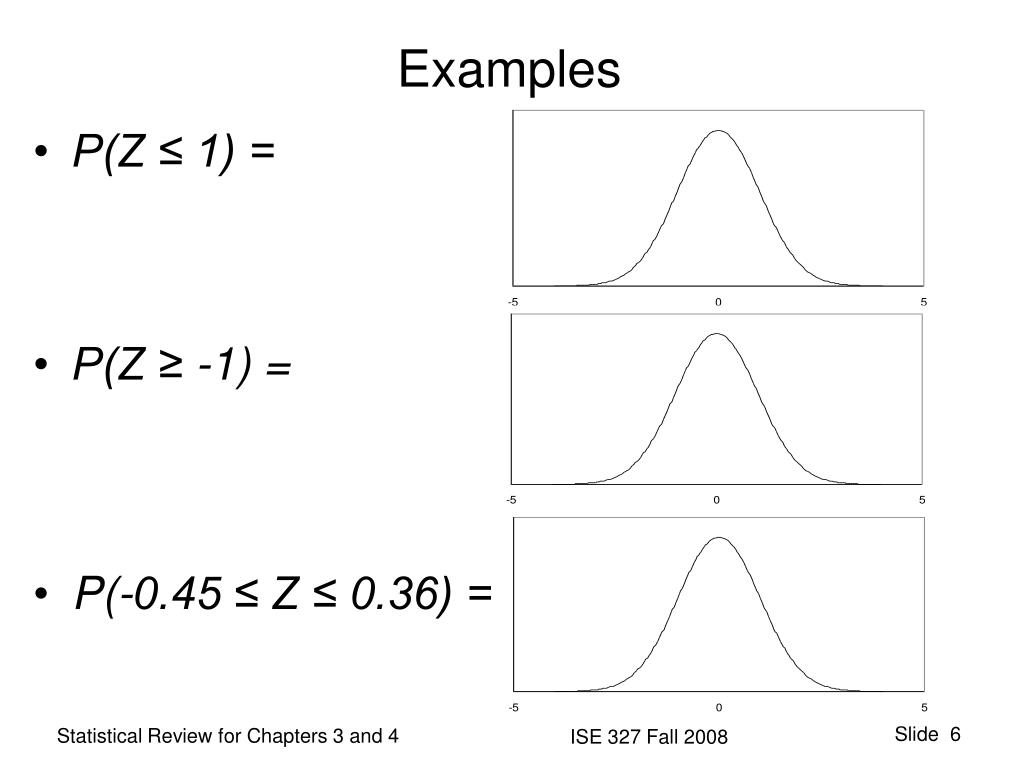

  6. Examples • P(Z ≤ 1) = • P(Z ≥ -1) = • P(-0.45 ≤ Z ≤ 0.36) = ISE 327 Fall 2008

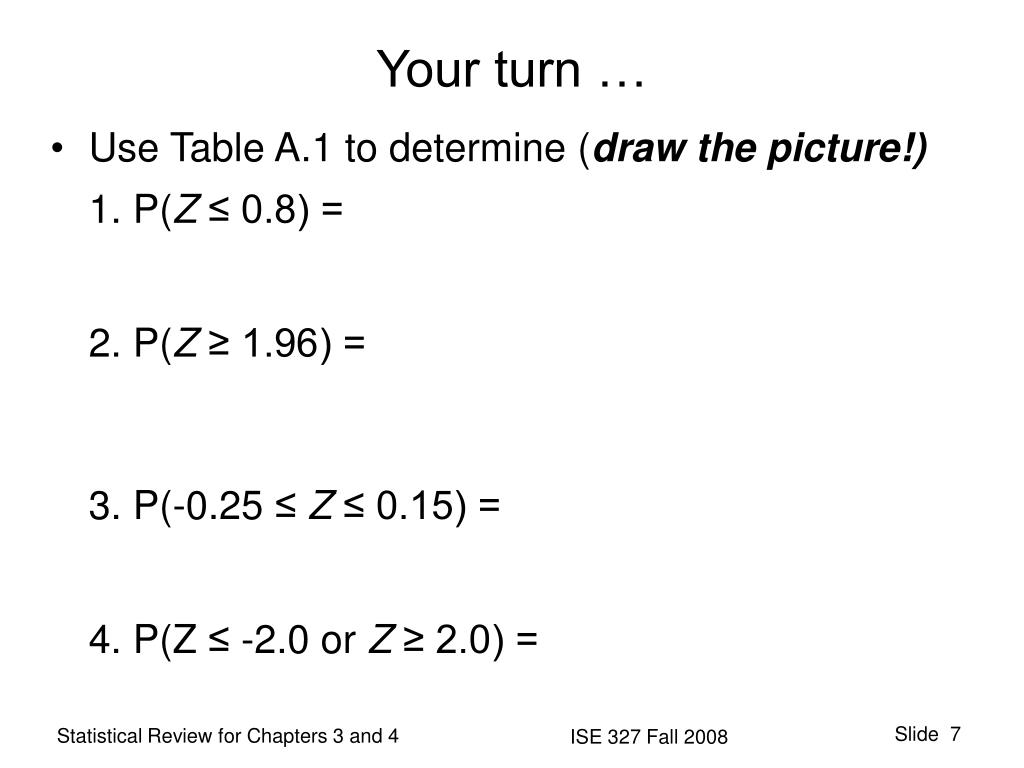

  7. Your turn … • Use Table A.1 to determine (draw the picture!) 1. P(Z≤ 0.8) = 2. P(Z≥ 1.96) = 3. P(-0.25 ≤ Z≤ 0.15) = 4. P(Z ≤ -2.0 orZ≥ 2.0) = ISE 327 Fall 2008

  8. Applications of the Normal Distribution • A certain machine makes electrical resistors having a mean resistance of 40 ohms and a standard deviation of 2 ohms. What percentage of the resistors will have a resistance less than 44 ohms? • Solution: Xis normally distributed with μ = 40 and σ= 2 and x = 44 P(X<44) = P(Z< +2.0) = 0.9772 Therefore, we conclude that 97.72% will have a resistance less than 44 ohms. What percentage will have a resistance greater than 44 ohms? ISE 327 Fall 2008

  9. Terminology Used in ISE 327 Text • A certain machine makes electrical resistors having a mean resistance of 40 ohms and a standard deviation of 2 ohms. What percentage of the resistors will have a resistance greater than 44 ohms? • Solution: Xis normally distributed with μx= 40 and σx= 2 and x = 44 P(X>44) = 1 - P(Z< +2.0) = 1 - 0.9772 Therefore, we conclude that 2.28% will have a resistance greater than 44 ohms. ISE 327 Fall 2008

  10. Your Turn DRAW THE PICTURE!! • What is the probability that a single resistor will have a rating between 42 and 44 ohms? • Specifications are that the resistors are 40 ± 3 ohms. What percentage of the resistors will be within specifications? ISE 327 Fall 2008

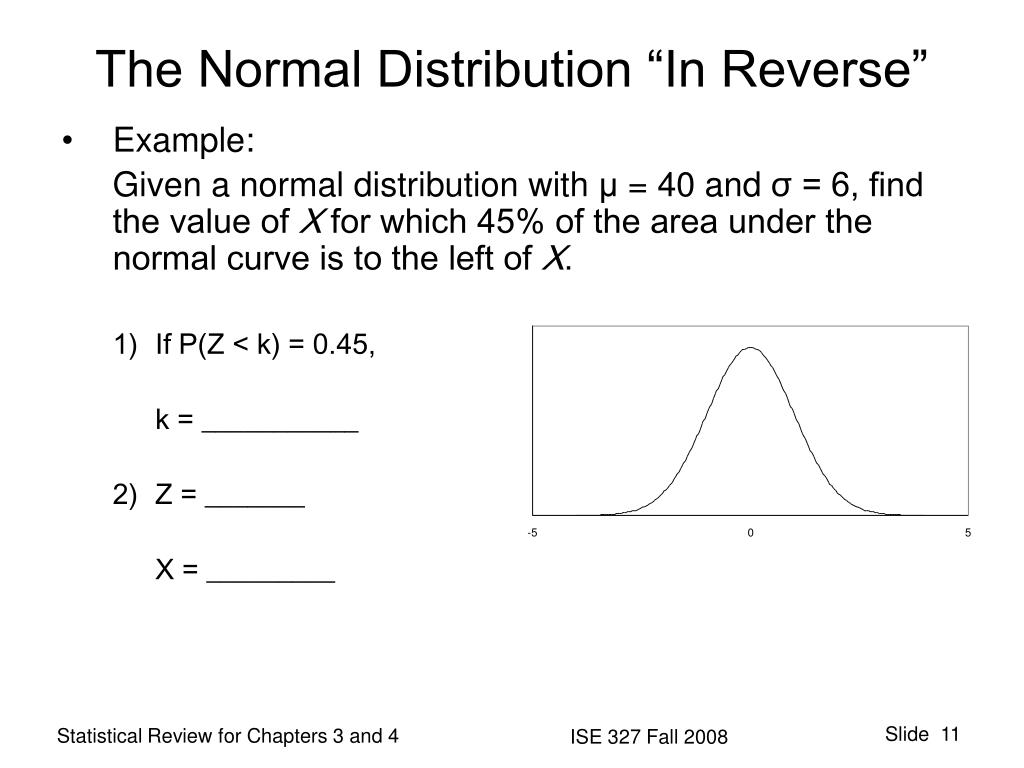

  11. The Normal Distribution “In Reverse” • Example: Given a normal distribution with μ = 40 and σ = 6, find the value of X for which 45% of the area under the normal curve is to the left of X. • If P(Z < k) = 0.45, k = ___________ • Z = _______ X = _________ ISE 327 Fall 2008
