  1. A Case Study of Virtual Museum: Reconstruction and Restoration of Dunhuang Caves in China Jiaoying Shi State Key Lab of CAD&CG College of Computer Science and Engineering Zhejiang University jyshi@cad.zju.edu.cn 2003.8

  2. Contents • Introduction of Dunhuang Mogao Caves • Reconstruction of Dunhuang Mogao Caves • Restoration of the Murals in Dunhuang Mogao Caves

  3. 1. Introduction of Dunhuang Mogao Caves • It’s located in North-West desert area of China • Start excavating in Jin Dynasty(336 A.D), 1600 years old.

  4. There still exist 492 intact caves, more than 2400 painted sculptures, over 45000 square meter murals and wood architectures of Tang and Song Dynasty murals architectures painted sculptures

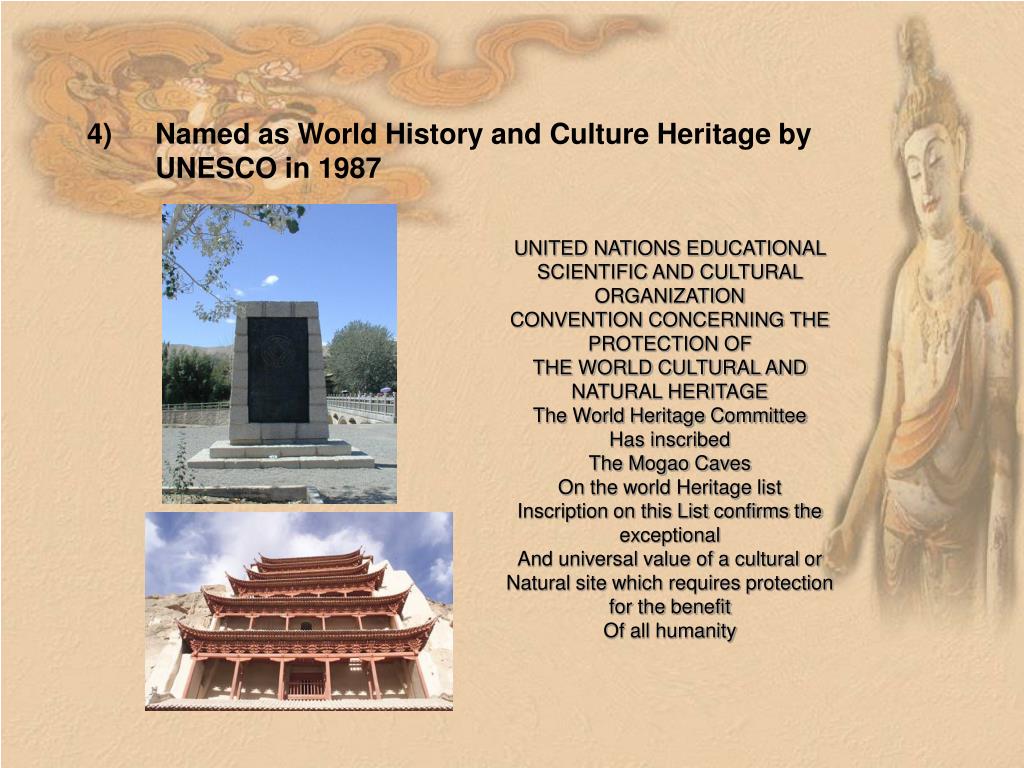

  5. Named as World History and Culture Heritage by UNESCO in 1987 UNITED NATIONS EDUCATIONAL SCIENTIFIC AND CULTURAL ORGANIZATION CONVENTION CONCERNING THE PROTECTION OF THE WORLD CULTURAL AND NATURAL HERITAGE The World Heritage Committee Has inscribed The Mogao Caves On the world Heritage list Inscription on this List confirms the exceptional And universal value of a cultural or Natural site which requires protection for the benefit Of all humanity

  6. The perennial invasion of sand blown by the wind has also done great damage to the treasury, thus putting it in severe danger. • In order to protect the Mogao Caves furthermore, today a severe measure of limiting the visitors number is taken by the local administrator. • So it is very urgent to build a virtual Museum of Dunhuang Mogao Caves to disseminate this World Cultural Heritage broadly.

  7. 2. Reconstruction of Dunhuang Mogao Caves • Surveying the caves • Modeling the caves

  8. Digitizing the murals • photographing bracket • Demo of Shooting The criterion: well-proportioned lighting, parallel moving and partial overlaps

  9. Mapping the murals onto the model Mapping

  10. Mosaicing Images

  11. Digitization of three-dimensional culture relics • Acquiring high-precision 3D models by 3D scanner • The model acquired by 3D scan

  12. Digitization and modeling of outdoor scene 1 2 Take photos of out-door scene in a fixed point Adjusting and mosaicing

  13. Demo1: The navigation of Dunhuang Mogao Caves

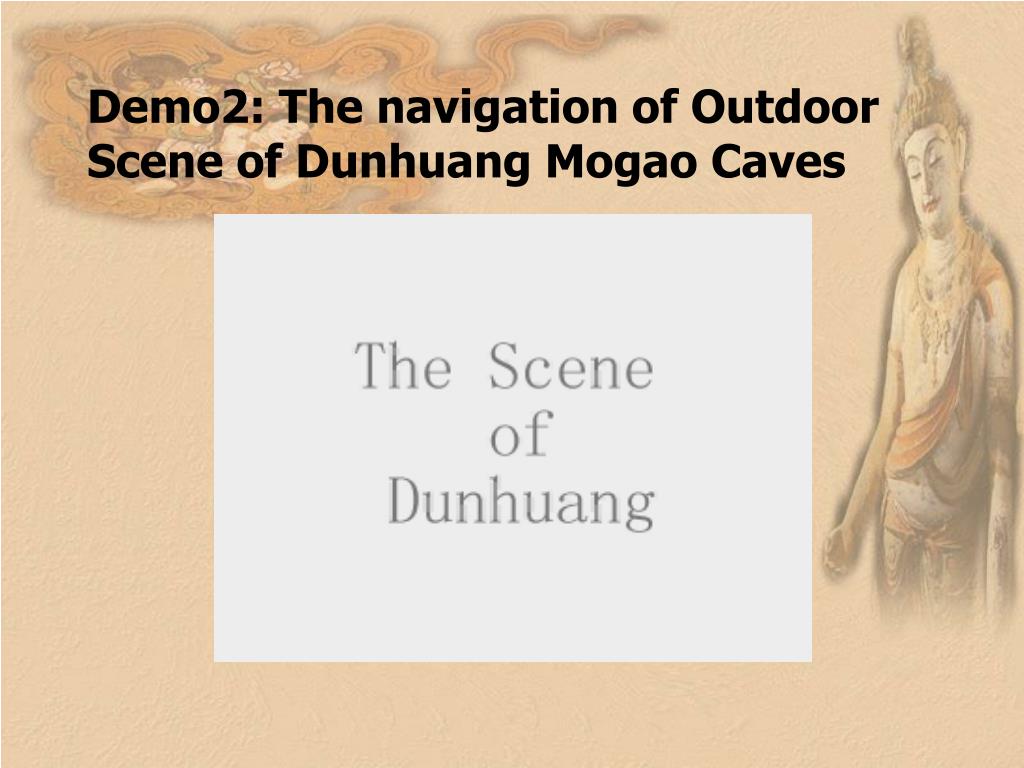

  14. Demo2: The navigation of Outdoor Scene of Dunhuang Mogao Caves

  15. 3. Restoration of the Murals of Dunhuang Mogao Caves • The murals and sculptures in Dunhuang Mogao Caves have experienced color changes and impairment over 1600 years. • Introducing 3 techniques for virtual restoration of the mural color of Dunhuang Mogao Caves.

  16. Virtual Color Restoration Reasoning Based on Scientific Rules Analogical Thinking Model Reasoning Based on experience knowledge

  17. Reasoning Based on Scientific Rules Chemical Color Changing Rule Physical Color Changing Rule Experience Knowledge Computer Color Changing Model in Computer

  18. Chemical Color Changing Rule According to the chemical knowledge of Dunhuang researchers, we got the Chemical Color Changing Rule. Changing gradually Red Lead Oxide (PbO2 ) + Oxygen(O2 ) Pb3O4

  19. Physical Color Changing Rule Over some time t, the color gradually changes or fades by covered dust. It is essential a color mixing process of the mural’s color and dust’s color Let mural color Cb（Rb，Gb，Bb）, dust color Cf（Rf，Gf，Bf）, the transparence of Cf be X%, then the mixing color is: RGB(160,168,171) + RGB(119,71,31) RGB(150,144,136) 25% Transparence

  20. Analogous Thinking Model • Multi-layer mural • This is the inner layer • not been oxygenated • after outer layer fell off The same dynasty and cave The unoxygenated color element provide the source knowledge for analogous reasoning

  21. Reasoning Based on Experience Knowledge of the Dunhuang Artists and Researchers The set of Dunhuang typical color of the Tang Dynasty: Red Yellow Blue Green Brown Gray White Golden

  22. Reasoning Based on Experience Knowledge of the Dunhuang Artists and Researchers Color Region Obtaining Color Layering Edge Destination Based on the set of typical color of Dunhuang

  23. Dunhuang Mural Color Virtual Restoration—Example of Color Faded Restoration Refer the color well-protected mural image to restore Source Image Destination Image Anology Reference

  24. Dunhuang Mural Color Virtual Restoration—Example of Color Faded Restoration According to the Chemical Color Gradually Changing Rule to restore Source Image Destination Image Chemical Color Gradually Changing Rule

  25. Dunhuang Mural Color Virtual Restoration—Example of Color Faded Restoration Integrating Color Faded Restoration and Color Changed Restoration Source Image Destination Image

  26. Dunhuang Mural Color Virtual Restoration—Example of Color Faded Restoration Using Created Pattern to restore faded region Destination Image Source Image Created Pattern

  27. Demo3: Dunhuang Mural Color Changing Process

  28. Thanks!
