  1. Muscular SystemPart 1Muscular Tissue Honors Anatomy & Physiology

  2. Types of Muscle Tissue • 3 types: • Skeletal • striated & voluntary • Cardiac • striated & involuntary • Smooth • Smooth & involuntary

  3. Skeletal Muscle Tissue • most attached to bone • striations: • see light & dark bands under microscope

  4. Cardiac Muscle Tissue • found only in walls of heart chambers • heart has a pacemaker that initiates each contraction • called autorhymicity • controlled by hormones & neurotransmitters

  5. Smooth Muscle Tissue • in walls of hollow organs • attached to hair follicles • some autorhythmic (wall of intestines) • regulated by ANS motor neuron& hormones

  6. Functions of Muscular Tissue (#4) • 1. producing body movements • moving whole body or parts of body

  7. Functions • 2. stabilizing body position • skeletal muscles stabilize joints & halp maintain body positions • postural muscles hold sustained contractions (holding head up all day)

  8. Functions • 3. storing & moving substances w/in body • storing: accompanied by sustained contractions of ringlike bands of smooth muscle called sphincters (hold material in organ) • contraction/relaxation of smooth & cardiac muscle moves material thru bld vessels  heart  bld vessels

  9. Functions • 4. generating heat • process called thermogenesis • most of heat generated by muscle contraction maintains normal body temp of 37°C • shivering: involuntary contraction of skeletal muscle increases heat production

  10. Properties of Muscle Tissue (#4) • 1. electrical excitability • ability to respond to certain stimuli by producing electrical signals called action potentials • 2 main types stimuli: • autorhythmic electrical signals • chemical stimuli (neurotransmitters) released by neurons

  11. Properties • 2. contractility • ability of muscle fibers to contract forcefully when stimulated by an action potential • muscle fiber shortens & pulls on whatever it is attached to • if force > resistance of object, movement occurs

  12. Properties • 3. extensibility • ability of muscle tissue to stretch w/out being damaged • smooth muscle fibers are stretched every time your stomach or bladder is really full

  13. Properties • 4. elasticity • ability of muscle tissue to return to original length & shape after contraction or extension

  14. CT Components • fascia: sheet or broad band of fibrous CT that supports & surrounds muscles or other organs • 2 layers: superficial & deep

  15. CT Components • 2. 3 layers of CT extend from deep fascia  deeper into muscle tissue • epimysium: outermost layer, encircles entire muscle • perimysium: surrounds groups of 10 – 100 muscle fibers = a fascicle • endomysium: surrounds individual muscle fibers

  16. CT Components • 3. tendon: extension of epimysium, perimysium, & endomysium beyond muscle that attaches the skeletal muscle to another structure (bone or another muscle)

  17. Muscle Histology Terms • hypertrophy: enlargement of existing muscle fibers • ex: muscle growth in newborn • hyperplasia: increase in # of muscle fibers • ex: growth hormone causes increase in #s from childhood  adult • fibrosis: replacement of muscle by fibrous scar tissue • satellite cells: stem cells in muscle tissue; limited capacity

  18. Why Muscle Fibers are Multinucleated

  19. Terms for Muscle Fiber Organelles • sarcolemma: plasma membrane • sarcoplasm: cytoplasm • myofibril: contractile organelles; thread-like structures; each extends length of muscle fiber

  20. Terms for Muscle Fiber Organelles • T tubules: (transverse) invaginations of sarcolemma into sarcoplasma; increasing surface area • filled with interstitial fluid • ensures action potentials excites all parts of muscle fiber

  21. T Tubule

  22. Terms for Muscle Fiber Organelles • sarcoplasmic reticulum: (SR) endoplasmic reticulum that encircles individual myofibrils • dilated end sacs called terminal cistern • T tubule + 2 terminal cisterns = triad • in relaxed muscle fiber SR stores Ca++ • release of Ca++ triggers contraction

  23. Triad

  24. Muscle Proteins • 3 kinds proteins in myofibrils: • contractile proteins • myosin make up thick filaments, golf-club shape (myosin head) • actin thin filaments • regulatory proteins • tropomyosin &troponin: both in thin filaments • structural proteins • ~12 different ones function in alignment, stability, elasticity, & extensibility of myofibrils

  25. Where is the actin?

  26. http://highered.mcgraw-hill.com/olcweb/cgi/pluginpop.cgi?it=swf::535::535::/sites/dl/free/0072437316/120104/bio_b.swf::Sarcomere%20Shorteninghttp://highered.mcgraw-hill.com/olcweb/cgi/pluginpop.cgi?it=swf::535::535::/sites/dl/free/0072437316/120104/bio_b.swf::Sarcomere%20Shortening http://www.wiley.com/college/pratt/0471393878/student/animations/actin_myosin/actin_myosin.swf

  27. Review to do @ home • http://brookscole.cengage.com/chemistry_d/templates/student_resources/shared_resources/animations/muscles/muscles.html

  28. Muscle Contraction Animations • http://bcs.whfreeman.com/thelifewire/content/chp47/4702001.html • http://www.sumanasinc.com/webcontent/animations/content/muscle.html • https://highered.mcgraw-hill.com/sites/0072495855/student_view0/chapter10/animation__breakdown_of_atp_and_cross-bridge_movement_during_muscle_contraction.html

  29. Contraction Cycle Steps • ATP hydrolysis • ATP attached to myosin head • attachment of myosin head to actin to form cross bridges • power stroke • cross bridges rotate  center  slides thin filament past thick filament • detachment of myosin from actin • ATP binds to myosin head & cross bridges released

  30. before

  31. after

  32. Neuromuscular Junction (NMJ) • somatic motor neurons innervate muscle fibers to contract

  33. NMJ • synapse: functional junction between 2 neurons or between a neuron & an effector (muscle or gland); may be electrical or chemical • 1st side of synapse: end of axon of motor neuron called synaptic end bulb • then synaptic cleft (the space) • lastly, motor end plate: part of sarcolemma that has receptors for neurotransmitter acetylcholine (ACh)

  34. Steps in Nerve Action Potential  Muscle Action Potential • 1. release of ACh • 2. activation of ACh receptors • 3. production of muscle action potential • 4. termination of ACh activity

  35. Release of ACh • ACh stored in vesicles in synaptic end bulb • action potential travels down axon  reaches synaptic end bulb  induces exocytosis of neurotransmitter from synaptic vesicles • ACh diffuses across synaptic cleft toward motor end plate

  36. Activation of ACh receptors • 2 molecules of ACh bind to ACh receptors embedded in sarcolemma opens ion channel  allows Na+ diffuse across membrane

  37. Production of Muscle Action Potential • inflow Na+ makes inside of muscle fiber more + charged • this change in membrane potential triggers a muscle action potential  propagates along sarcolemma  T tubules • this causes SR to release Ca++  sarcoplasm  contraction

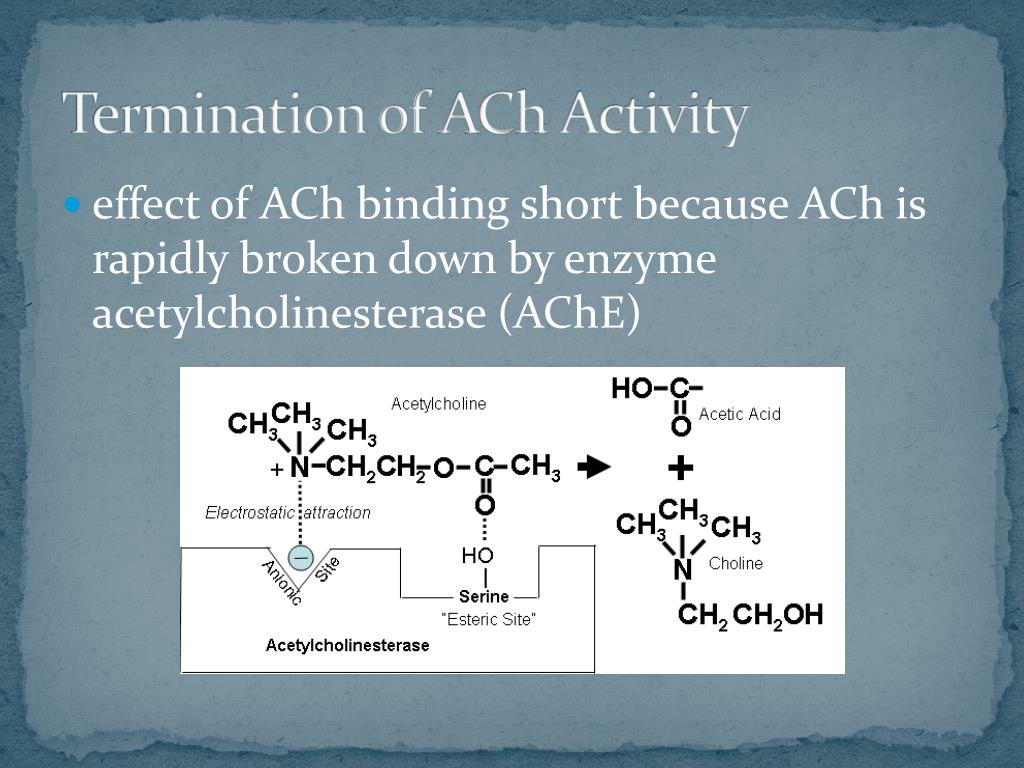

  38. Termination of ACh Activity • effect of ACh binding short because ACh is rapidly broken down by enzyme acetylcholinesterase (AChE)

  39. NMJ • @ midpoint of muscle fiber: • muscle action potential propagate  both ends of fiber • allows simultaneous activation & so contraction of all parts of muscle fiber

  40. Curare • South American plant derivative • causes paralysis by binding to & blocking ACh receptors on motor end plates • curare-like drugs used in general anesthesia to relax skeletal muscles

  41. Botulism • disease caused by Clostridium botulinum toxin that blocks exocytosis of synaptic vesicles so no ACh released so no muscle contraction • toxin one of most lethal chemicals known • causes death by paralyzing skeletal muscles: breathing stops when diaphragm & intercostal muscles stop contracting
