Comprehensive Guide to Appendicular Skeleton Structure

Learn about the 126 bones of the appendicular skeleton, from the upper extremities to the lower extremities, including the pectoral and pelvic girdles. Understand the functions and composition of the bones that play a crucial role in movement and support. Includes detailed information on the hip, leg, foot, ankle, and hand bones.

tacy
Télécharger la présentation

Comprehensive Guide to Appendicular Skeleton Structure

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

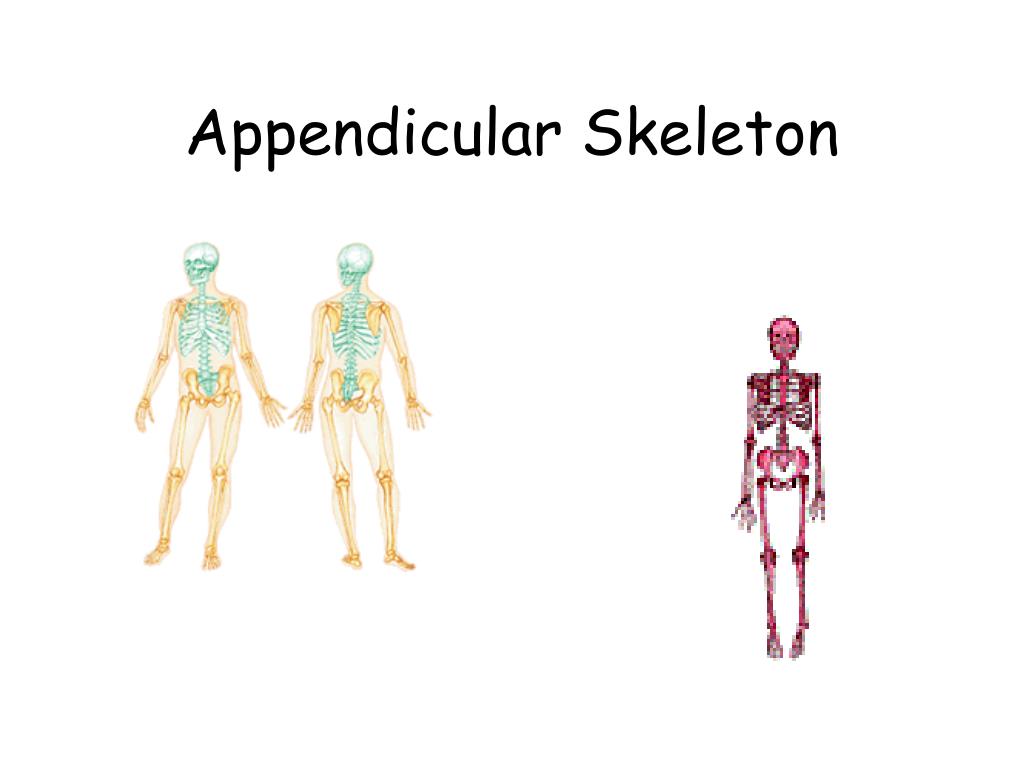

  1. Appendicular Skeleton

  2. Appendicular Skeleton • 126 bones – suspended by girdles from axial skeleton • Designed for movement • Pectoral girdle – 4 bones • Upper extremity -Arm – 1 bone - forearm – 2 bones - hand = wrist, palm & fingers – 27 bones [each]

  3. Pelvic Girdle – 2 bones • Lower Extremity – leg – 1 bone • - lower leg – 2 bones • - foot = ankle, instep & toes – 26 bones [each ] • - Patella – 2 bones • *Pelvic or Hip Girdle: • Attaches the lower extremity to the axial skeleton • Provides support for body weight

  4. Hip / Coxal bones [ ossa coxae, innominate bones] Ilium – ASIS, PSIS Ischium - tuberosity Pubis - rami Symphysis pubis Obturator foramen Acetabulum

  5. Lower Extremity • Leg [thigh] – femur Head Fovea capitis Neck Trochanters – greater/lesser Condyles – medial/lateral Epicondyles

  6. Lower Extremity *Leg – region between knee and ankle • Fibula – lateral bone • Tibia – medial bone Malleolus Condyles – medial/lateral Tibial tuberosity

  7. Patella [kneecap] a flat, triangular sesamoid bone Enclosed within the quadriceps tendon

  8. Ankle or Tarsus Contains 7 tarsal bones Calcaneous = heel bone Talus Cuboid Navicular Cuneiforms – lateral, intermediate & medial

  9. Foot • Metatarsals – not named, but numbered 1 – 5 starting at medial side • Toes – phalanges or digits: 3 bones [proximal, distal & middle] for each toe, except big [great] toe which has 2 [no middle phalanx]

  10. Pectoral or Shoulder Girdle • Clavicle [collarbone] – ‘S’ shaped bone * most frequently fx’d bone of body • Scapula [shoulder blade] – thin, flat, triangular bone. • Acromion • Spine • Coracoid process • Gleniod fossa/cavity

  11. Upper Extremity • Arm [brachium] humerus Head Tubercles – greater/lesser Epicondlyes – medial/lateral Olecranon fossa Capitulum Trochlea

  12. Upper Extremity *forearm – region between elbow and wrist • Ulna Olecranon process • Radius head Styloid process

  13. Wrist or Carpus • Contains 8 carpal bones Bound tightly by ligaments Arranged in 2 rows Scaphoid Trapezium Lunate Trapezoid Triquetral Capitate Pisiform Hamate

  14. Hand • Metarcarpals – not named, but numbered 1-5 starting on lateral [thumb] side • Fingers – phalanges or digits: 3 bones [proximal, distal & middle] for each finger, except thumb, which has 2 [ no middle phalanx]
