  1. TYPE 23 POWER & DISTRIBUTION PO COLES

  2. NOTE The full presentation covers high voltage systems, switchboards, 600, 440, 115 volt systems, services and Essential Services, the P&D system. This was used to develop and teach technicians And the electrical damage control teams who would also have to attend my electrical workshops For CPD. All system content has been removed.

  3. Aims • To develop our understanding of the Type 23 Electrical Power System and develop the P&D model: • Covering: • The basic components of Generators. • How 450/600v Switchboards and ACBs operate. • 440v services through EDC’s and MCCB’s. • Distribution via Fuse Panels and Transformers. • Freestanding ROCOS.

  4. Generator • Content Removed

  5. Generator Main Rotor & 3Ø Output Stator PMG – AVR Supply Pilot Exciter Rotor Main Bearing

  6. Generator Main Rotor & 3Ø Output Stator PMG – AVR Supply Pilot Exciter Rotor AVR Control Main Bearing Main Exciter Rotor Armature & Stator

  7. Generator Main Rotor & 3Ø Output Stator PMG – AVR Supply Pilot Exciter Rotor AVR Control Main Bearing Main Exciter Rotor Armature & Stator AC to DC Rotating Rectifier

  8. Generator 3Ø Output AVR Feedback Main Rotor & 3Ø Output Stator PMG – AVR Supply Pilot Exciter Rotor AVR Control Main Bearing Main Exciter Rotor Armature & Stator AC to DC Rotating Rectifier

  9. Generator 3Ø 61.2Hz 600v Pilot Exciter Main Exciter Rotating Rectifier 16 poles 24 poles 8perØ Stator PMG Stator (99 Slots) Main Generator AC Full Wave rectified to DC 77v 29A 160Hz AC 49.5v 197A DC Output AVR Feedback Signal

  10. Generator

  11. Novamax ACB’s • Content Removed • Spring Charging (Motor) • Manual Ratchet & Pawl • Solid State Trip Unit • Shock Protection • 0.8 Power Factor lag

  12. Novamax ACB’s OXO Cube (Indicates I1/I2 Trip) Spring Charged (White Discharged) Breaker Status (Logic Indicator) Charging Handle (Moves Crank) Close ACB Open ACB

  13. Novamax ACB’s (B) (A) (C) (E) (F)

  14. Novamax ACB’s (A) (B)

  15. Novamax ACB’s Battery Check & Charge (red LED illuminates) Battery Module I3 – Instantaneous Over Current Trip Indication (Switches Orange when tripped) I2 – Short Time Over Current I1 – Long Time Over Current I1,I2 Reset

  16. Novamax ACB’s Easy Access Fuses Control Cables Cables (from MEPS)

  17. Novamax ACB’s (1) (3) (2) (4)

  18. Switchboard Common 600v Rail

  19. Switchboard 600v from Generators Common 600v Rail 600v Services

  20. DG F2 600v Switchboard DG F2 600v Common 600v Rail

  21. DG F2 600v Switchboard DG F2 600v Common 600v Rail EMACB 600v MGF Supply

  22. MG Sets • Content Removed

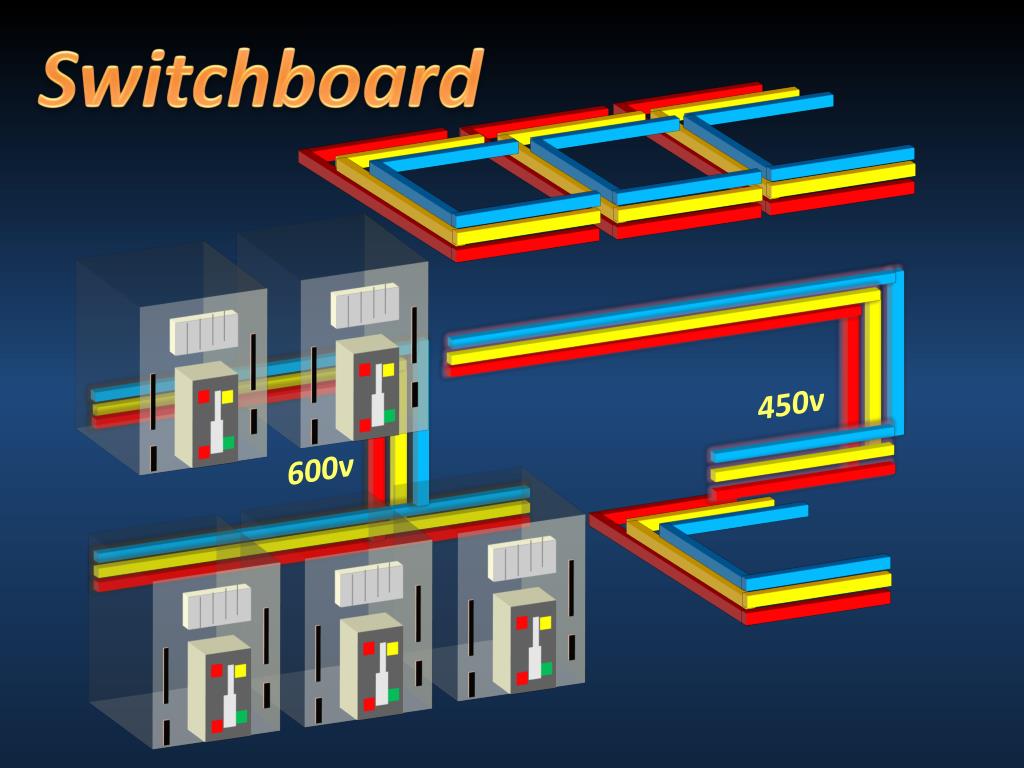

  23. Switchboard 450v 600v

  24. Switchboard 450v 600v

  25. Switchboard

  26. Switchboard SS MG-F F1 Alt F1 F2 450v 600v I/C MG-F EMACB I/C

  27. 440v Services

  28. MCCB’s • 2 Types - 100A or 250A • 440V 60Hz 3Ø • Content Removed

  29. MCCB’s • 250A MCCB’s fitted in Switchboards to supply EDC’s

  30. Summary • Developed our understanding of the Type 23 Electrical Power System and developed the P&D model: • Covering: • The basic components of Generators. • How 450/600v Switchboards and ACBs operate. • 440v services through EDC’s and MCCB’s. • Distribution via Fuse Panels and Transformers. • Freestanding ROCOS.

  31. Any Questions?
